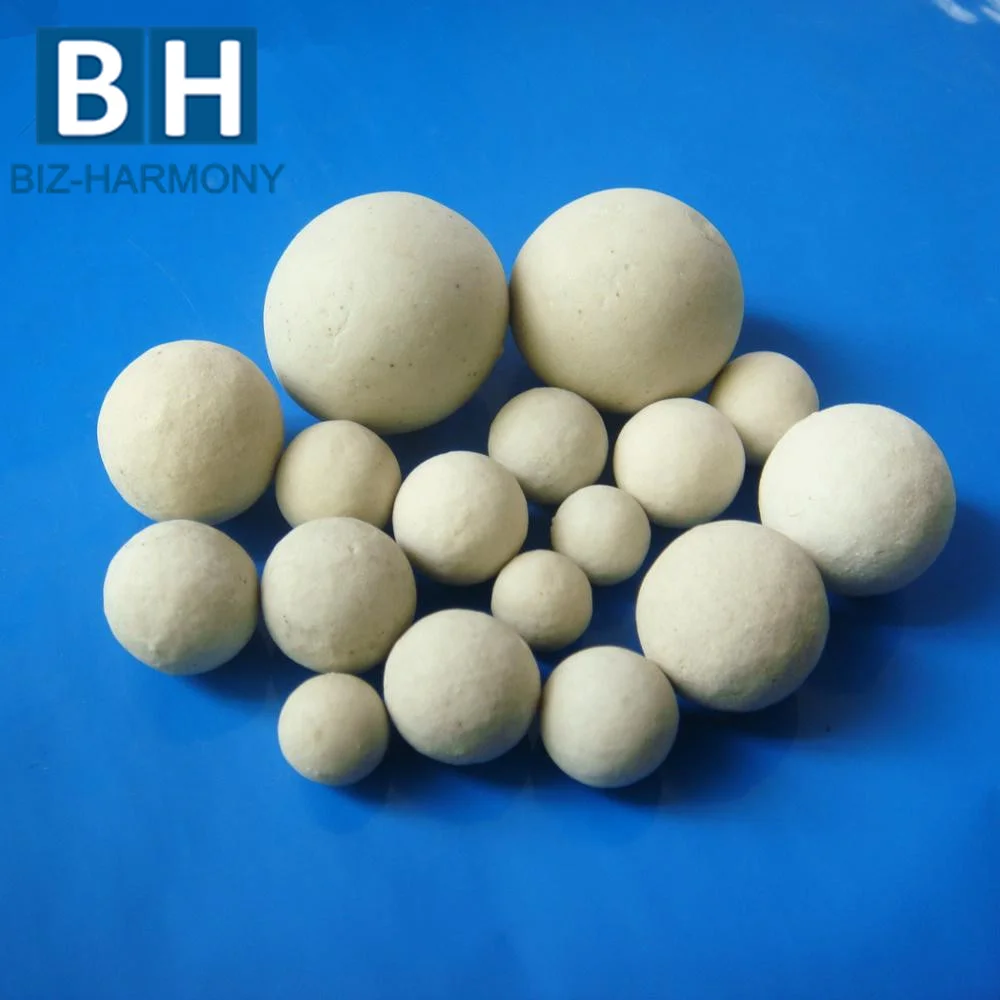

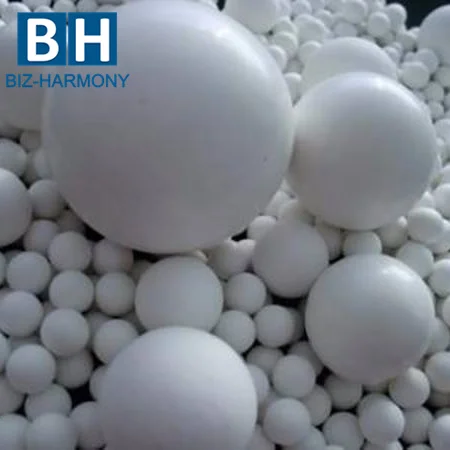

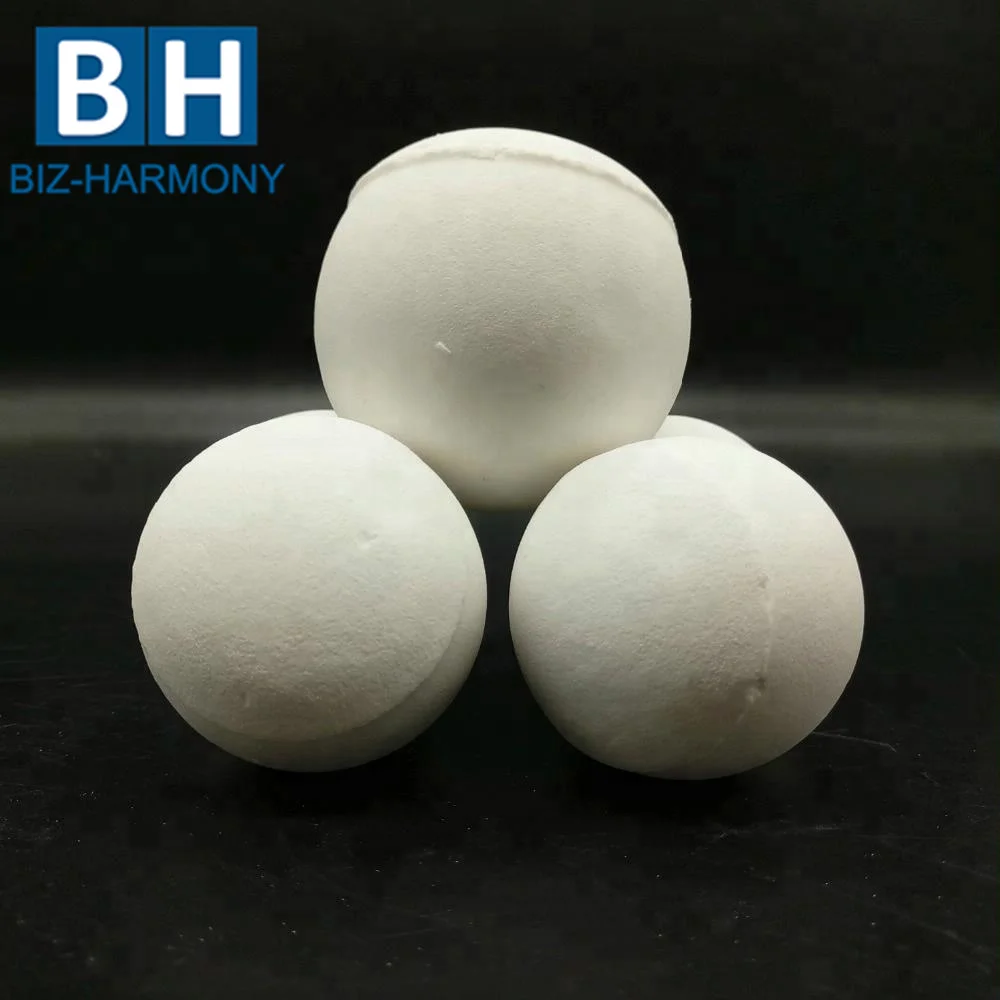

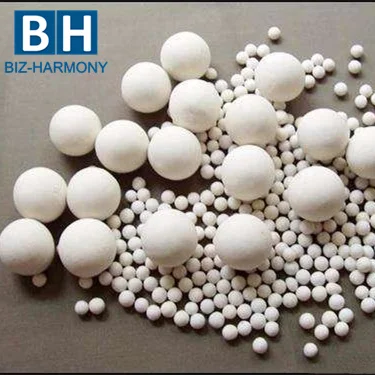

Reasonable price water purification spheres activated alumina ball
- Category: >>>
- Supplier: Zibo Biz-Harmony International Co. Ltd.
Share on (1600310755232):
Product Overview
Description
Product Description
The Inert 99% High Alumina Balls
Product Paramenters
Chemical Composition | ||
Al2O3 | ≥ 99% | |
SiO2 | ≤ 0.20% | |
TiO2 Na2O K2O | ≤ 0.40% | |
Fe2O3 | ≤ 0.15% | |
Physical Properties | ||||||||
Diameter (inch) | Diameter (mm) | Bulk Density (g/cm3) | Water Absorption (%) | Compression Strength (kgf/m2) | ||||
1/8’’ | 3 | 2.00-2.20 | Max.6 | 500 | ||||
1/4’’ | 6 | 2.00-2.20 | Max.6 | 1000 | ||||
3/8’’ | 10 | 2.00-2.20 | Max.6 | 2000 | ||||
1/2’’ | 13 | 2.00-2.20 | Max.6 | 6000 | ||||
5/8’’ | 16 | 2.00-2.20 | Max.6 | 8000 | ||||
3/4’’ | 20 | 2.00-2.20 | Max.6 | 10000 | ||||
1’’ | 25 | 1.80-2.05 | Max.6 | 12000 | ||||
11/4’’ | 30 | 1.80-2.05 | Max.6 | 16000 | ||||
11/2’’ | 38 | 1.80-2.05 | Max.6 | 18000 | ||||
2’’ | 50 | 1.80-2.05 | Max.6 | 22000 | ||||
Product Application
High Purity, Fine Corrosion Resistance, High Crush Strength, Chemical Stability, Thermal Stability
1. Catalyst Supporting Media
High alumina balls are widely used in petroleum, chemical engineering, fertilizer, smelting, and gas and environment protection.They are used as covering and supporting material of catalyst in reaction vessel and as packing in towers.
2. Thermal Storage
High alumina balls can be resistant to high temperature and high pressure and acid, alkali, salt, and various organic solvent corrosion, widely used in petroleum, chemical industry, fertilizer industry, natural gas and environmental protection and other industries.
1. Catalyst Supporting Media
High alumina balls are widely used in petroleum, chemical engineering, fertilizer, smelting, and gas and environment protection.They are used as covering and supporting material of catalyst in reaction vessel and as packing in towers.
2. Thermal Storage
High alumina balls can be resistant to high temperature and high pressure and acid, alkali, salt, and various organic solvent corrosion, widely used in petroleum, chemical industry, fertilizer industry, natural gas and environmental protection and other industries.

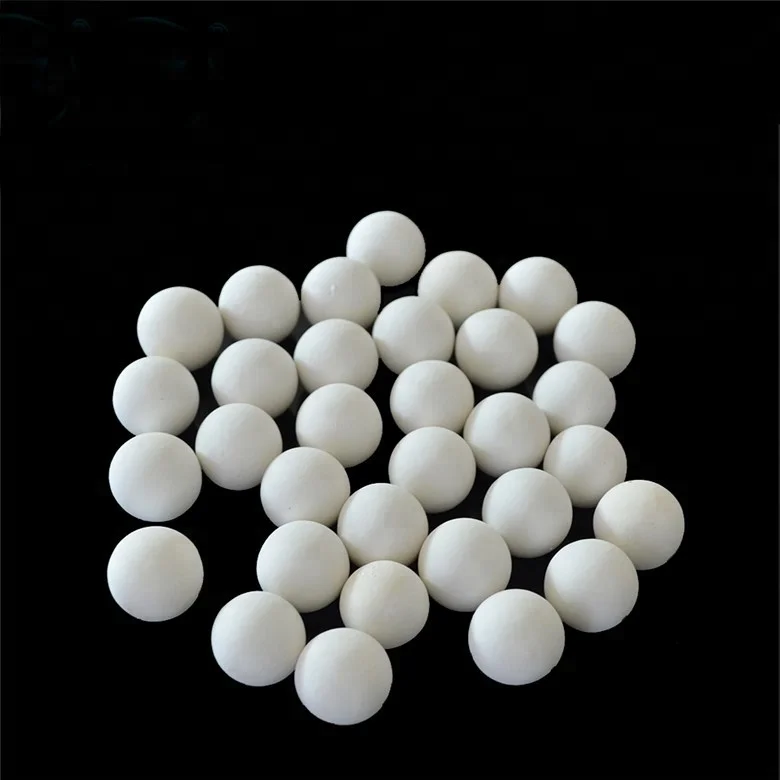

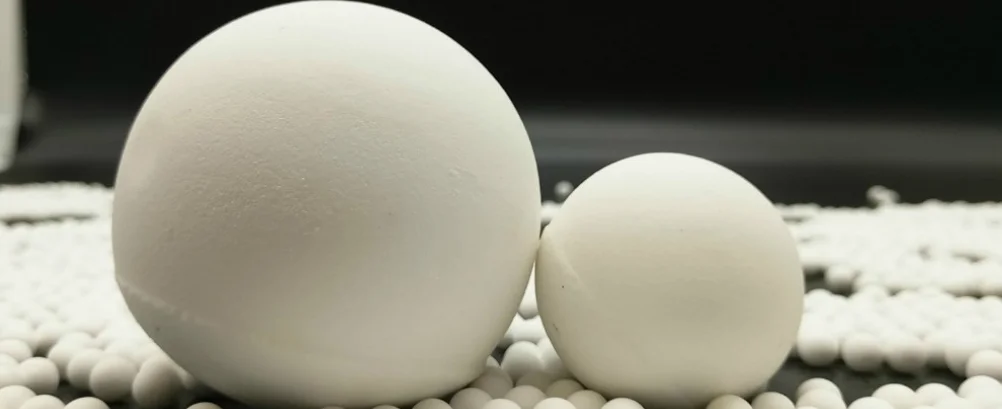

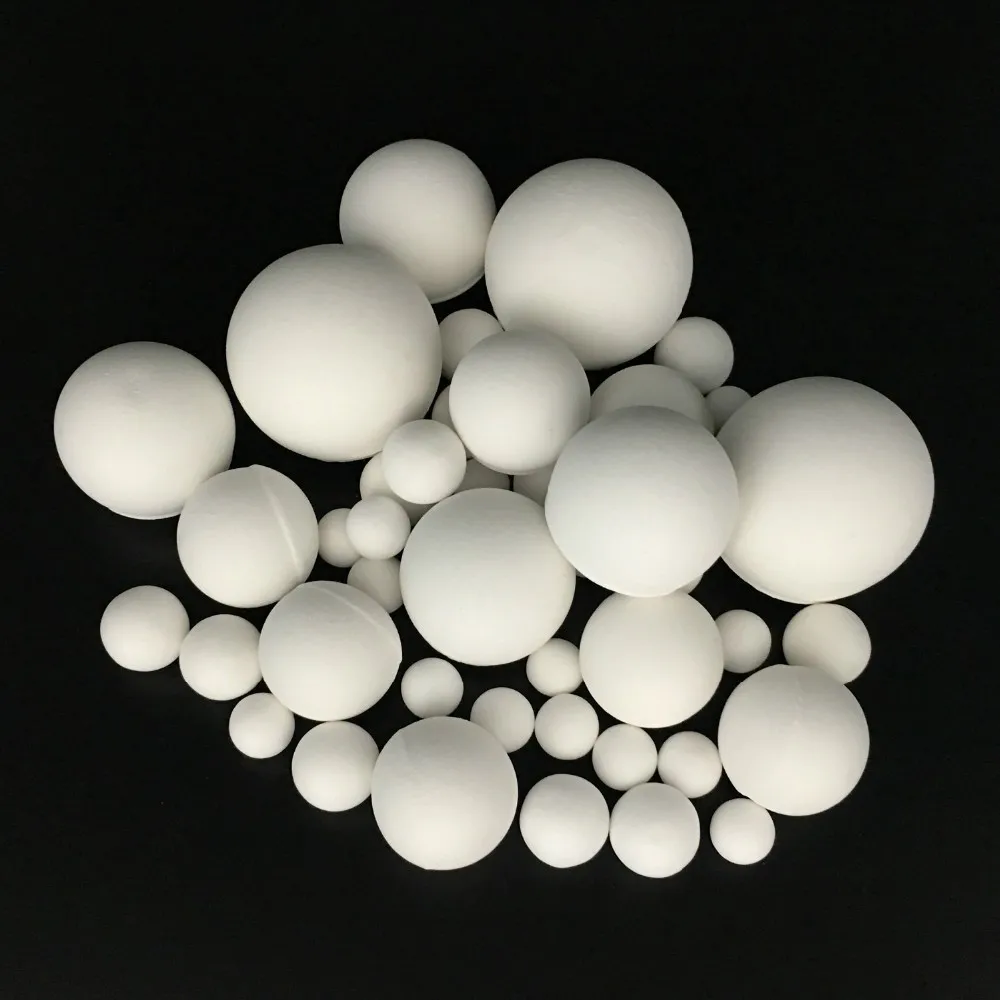

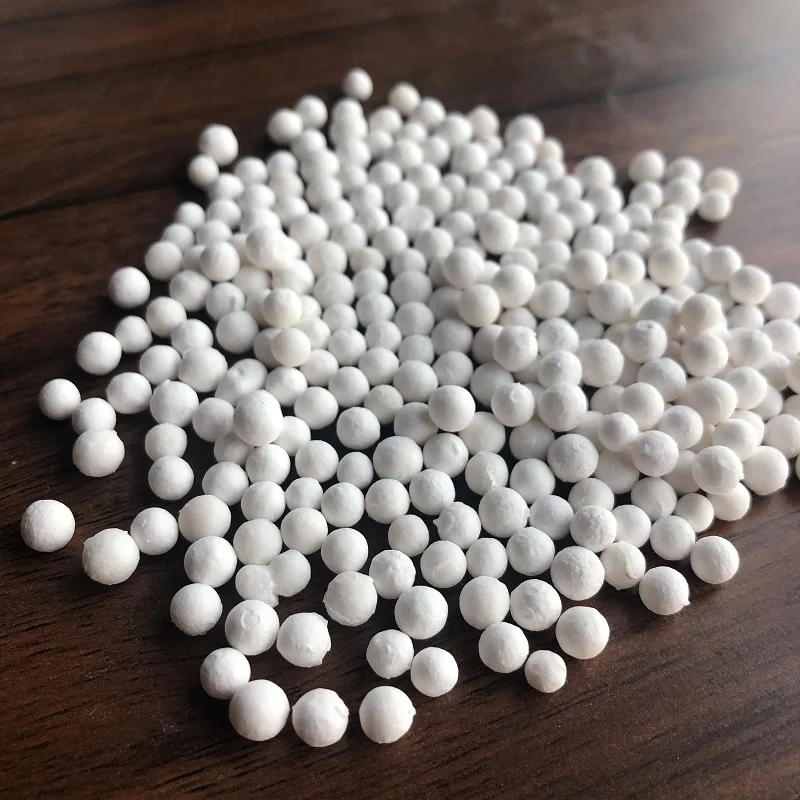

Sample Show of Alumina Ball
How to use Alumina Ball
Usually,the total charges of the alumina balls in one ball mil should be not lessthan 55% of the total ball mill capacity.
Empirical formula of charged alumina ball quantity into ball mill
M=3.14xR2xDxLx25%+1000
Remark M= charged alumina ball quantity(kg)
D=Alumina ball density(g/cm)
R=Radius of ball mill L=Ball length
For a bright new installed ball mill, the alumina balls proportion depends on the capacity of the ball mill and the fineness of
the grinded raw materials.
Empirical formula of charged alumina ball quantity into ball mill
M=3.14xR2xDxLx25%+1000
Remark M= charged alumina ball quantity(kg)
D=Alumina ball density(g/cm)
R=Radius of ball mill L=Ball length
For a bright new installed ball mill, the alumina balls proportion depends on the capacity of the ball mill and the fineness of
the grinded raw materials.
Ball Mill Capacity | Grinded Raw Materials | Feeding Size | Proportion |
>15MT | Green Body | >1.5cm | Φ30:Φ40:Φ50:Φ60=2:3:3:2 / 2:4:3:1 |
>15 MT | Glaze | >1.5 cm | Φ30:Φ40:Φ50:Φ60=3：4：2：1 |
>15 MT | Glaze | >1.5 cm | Φ30:Φ40:Φ50=3：5：2 |
Workshop Photo of Alumina Ball
Strict Quality Inspection
Packing & Delivery
25 KGS /BAG
Title goes here.
25 KGS/BAG , 40 BAGS/ PALLET
1000 KGS/ TON BAG
DRUM + PALLET
