250w 300W 1390 1325 mixed co2 metal Acrylic stainless steel laser cutting machine for metal sheet and nonmetal wood MDF
- Category: Laser Engraving Machines >>>
- Supplier: Acctek Machinery Co. Ltd (shandong)
Share on (1600310770896):
Product Overview
Description
Product Description
250w 300W 1390 1325 mixed co2 metal Acrylic stainless steel laser cutting machine for metal sheet and nonmetal wood MDF
Features:

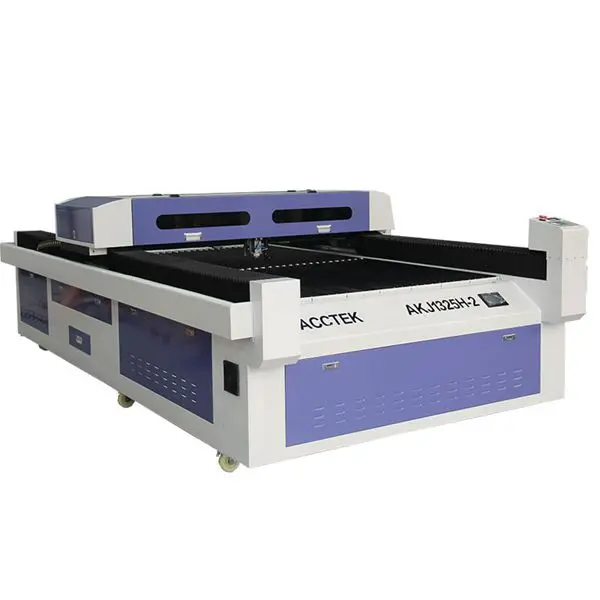

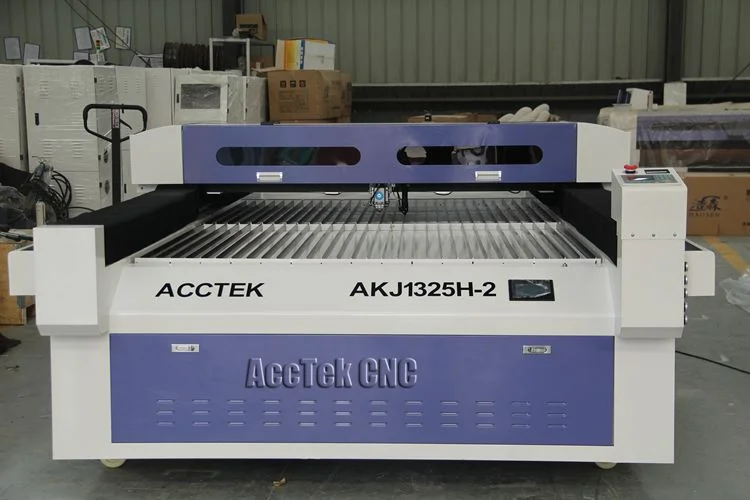

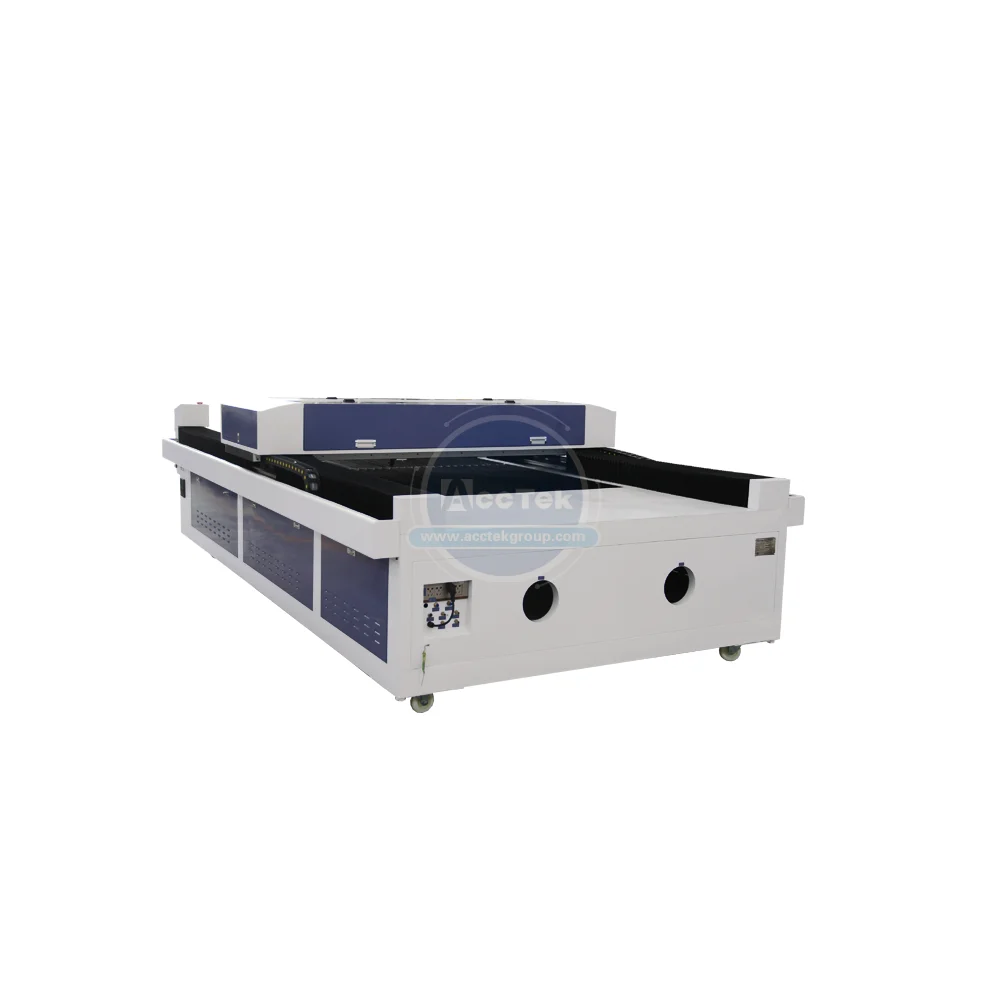

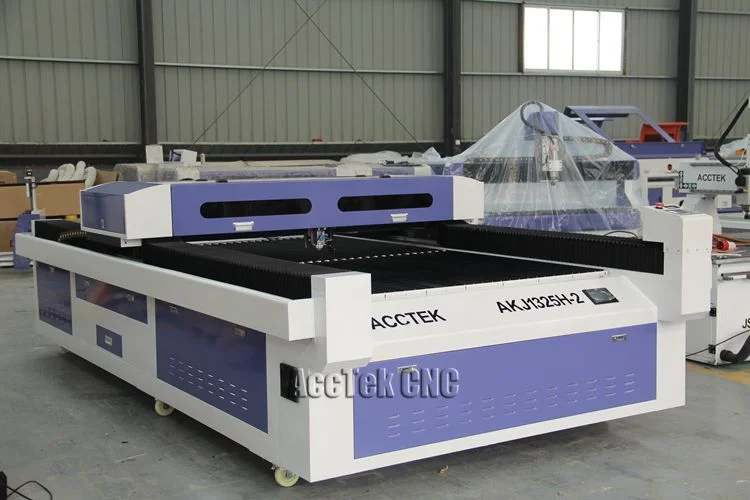

AKJ1325/1530H-2 is mainly for large format engraving and cutting. The new design, mechanical follow-up cutting head system, cutting head always follows the material to keep the cutting point location unchanged, which insures smooth cutting section without processing again. It can adapt to flat or curved surface sheet cutting.
parametes
| Model | AKJ1325H-2 |
| Working Area | 1300*2500mm |
| Working Table | Blade table |
| Laser Power | 150w Co2 laser tube and head(for cutting metal and thick nonmetal&90w laser tube and head(for carving nonmetal) |
| Position System | Z axis professional auto height adjust system |
| Cooling Mode | Circulation water cooling and protection |
| Table Type | Knife cutting table |
| Guide Rail | HIWIN from Taiwan |
| Drive System | Stepper motor and driving system |
| Transmission Method | Shanghai Fulong belt |
| Control System | Ruida 6332M controller |
| Drawing Software | Coreldraw, Photoshop, AutoCAD |
| Graphic Format Support | PLT, DXF, BMP, JPG ,AI ,etc |
| Attachment | Water chiller CW-5200, Exhaust Fan, Air pump |
| Technical Parameter | |
| Gross Power | <1,000W |
| Min Line Width | ≤0.15mm |
| Positioning Accuracy | 0.01mm |
| Repetition Accuracy | 0.02mm |
| Power Supply | 220V/50Hz, 110V/60Hz |
| Cutting Speed | 1-9000mm/min |
| Working Environment | 0-45℃ |
| Operating Humidity | 5-95% |
Accessories
Main parts of the machine

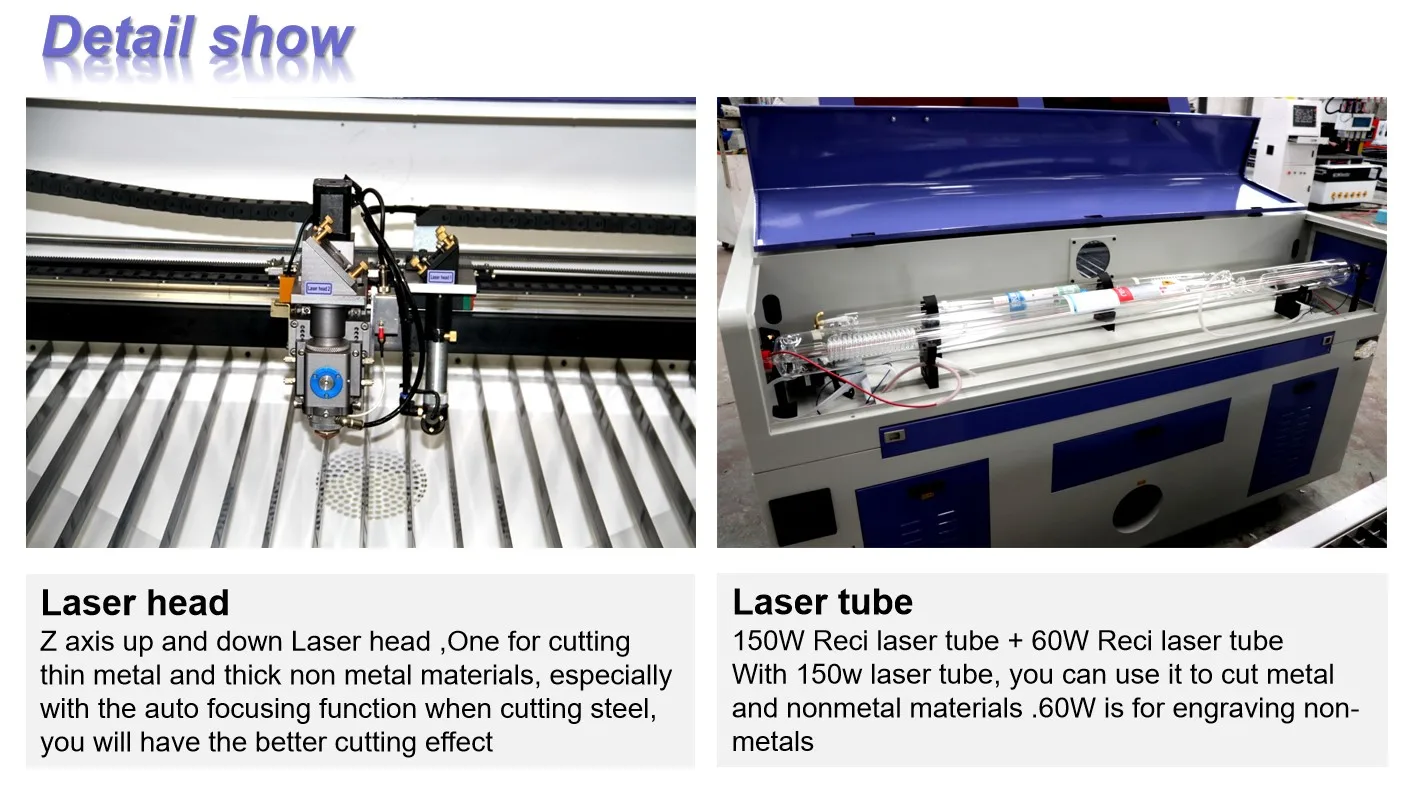

1.Beijing Reci Laser tube 150W: cutting 1.0mm steel;180W: cutting 1.5mm steel; 220W: cutting 2.0mm steel;300W: cutting 3.0mm steel.

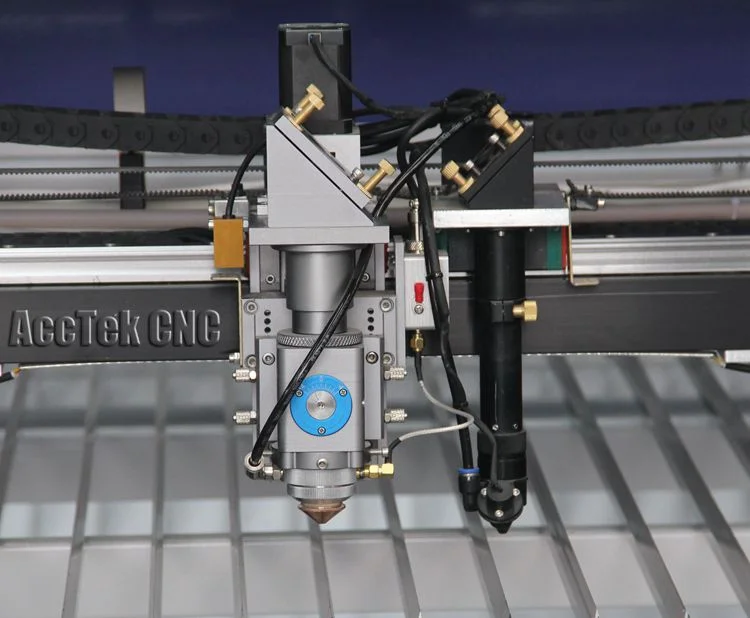

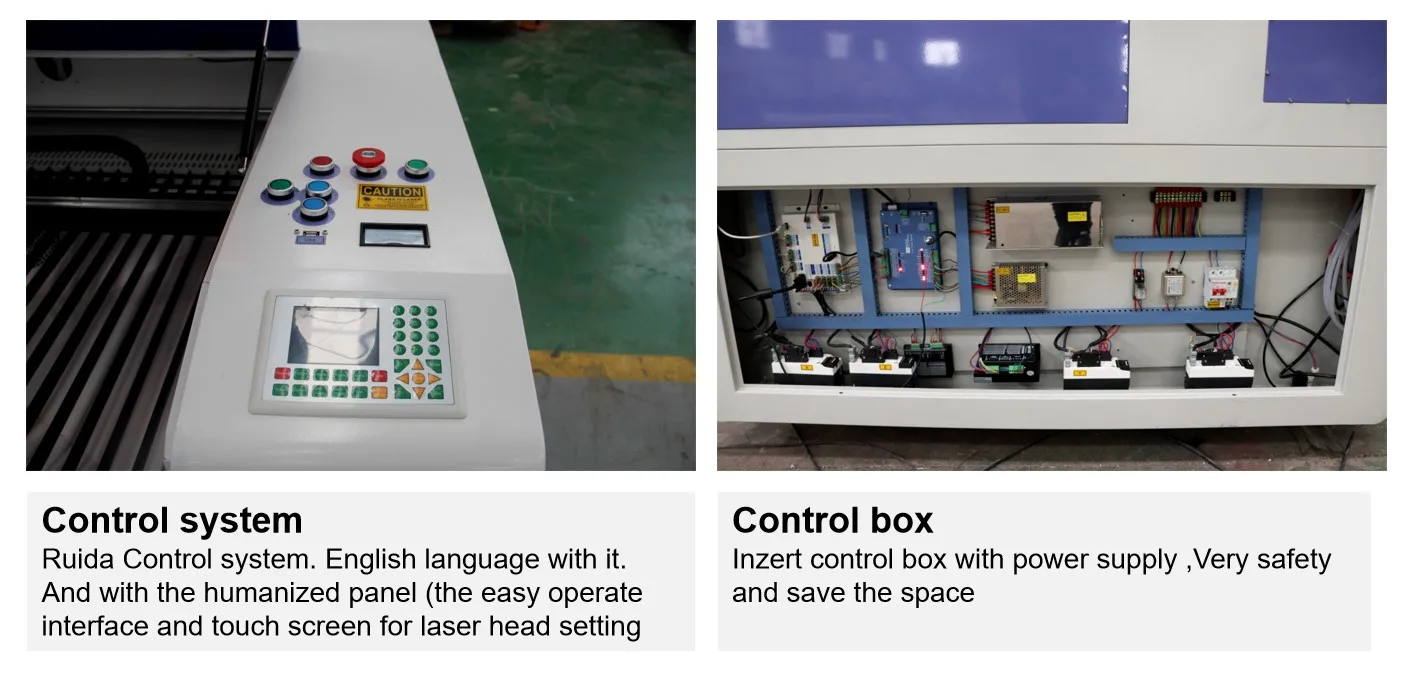

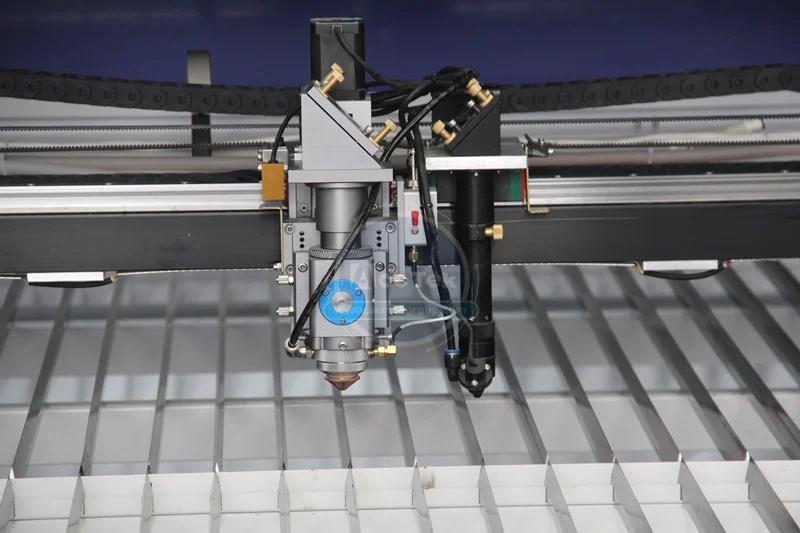

2.Double laser heads 3.Ruida Control systerm

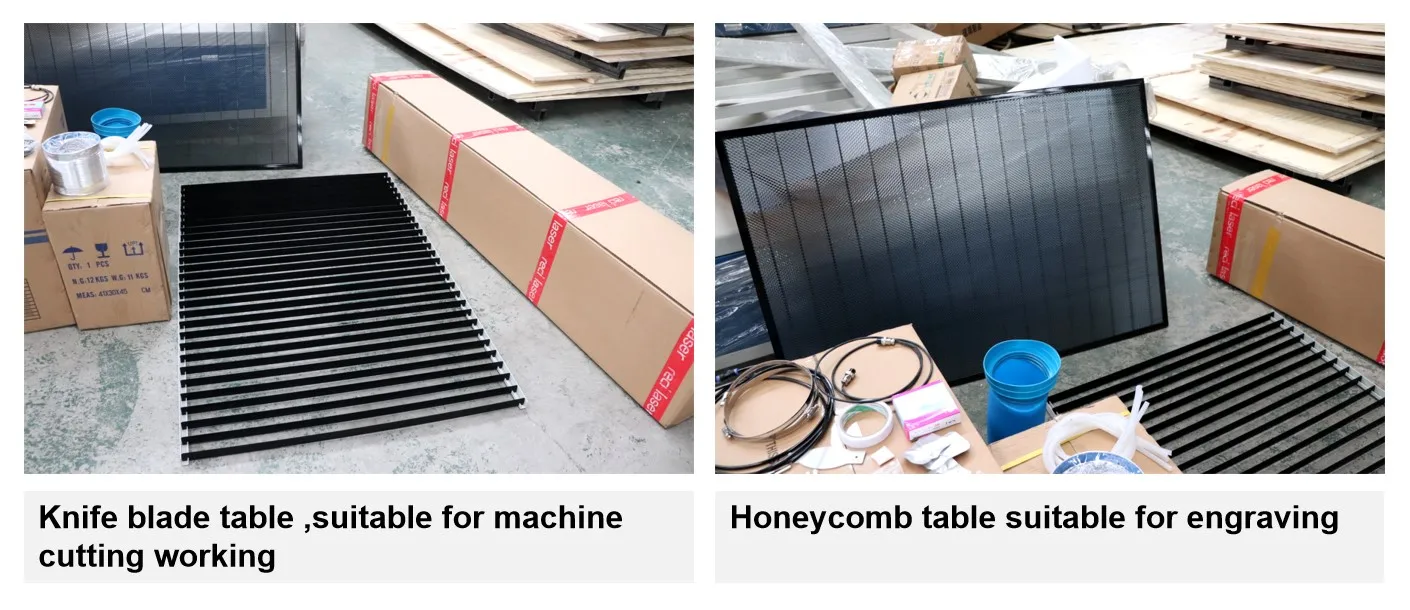

4.Working table,Blade or honeycomb .

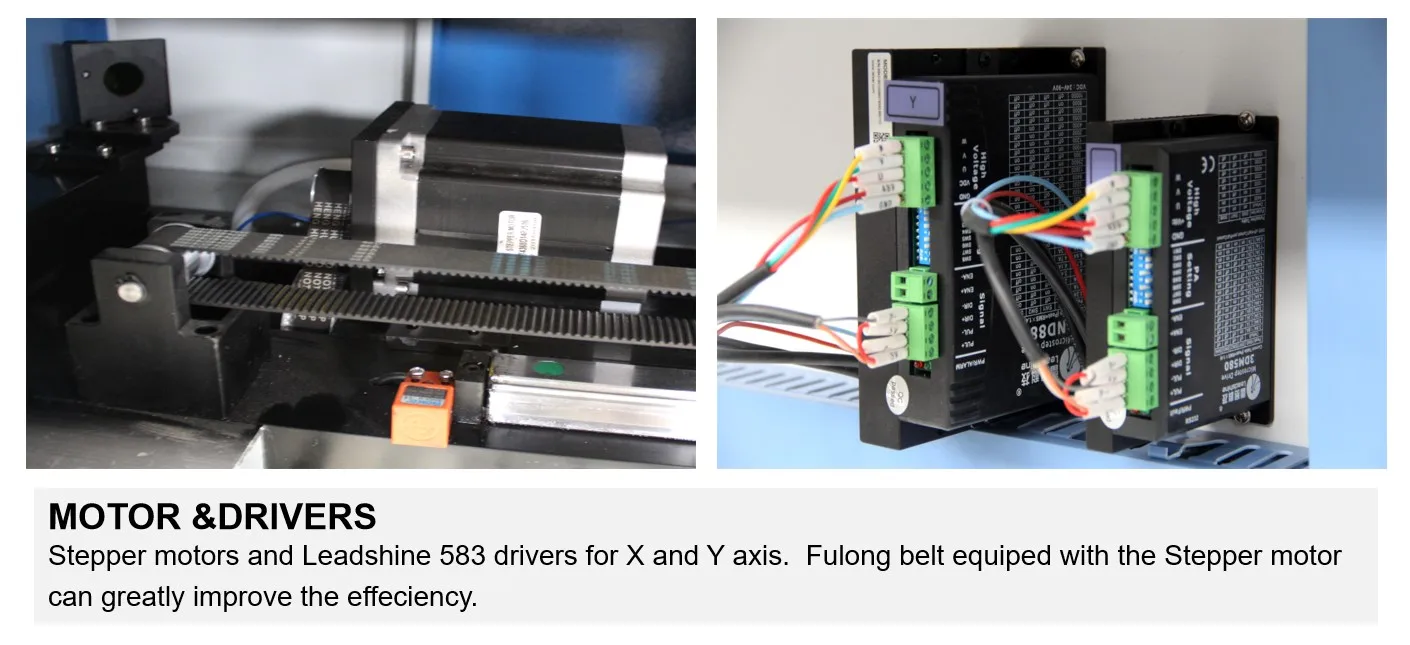

5.Stepper motor and driver

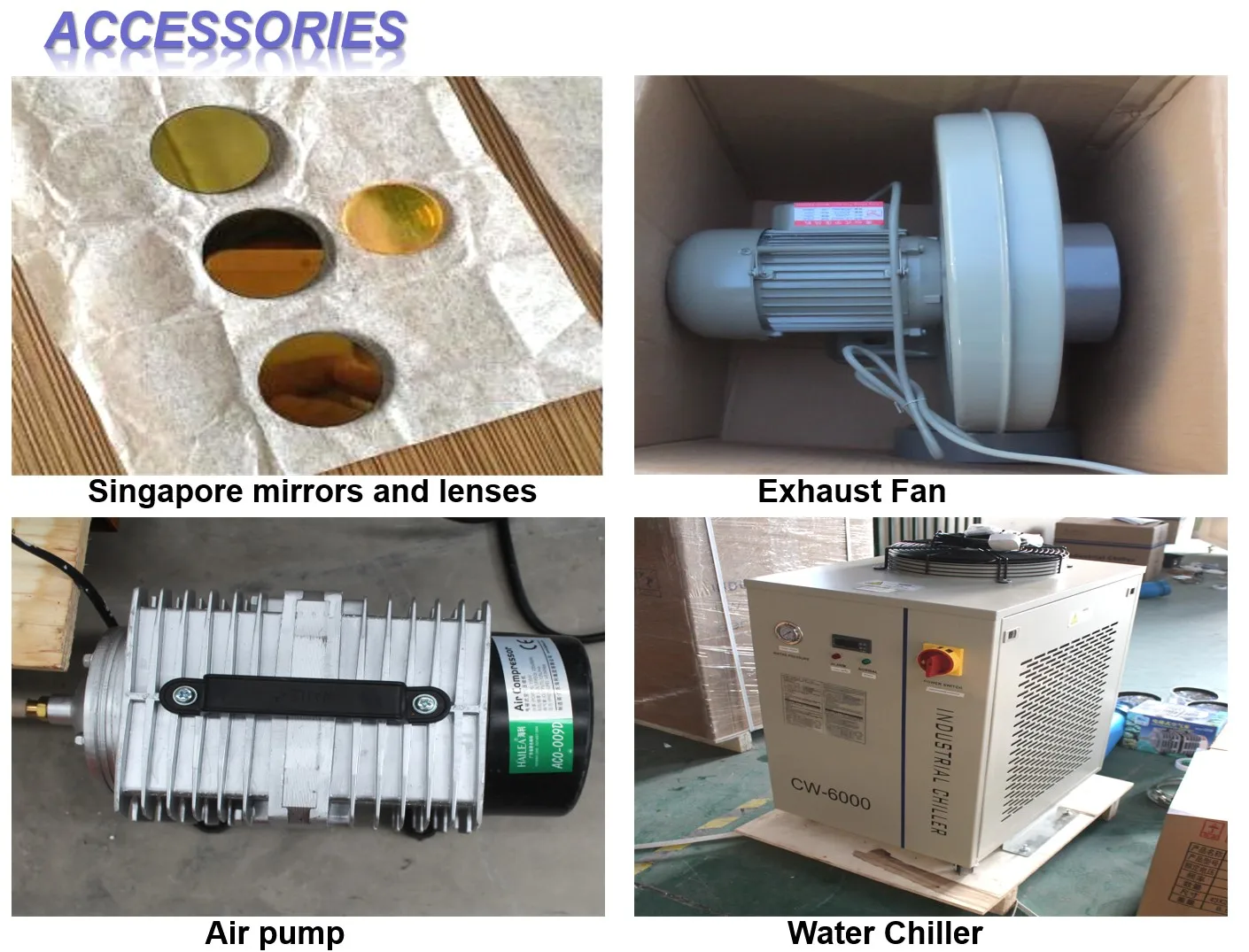

6.Water chiller &Air pump &Exhaust fan
Option:
1.Up and down lifting table
2.Screw transmission with servo motor
3.Rotary attachment
4.More powerful laser tube
5.Air Filter

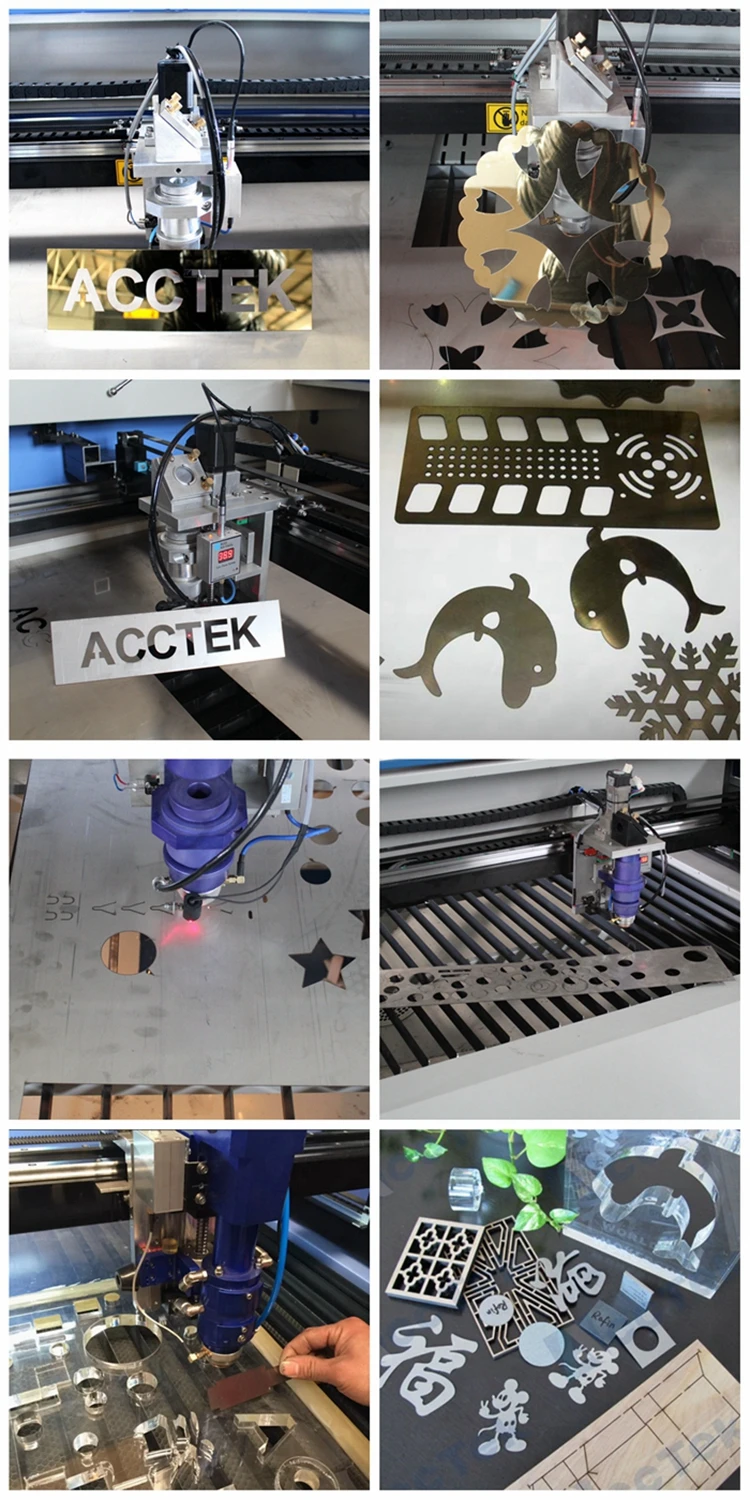

Sample
>>This machine can cut Carbon Steel & Stainless Steel,
According to different metal materials and thickness, we will adjust the pluse width, rate, frequency, cutting Speed etc.
>>Non-Metal Materails :
Wood, Bamboo, Jade Articale, Stone(Only Can Engraving), Organic Glass, Crystal (Only Can Engraving),Rubber,Plastic, Cloth, Leather, Etc.
Our Services
After sale service of AccTek& Buyer's feedback
1. 18 months guarantee of the whole machine. 1.5 years for fiber lase generator.
2. Main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
3. Lifetime maintenance free of charge.
4. We will provide the consumable parts at a factory price when you need replacement.
5. Machine has been adjusted before delivery.
6. Our technician can be sent to your company to install or calibrate if necessary.
