lm 301b yaorong board samsung grow led light strip 640w 600w 720w 800w monster led grow light
- Category: >>>
- Supplier: Shenzhen Yaorong Technology Co. Ltd.
Share on (1600310849062):
Product Overview
Description
Product Description
SPIDER LED GROW LIGHT
Application&Project case
LED grow light project cases in US
Application: Plant factory, Greenhouses, etc.
Detailed Images

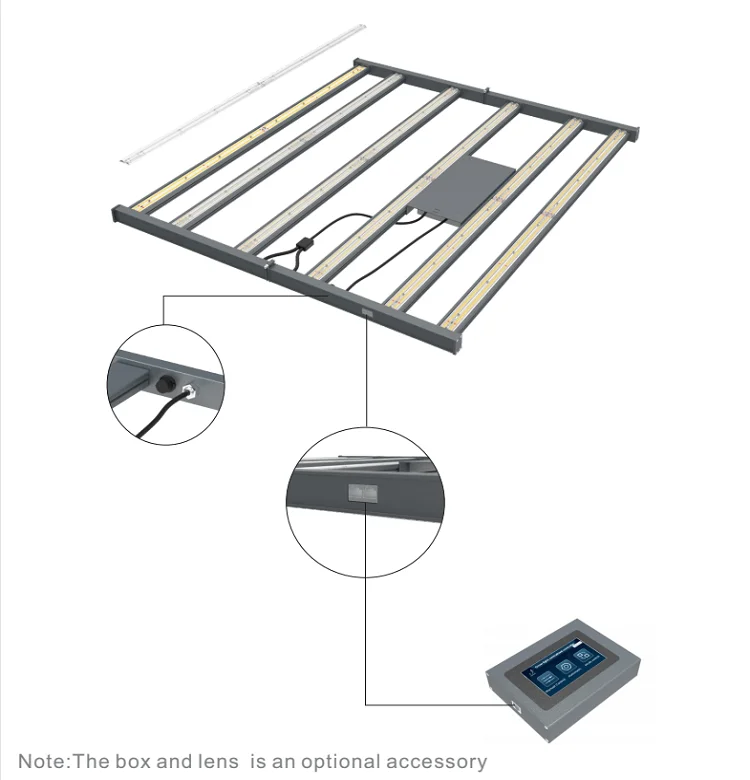

Product detail drawing
Knob switch dimming. Dimming range 0-100%.

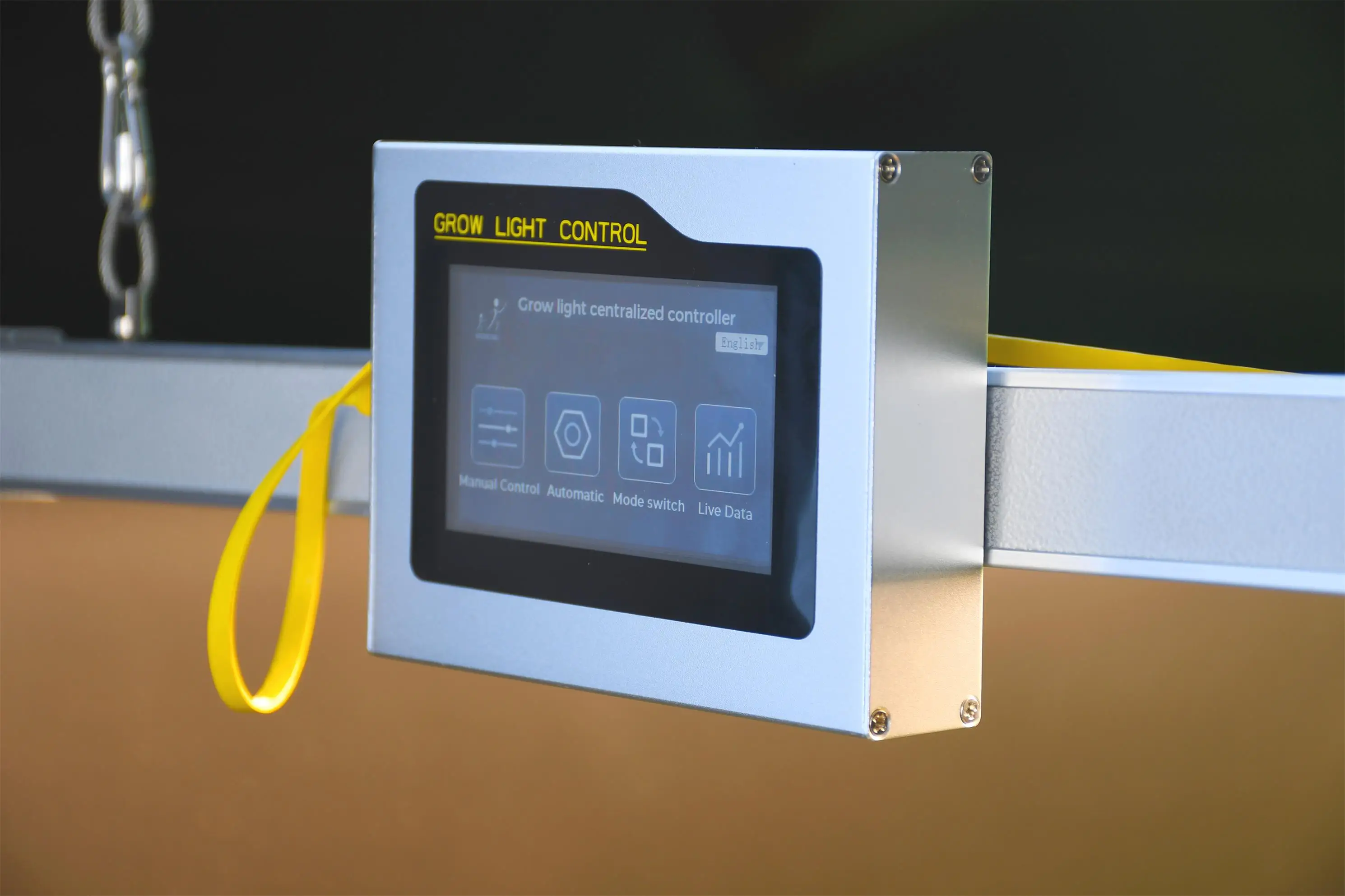

Main controller dimming mode. Optional for manual mode or mutomatic mode to dimming
Bluetooth controller. The light is dimmed by connecting the phone to the Bluetooth controller
Introduction of product advantages or application effect or application mode
Features
1. High efficacy (2.6 μmol s-1 per watt)
2. New and unique design. Slim design that is foldable up to 180 degrees, making it small, compact, and easy to install
3. IP66 waterproof for outdoor
4.Reduced HVAC requirement (30-40% less)
5.Dimming function can be realized by manual knob，Lamps can be interconnected by RJ45 network cable
6.The box to realize the function of dimming and timing dimming
Specifications | ||
Item | YR-GL1146-G4/G5 | |
Power | 400W 600W 640W 720W 800W 1000W | |
LED brand | LDR 3030 / Samsung / Osram / HIT | |
System efficacy | 2.6μmol/J (With lens) 2.4 µmol/J( without lens) | |
PPF | 1040-2600μmol/s | |
Power factor | PF>0.95 | |
Material | Aluminum & PC cover (transmission>90%) | |
Isolation class | Class I | |
IP rating | IP66 | |
Beam angle | 120 degree（without lens)/80*100 degree(with lens) | |
Working temperature | -40~45℃ | |
Spectrum | Full spectrum | |
Warranty | 5 years | |

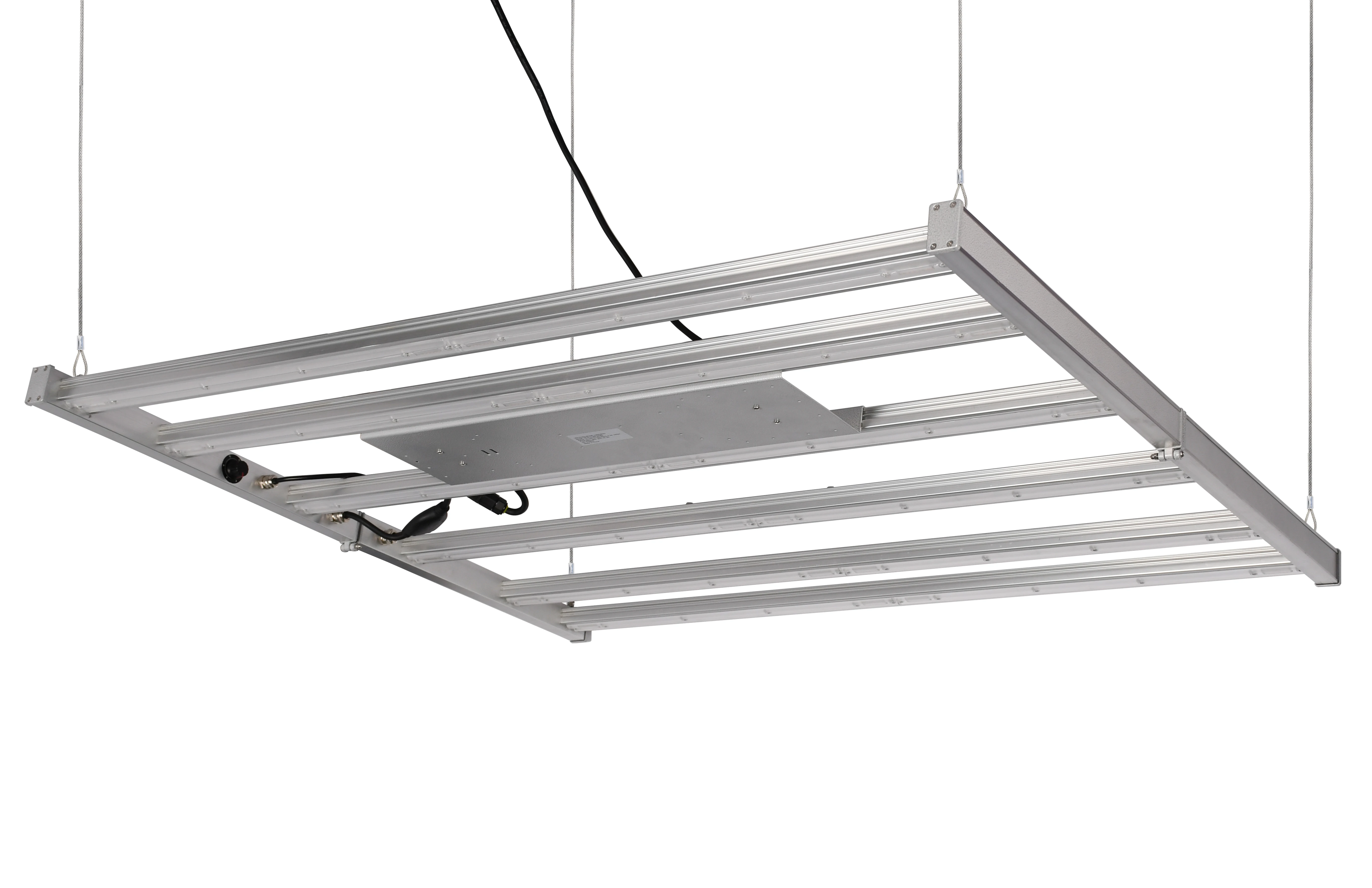

Product Presentation
Product introduction: application, function, style, etc
The following configuration is a product diagram + table with the specific parameters of the configuration product
Product Name | Spider LED Grow Light |
Material | Aluminum |
Power | 400W 600W 640W 720W 800W 1000W |
Voltage | 100-277 VAC 50/60Hz |
Installation Height Advice | 6"-15" |
Dimming | 0-10V Make the lighting system more smarter and easier |
Size introduction and size picture
Power | Dimension/mm | Packing size/mm | Net weight/KG | Gross weight/KG |
400W | 1146*715*65 | 1180*410*140 | 10 | 12 |
600W | 1146*955*65 | 1180*550*140 | 15.5 | 17.5 |
640W | 1146*955*65 | 1180*550*140 | 15.5 | 17.5 |
720W | 1146*1275*65 | 1180*690*140 | 18 | 20 |
800W | 1146*1275*65 | 1180*690*140 | 19 | 21 |
1000W | 1146*1555*65 | 1180*830*140 | 21 | 23 |
Packing&Shipping
Certificate
Related Products
Company Introduction
FAQ
Q: What is your MOQ?
A: For Sample order, 1 pcs is acceptable.
Q: Are you trading company or factory?
A: We both have our own factory and company(we have a video about factory; if need, please send us message for getting more info
about us). We can design, produce and deliver the product to you with fast lead time, also can provide a professional and nice
service.
Q: Can you print the logo on the lamp and provide special carton?
A: Of course. Laser carving for logo and special carton according to your requirement.
Q: If we have special requirement about product, can you solve it for us?
A: YES. We are professional on this. If any problem or special requirement, please let us know. We will try our best to solve it.
Q: How can you guarantee the quality and how to solve the faulty?
A: We will have a reply after receiving your message within 1 hour, handle and provide the solution within 1 day. During the
warranty years, we will resend a new product or repair broken product within 7 days.
A: For Sample order, 1 pcs is acceptable.
Q: Are you trading company or factory?
A: We both have our own factory and company(we have a video about factory; if need, please send us message for getting more info
about us). We can design, produce and deliver the product to you with fast lead time, also can provide a professional and nice
service.
Q: Can you print the logo on the lamp and provide special carton?
A: Of course. Laser carving for logo and special carton according to your requirement.
Q: If we have special requirement about product, can you solve it for us?
A: YES. We are professional on this. If any problem or special requirement, please let us know. We will try our best to solve it.
Q: How can you guarantee the quality and how to solve the faulty?
A: We will have a reply after receiving your message within 1 hour, handle and provide the solution within 1 day. During the
warranty years, we will resend a new product or repair broken product within 7 days.
