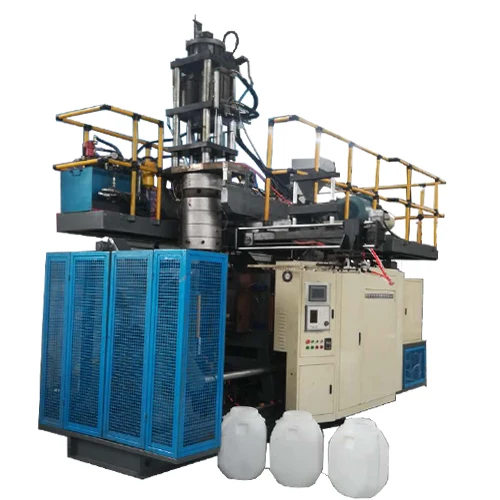

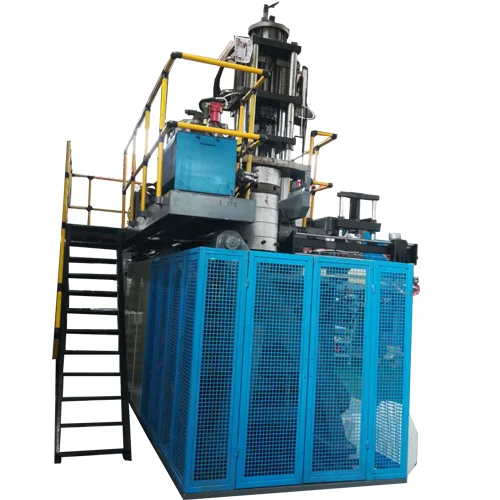

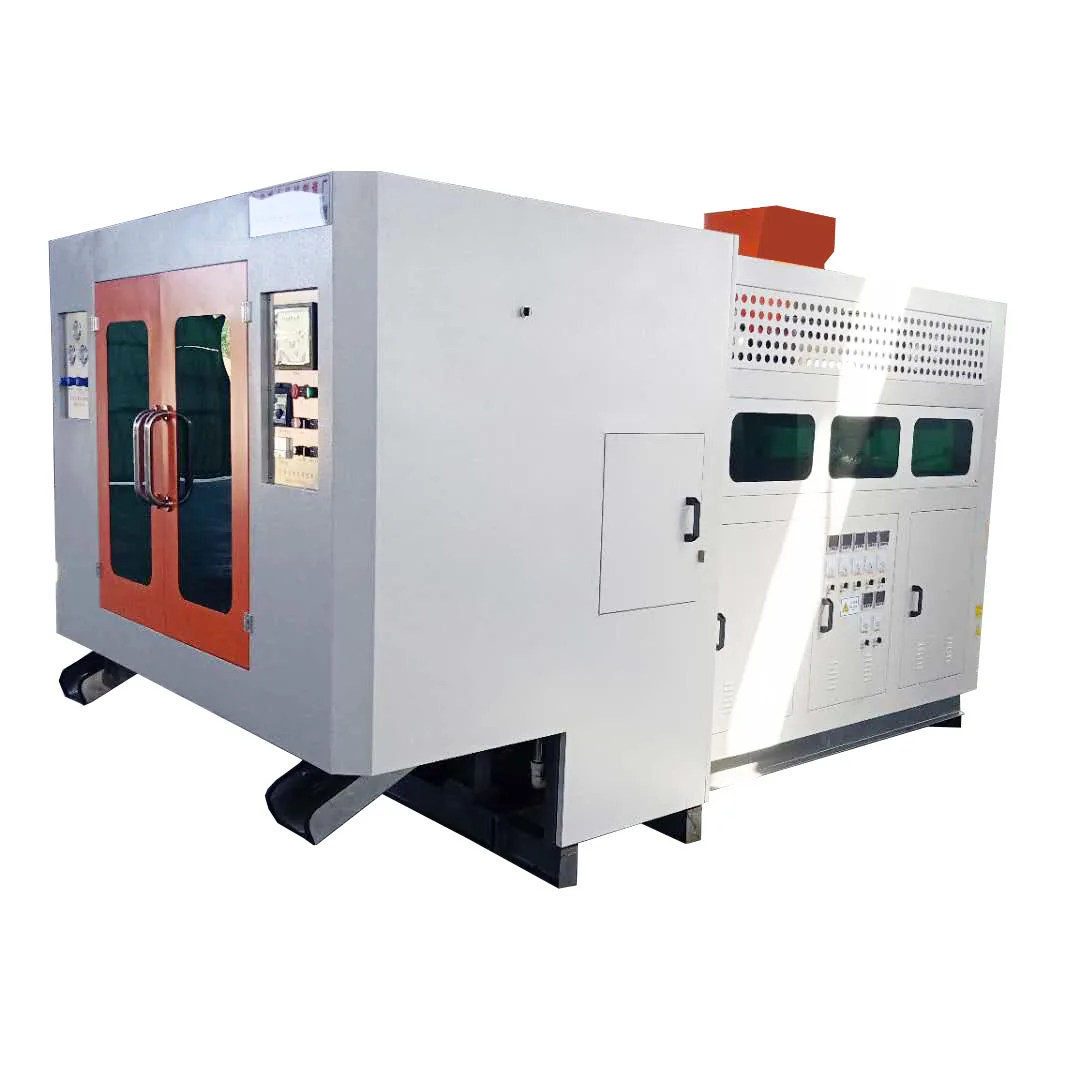

Energy Saving 20L 30L HDPE Plastic Barrel Drum Water Tank Jerrycan Making Extrusion Blow Moulding Machine
Energy Saving 20L 30L HDPE Plastic Barrel Drum Water Tank Jerrycan Making Extrusion Blow Moulding Machine
Energy Saving 20L 30L HDPE Plastic Barrel Drum Water Tank Jerrycan Making Extrusion Blow Moulding Machine
Energy Saving 20L 30L HDPE Plastic Barrel Drum Water Tank Jerrycan Making Extrusion Blow Moulding Machine
Energy Saving 20L 30L HDPE Plastic Barrel Drum Water Tank Jerrycan Making Extrusion Blow Moulding Machine
Energy Saving 20L 30L HDPE Plastic Barrel Drum Water Tank Jerrycan Making Extrusion Blow Moulding Machine
Energy Saving 20L 30L HDPE Plastic Barrel Drum Water Tank Jerrycan Making Extrusion Blow Moulding Machine

Energy Saving 20L 30L HDPE Plastic Barrel Drum Water Tank Jerrycan Making Extrusion Blow Moulding Machine

Share on (1600310937784):


Price:$16,000.00 - $20,000.00

Quantity:


Product Overview

Description





Company Profile

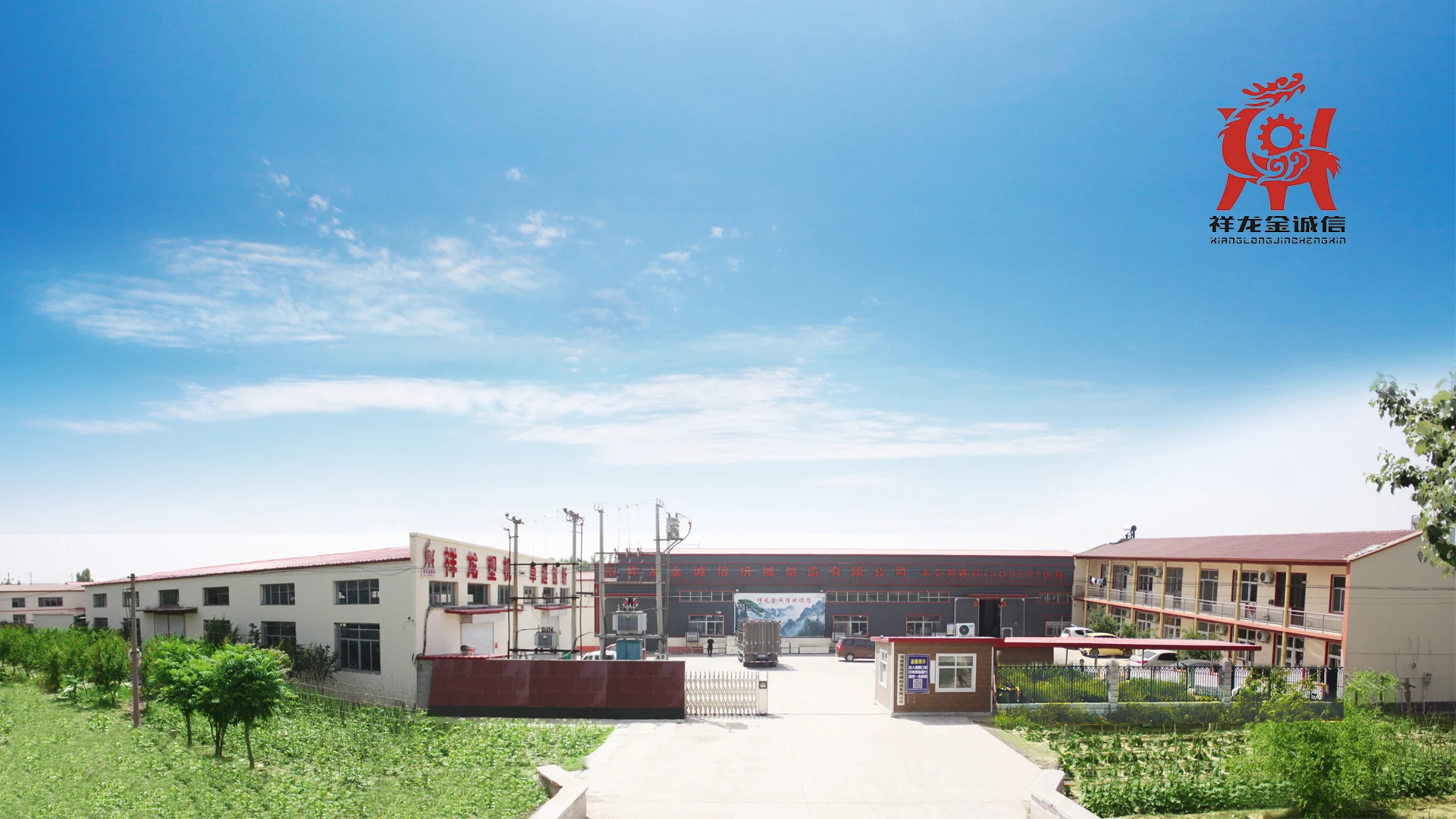

Dongguang golden sincerty machinery manufacturing Co., Ltd. is located in Nanxiakou town, dongguang county, cangzhou city, hebei province. Our factory covers an area of one hundred thousand square meters with modem workshops and high standard manufacturing machines. Our company has attained ISO9001 quality system certification and is granted as "Famous and Excellent Enterprise" by Quality Technology Supervision Bureau of Hebei Province. Our company is specialized enterprise for producing plastic packing machinery . It gathers the research and development, production, sales and after-sale service together. The major business is: Series of bottle blowing machinery, such as semi-automatic plastic bottle blowing machine and full-automatic plastic bottle blowing machine, PET blow molding machine. We really appreciate our honorable clients' support to our development.Thanks to their trusts to our company.




Products Description




Product Paramenters

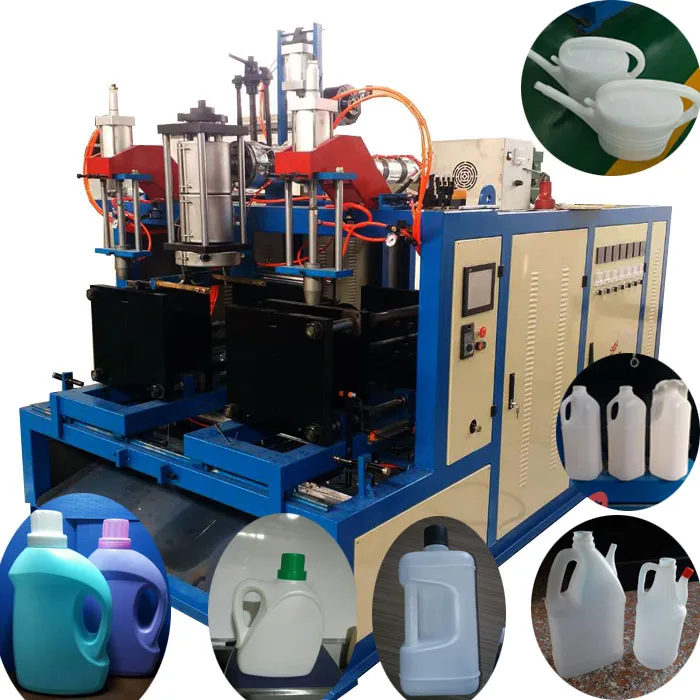

Curved arm type blow molding machine
This machine is mainly suitable for PP, PE, material plastic products. It could blow max.10 liter medicine bottle, juice bottlechemical bottle, engine oil bottle, detergent bottle, sauce bottle, urea barrels etc. Optional function : double layer, three layer, liquid view line, wall thickness controller, inner label, hydraulic pressure, 1-6 mold cavity number.


NO.
Item
Date
1
Bottle Volume
2.5/5/10 L
2
Screw diameter
55/65/80 mm
3
Motor power
11/15/18.5-30 kw
4
Hydraulic motor
3/5.5/7.5 KW
5
Heating section NO.
6/7/8 PCS
6
Clamping force
35/50/70 KN
7
Max. plasticizing capacity
50/60/110 kg/h
8
Way of control
PLC control




Center straight top blowing machine
This machine is mainly suitable for PP, PE, material plastic products. It could blow 1-15 liter stacking barrels, alcohol pot, engine oil pot, children's bike, irregular -shaped etc. Optional function : double layer, three layer, liquid view line, inner label.


NO
Item
Date
1
Bottle Volume
2.5/1/0.5 L
2
Screw diameter
80/80/65 mm
3
Screw Motor power
18.5/18.5/15 kw
4
Heating power
30/30/20 kw
5
Hydraulic motor
15/15/5.5 KW
6
Clamping force
110/110/70 KN
7
Max. plasticizing capacity
70/70/50 kg/h
8
Way of control
PLC control

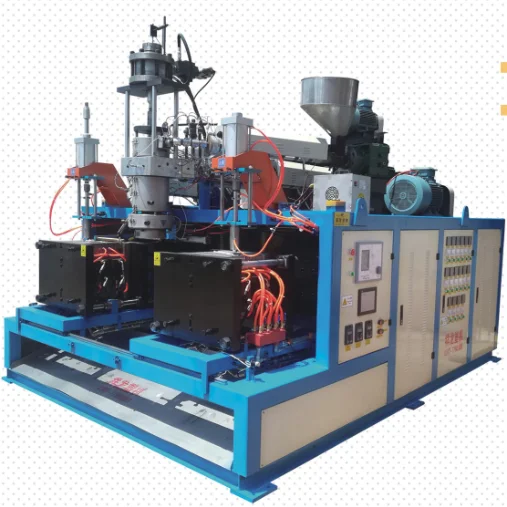

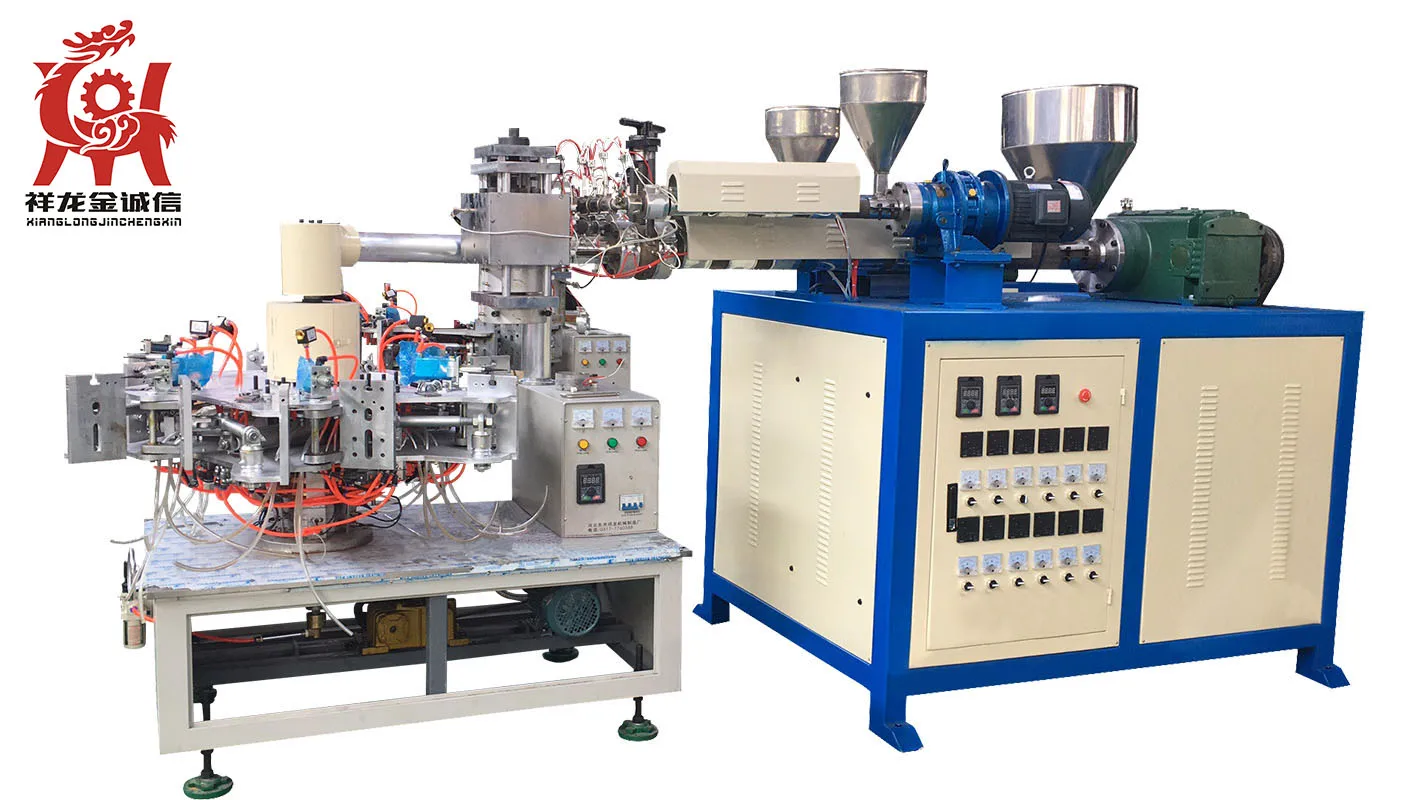

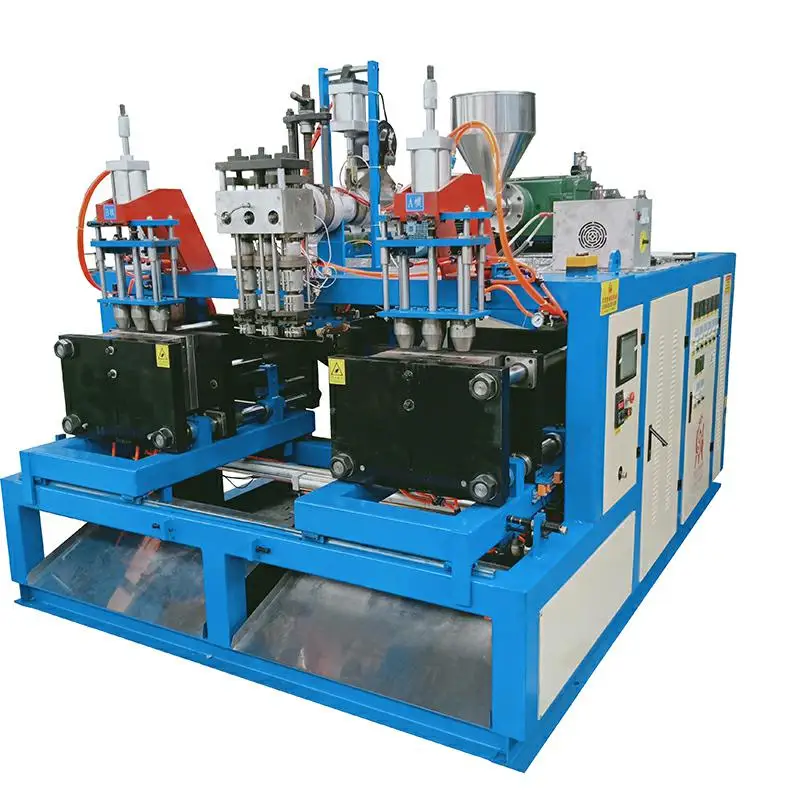

XL-120 High barrier blow molding machine

The machine adopts advanced technology at home and abroad, which can extrude same or different plastic raw materials
by three screw tubes at the same time. this machine could extrude material for single layer, cladding layer, liquid view line
layer and three layers abstruct products, which is mainly used to produce high barrier plastic bottles. The finished products have the characters such as: high anticorrusion, leaking resistance, high strength, low cost and etc. The extruder
die head could adjust each layer thickness precisely. Our company could provide technique and formulas.

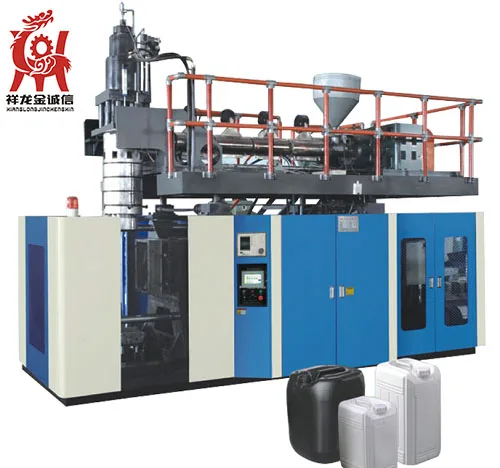

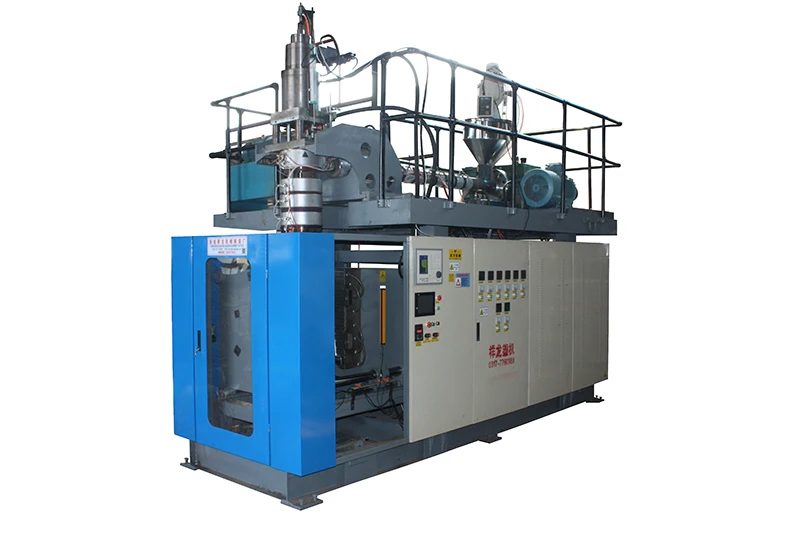

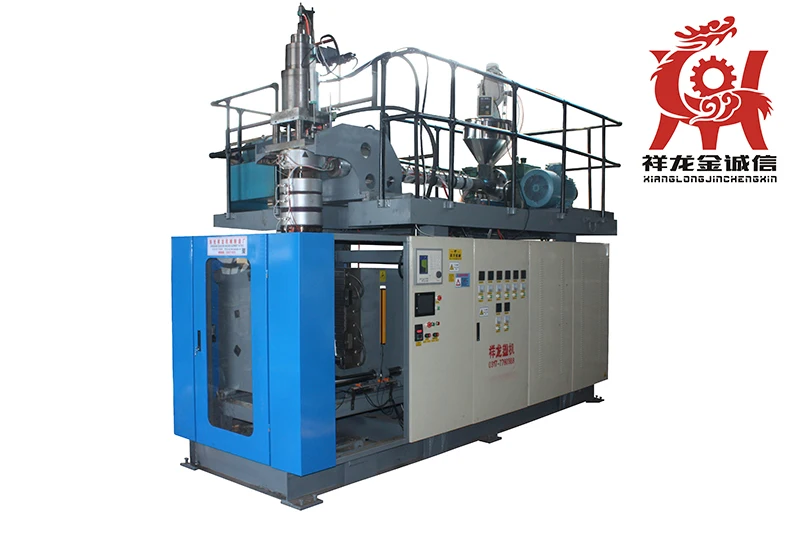

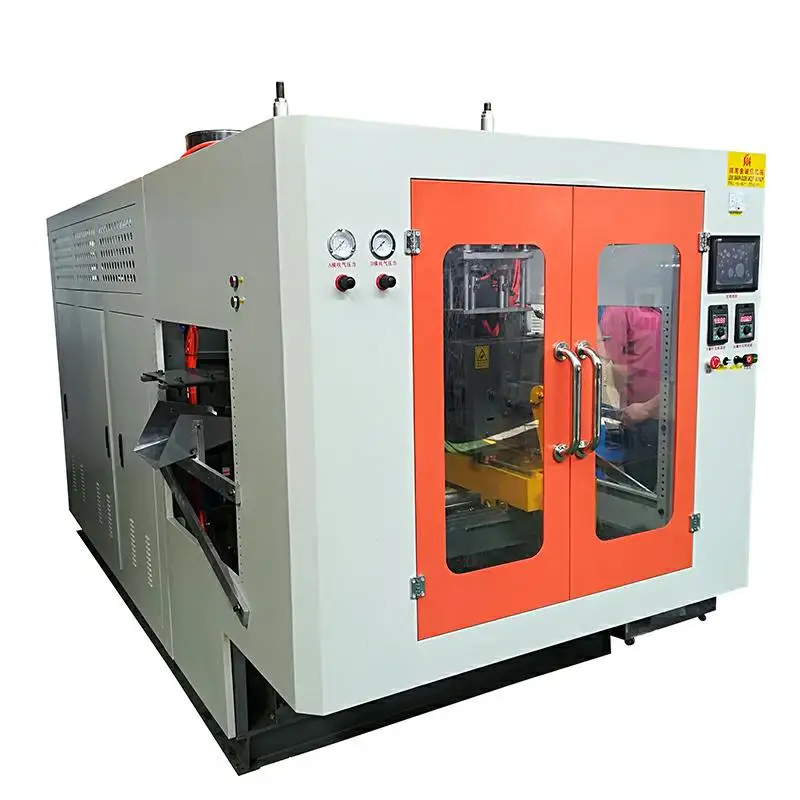

XL90-60L Blow Molding Machine/XL80-30L Blow Molding Machine
This material storage cylinder machine is suitable for the production of plastic hollow products blew 30 liters, with sample structure, excellent performance, simple operation and affordable price. Involved in medicine, chemical industry, petroleum, food, lighting, tools, automobile, motorcycle, toys and other industries.




Our Advantages


We will send our engineer to your side as soon as you get all your machines ready, for testing and teaching your technicians how to run the machines.

1.Competitive price
2. Excellent technical support
3.Best service

We offer you high quality machines with high quality after-service. Also we have one year warranty of the spare parts, free of charge.

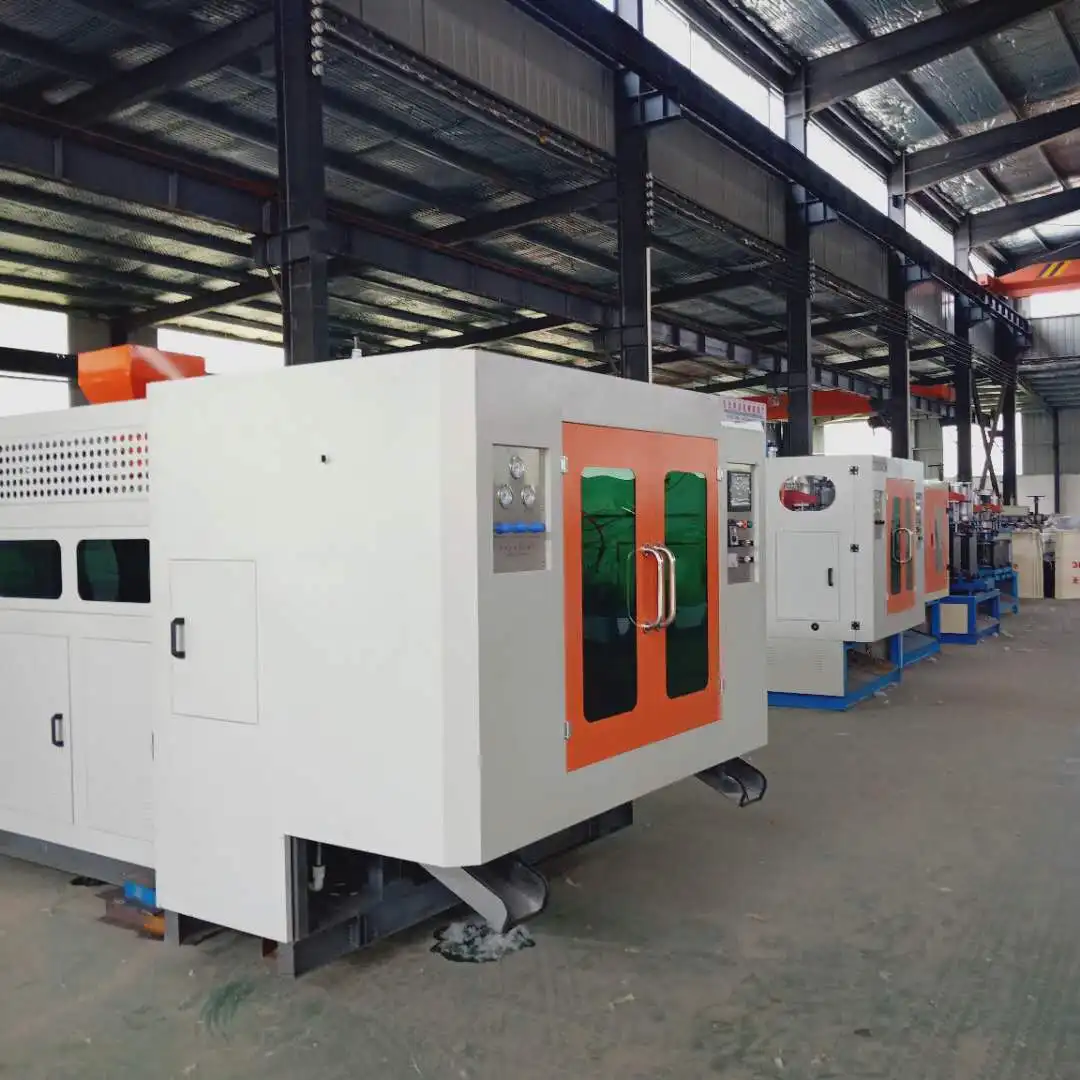

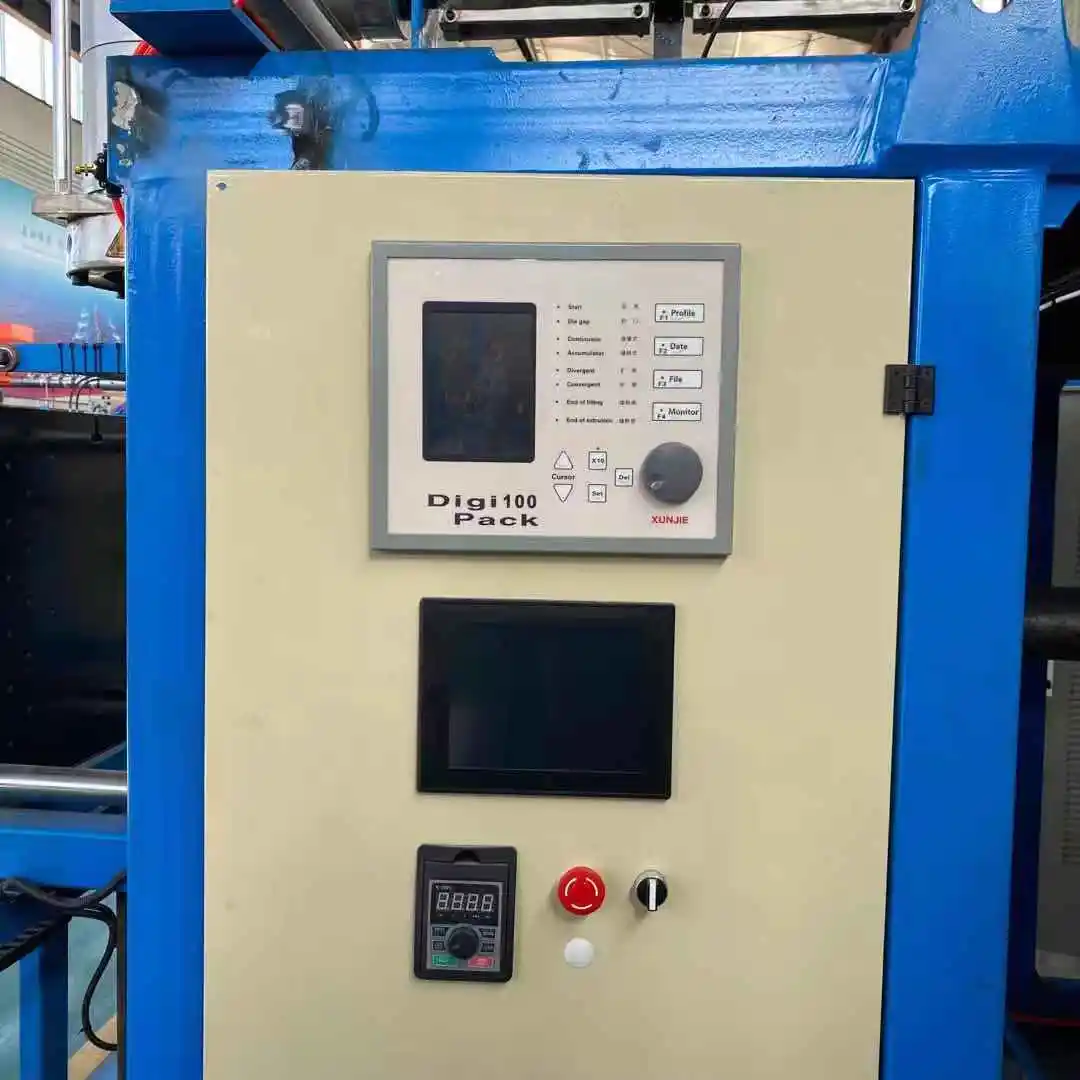

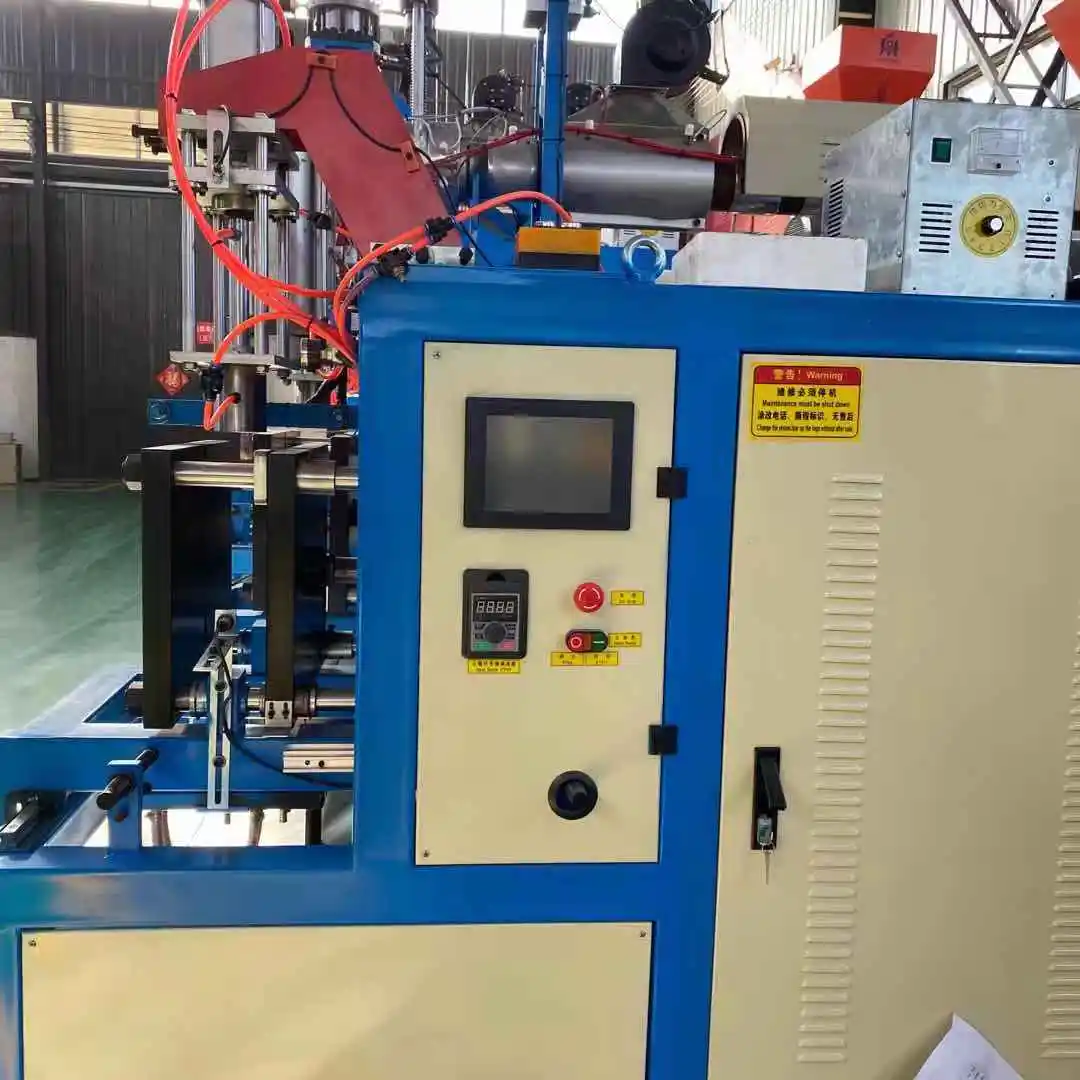

Details Images




Manufacturing Technique

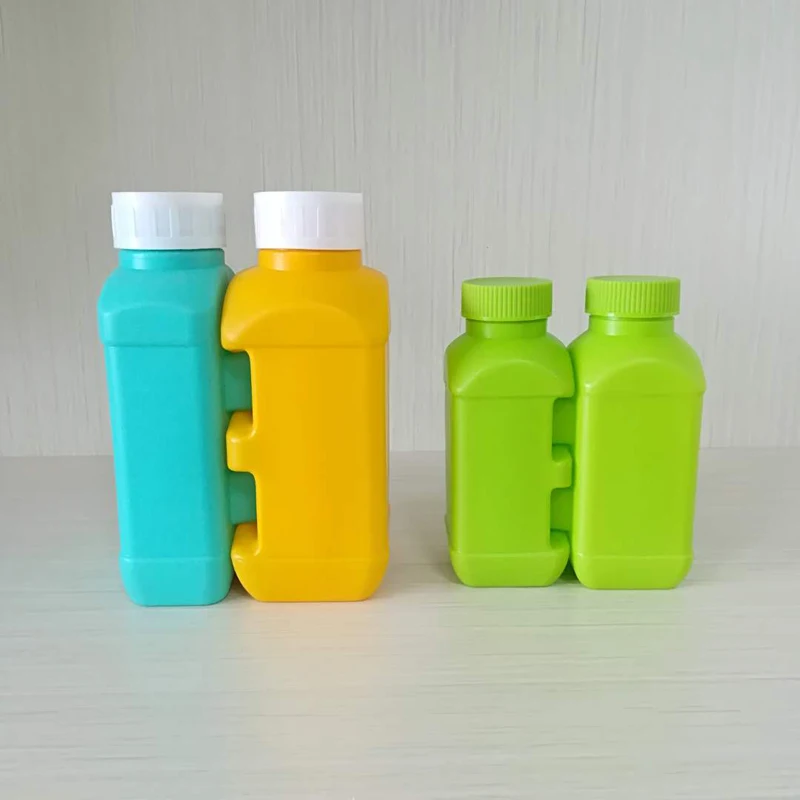

Our machineries suitable to produce 5ML-500L hollow plastic products by materials such as: PE、PP、PVC etc. So we have the ability to comply with all your requirement for plastic products.






Contact Information


DONG GUANG GOLDEN SINCERTY MACHINERY MANUFACTURING CO.,LTD
东光县金诚信机械制造有限公司
Name:Lisa Li
名字：丽莎李
Tel: +86-15076789099
电话：15076789099
Fax: +86-317-7760388
传真：0317-7760388
Mobile: +86-15076789099(whatsapp, Wechat, Line)
Whatsapp Wechat Line:15076789099
E-mail: 15076789099@163.com
Add: Nanxiakou development zone, dongguang county, cangzhou city, hebei province，China. 061000




FAQ


[1] Q: Are you a factory or trading company?
A: We are a factory.

[2] Q: Where is your factory located?
A: Our factory is located in Nanxiakou town, dongguang county, cangzhou city, hebei province.

[3] Q: How about quality control in your factory?
A: “ Quality is the key point, do what customers needs. factory focuses on quality,quality control from beginning to the end. Every piece of goods is tested strictly before packing and delivery.

[4] Q: How about guarantee ?
A: One year guarantee.

[5] Q: Do you provide blow molding machine ,mold and auxiliaries equipments?
A: Yes , we can provide full blow molding machine line ,before and after sales service

[6] Q: What is the language of the PLC and touch panel?
A: Don’t worry, we will translate the language in English,or other languages to make sure you will have an easy operation .

[7] Q: Can you offer big size blow molding machine? Can you make multilayers and multi-colors?
A: Yes,we can offer you up to 2000L blow molding machine,our factory have patent for the multilayers and multi-colors!
