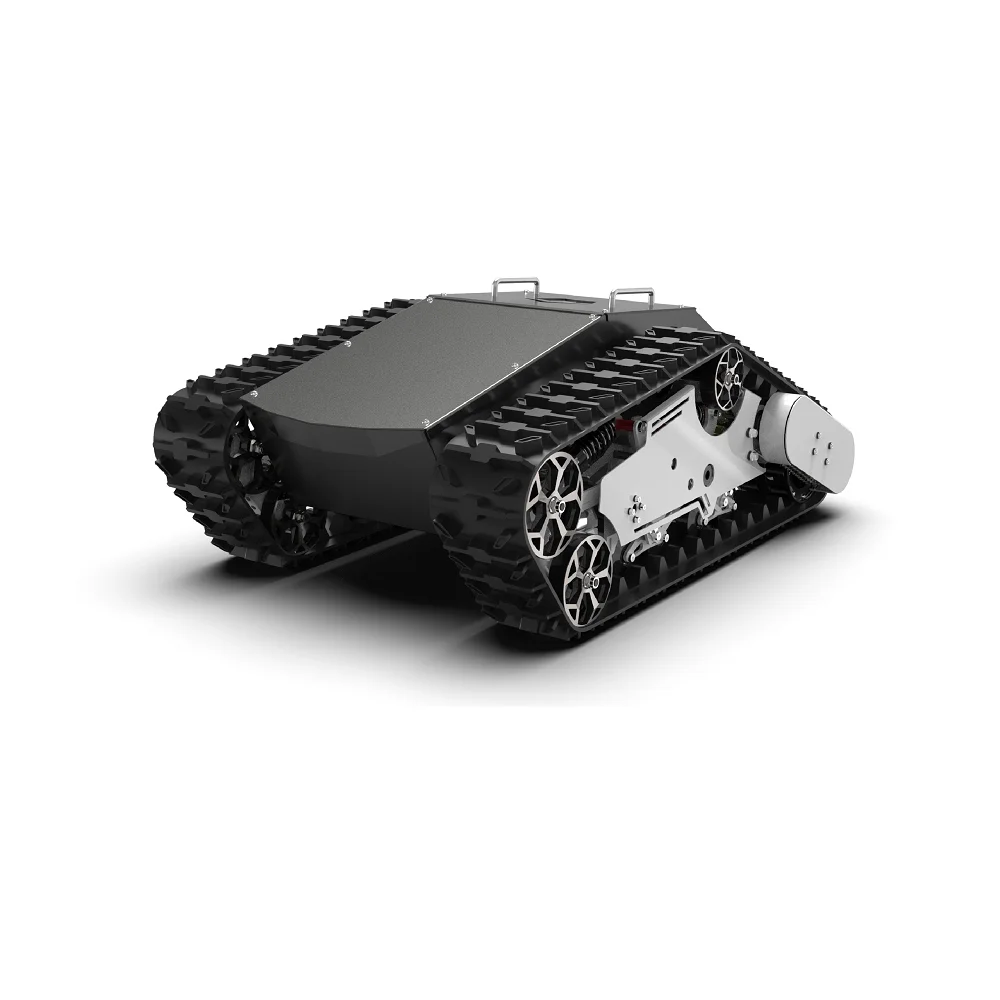

Komodo 02 best selling high transpiration multi purpose track vehicle suspension chassis ATV
- Category: >>>
- Supplier: Shanghai Zosn Hydraulic Co. Ltd.
Share on (1600310978280):
Product Overview
Description
Product Description
Specification
item | value |
Condition | New |
Applicable Industries | Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company |
After Warranty Service | Video technical support, Online support, Spare parts |
Local Service Location | None |
Showroom Location | None |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | Hot Product 2019 |
Place of Origin | FUJ |
Warranty | 1 Year |
After-sales Service Provided | Video technical support, Online support, Engineers available to service machinery overseas, Free spare parts |
Size | 1020*750*405mm |
Self-weight | 110KG |
Rated Load | 100KG |
Operation Speed | 0~6.5km/h |
Track Material | High quality rubber embedded Kevlar fiber |
Damping system | Left and right independent * 6 oil pressure damping |
Rated Power | 1000W*2 |
Motor | 48V DC Brushless |
Max Climbing | 30° |
Max Over-obstacle | 150mm |
Driver data
Overview
KYDBL2450-2E is an intelligent controller for DC brush-less motor which can control two motors at same time.Using 32 bit high level MCU，advanced motion processing algorithms to realize electronic differential controlling.Hall signal supplying feedback of rotor position inside, together with incremental encoder(1000-2500line) outside,to control motors and realize speed open/close circle mode,position mode,torque mode. There are two separate driving chips,two encoder processing chips and two Hall signal processing chips.Failures alarming function is added.Working mode
Separate mode:Controlling two motors separately.Mixed mode:Controlling two motors synchronously.（Forward,backward,turning）
Technical data
1. Power voltage:10—55VDC 2. Working current at 25℃:30A.Instant current:75A 30s
3. Min.speed: 10 RPM at speed close mode. 1 RPM at position mode
4. Out+5VDC power（supply power to encoder）： 5V DC 20mA
5. Analog input:0-- 5VDC
6. Pulse input:500Hz—5000Hz
7. Duty ratio:0％-- 100% (Frequency input: f ≤1KHz ,we recommend 250Hz)
8. Temperature protection:Controller will reduce output at 70℃ and stop output at 80℃
9. Working temperature:-20℃-- +60℃
10.Humidity: ≤80RH.
11、Weight：800g
Overall dimensions: L*W*H=190*130*40 mm
Product packaging
Unit pack
Fix main parts and wrap with stretch film to avoid transport collision.
Pallet
Pack with International standard non fumigation wooden case.
Delivery
Ship to direct port according to customers guidance.
