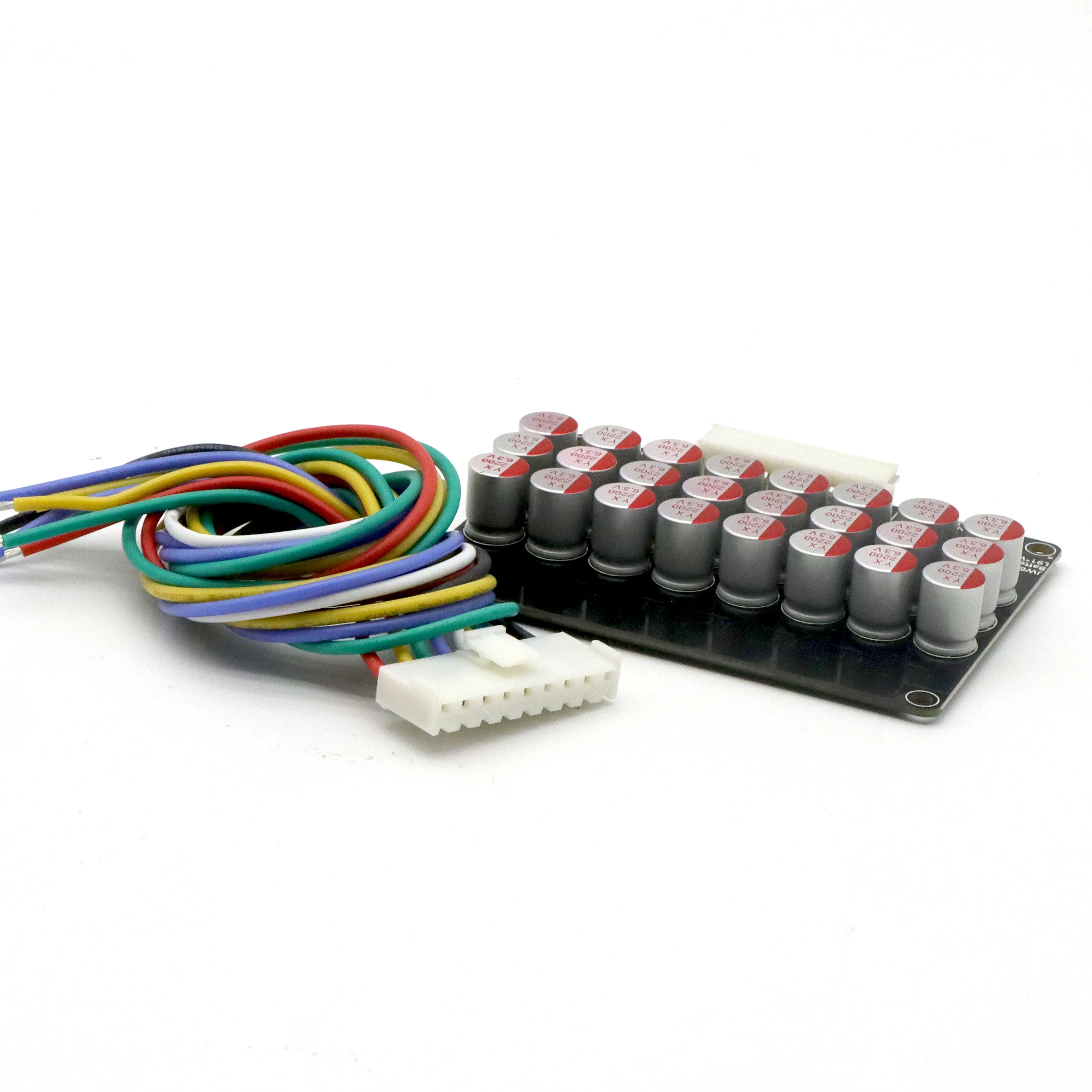

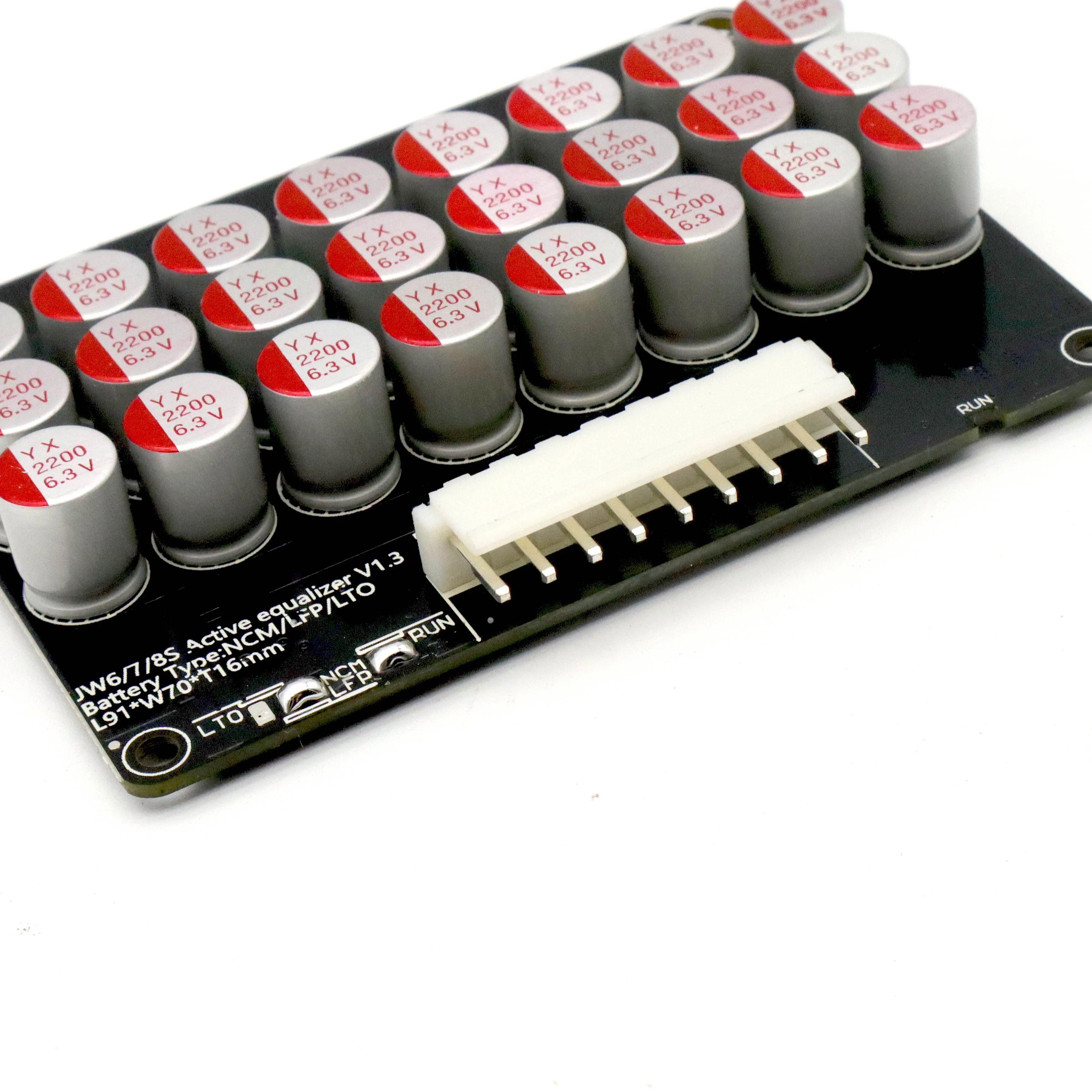

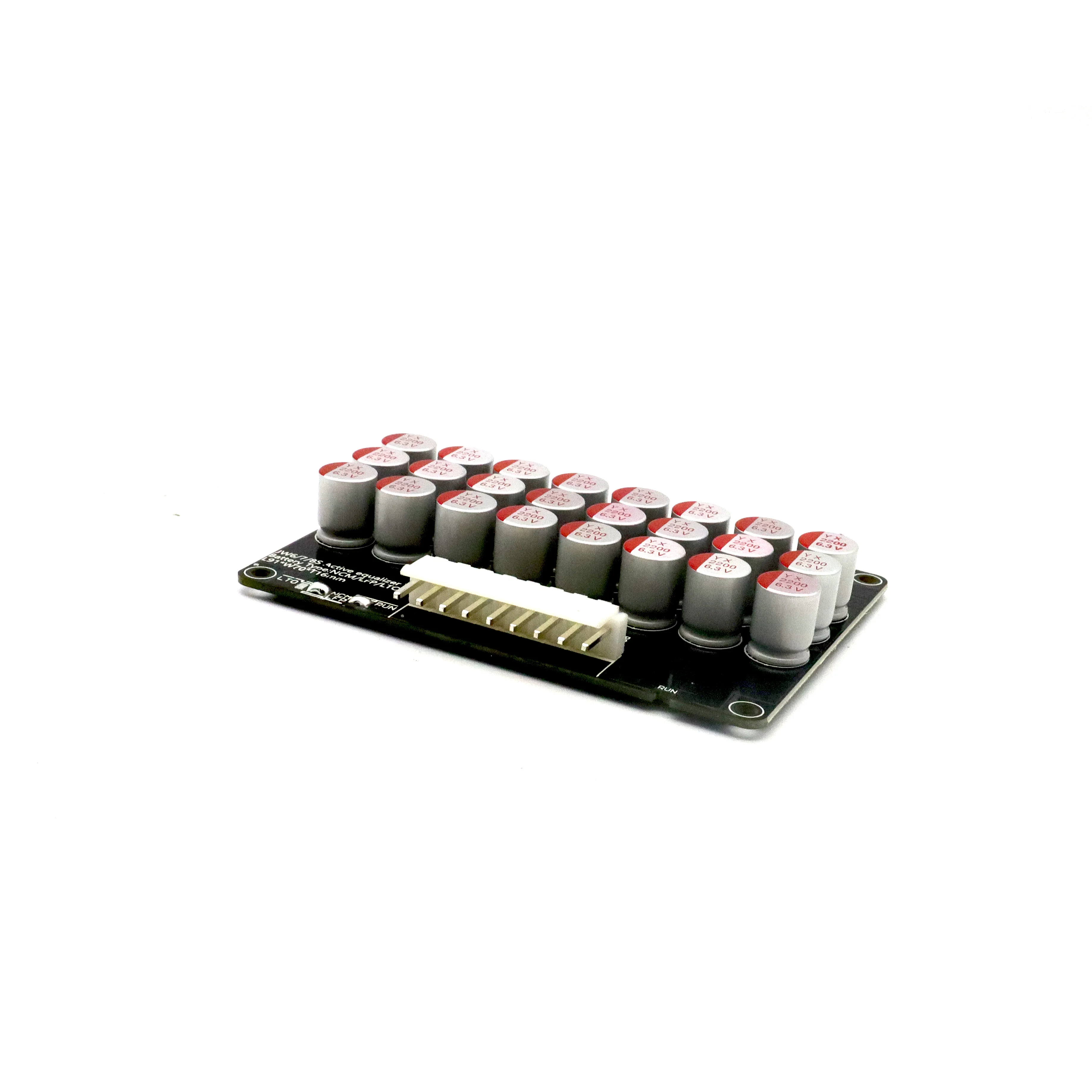

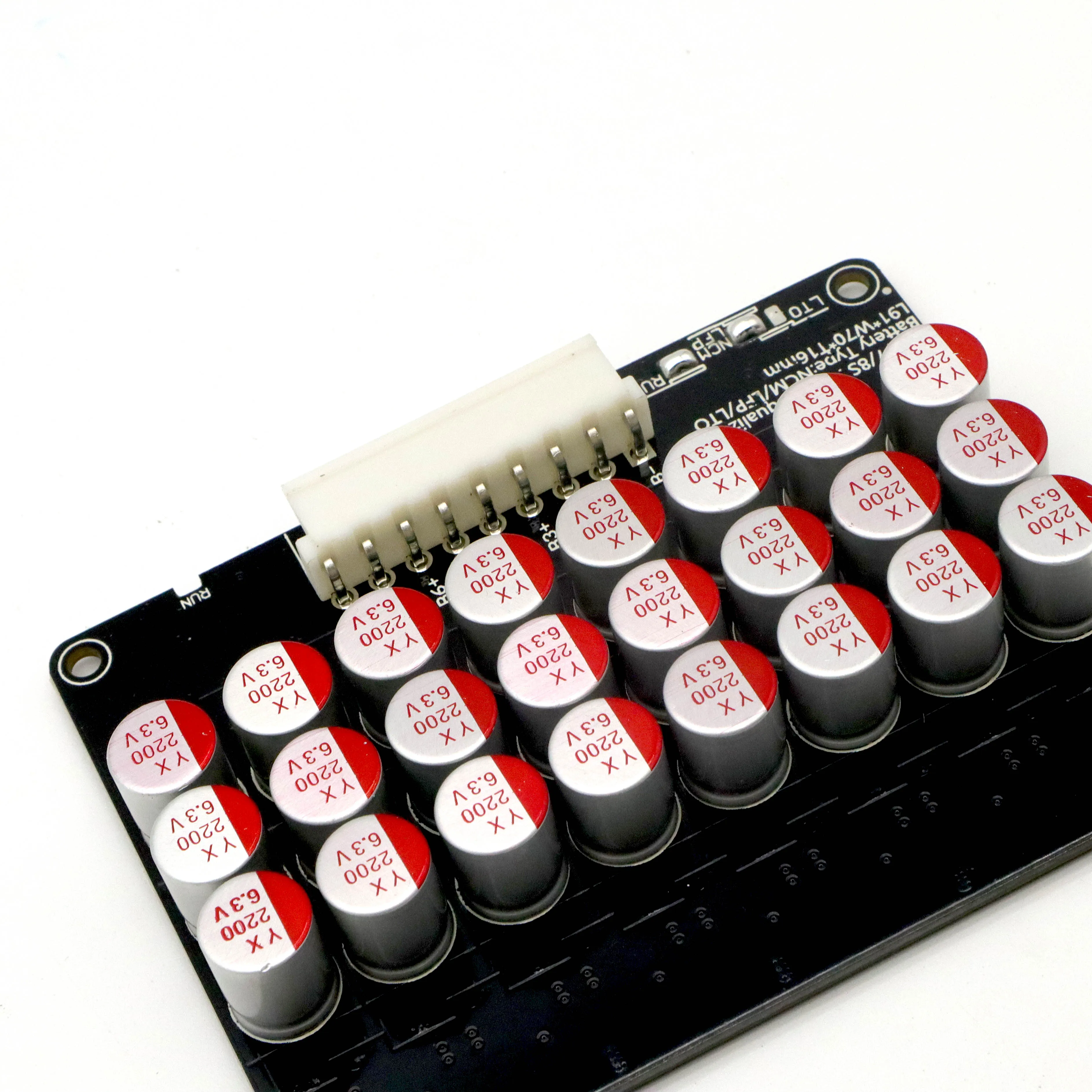

1A 2A 5A 3.2v battery 4S 8S 16S active battery management equalizer
- Category: >>>
- Supplier: Shenzhen Gbeta Technology Co. Ltd.
Share on (1600310984765):
Product Overview
Description
Specification
Features
Balance mode: Fit capacitor balance
Working voltage 2.0-4.2V
Undervoltage sleep value: Sleep voltage can be selected from 2.0V 3.0V 3.7V, supporting ternary lithium, lithium iron phosphate,
lithium titanate
Balance accuracy: less than 5mv
Equilibrium current: 0.1V 1A 0.2V2A, the greater the voltage difference, the larger the current
Balanced static power consumption: 12mA
Suitable for battery capacity: 30Ah-300Ah
Mentioned only LTO means this board only used on LTO battery , Not mention means the board can use on LI-ion and LiFePO4
Working voltage 2.0-4.2V
Undervoltage sleep value: Sleep voltage can be selected from 2.0V 3.0V 3.7V, supporting ternary lithium, lithium iron phosphate,
lithium titanate
Balance accuracy: less than 5mv
Equilibrium current: 0.1V 1A 0.2V2A, the greater the voltage difference, the larger the current
Balanced static power consumption: 12mA
Suitable for battery capacity: 30Ah-300Ah
Mentioned only LTO means this board only used on LTO battery , Not mention means the board can use on LI-ion and LiFePO4
Working Conditions | Ternary lthium /LFP lithium iron phosphate parameters |
Balanced starting voltage | 3.0V-4.2V |
Balanced termination voltage | 2.9V(into undervoltage sleep state) |
Balance accuracy | ≤5mv |
Sleeping current | ≤1mA |
Maximum balance current | The whole group error is 0.1V 1A/0.5V 3.5A/1.0V 5.5A(18awg 30cm cable test) |
3S quiescent current | Full power state(4. 2v 3cell)12 6v 9mA |
4S quiescent current | Full power state(4.2v*4cell)16. 5v 9mA |
7S quiescent current | Full power state(4. 2v 7cell)29 4v 7mA |
8S quiescent current | Full power state(4 2v*8cell)33 6v 7mA |
15S/16S/17S on same board quiescent current | Full power state(4.2v*17cell)71.4v 17mA |
Whether external power supply is required | No external power supply is needed, and the whole group is balanced by the internal energy transfer of the battery. |
Working environment temperature | 0-60°C |
Detail Images

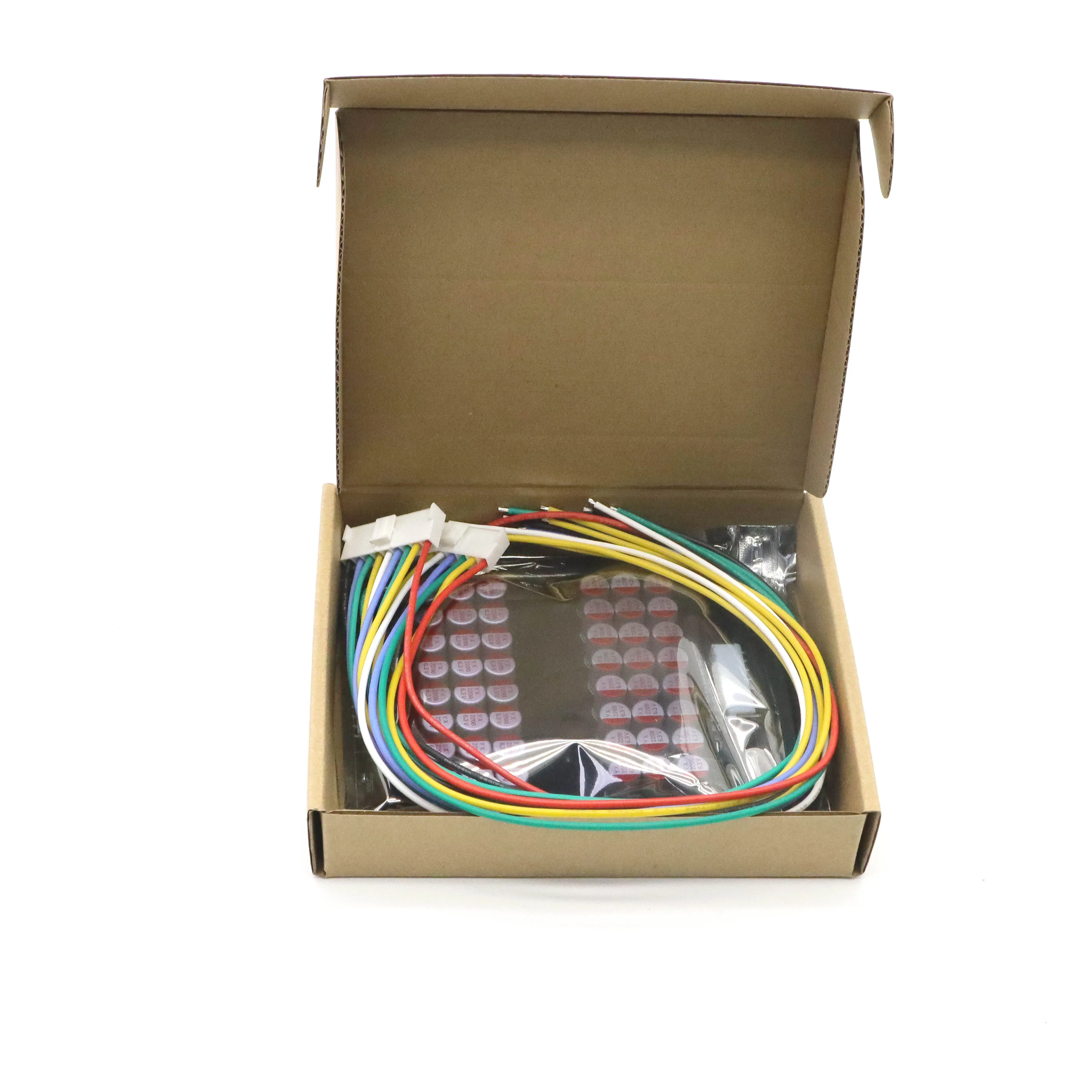

Packing & Shipping
Manufacturing Technique
Shenzhen GBETA Technology Co.,Ltd
Shenzhen GBETA Technology Co.,Ltd, is one of the leading professional battery.
suppliers, was established in 2017. the main products included 3.2V LiFePO4 Prismatic Battery, 12V 24V 48V LiFePO4 Battery Pack which works for storage power, 3.7V Lithium ion Battery Cell and Battery Pack which work for powerful equipments and tools.
As the battery expert, we provide customers not only high quality cells and battery packs,but also the power solution according to
their products design,helping customers save time for R&D and launch new products mare quickly,meanwhile, we offer completed
quality warranty assurance and after-sales service.
We have a completed supply chain and cooperate with top battery manufacturers in China, to ensure that the supply of batteries has
the advantages of high consistency, high discharge, high cycle, and low cost. And higher energy density, thinner, safer,
morelexible features, allow our batteries to be applied in various lines, such as RC toys, solar System, electricvehicles, powerwall,power tools, power banks.
All products we offered have CE ROHS MSDS UN38.3 certification, we provide product customization, OEM&ODM service.We offer 5-Year-Warranty for 3.2V LiFePO4 Cell and LiFePO4 Battery Pack, 1-Year-Warranty for 3.7V lithium ion cell and lithium ion battery pack, 3-Year-Warranty for chargers.
Devoting in the battery industry for many years,GBETA has always pursued the perfect product quality and professional service. We are proud of being your battery solution expert and a reliable partner who will provide batteries with excelent quality for you now and future.
suppliers, was established in 2017. the main products included 3.2V LiFePO4 Prismatic Battery, 12V 24V 48V LiFePO4 Battery Pack which works for storage power, 3.7V Lithium ion Battery Cell and Battery Pack which work for powerful equipments and tools.
As the battery expert, we provide customers not only high quality cells and battery packs,but also the power solution according to
their products design,helping customers save time for R&D and launch new products mare quickly,meanwhile, we offer completed
quality warranty assurance and after-sales service.
We have a completed supply chain and cooperate with top battery manufacturers in China, to ensure that the supply of batteries has
the advantages of high consistency, high discharge, high cycle, and low cost. And higher energy density, thinner, safer,
morelexible features, allow our batteries to be applied in various lines, such as RC toys, solar System, electricvehicles, powerwall,power tools, power banks.
All products we offered have CE ROHS MSDS UN38.3 certification, we provide product customization, OEM&ODM service.We offer 5-Year-Warranty for 3.2V LiFePO4 Cell and LiFePO4 Battery Pack, 1-Year-Warranty for 3.7V lithium ion cell and lithium ion battery pack, 3-Year-Warranty for chargers.
Devoting in the battery industry for many years,GBETA has always pursued the perfect product quality and professional service. We are proud of being your battery solution expert and a reliable partner who will provide batteries with excelent quality for you now and future.
FAQ
1). Are the batteries GRADE-A,Brand NEW?
This item is Grade A+ item,the QR code is intact,Grade A,Brand new.
.2).Are the batteries come with busbars+bolts?
The price come with Bus bars and Bolts，One Battery will come with one set bus bar and bolt（e.g.,If buy 4pcs battery,we will send 4pcs cells with 4pcs busbars and 8pcs grub screws & nuts）If need more please contact us online.`
3).Can you test each battery PRIOR to shipping?
We will test all the battery Voltage and Internal resistance before shipping.
4.)What kind of the package of the cells?
They will come with well package,each cell into thickness PE foam or bag,then into 5 layers strong carton.
5).How can I place the order?
Usually we accept alibaba trade assurance order online. For the RTS(ready for ship) product if there is clear shipping cost or free shipping to your country you can place order and pay directly after reading for all the details,or you can provide your shipping informtion to our sales they will creat online order for you.
6).How can I do if I need more help for the order?
You can chat our sales online or send inquiry email,we will respond you ASAP
This item is Grade A+ item,the QR code is intact,Grade A,Brand new.
.2).Are the batteries come with busbars+bolts?
The price come with Bus bars and Bolts，One Battery will come with one set bus bar and bolt（e.g.,If buy 4pcs battery,we will send 4pcs cells with 4pcs busbars and 8pcs grub screws & nuts）If need more please contact us online.`
3).Can you test each battery PRIOR to shipping?
We will test all the battery Voltage and Internal resistance before shipping.
4.)What kind of the package of the cells?
They will come with well package,each cell into thickness PE foam or bag,then into 5 layers strong carton.
5).How can I place the order?
Usually we accept alibaba trade assurance order online. For the RTS(ready for ship) product if there is clear shipping cost or free shipping to your country you can place order and pay directly after reading for all the details,or you can provide your shipping informtion to our sales they will creat online order for you.
6).How can I do if I need more help for the order?
You can chat our sales online or send inquiry email,we will respond you ASAP
