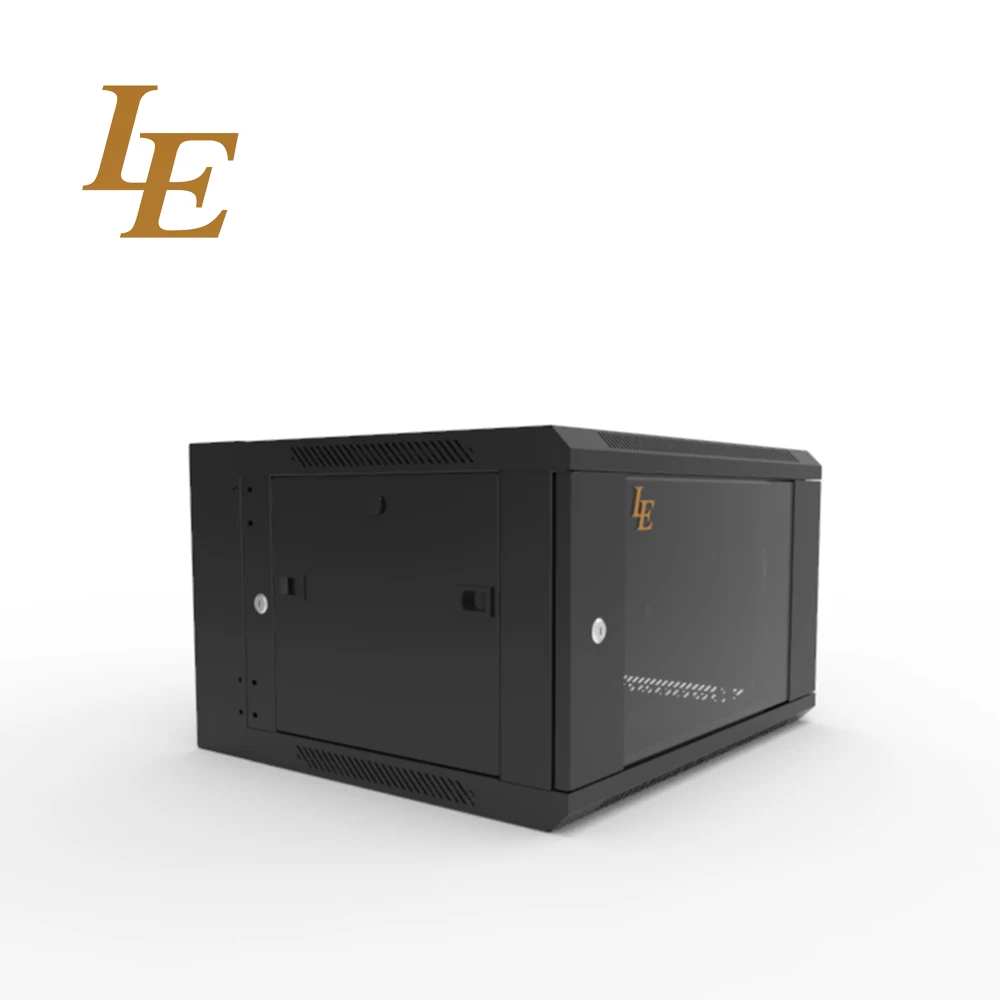

LE Double section 4U 18U network server cctv cabinet

Product Overview

Description

General description of LE Double section 4U-18U network server cctv cabinet

1. Stell frame with assistant profile unassembled structure;

2. Double Section, compatible with 19" standard equipment;

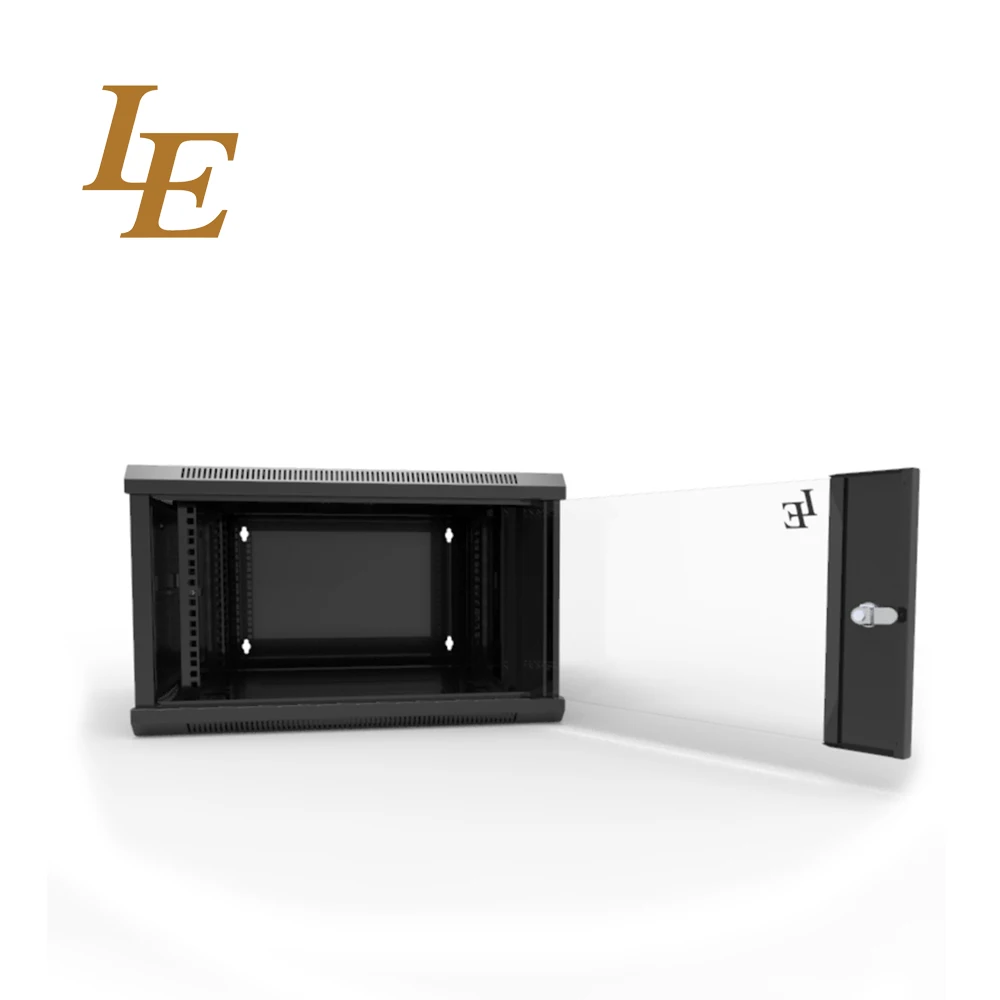

3. Tempered glass front door with over 180 turning degree;

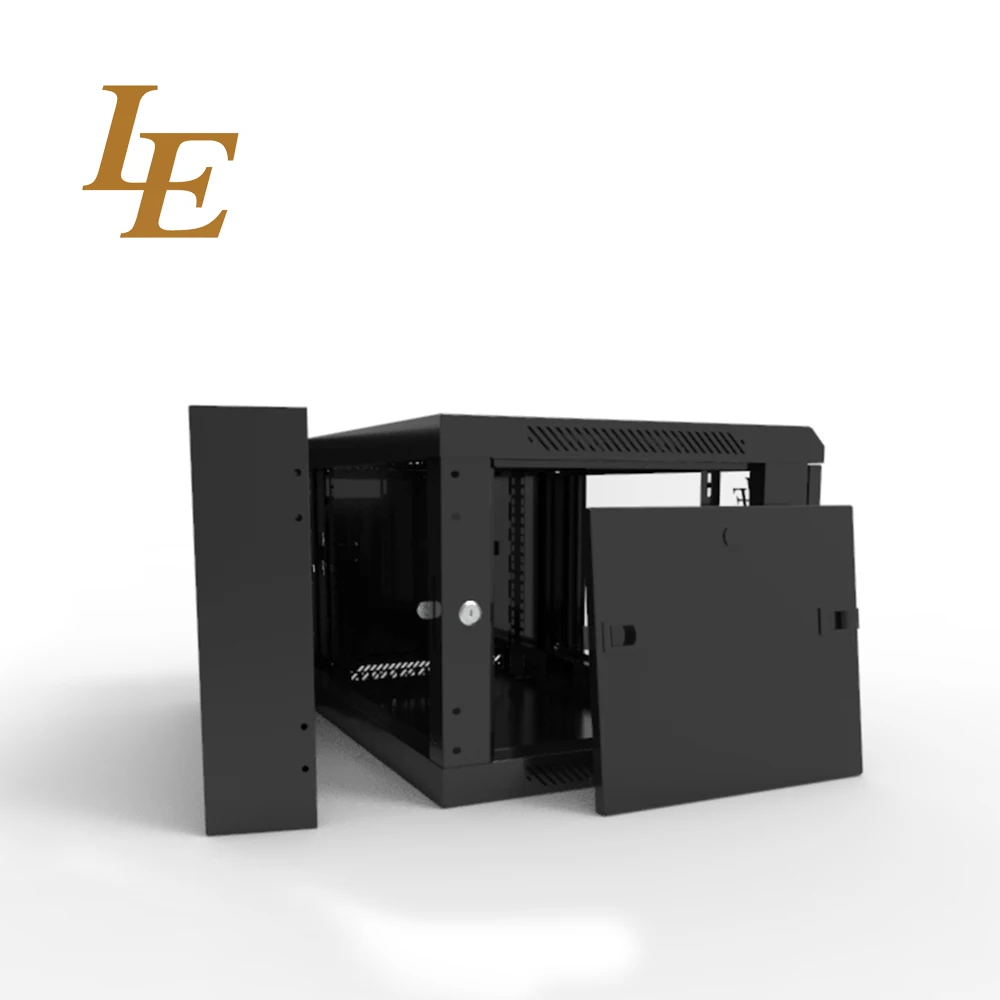

4. Side Panel: Removable side panel, easy to install and maintain (lock optional);

5. Cable Entry on top and bottom;

6. L-Shaped Mounting Profile, easy to adjustable on the mounting rail;

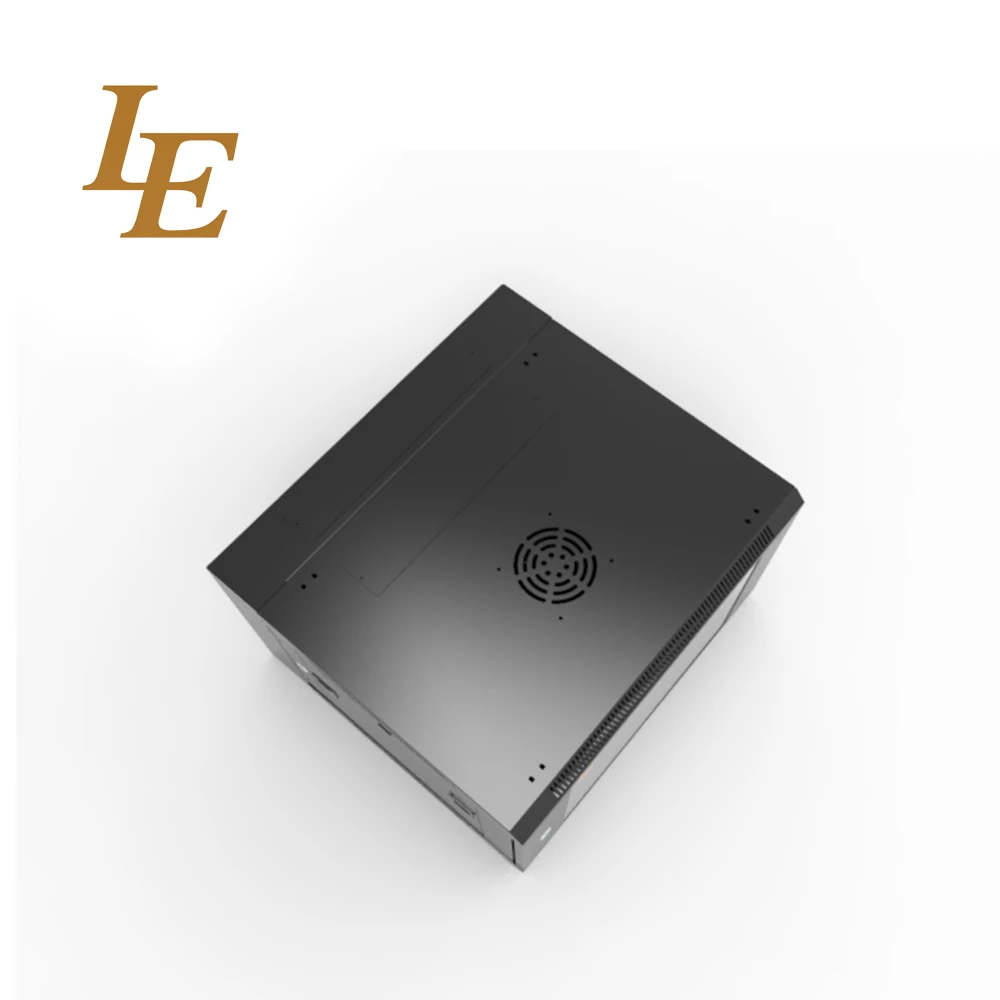

7. Fan cutout on the top,easy to install the fan;

8. Swing back with over 90 turning degree;

9. Various accessories for optional;



Standard	ANS/EIA RS-310-D,IEC297-2,DIN41491,PART1,DIN41491,PART7,ETSI Standard
Material	SPCC quality cold rolled steel Thickness: 1.2mm Tempered glass Thickness:5mm
Loading Capacity	Static loading: 60kg(on the adjustable feet)
Degree of protection	IP20
Surface finish	Degreasing,Pickling,Phosphating,Powder Coated
Product specification	4U-18U
Width	600mm
Depth	550mm,600mm
color	Ral9004; Ral9005; Ral7035





Our Advantages:
1. 100% MANUFACTURER.
2. Our steel is from Shanghai ShouGang group corporation, higher quality assurance.
3. Japan and Germany CNC machine, professional infrared test equipment, higher precision, more stringent testing.
4. Laser cutting machine and Germany WAGNER auto painting equipment, higher efficiency.
5. 5 ply corrugated with import Meika outside paper carton, glued to avoid scratch, more carefully protection.
6. Professional container loading team, take full advantage of the space and avoid shaking, save your delivery cost.
7. On time delivery rate more than 95%.
