Shinefar 330w solar panel poly 340w 350w 72 cell
- Category: >>>
- Supplier: Hangzhou Shinefar Solar Co. Ltd
Share on (1600311012962):
Product Overview
Description
Why Choose Us
Product Details
SPECIFICATIONS FOR SF-P6/72(320-355W) | ||||||||||||||||
TYPICAL TYPE | SF-P6/72320 | SF-P6/72325 | SF-P6/72330 | SF-P6/72335 | SF-P6/72340 | SF-P6/72345 | SF-P6/72350 | SF-P6/72355 | ||||||||
Max power(Pmax) | 320 | 325 | 330 | 335 | 340 | 345 | 350 | 355 | ||||||||
Max power voltage(Vmp) | 37.30 | 37.60 | 37.80 | 38.00 | 38.20 | 38.90 | 39.20 | 39.49 | ||||||||
Max power current(Imp) | 8.58 | 8.64 | 8.73 | 8.82 | 8.90 | 8.87 | 8.93 | 8.99 | ||||||||
Open circuit voltage(Voc) | 45.80 | 46.00 | 46.20 | 46.40 | 46.60 | 47.30 | 47.60 | 47.90 | ||||||||
Short circuit current(Isc) | 9.15 | 9.24 | 9.33 | 9.41 | 9.49 | 9.61 | 9.68 | 9.74 | ||||||||
Moudle efficienvy(%) | 16.49 | 16.70 | 17.00 | 17.30 | 17.50 | 17.80 | 18.00 | 18.30 | ||||||||
Power tolerance | 0~+5W | |||||||||||||||
Max system voltage | DC1000V | |||||||||||||||
Maximum Series Fuse Rating | 20A | |||||||||||||||
Dimensions | 1956x992x35mm | |||||||||||||||
Weight | 21kgs | |||||||||||||||
Front glass | High transparency solar glass 3.2mm (0.13 inches) | |||||||||||||||
Frame | Silver, anodized aluminium alloy | |||||||||||||||
Output cables | TUV\u007F1×4.0mm2,\u007FLength:\u007F1100mm\u007For\u007FCustomized\u007FLength | |||||||||||||||
Junction box | IP67 | |||||||||||||||
Cell type | Poly silicon 156.75x156.75mm(6\u007Finch) | |||||||||||||||
Number of cells | 72 cells in series | |||||||||||||||
Warranty | 10years of product defects in materials & workmanship 10years for 90% of warranted minimum power output 25years for 80% of warranted minimum power output | |||||||||||||||
Related Products
Market Feedback

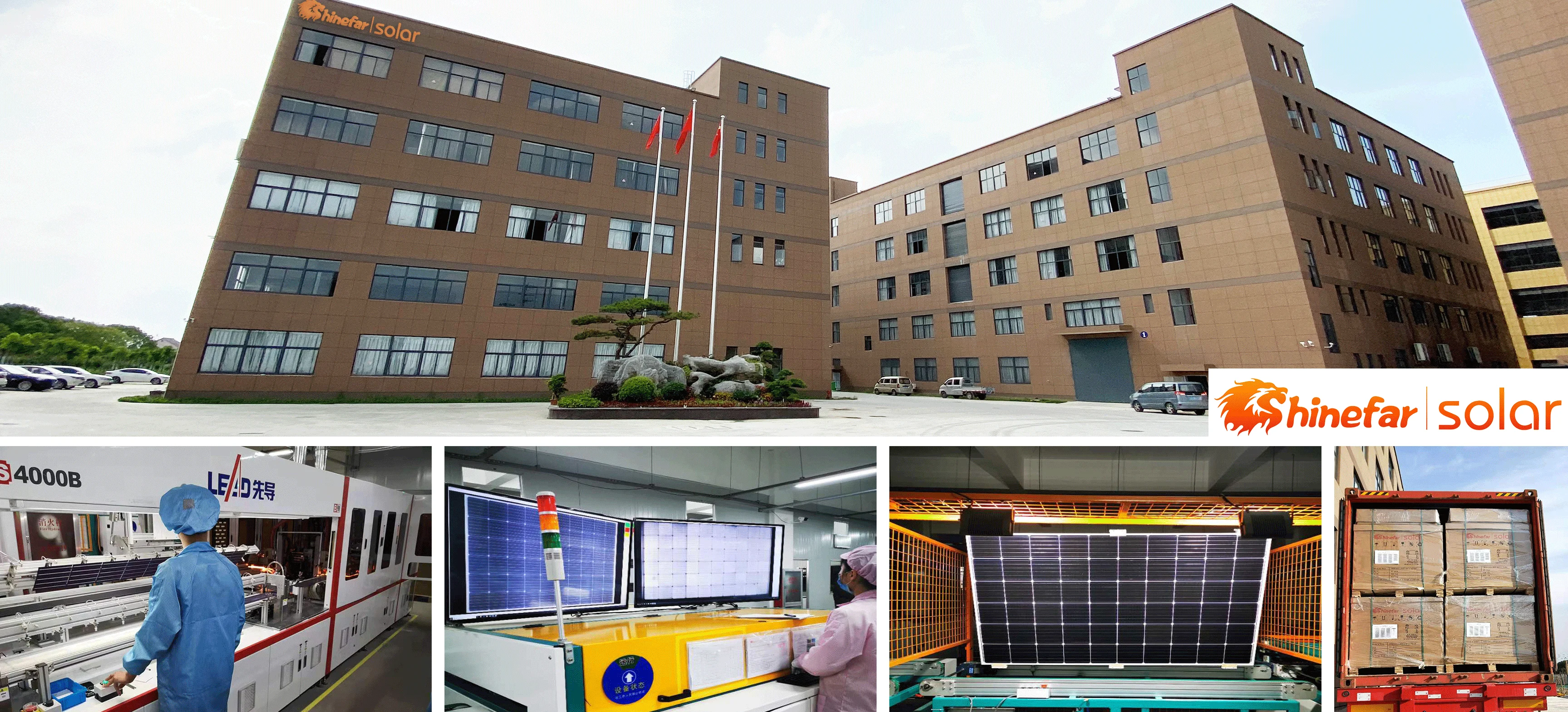

Company Profile
Shinefar Solar Power, formerly known as Shinefar Group(UK), was founded in 2005 with the brand name “Shinefar Solar”. The compan is located in Yuyue Town, Deqing County, Zhejiang Province, which enjoys the reputation of "Paradise On Earth". It is adjacent to Hangzhou and within the 30-minute traffic circle including Hangzhou Xiaoshan International Airport and Hangzhou East Railway Station.
The company mainly produces solar module, including large size solar module, solar half cell module and solar double glass module.The products have got the certification of TUV, CE, INMETRO, MCS, ROHS, CQC, ISO and other domestic and foreign authoritative organizations. The automatic assembly line production workshop with an annual capacity of 600MW has been audited and issued with certificates by a third-party certification agency, TUV of Germany which cooperates with Alibaba, so that customers can rest assured to use our solar modules. In addition, the company also specializes in the solar energy engineering projects, design and installation of distributed power stations, and can professionally provide solar energy products, project solutions and technical services to customers around the world manner. We warmly welcome customers at home and abroad to collaborate for joint development.
Certifications
Projects Show
* Good feedback from Korea customer
Industrial roof,1800 pcs of OEM mono 320w panels,total 576kw
* Good feedback from Chinese customer
Industrial roof,9222pcs of shinefar poly 280w,total 2.58MW
* Good feedback from Ukrainian customer
18roofs,2340 pcs of shinefar mono 320w,total 749kw
* Good feedback from Vietnamese customer
3 large Industrial roof,we help them design and supply all products(shinefar mono 380w + sungrow 110kw+Aluminium alloy mounting),total 1.2MW
* Good feedback from Chinese customer
Industrial 3 roofs,shinefar is EPC,3960pcs of shinefar mono 320w,total 1.26MW
Products Packages
*Before leaved shinefar factory
31pcs per pallet+2pcs per carton(top)
60cells put 952pcs of 40hq
72cells put 838pcs of 40hq
* Arrive at customer project site
After 30 days of sea transportation +3 days of foreign road transportation, * The packing keep strong.
*Mix container
if your order with different panel type, our team is still very professional.
*20ft container
60cells put 412pcs
72cells put 328pcs
