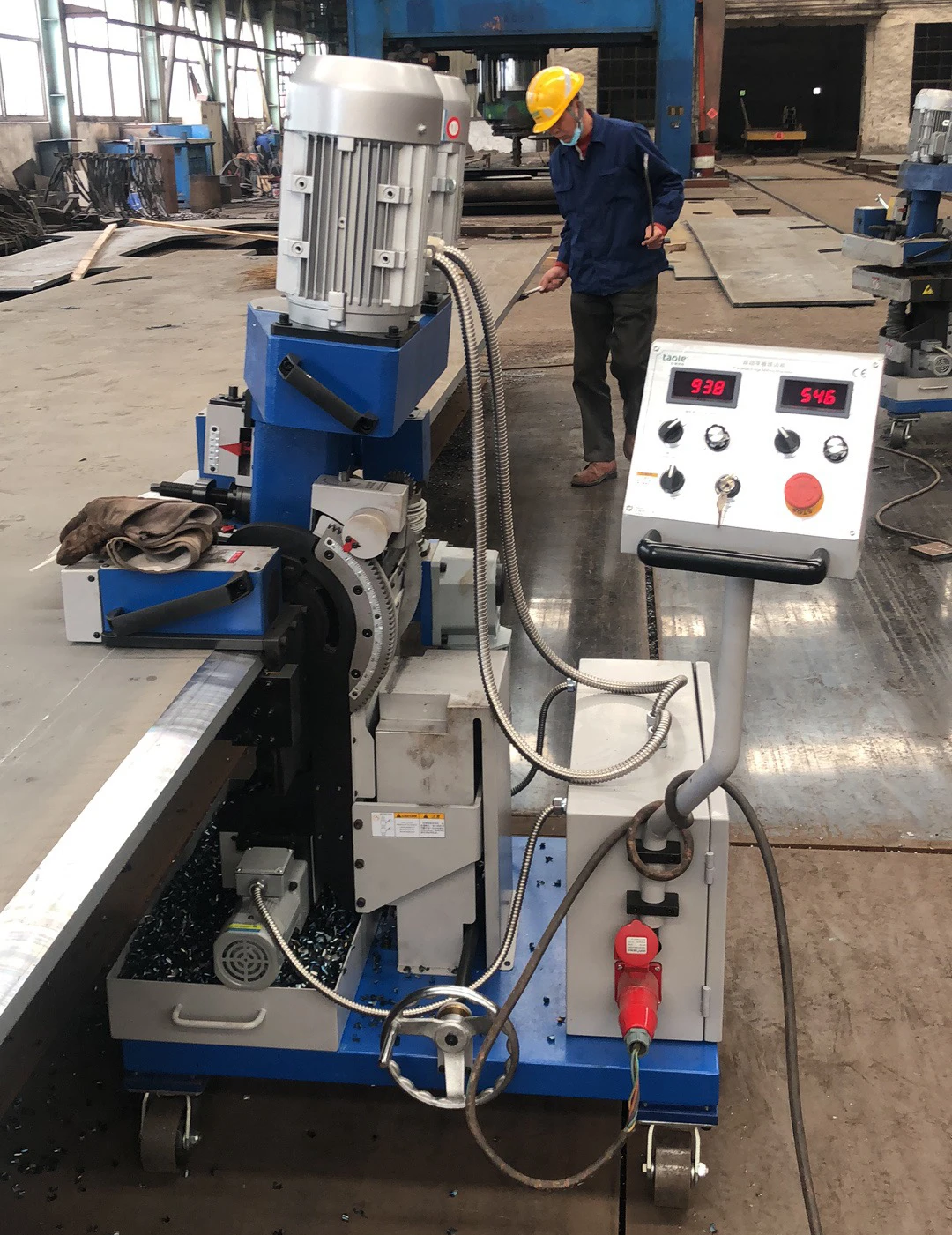

GMMA 100L angle adjustable steel plate edge milling Machine for 8 100mm thickness plate
- Category: >>>
- Supplier: Shanghai Taole Machine Co. Ltd.
Share on (1600311147350):
Product Overview
Description
Product Overview

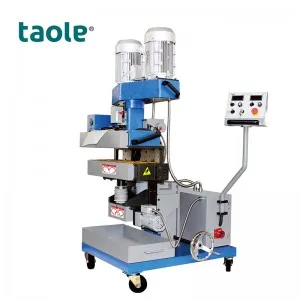

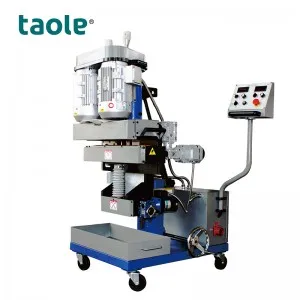

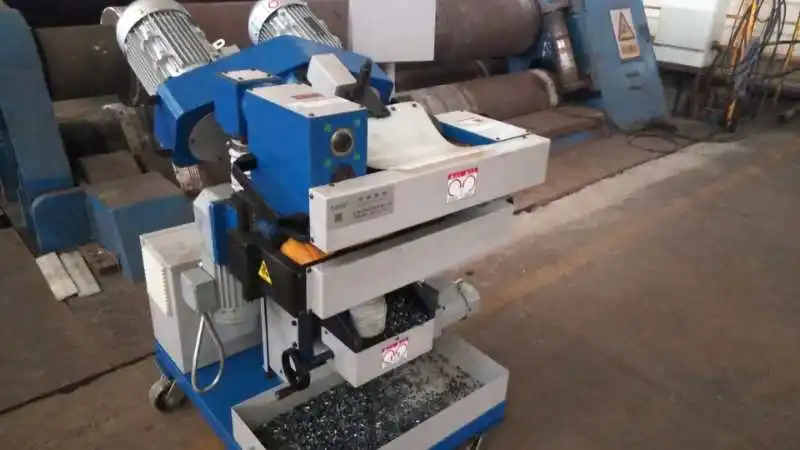

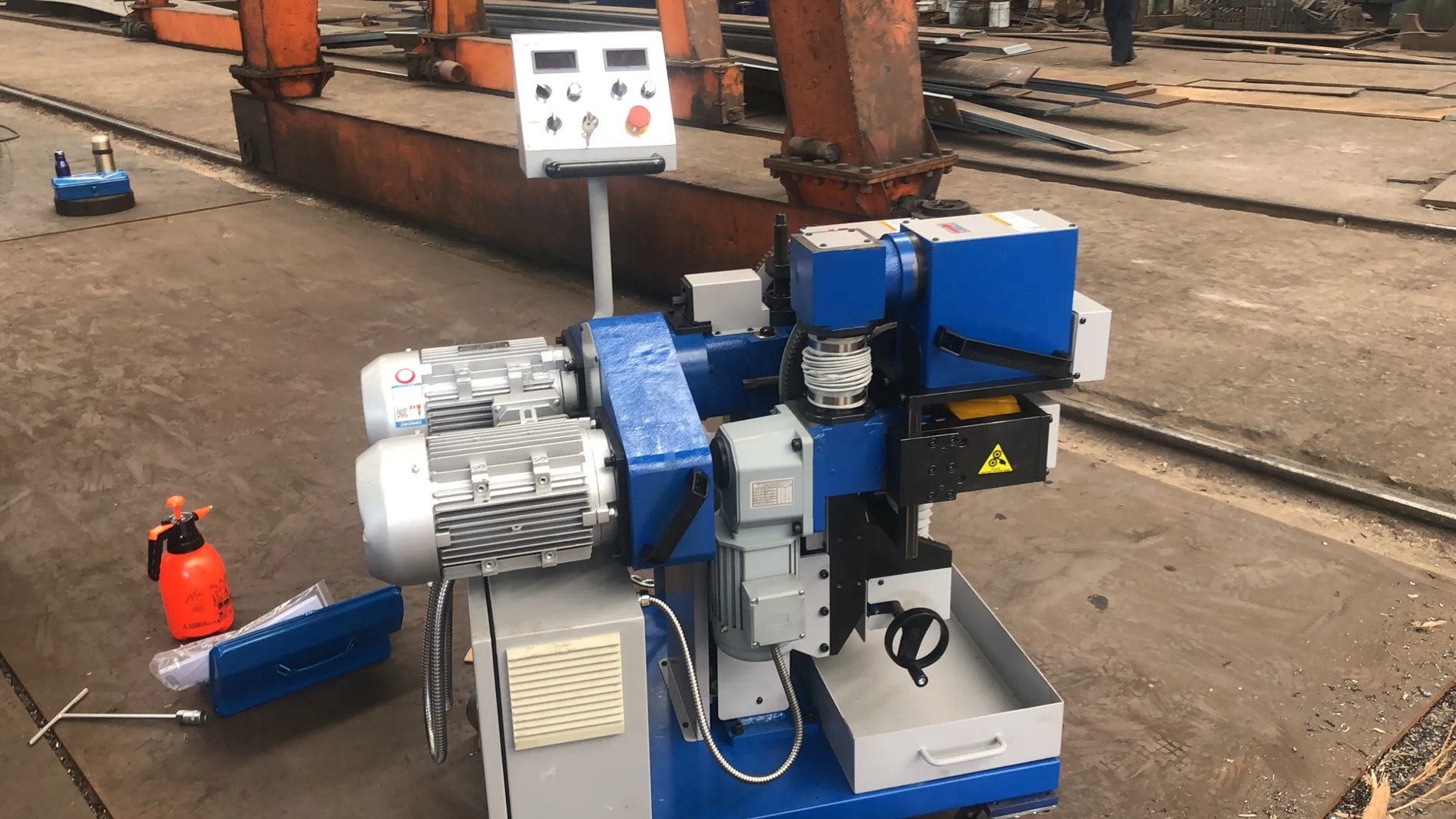

GMMA-100L Heavy Duty Steel Plate Beveling Machine

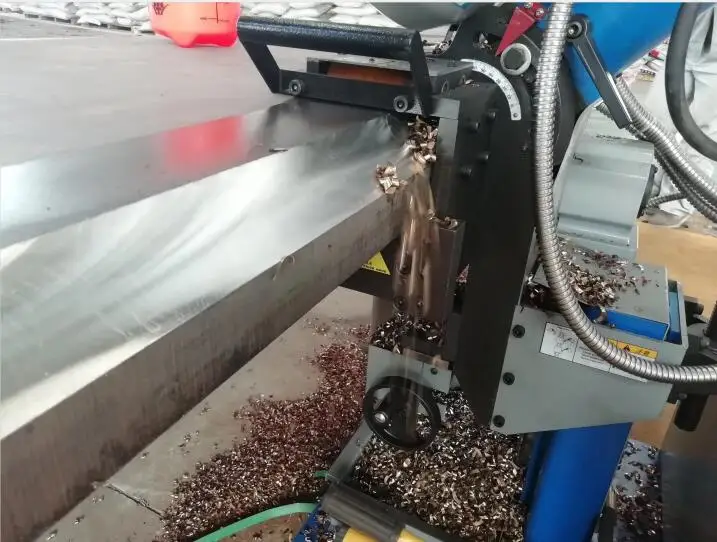

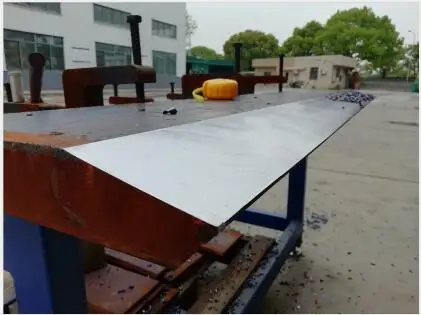

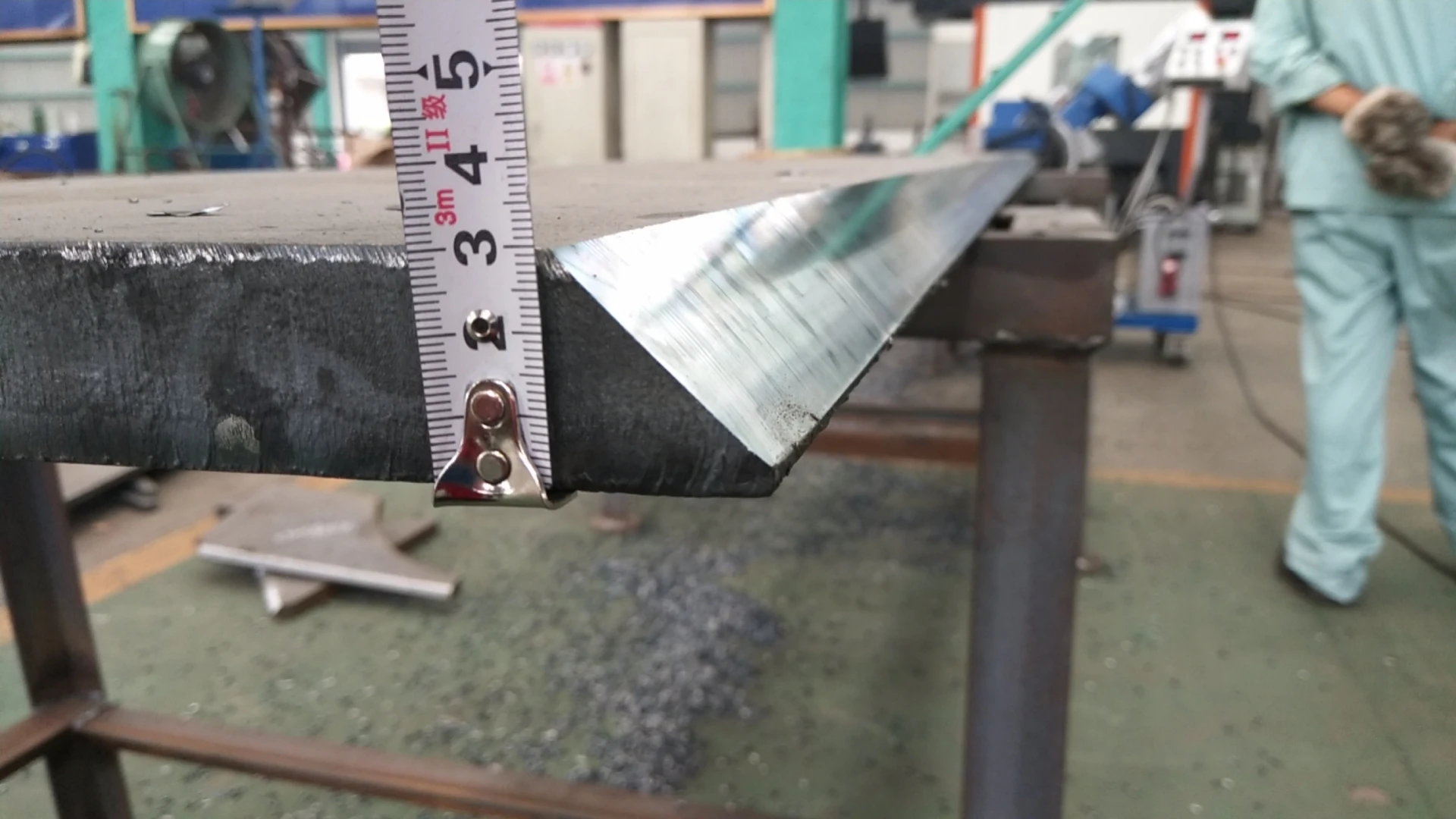

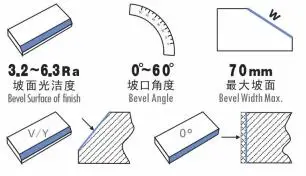

GMMA-100L is a new model specially for heavy duty metal sheets for fabrication preperation. It is available for plate thickness 8-100mm, bevel angel 0 to 90 degree for vary type of welding joint such as V/Y,U/J, 0/90 degree. Max bevel width could reach 100mm Specifications
FEATURES AT A GLANCE
HIGH-PRECISION
HIGH EFFICIENCY
DIGITAL DISPLAY
SAFETY LOCK
SIMPLE CONTROL
EASY MAINTENANCE
ANGLE AJUSTABL: 0-90 degree
SPEED AJUSTABLE:500-1050r/min
FEED AJUSTABALE: 0-1500mm/min
INDICATE CLEAR
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Power | AC 380v 50HZ |
2 | TOTAL POWER | 6520W |
3 | SPINDLE SPEED | 500-1050r/min |
4 | FEED SPEED | 0-1500mm/min |
5 | CLAMP THICKNESS | 8-100mm |
6 | CLAMP WIDTH | >100mm |
7 | PROCESS LENGTH | >300mm |
8 | BEVAL ANGLE | 0-90 degree |
9 | SINGLE BEVEL WIDTH | 0--30MM |
10 | MAX BEVEL WIDTH | 100 MM |
11 | CUTTER PLATE | 100 MM |
12 | INSERT QTY | 7 or 9 PCS |
13 | WORKABLE HEIGHT | 810-870MM |
14 | FLOOR SPACE | 1200*1200MM |
15 | WEIGHT | NW.420KG GW..480KG |
16 | PACKING SIZE | 950MM*1180MM*1430 |
PRODUCT CONFIGURATION
FAQ
Q1：Are you manufacture ?
A2：YES，We are China manufacture.Our main products include plate beveling ,milling machine ,pipe cold cutting beveling machine ,edge rounding machine ,CNC edge milling machine ,metal slag removal machine etc.
Q2：what is your deliver time?A2：Standard machine can be ready in 3-7 days .Customized machine simple one 30-45 days .and large prjects normally be 1-3 months.
Q3:What about payment terms？
A3：We will suggest 100%by T/T while amount less than USD 10000.We will suggest 50% deposit ,50% balance for bigger amount or customized projects.
Q4:How should I select suitable plate beveling machine models ?
A4:For plate beveling machine .please share your metal plate specifacations(MAX and min Thickness *Length * Width ).Required bevel type ,bevel angel and metal Qty ,so we could present you best solutions.
Q5:what about your after sale service ？
A5:You donnot have to worry as it is a simple machine on operation and we have English manua with machine .machine can be used after you received it.In furthur any problem we can provide video and remote service by email,phone,etc.Second if you need local service .please do notice while inquiry.thank you.
