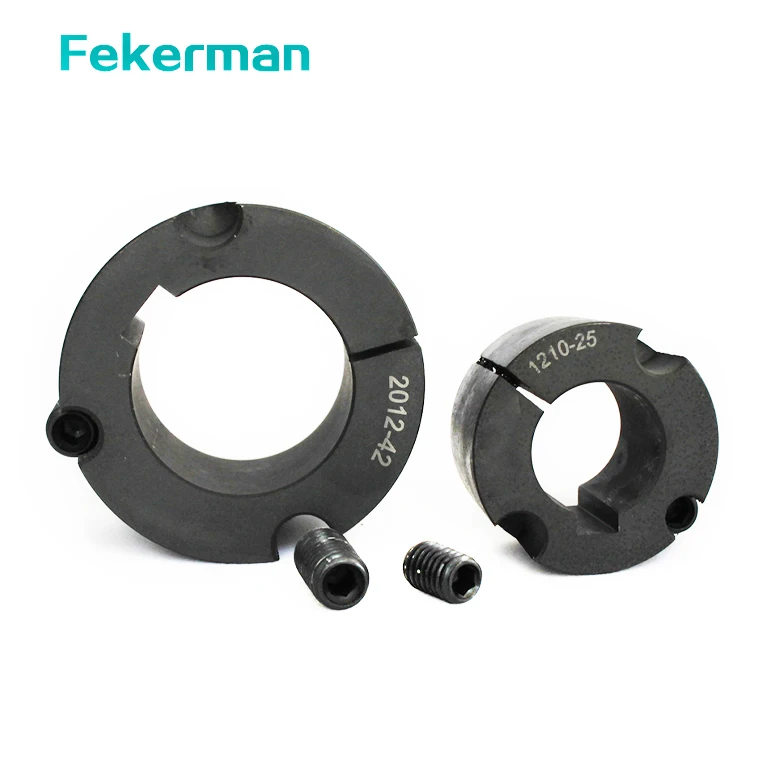

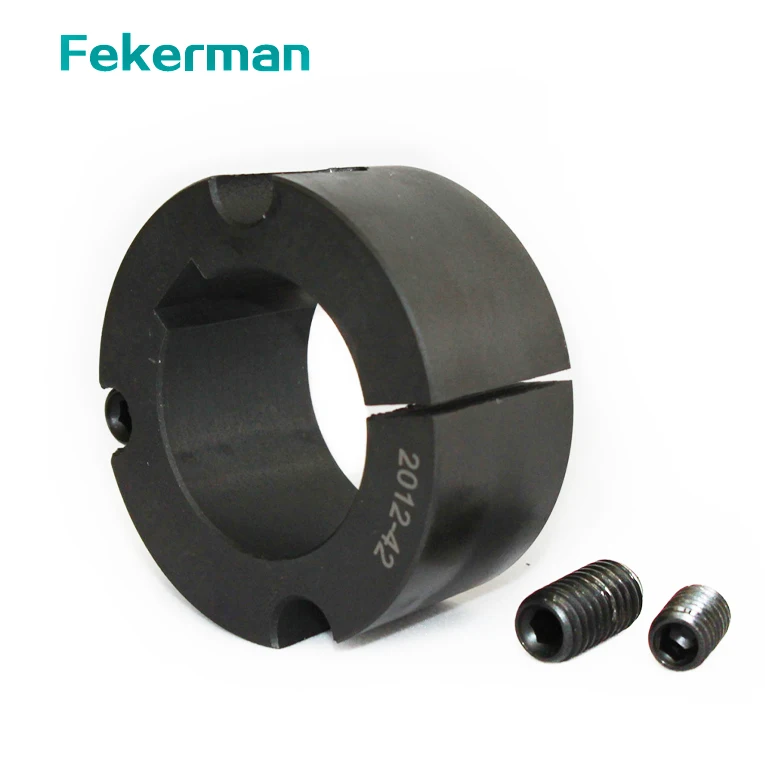

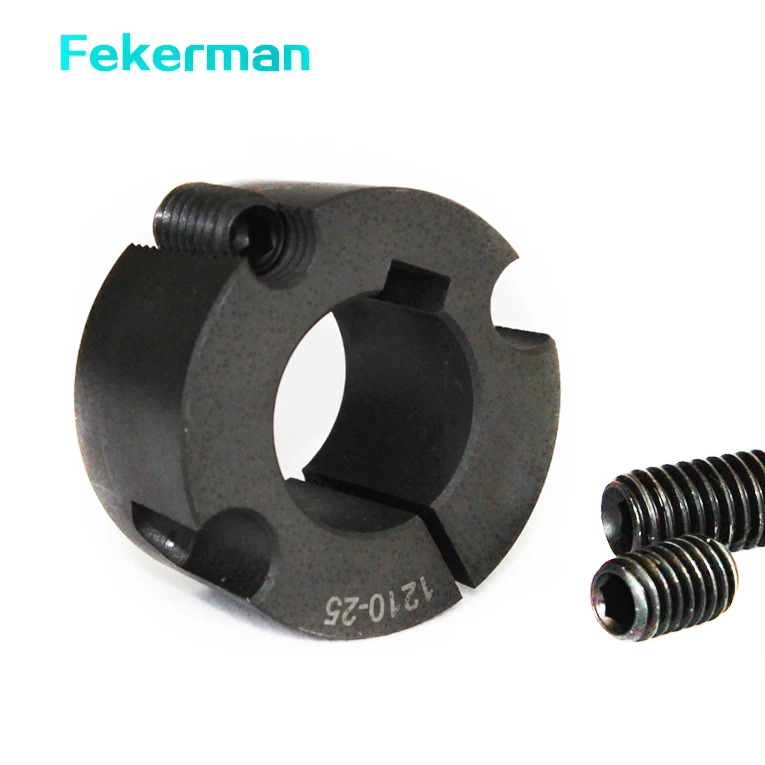

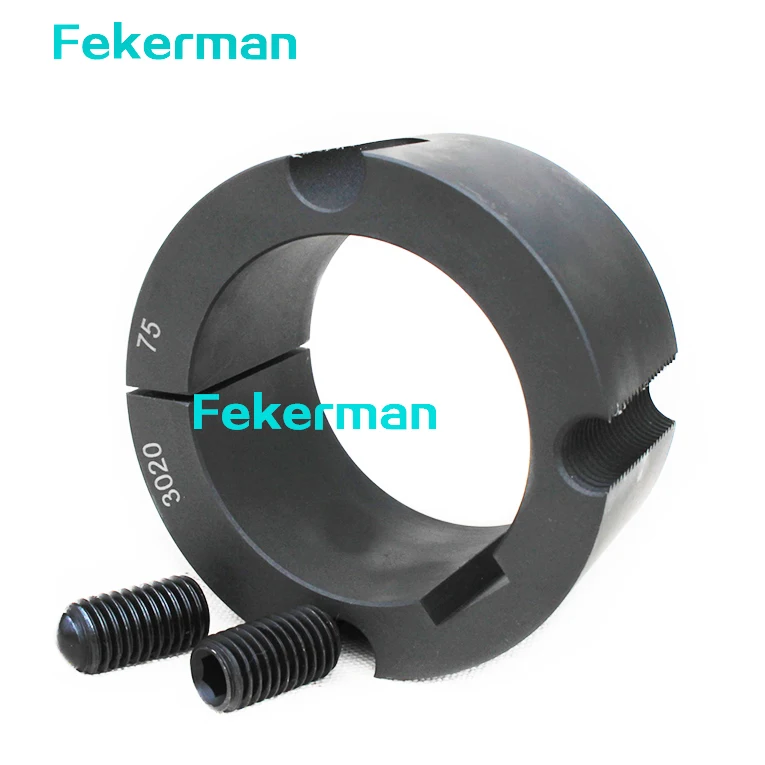

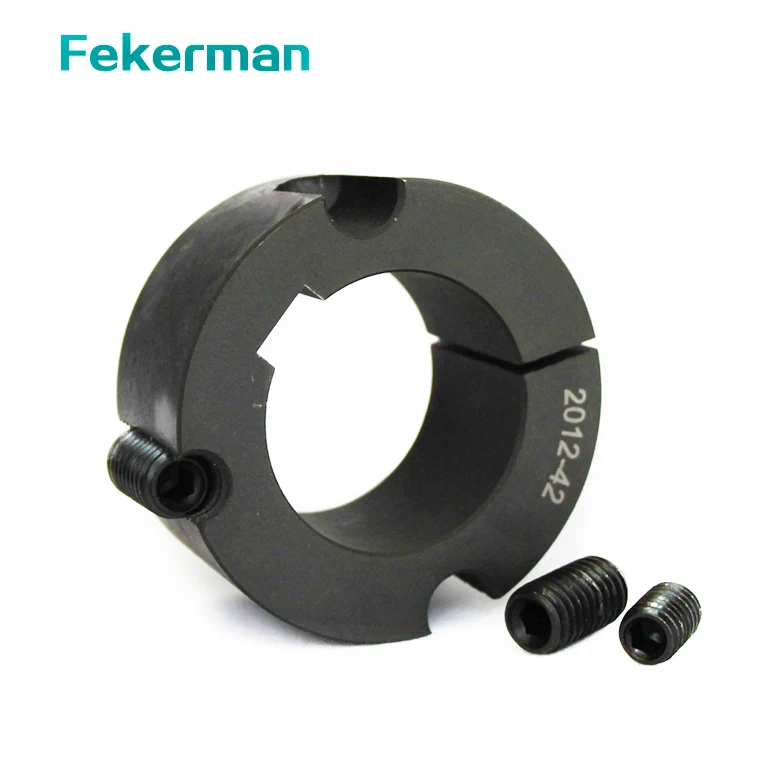

Taper bush taper lock for v belt pulley 1210 1610 2012 2517 3020

Product Overview

Description

Taper lock bushes size option:



1108 1210 1610 1615 2012 2517 2525 3020

3030 3525 3535 4040 4545 5050 6050 7060



Standard: DIN6885

Material: Cast iron

Surface treatment: Black phosphating

Order examples: 5050-mm



Bush No.	Bore range / Bore diameter options-mm
1008	10mm, 11mm, 12mm, 14mm, 16mm, 18mm, 19mm, 20mm, 22mm, 24mm, 25mm
1108	10mm, 11mm, 12mm, 14mm, 16mm, 18mm, 19mm, 20mm, 22mm, 24mm, 25mm, 28mm
1210	11mm, 12mm, 14mm, 16mm, 18mm, 19mm, 20mm, 22mm, 24mm, 25mm, 28mm, 30mm, 32mm
1215	11mm, 12mm, 14mm, 16mm, 18mm, 19mm, 20mm, 22mm, 24mm, 25mm, 28mm, 30mm, 32mm
1310	14mm, 16mm, 18mm, 19mm, 20mm, 22mm, 24mm, 25mm, 28mm, 30mm, 32mm
1610	14mm, 16mm, 18mm, 19mm, 20mm, 22mm, 24mm, 25mm, 28mm, 30mm, 32mm, 35mm, 38mm, 40mm, 42mm
1615	14mm, 16mm, 18mm, 19mm, 20mm, 22mm, 24mm, 25mm, 28mm, 30mm, 32mm, 35mm, 38mm, 40mm, 42mm
2012	18mm, 19mm, 20mm, 22mm, 24mm, 25mm, 28mm, 30mm, 32mm, 35mm, 38mm, 40mm, 42mm, 45mm, 48mm, 50mm
2517	20mm, 22mm, 24mm, 25mm, 28mm, 30mm, 32mm, 35mm, 38mm, 40mm, 42mm, 45mm, 48mm, 50mm, 55mm, 60mm, 65mm



Bush No.	Bore range / Bore diameter options-mm
2525	20mm, 22mm, 24mm, 25mm, 28mm, 30mm, 32mm, 35mm, 38mm, 40mm, 42mm, 45mm, 48mm, 50mm, 55mm, 60mm, 65mm
3020	25mm, 28mm, 30mm,32mm, 35mm, 38mm, 40mm, 42mm, 45mm, 48mm, 50mm, 55mm, 60mm, 65mm, 70mm, 75mm, 80mm
3030	25mm, 28mm, 30mm,32mm, 35mm, 38mm, 40mm, 42mm, 45mm, 48mm, 50mm, 55mm, 60mm, 65mm, 70mm, 75mm, 80mm
3525	28mm, 30mm,32mm, 35mm, 38mm, 40mm, 42mm, 45mm, 48mm, 50mm, 55mm, 60mm, 65mm, 70mm, 75mm, 80mm
3535	35mm, 38mm, 40mm, 42mm, 45mm, 48mm, 50mm, 55mm, 60mm, 65mm, 70mm, 75mm, 80mm, 85mm, 90mm, 95mm
4040	40mm, 42mm, 45mm, 48mm, 50mm, 55mm, 60mm, 65mm, 70mm, 75mm, 80mm, 85mm, 90mm, 95mm, 100mm, 105mm, 110mm
4545	50mm, 55mm, 60mm, 65mm, 70mm, 75mm, 80mm, 85mm, 90mm, 95mm, 100mm, 105mm, 110mm, 120mm
5050	60mm, 65mm, 70mm, 75mm, 80mm, 85mm, 90mm, 95mm, 100mm, 105mm, 110mm, 120mm, 125mm, 130mm
6050	105mm, 110mm, 115mm, 120mm, 125mm, 130mm, 140mm, 150mm, 155mm, 160mm

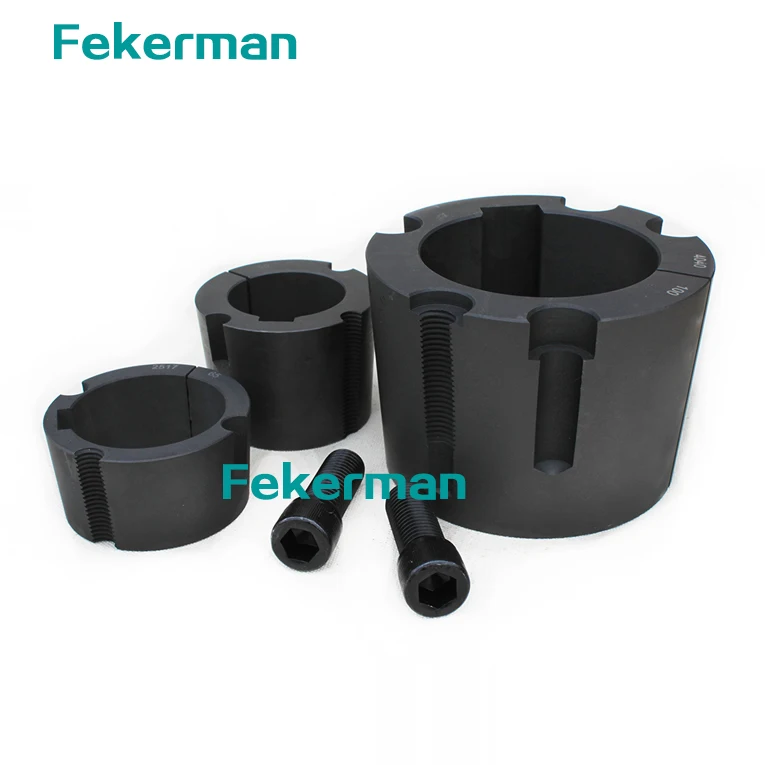

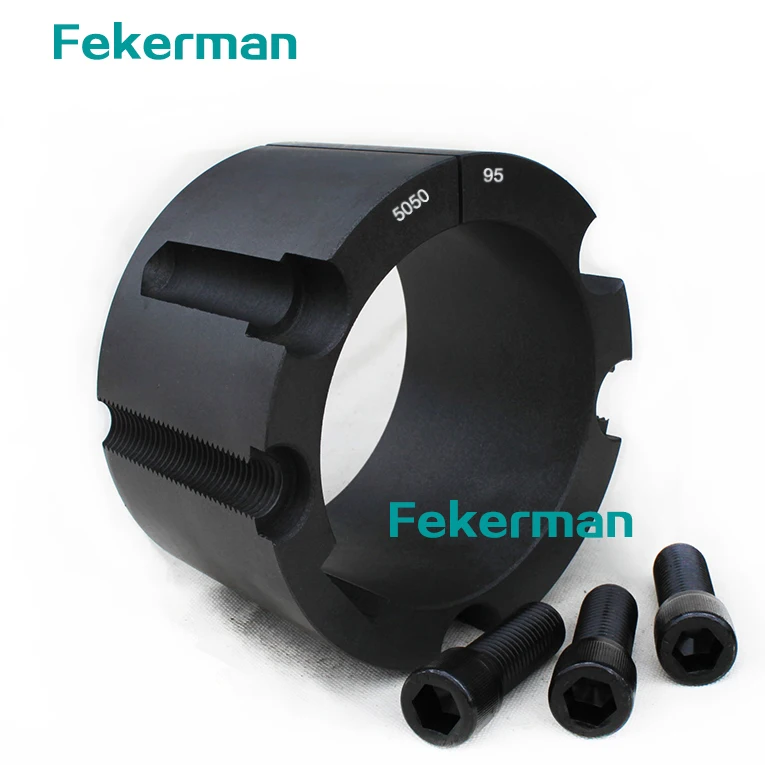

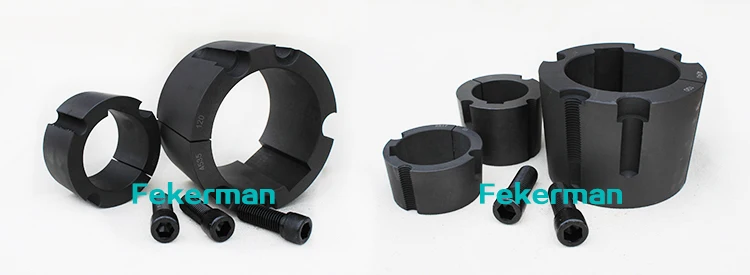

European standard TB taper lock bushings:

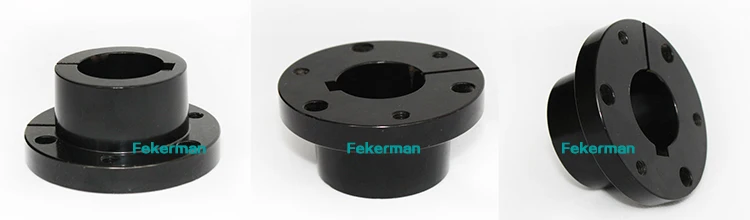

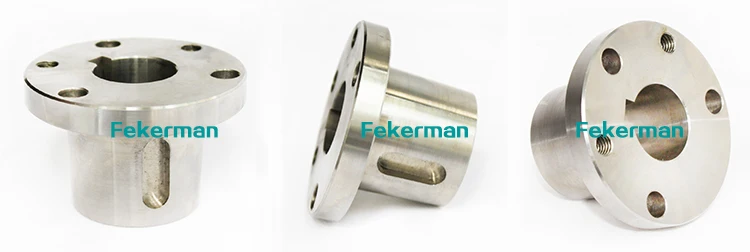

American standard QD bushings:

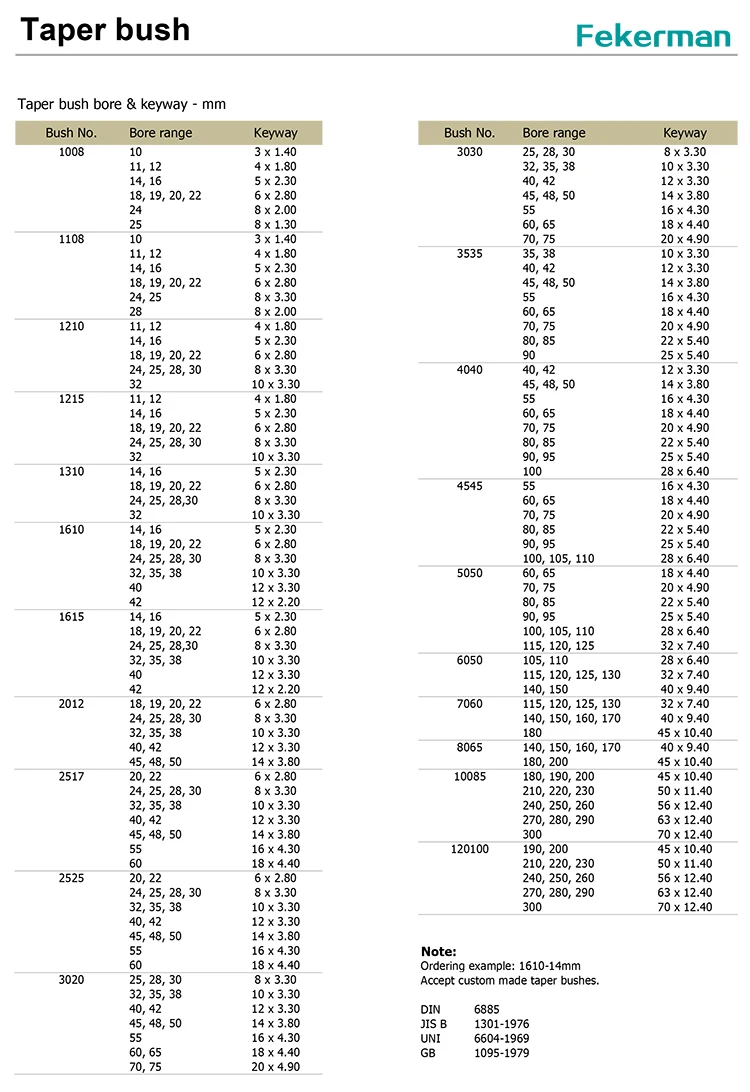

The catalogue of taper lock bushing:







Fekerman Zhengzhou Technology Co., Ltd manufactures and supplies forged bevel gears, forged spiral gears, spur gears, worm gears, chain sprockets, bolt on hub, weld on hub, V belt pulleys,taper bushings, QD bushings, QD sheaves, and machined components, etc.

Fekerman understands that as our customers you require high quality products, delivered on time and at a competitive price. So please contact us when you have a demand on the power transmission components and machined components, etc.
