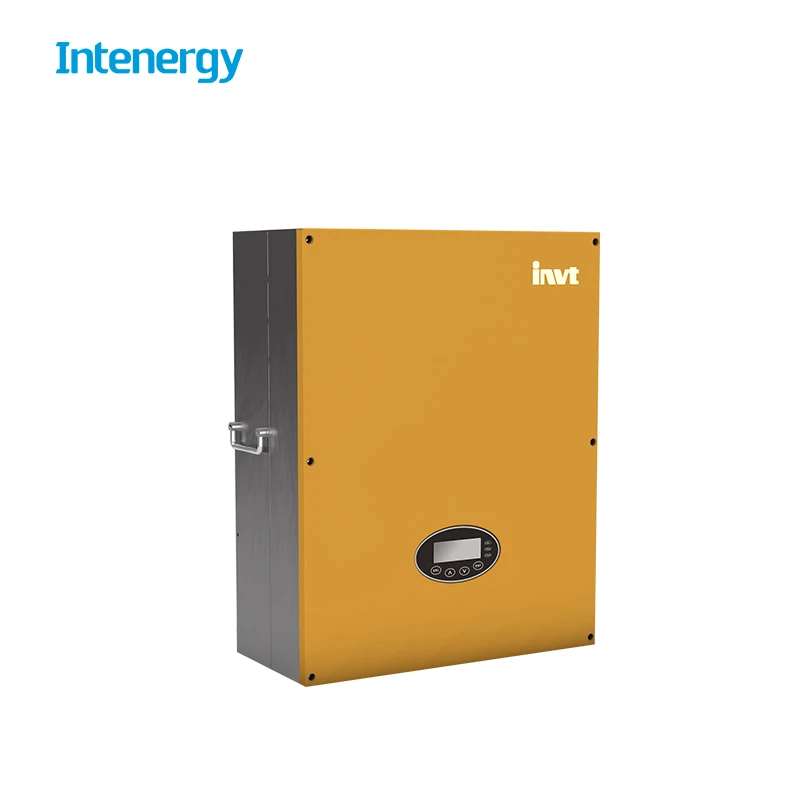

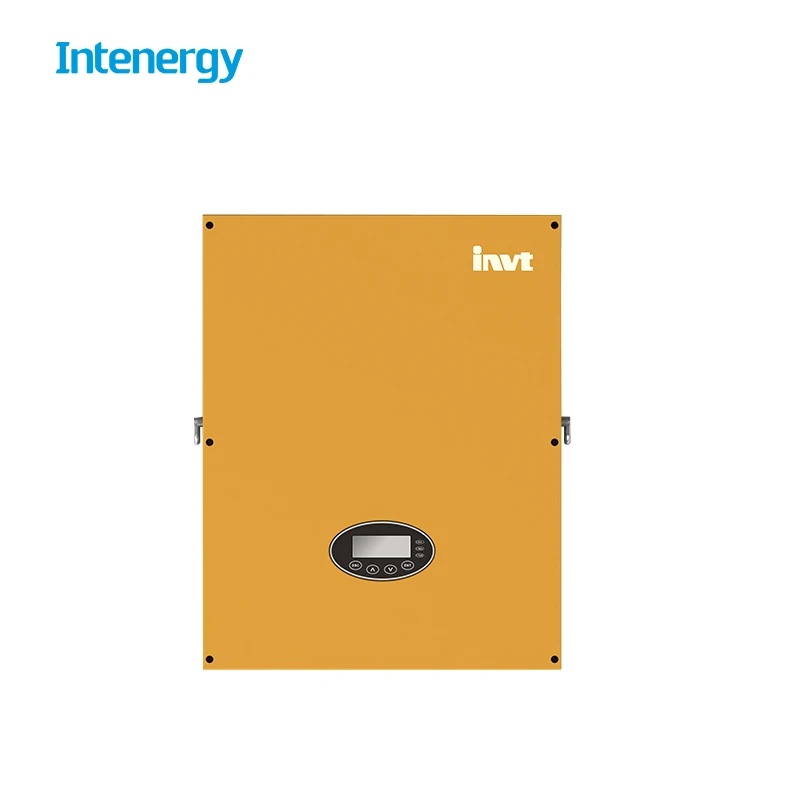

INVT hot sale dc to ac power inverter 20kw price three phases 20kw on grid solar inverter
- Category: >>>
- Supplier: Zhejiang Intenergy Innovation Technology Co. Ltd.
Share on (1600311433673):
Product Overview
Description
Products Description
On Grid Inverter Type | BG20KTR | |
Input (DC) | ||
Max. DC input power | 20500W | |
Max. DC input voltage | 1000V | |
MPPT Range | 180-800V | |
Output (AC) | ||
Rated output power | 20000W | |
Max. AC output current | 32A | |
Nominal output voltage / frequency | 230/400V;220/380V, 3L+N+PE/3L+PE, 50Hz/60Hz | |
Efficiency | ||
Max. efficiency | 98.40% | |
Euro-efficiency | 98.00% | |
Protection | ||
Protection | DC breaker, AC Short-circuit protection, Over current protection, Over voltage protection, Isolation protection, RCD, Surge Protection, Anti-island protection, Over-temperature protection, Ground fault monitoring, etc. | |
General data | ||
LCD language | English, Chinese, German, Dutch | |
Protection degree | IP65 | |
Operating temperature range | -25℃~+60℃(derate after 45℃) | |
Dimension (H x W x D mm) | 610x480x204mm | |
Weight (kg) | 52kg | |
Grid qualification | DIN VDE 0126-1-1:2013, VDE-AR-N 4105:2011, DIN VDE V 0124-100:2012, IEC 61727(IEC62116), AS/NZS 4777.2:2015, NB/T32004-2013, IEC 60068-2-1:2007, IEC 60068-2-2:2007, IEC 60068-2-14:2009, IEC 60068-2-30:2005, IEC 61683:1999, C10/11:2012 | |
Safe certificates / EMC certificates | IEC 62109-1:2010, IEC 62109-2:2011, EN 61000-6-2:2005, EN 61000-6-3:2007/A1:2011 | |
Factory warranty (years) | 5(standard)/10(optional) | |
Certificates
* Various certifications include TUV, CSA, IEC, CEC, MCS, JET, CE, etc.
* Each solar panel undergoes three EL tests during the production process

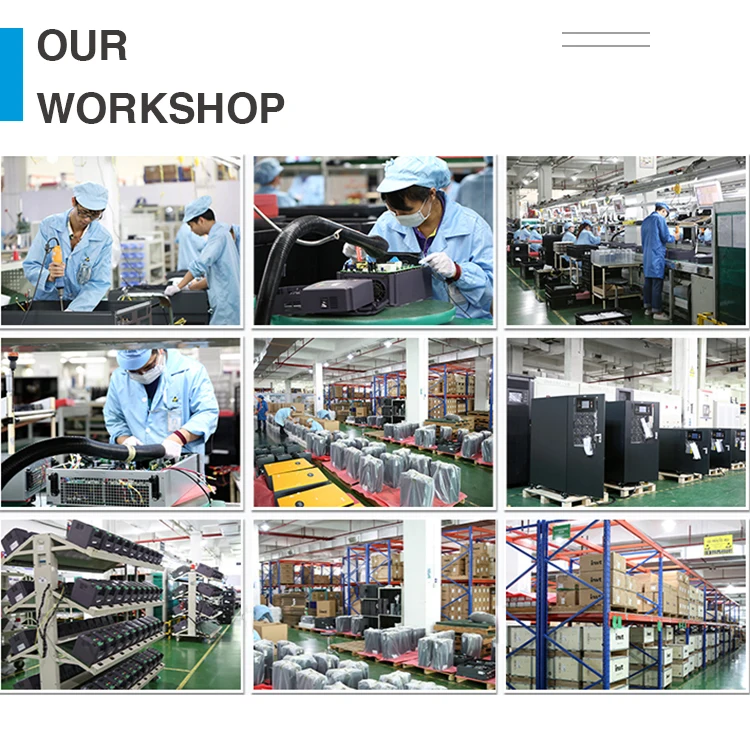

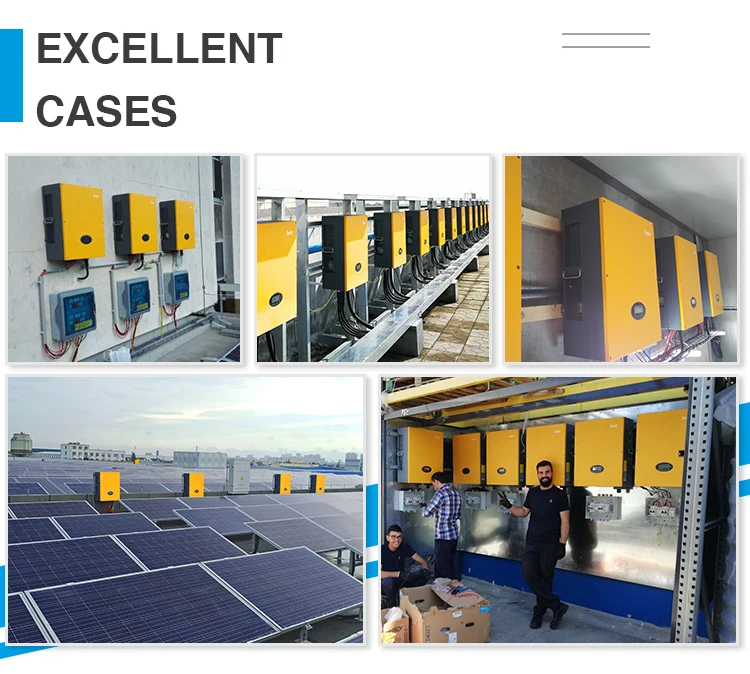

Our Workshop＆Projects

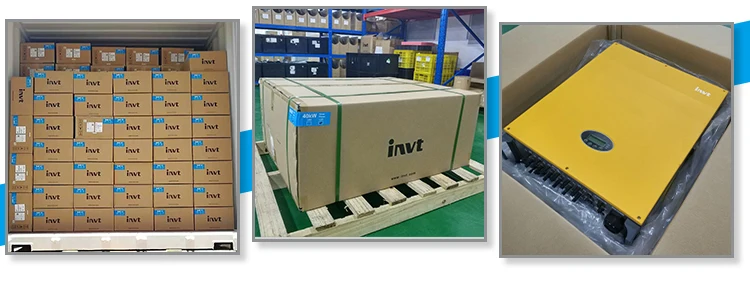

Packing Details : In carton on pallet or wooden box
Delivery Time: Ship from factory within 15days after received the deposit
Company&Exhibition
√ Four Global After-sales Service Centers:
Mexico＆South America，UK，EU，Japan，Australia
√ Now we export to more than 130 countries & regions.
√ More than 2 GW sales volume
√ Top 3 Supplier in Turkey and Mexico.
√ Top 5 Supplier in UK.
√ Top 10 Supplier in Australia
Intenergy continues to expand it’s brand awareness through numerous professional exhibitions, marketing and promotional activity in several countries each year so that customers and partners are kept informed of new product developments and Intenergy’s continued emphasis on quality and service.
FAQ
1)Q:Why choose us?
Intenergy is a global solar energy provider with a presence in more than 130 countries around the world. We have more than 10 years of solar photovoltaic cell manufacturing experience. More than 1.5GW of perlight modules have been used in residential, commercial and off-grid systems around the world.
2)Q:How can we guarantee product quality?
Three times EL testing before shipment for all solar panels, and we apply MES system and ERP system to ensure the traceability of product production process.
3)Q:What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW ; Accepted Payment Currency: USD,EUR,CNY
4)Q:What is the payment term?
Payment Term: L/C at sight, T/T, 30% as deposit, 70% balabce by T/T before shipment, Western Union
5)Q:Why is the delivery time too long?
It depends on your quality of order and product type: If you only need a sample, we can send you soon.
Intenergy is a global solar energy provider with a presence in more than 130 countries around the world. We have more than 10 years of solar photovoltaic cell manufacturing experience. More than 1.5GW of perlight modules have been used in residential, commercial and off-grid systems around the world.
2)Q:How can we guarantee product quality?
Three times EL testing before shipment for all solar panels, and we apply MES system and ERP system to ensure the traceability of product production process.
3)Q:What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW ; Accepted Payment Currency: USD,EUR,CNY
4)Q:What is the payment term?
Payment Term: L/C at sight, T/T, 30% as deposit, 70% balabce by T/T before shipment, Western Union
5)Q:Why is the delivery time too long?
It depends on your quality of order and product type: If you only need a sample, we can send you soon.
