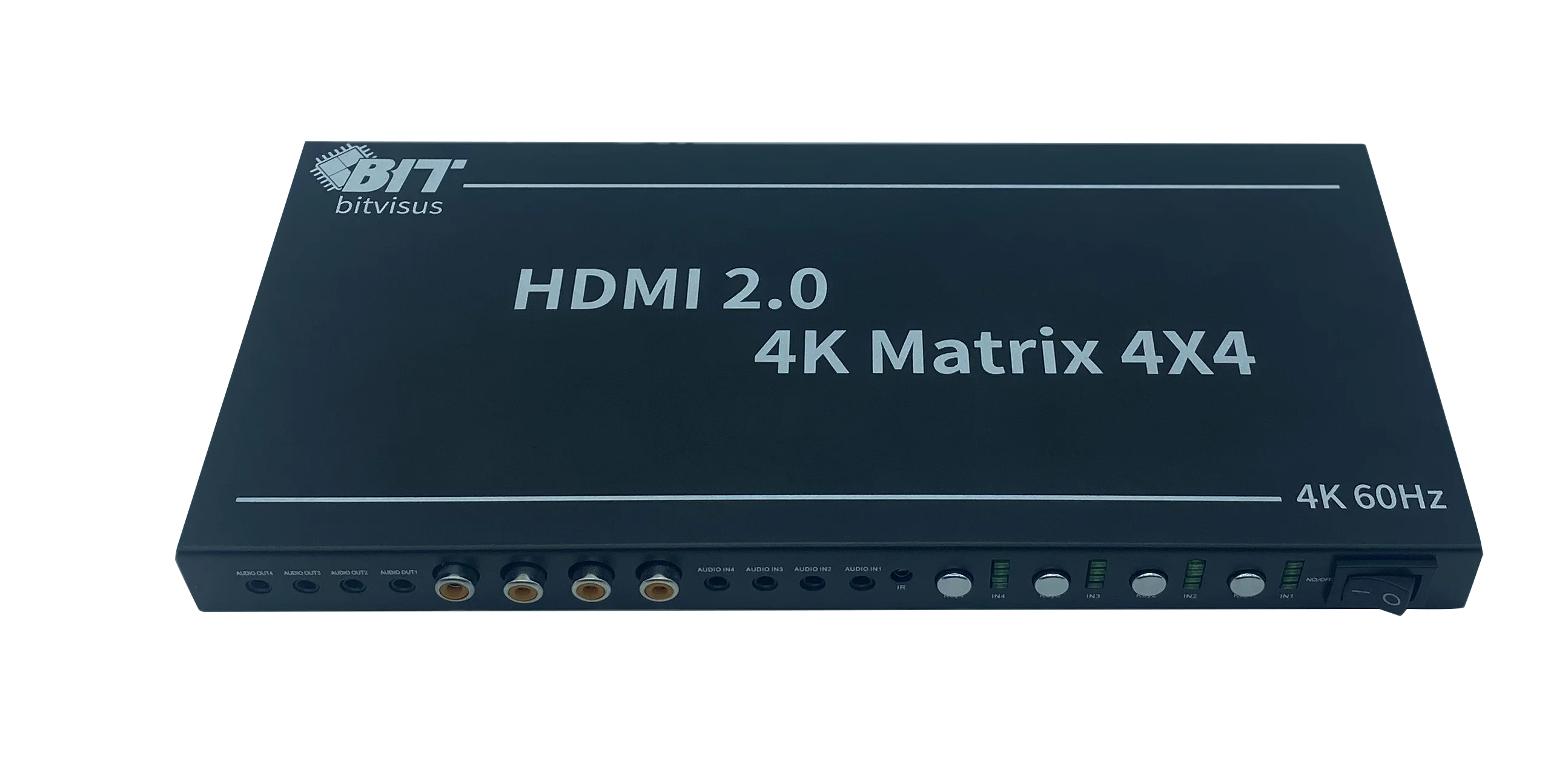

Latest Rs232 Pdif 4X4 Hdmi Matrix Switch 4 Input 2 Output Video Wall Controller
- Category: >>>
- Supplier: Shenzhen Bitvisus Technology Limited
Share on (1600311484165):
Product Overview
Description
Product Description
Product Name | BIT-Ma-GS-2.0-0404 /Ultra HD Matrix Switcher |
Resolution | Up to 3840x2160@60Hz |
Supporting Agreement | HDMI 2.0 、HDCP 2.2 |
Way To Control | Panel buttton control 、 infrared remote control |
Audio output | HDMI Output Comes With Audio、3.5mm Headphone holder、PDIF Audio |
Product performance description

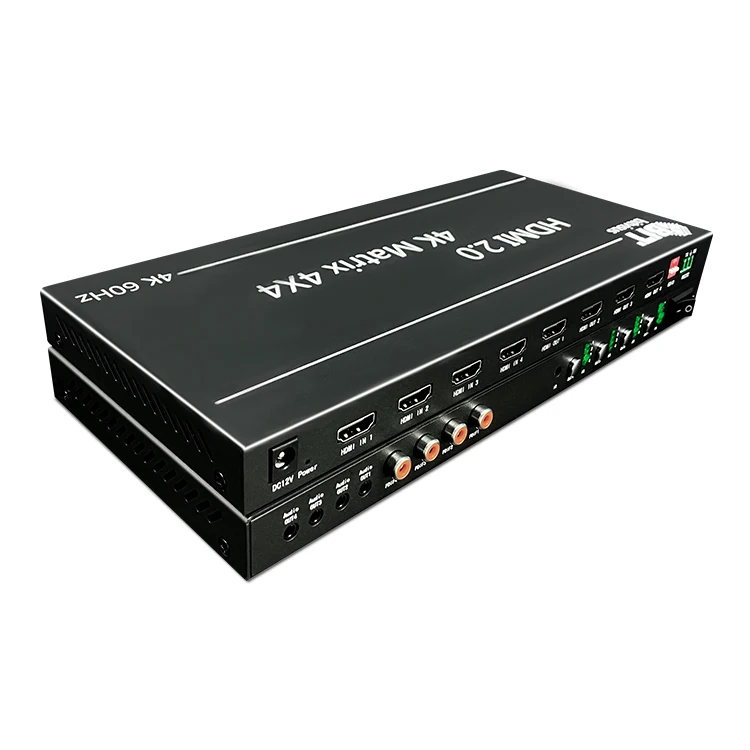

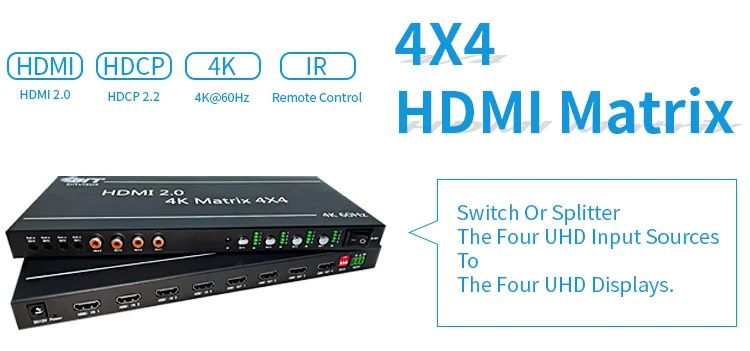

BIT_Ma_GS_2.0_0404 is a 4 in 4 out all-digital ultra-clear matrix switcher,Freely switch four HDMI signals,the highest supported resolution can reach 3840x2160@60, 3D video. Support HDMI 2.0, HDCP 2.2, and audio output, which can bring users a lossless and true ultra-clear and fully digital experience.
Product More Description：
Features

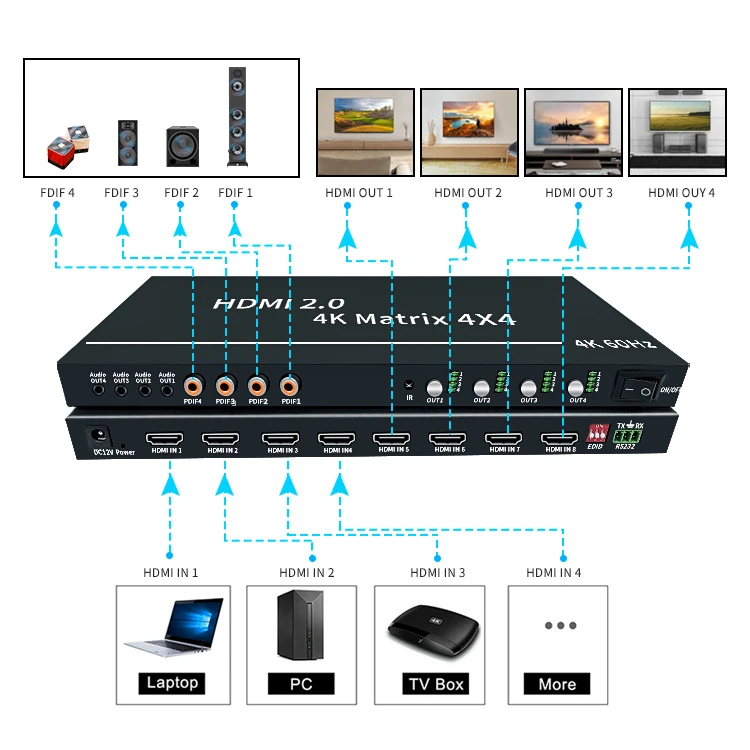

☞Support 4 HDMI inputs (4 4K@60Hz), 4 HDMI outputs (4K@60Hz).
☞Support Single device, 4 inputs and 4 outputs (compatible with 1 input and 4 outputs).
☞Support audio format DTS-HD/Dolby trueHD/L PCM/DTS/Dolby-AC3/DSD.
☞Support output resolution, maximum support 3840x2160@60Hz, backward compatible.

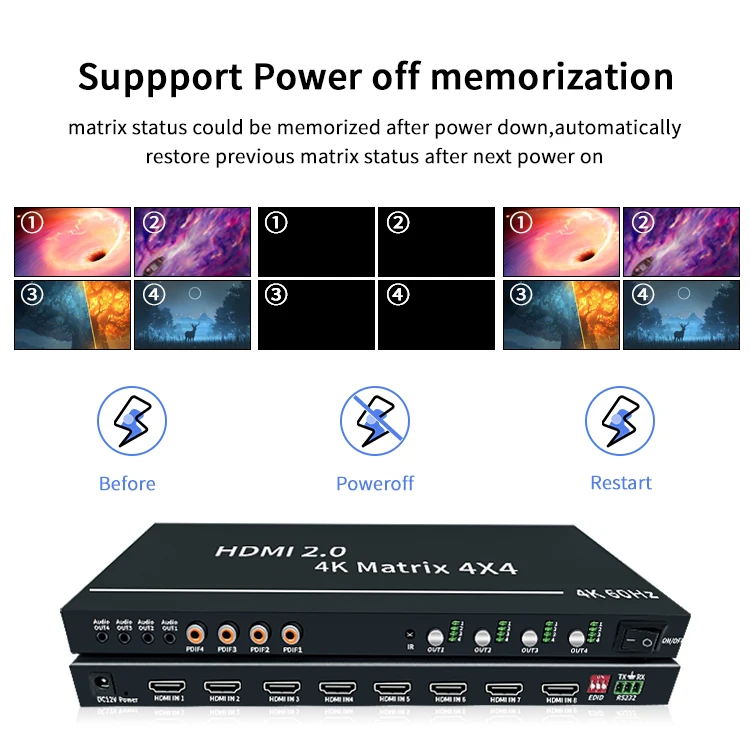

☞With power-down memory function.
☞Low power consumption, energy saving and environmental protection design, internal conduction heat dissipation, no external heat dissipation measures, and extremely high reliability.

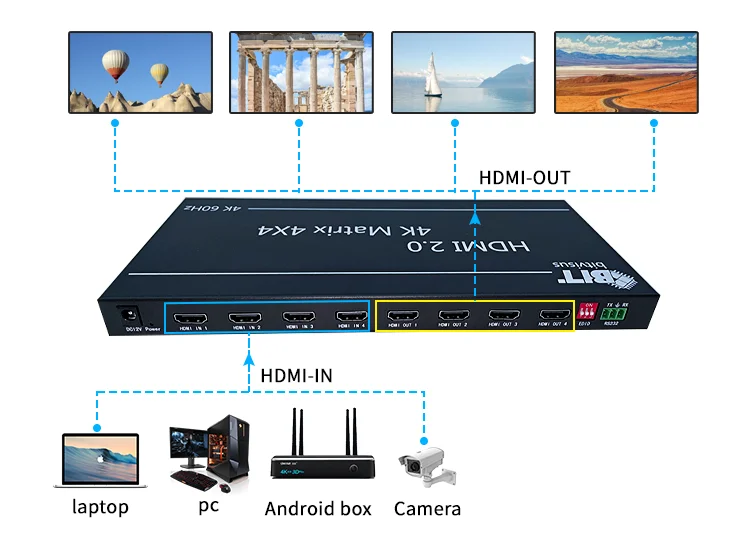

☞Support computers, Android boxes, game consoles and other devices as input sources.
☞Support HDMI audio output, audio separation.
☞No stretching, no deformation, no need to compress the input source, and the picture is clear.
☞Support audio format DTS-HD/Dolby trueHD/L PCM/DTS/Dolby-AC3/DSD.
☞Support output resolution, maximum support 3840x2160@60Hz, backward compatible.
☞With power-down memory function.
☞Low power consumption, energy saving and environmental protection design, internal conduction heat dissipation, no external heat dissipation measures, and extremely high reliability.
☞Support computers, Android boxes, game consoles and other devices as input sources.
☞Support HDMI audio output, audio separation.
☞No stretching, no deformation, no need to compress the input source, and the picture is clear.
Specification
Input the highest supported resolution | 3840*2160@60Hz |
Maximum supported bandwidth | 18Gbps |

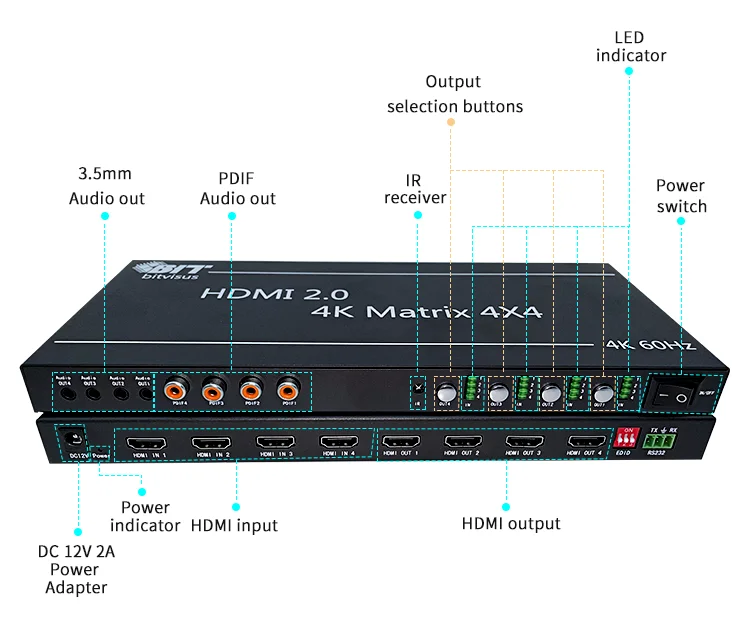

HDMI port | HDMI 2.0 x4 |
Single port support output maximum resolution | 3840*2160@60Hz |
Audio output | HDMI, 3.5mm Headphone Holder,PDIF Audio |
Control method | Panel button control, infrared remote control |
Default resolution | 1920*1080@60Hz |
Work temperature | 0℃-50℃ |
Power consumption | 12W |
Power supply | 12V@2A AC-DC power supply |
Size Length: Width: Height | 270mm*122.5mm*20.5mm |
Accessories | 12V@2A AC-DC power supply 1 remote control |
Warranty | 1 Year |
Packing & Delivery
Packing:
1.HDMI Matrix 0404: 1pc.
2.Remote Control: 1pc.
3.Power Supply: 12V/2A AC-DC.
4.User Manual: 1pc
1.HDMI Matrix 0404: 1pc.
2.Remote Control: 1pc.
3.Power Supply: 12V/2A AC-DC.
4.User Manual: 1pc
Delivery:
1. EXW ShenZhen /ShangHai /HuNan /HanZhou /Hong Kong
2. Shipping days : depend on the area or religion
3. By express / By sea / By air
1. EXW ShenZhen /ShangHai /HuNan /HanZhou /Hong Kong
2. Shipping days : depend on the area or religion
3. By express / By sea / By air
