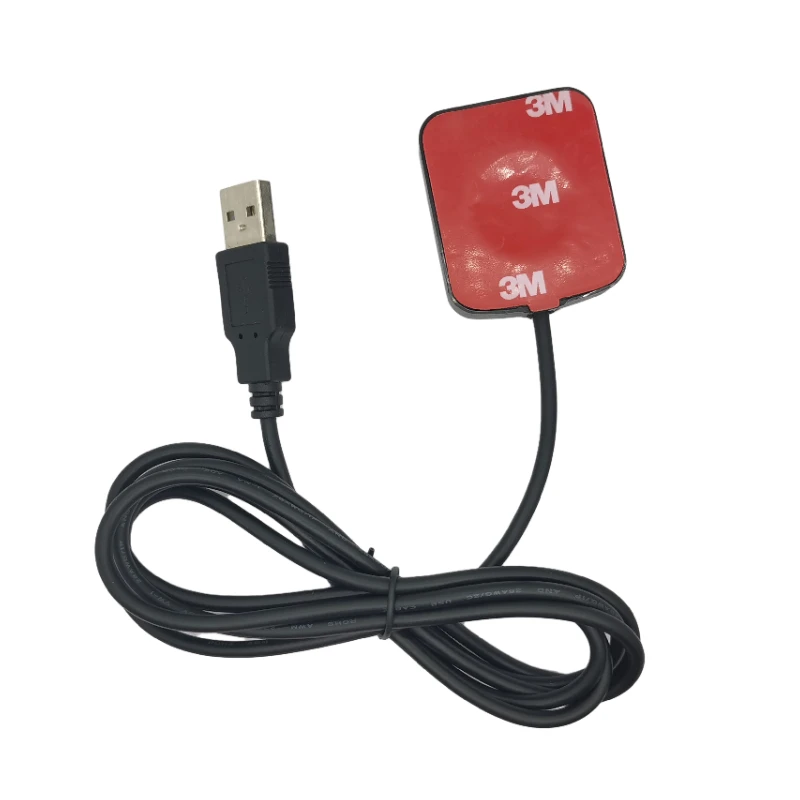

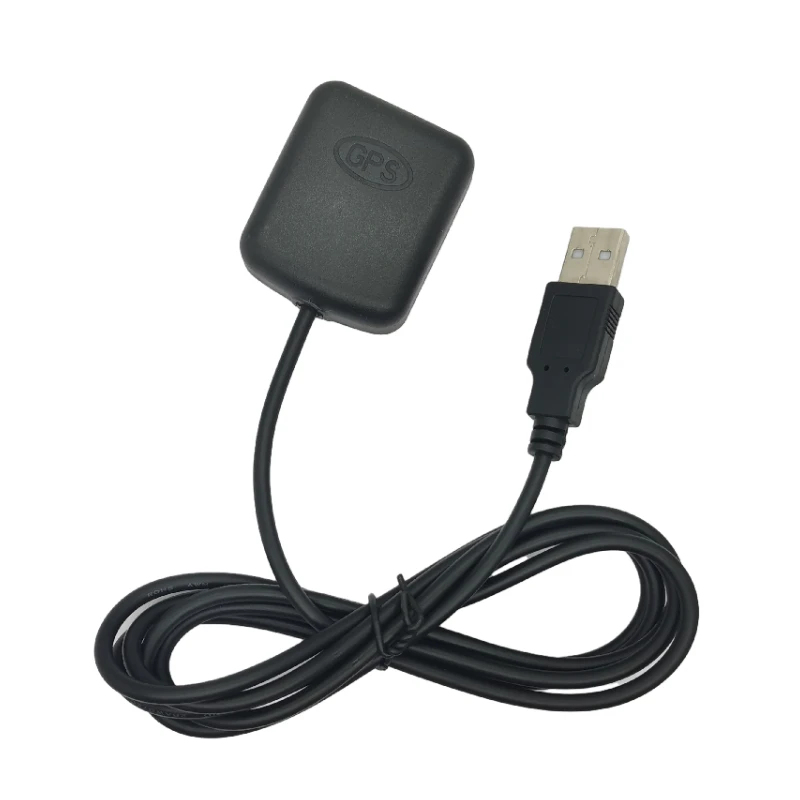

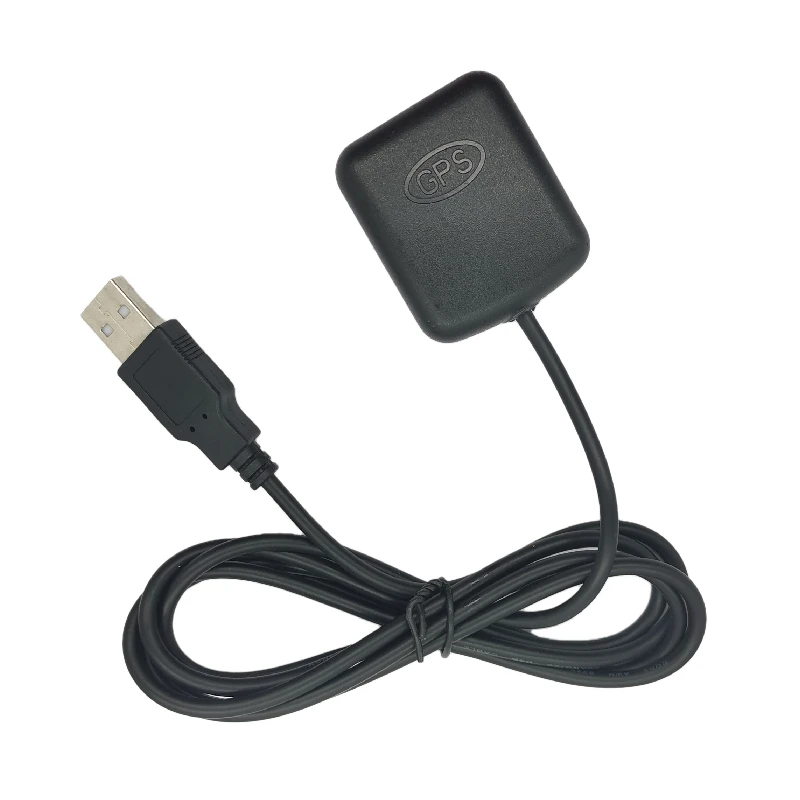

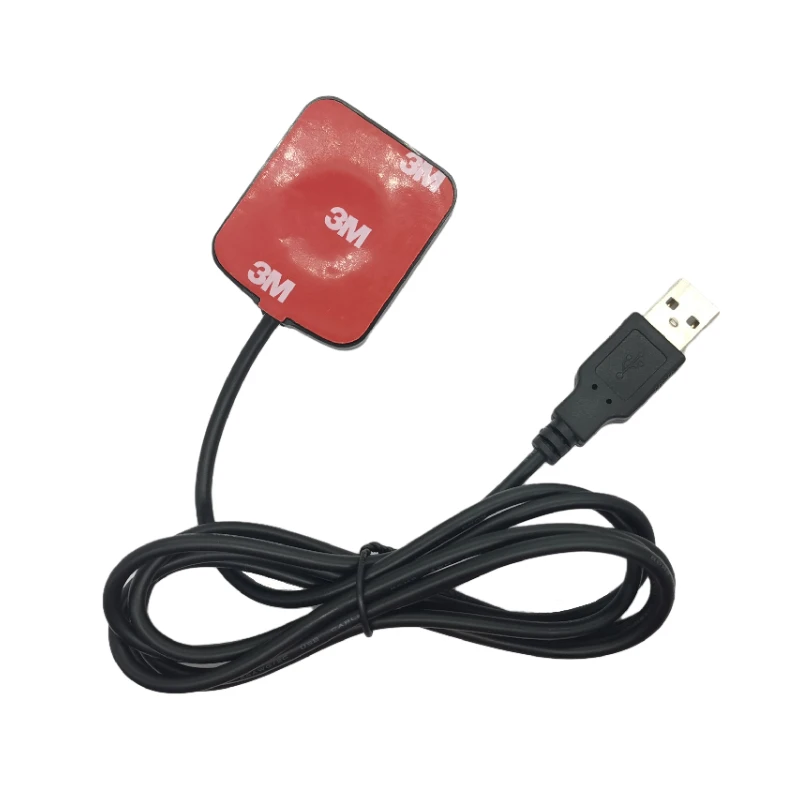

UBX M8030 KT Solution External GPS Module with Inertial Navigation Function
- Category: >>>
- Supplier: Shenzhen Bainianxing Technology Co. Ltd.
Share on (1600311517645):
Product Overview
Description
Product Description

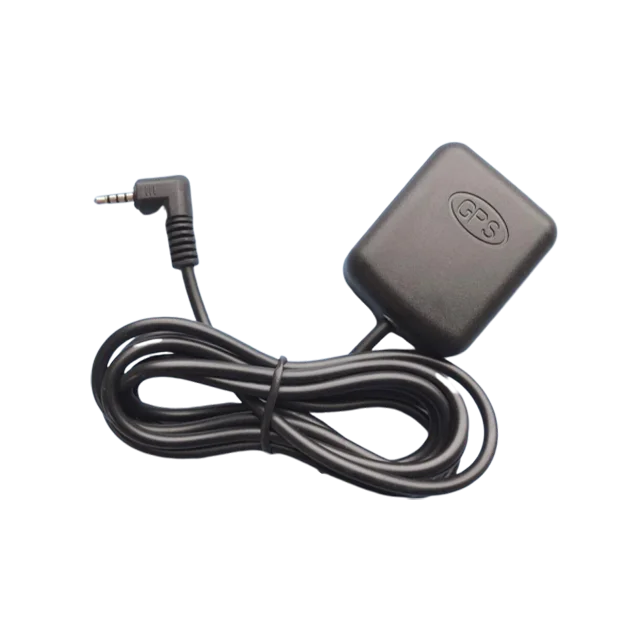

This product GPS receiver GPS module GPS antenna can be customized according to customer requirements, we can make it straight head, elbow style, 4PIN connector etc.
Please contact sales befor order! Thank you!
Applications
gps oem receiver
LBS (Location Based Service)
PND (Portable Navigation Device)
Vehicle navigation system
Mobile phone
PND (Portable Navigation Device)
Vehicle navigation system
Mobile phone
Build on high performance, low-power UBX-M8030-KT chip set
Ultra high sensitivity: -165dBm
Extremely fast TTFF at low signal level
Built in high gain LNA
Low power consumption:Max25mA 3.3V
NMEA-0183 compliant protocol or custom protocol
Operating voltage: 3.0V--5.0V
Operating temperature range:-40to85℃
Patch Antenna Size: 25x25x4mm
Small form factor: 45x38x13.5mm
Communication type: UART/TTL
Wire interface type: USB, L=150cm
RoHS compliant (Lead-free)
Spec | Instructions | ||
Spec of Chip | Chip | UBX-M8030-KT | |
Receiving mode | GPS,GLONASS,BeiDou,GaliLco,QZSS and SBAS | ||
Frequency | GPS/QZSS L1 C/A,GLONASS L10F,BeiDou B1 | ||
Channels | 72-Channels | ||
Sensitivity | Tracking | -162dBm | |
Reacquisition | -160dBm | ||
Cold start | -148dBm | ||
Hot start | -156dBm | ||
Accuracy | Horizontal accuracy | 2.5m CEP | |
Velocity | 0.1m/s 95%(SAoff) | ||
Timing | 1us | ||
Cold start | 26S | ||
Warm start | 2s | ||
Hot start | 1S | ||
Baud rate | Default 9600 | ||
Output level | UART TTL port,3.3V electric level, mini usb connector | ||
Output protocol | NMEA-0183 protocol | ||
Single GNSS | Up to 10Hz | ||
Standard GNSS | Default 1Hz | ||
Work Limit | Altitude | 50000m Max | |
Velocity | 515m/s | ||
Gravitational Acceleration | 4g Max | ||
Voltage | 5.0V | ||
Current | Normal 70mA 5.0V | ||
Physical Parameters | Size | 48mm*35mm*13.5 | |
Weight | 100g | ||
Wire length | 1.5m-3m(Custom) | ||
Connector | USB connector | ||
Antenna | Antenna | Built in antenna | |
Output Protocol | Default Protocol | GPRMC,GPVTG,GPGGA,GPGSA,GPGSV,GPGLL | |
Operating temperature | -40℃ to +85℃ | ||
Storage temperature | -40℃ to +125℃ | ||
Related Products

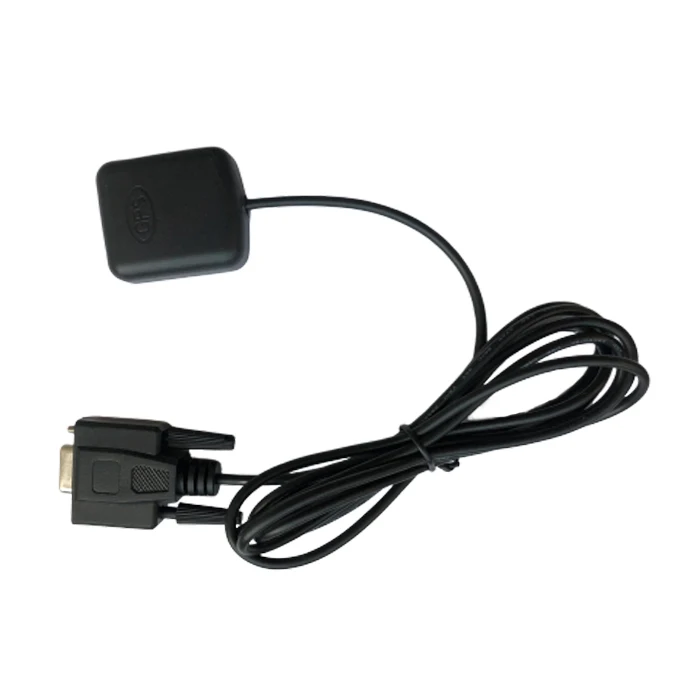

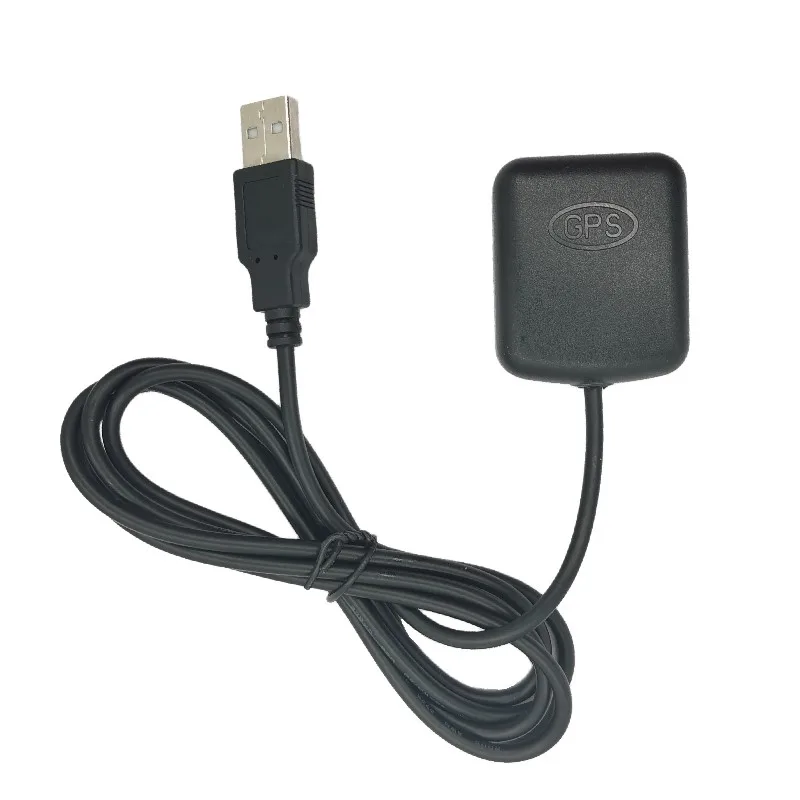

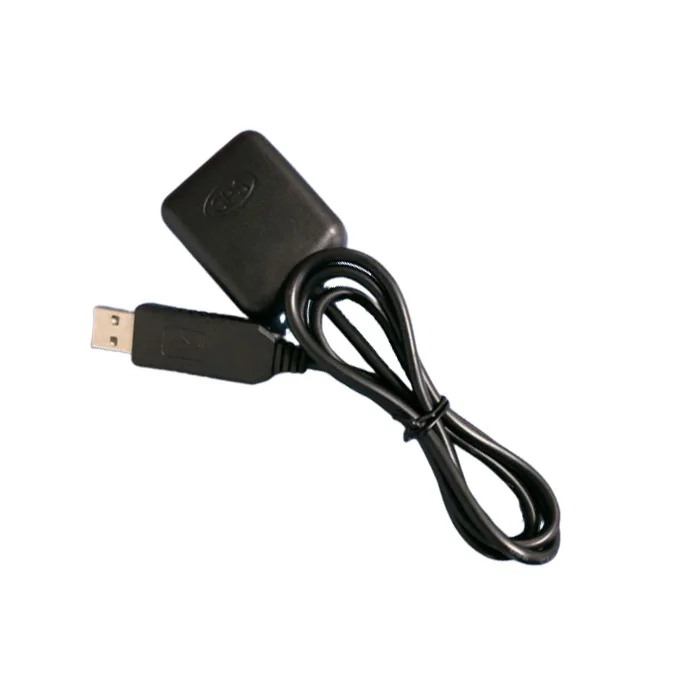

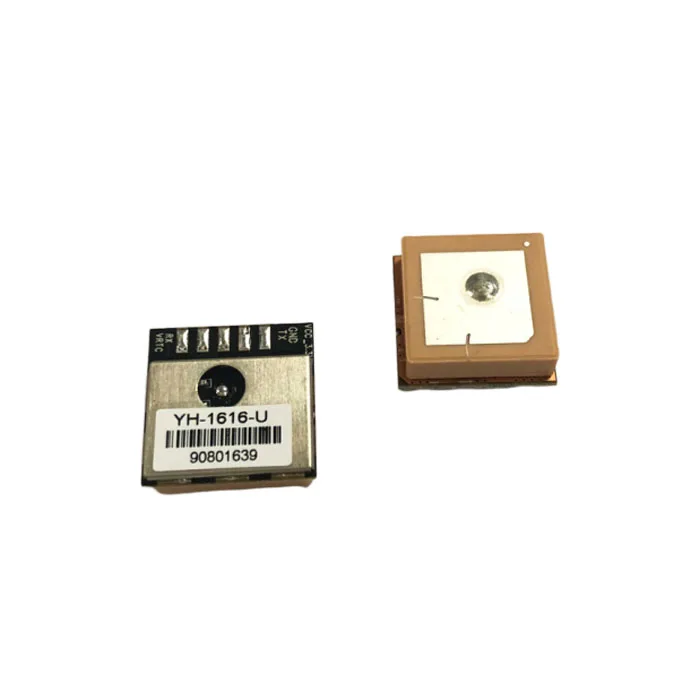

GPS Receiver/GPS Module

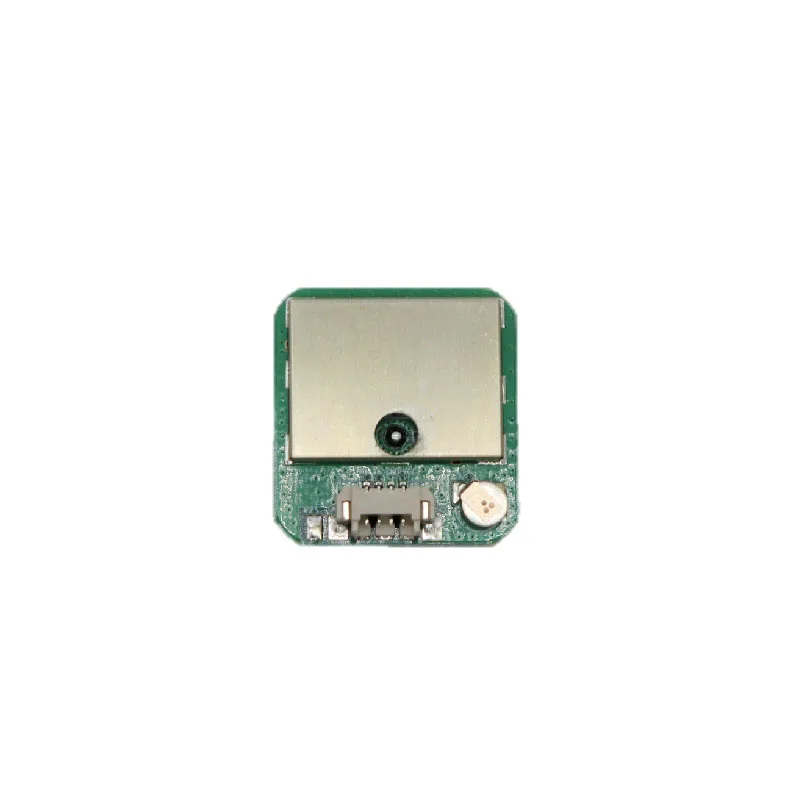

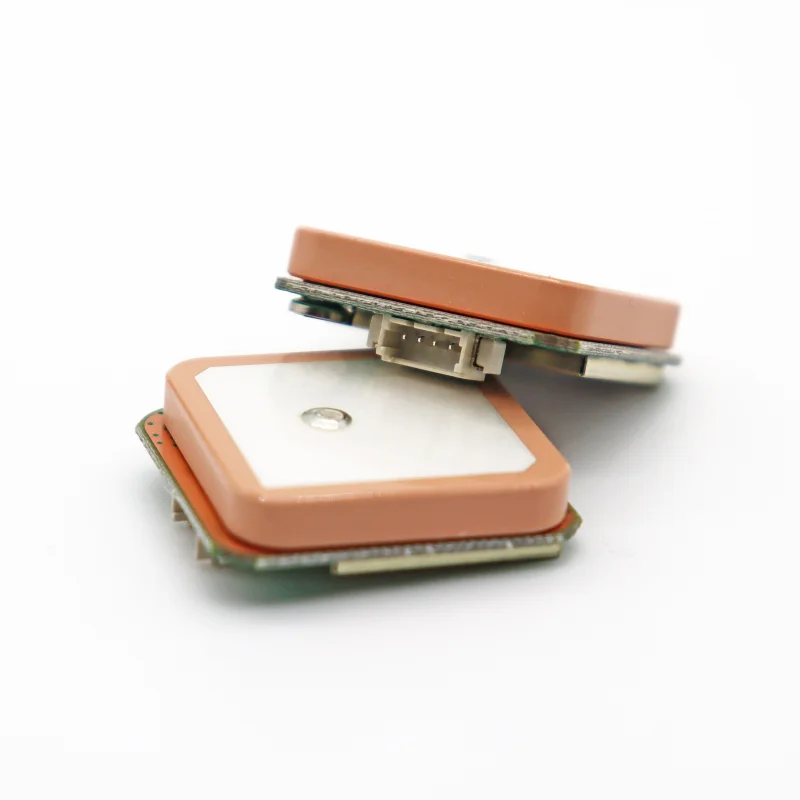

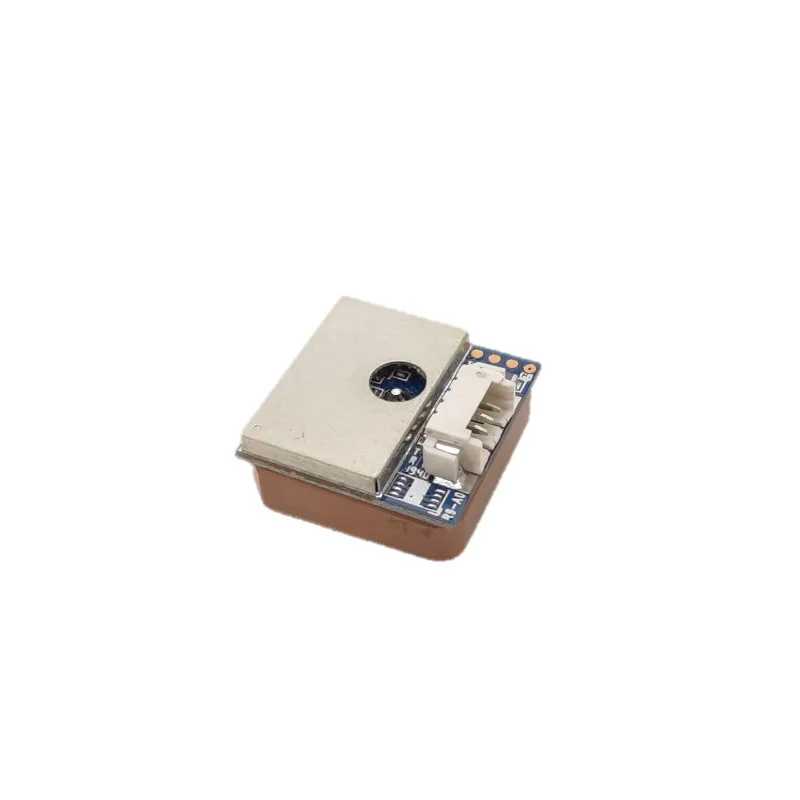

GPS module with antenna
Size can be customized

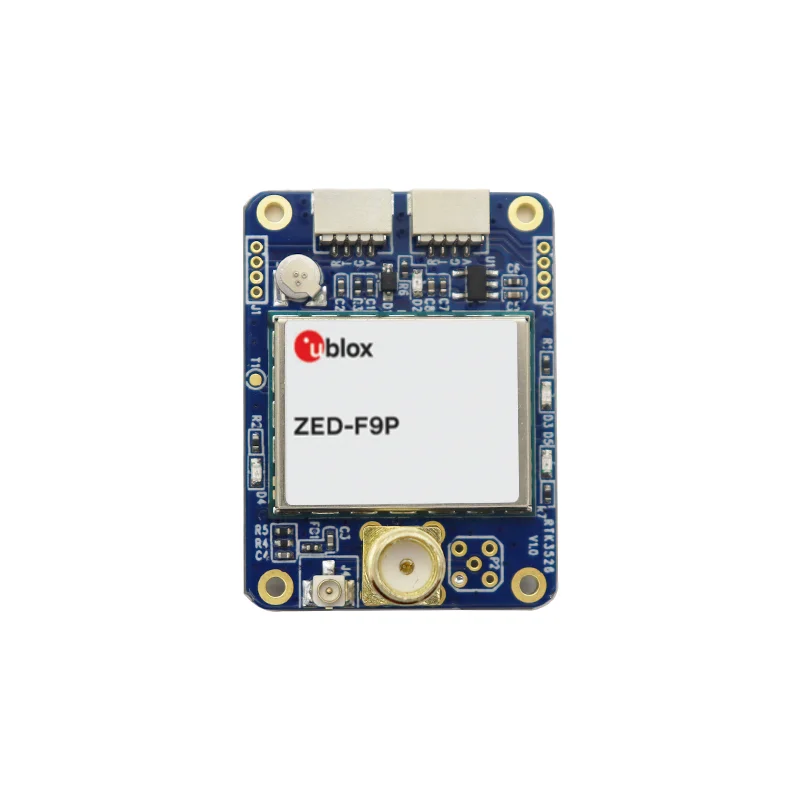

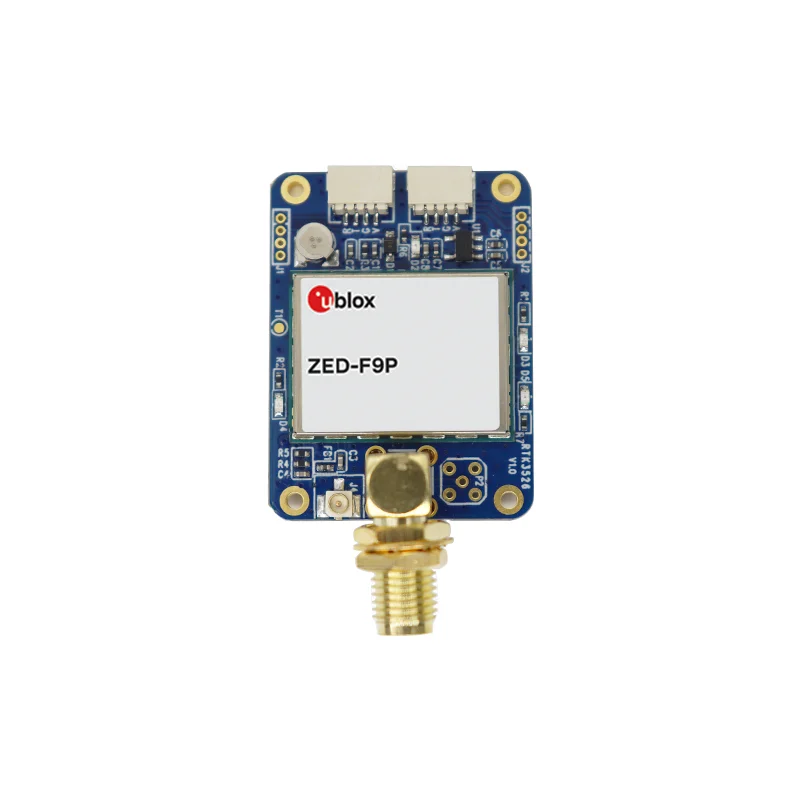

Ublox module test board
