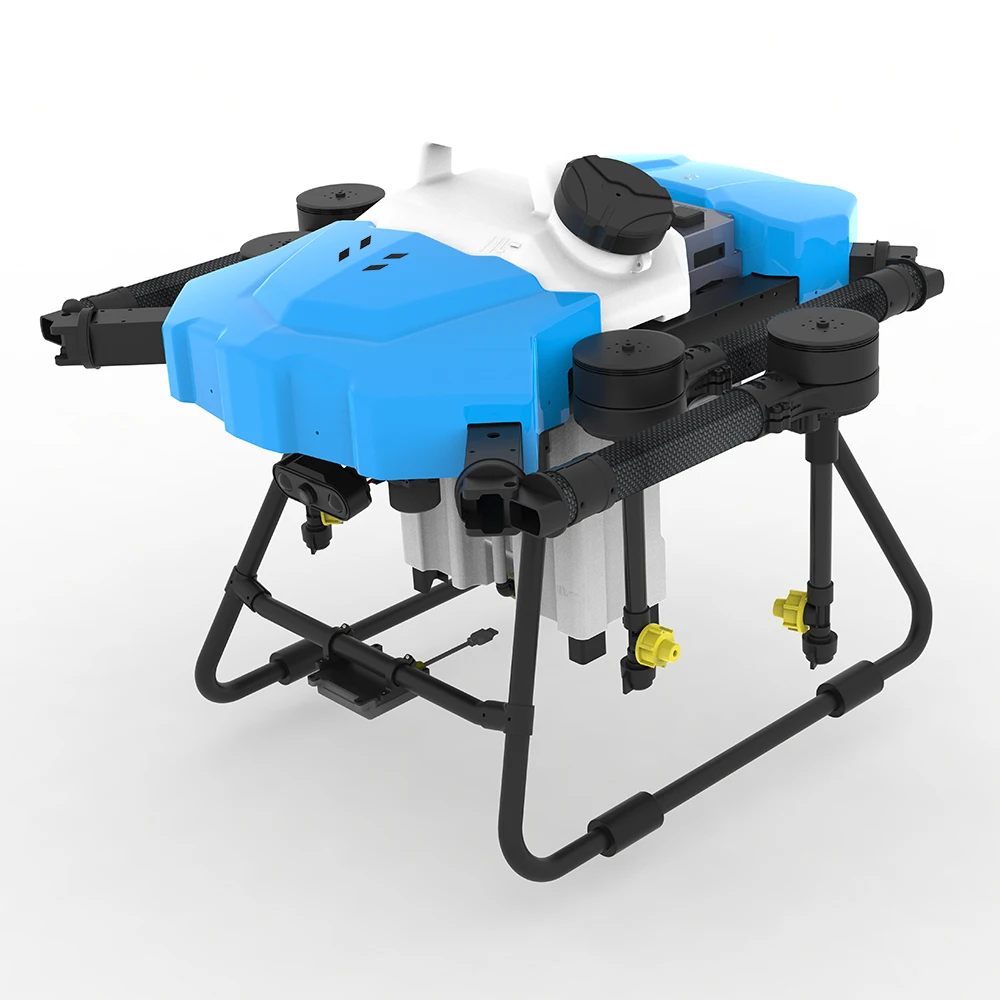

10L Agricultural Spraying Drone 10L Tank 25KG Loading Payload UAV Agriculture Dron Agricola Agricultural Drone GF10
- Category: >>>
- Supplier: Yuanmu (shenzhen) Holding Group Co. Ltd.
Share on (1600311533969):
Product Overview
Description
Product Description
Specification
Technical Information | ||
Wheelbase | 1460mm | |
Product Size | 1795×1795×570mm（Arms unfolded, blades unfolded） | |
1118×1118×570mm（Arms unfolded, blades folded） | ||
720×720×570mm（Arm folding, blade folding） | ||
Spray system-Tank | ||
Quantity | 1 piece | |
Work load | Rated 10 liters, full load: 11 liters | |
Flight parameters | ||
Total weight of the whole machine (without battery) | 9.5 kg | |
Standard Takeoff Weight | 24.8 kg | |
Maximum effective take-off weight | 25 kg （Within 2000 meters above sea level） | |
Hover accuracy (Good GNSS signal) | Horizontal ±0.6m, vertical ±0.3 m（Radar module：±0.1 m | |
RTK / GNSS Frequency band used | RTK: GPS L1/L2, GLONASS F1/F2,BeiDou B1/B2, Galileo E1/E5 | |
battery capacity | 14S (10000mAh 58.8V) | |
Maximum power | 3200 W | |
Hovering power consumption | 3000 W（Takeoff weight 25 kg） | |
Flight duration | 15 min（14S@10000 mAh Battery & take-off weight: 14.5 kg） 8.30min （14S@10000 mAh Battery & take-off weight: 24.5 kg） | |
Maximum pitch angle | 15° | |
Maximum working flight speed | 7 m/s | |
Maximum Flying Speed | 10m/s | |
Maximum tolerable wind speed | 8 m/s | |
Maximum Flying Altitude | 2000 m | |
Recommended working environment temperature | 0°C - 40°C | |
FPV Camera | ||
Angle of View (FOV) | Horizontal: 98°, Vertical: 78° | |
Resolution | 1280×960 30fps | |
Intelligent flight battery | ||
Type | RW 10A | |
Volume | 10000mAh-58.8V | |
Weight | 5.2KG | |
Discharge rate | 3C | |
Protection level | IP56 | |
Power System-Motor | ||
size | 81×20mm | |
KV value | 120 rpm/V | |
Maximum thrust | 13.5kg/rotor | |
Maximum power | 2400 w/rotor | |
Maximum power | 656 g | |
Power System-Propeller | ||
Pitch | 30×11 in | |
material | Carbon plastic | |
weight | 100 g | |
Power System-ESC（Electrical Speed Control） | ||
Maximum working current (continuous) | 45A | |
Maximum working voltage | 58.8 V（14S Li Po） | |
Remote control | ||
model | T10 | |
Communication channel | 2.4000 GHz-2.4835 GHz 5.725 GHz- 5.850 GHz* | |
Remote control distance | SRRC/ MIC/ KCC/ CE: 1.3 km（Unobstructed） | |
Intelligent Charger | ||
model | EV-PEAK Q4U | |
Input voltage | 110V-220V | |
Output Power | 2400W | |
Charging current range | 15A-40A | |
Rechargeable battery type | lithium battery | |
Details Images

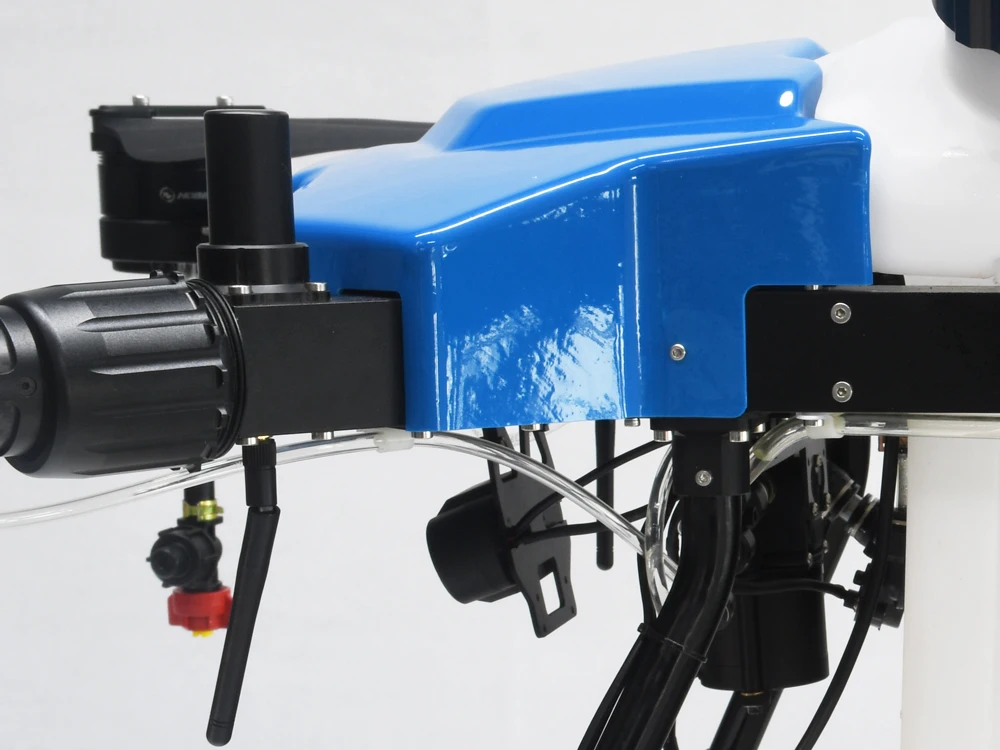

High pressure nozzle
Metal nozzle, conical spray, atomized water droplets 170 - 265 μm
Ground radar
The drones are equipped with terrain following radar, also known as height sensors and terrain following sensors, to maintain acertain height above the crop while spraying.

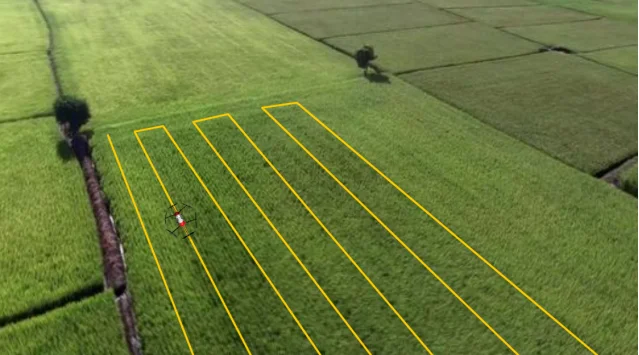

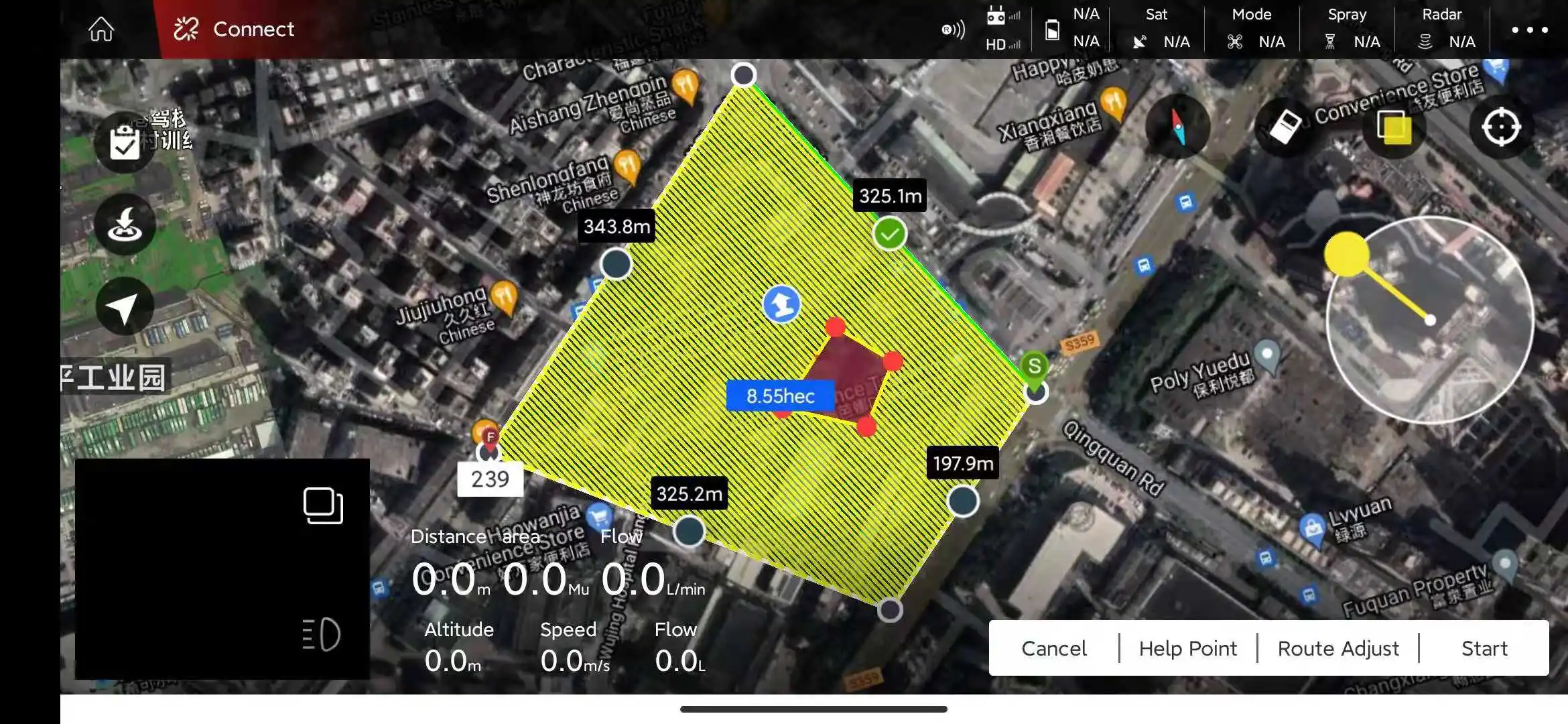

Fully autonomous flight mode
Using our ground station software, simply mark the four ABCD points and define the flight altitude, flight speed, spray span and delay time and the ground station software will automatically draw all the flight lines and then the drone will automatically follow the line work. You can save it as a project so that you can use it when you need to spray the field again

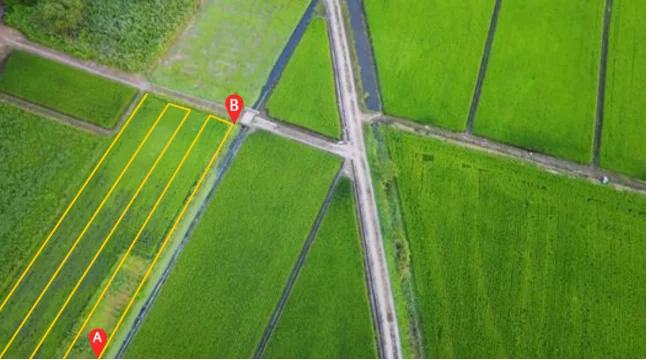

AB point flight
Set AB point function, spraying operation is more efficient Set the A\\B two-point line through the remote control, and the plant protection spraying operation will be sprayed in a straight line, which is efficient and convenient. A humanized App tailored specifically for agricultural plant protection, which can provide arbitrary polygonal route planning for irregular terrain, fully autonomous operation, and improve operation efficiency. It has the function of route memory, and can calculate the spray area, and then assist the operator to grasp the dosage more accurately.

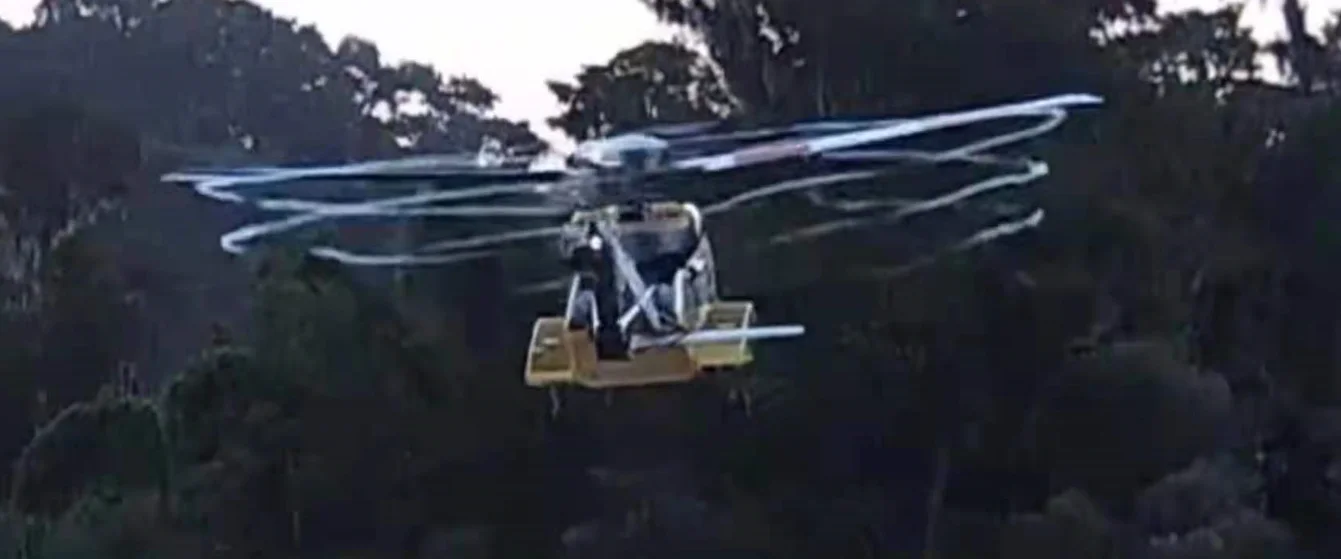

Rotor vortex ring design
When the propeller is rotating, the downward blowing air forms a spiral circle, also called rotor vortex ring,.
The vortex ring state is an inherent danger to the flight safety of the helicopter during the descending or descending phase of flight, such as improper operation, will lead to helicopter shaking, shaking, and in serious cases, maneuvering out of control.
The vortex ring state is an inherent danger to the flight safety of the helicopter during the descending or descending phase of flight, such as improper operation, will lead to helicopter shaking, shaking, and in serious cases, maneuvering out of control.

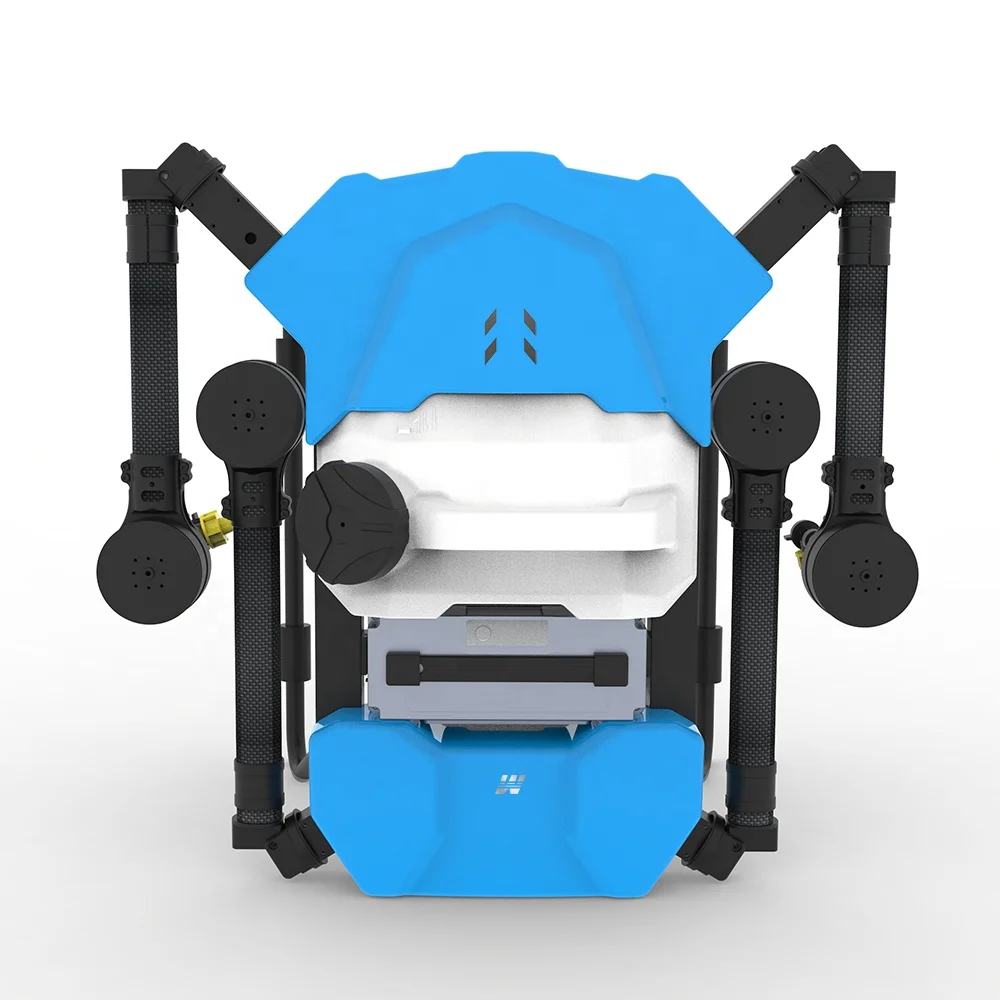

Folding design
UAV wheelbase is 1460mm,
Arm folding, blade folding 720×720×570mm,
The GF-10 adopts a modular design, and the arms can be folded easily and quickly;
Reduce work preparation time, reduce storage and transportation space.
Arm folding, blade folding 720×720×570mm,
The GF-10 adopts a modular design, and the arms can be folded easily and quickly;
Reduce work preparation time, reduce storage and transportation space.
Synchronous balance chargerTwo channels for simultaneous charging of two batteries.
Fast charge battery, each battery is fully charged in 10-20 minutes
Fast charge battery, each battery is fully charged in 10-20 minutes

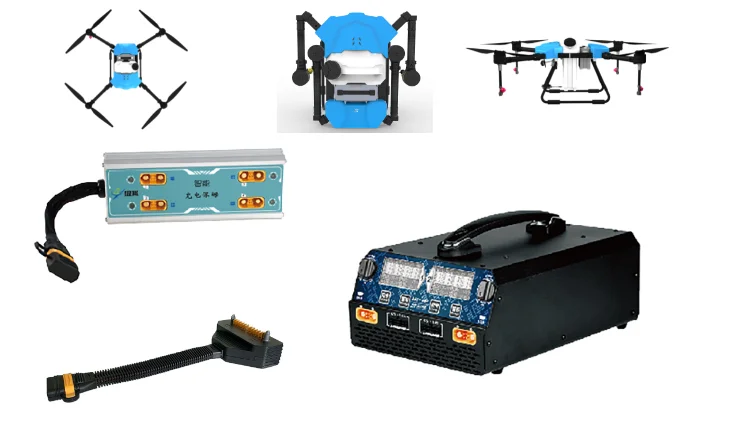

GF-10 agricultural drone accessories:
Mobile terminal (remote control), smart battery, charger, charging housekeeper
Mobile terminal (remote control), smart battery, charger, charging housekeeper

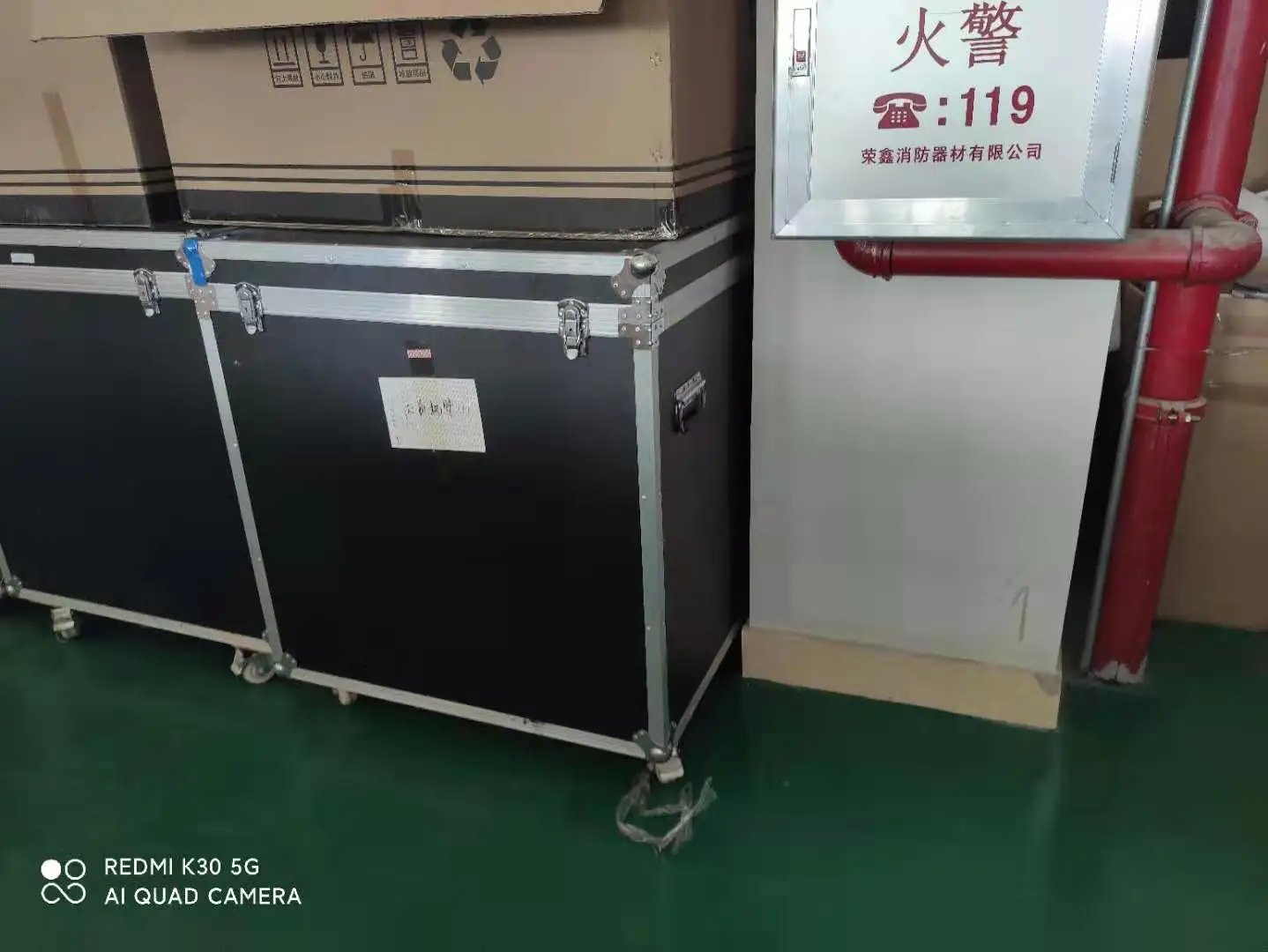

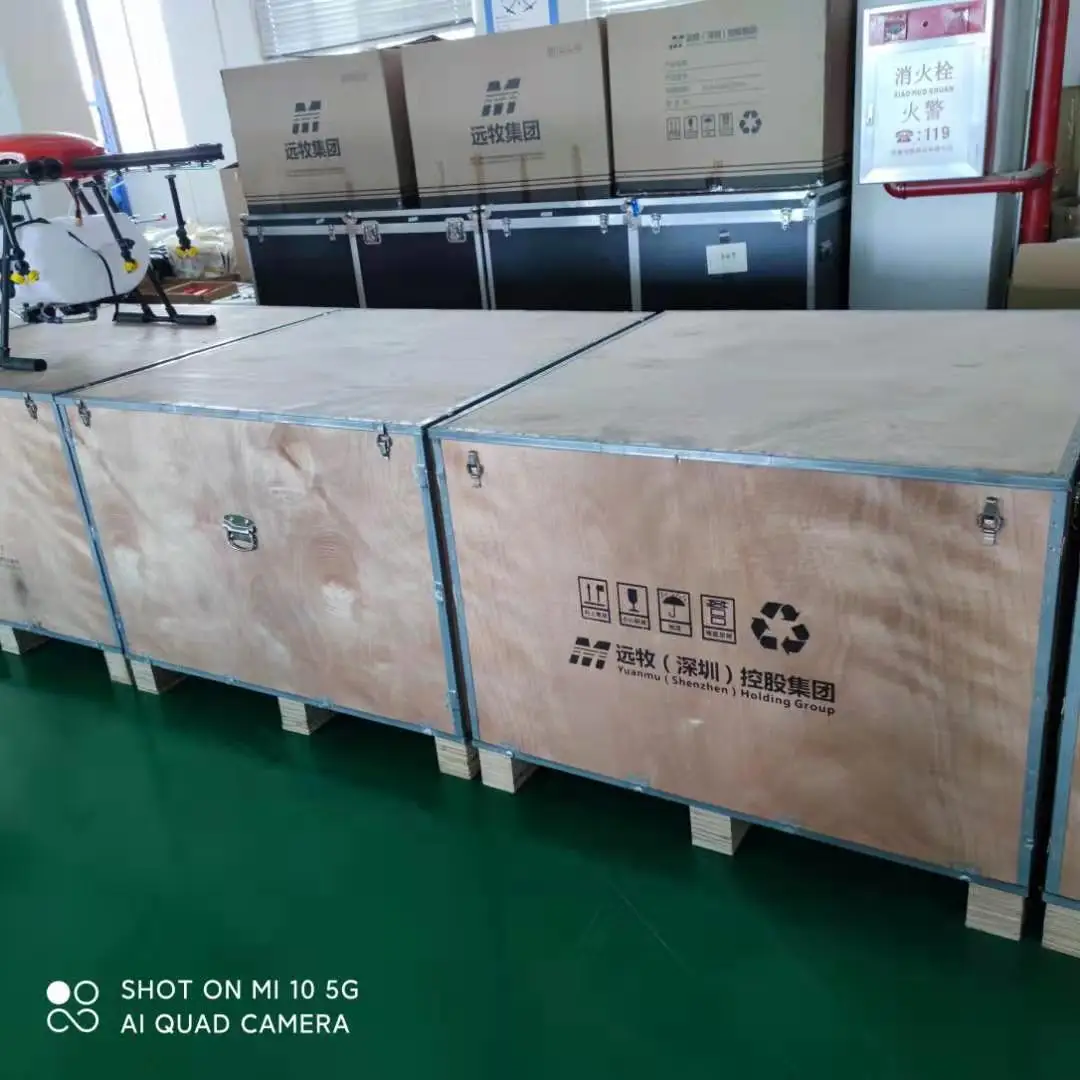

Packing & Delivery
