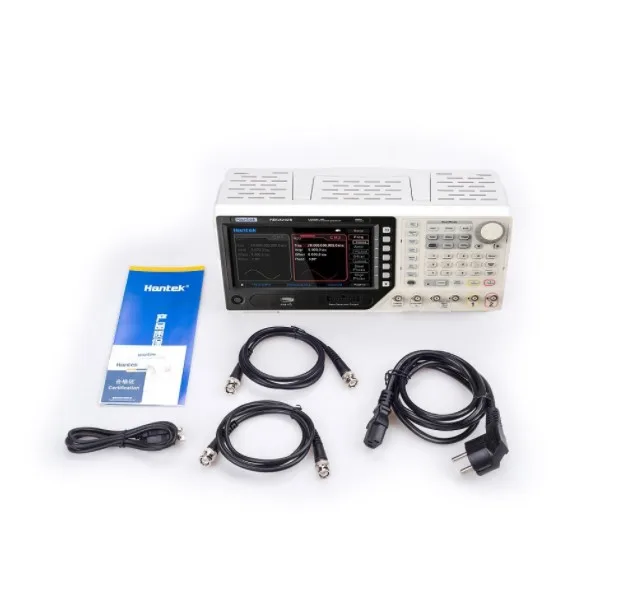

Digital DDS Function Signal Arbitrary Waveform Generator HDG6202B HDG6162B HDG6112B HDG6082B
- Category: >>>
- Supplier: Wuxi Genesis Technology Co. Ltd.
Share on (1600311600892):
Product Overview
Description
| Model | HDG6202B | HDG6162B | HDG6112B | HDG6082B |
| Main Feature | ||||
| Channel | 2 | 2 | 2 | 2 |
| Waveform Length | 64M | |||
| Frequency Range | 200MHz | 160MHz | 110MHz | 80MHz |
| Sampling Rate | 1.25GSa/s | |||
| Voltage Resolution | 16 Bit | |||
| Digit Output Mode | 16 channels output | |||
| Waveform | ||||
| Standard Waveform | sine, square, triangle, pulse, noise, harmonic | |||
| Arb. Waveform | More than 150 kinds: index rise, exponential decline, ECG signal, Gaussian, semi-positive, Lorentz, dual-tone multi-frequency, DC voltage, etc. | |||
| Frequency Characteristics | ||||
| Sine | 1uHz~200MHz | 1uHz~160MHz | 1uHz~110MHz | 1uHz~80MHz |
| Square | 1uHz~60MHz | 1uHz~50MHz | 1uHz~40MHz | 1uHz~35MHz |
| Pulse | 1uHz~50MHz | 1uHz~40MHz | 1uHz~25MHz | 1uHz~20MHz |
| Triangle | 1uHz~5MHz | 1uHz~4MHz | 1uHz~3MHz | 1uHz~2MHz |
| White Noise | 120MHz | 120MHz | 110MHz | 80MHz |
| Harmonic | 1uHz~100MHz | 1uHz~80MHz | 1uHz~55MHz | 1uHz~40MHz |
| Arbitrary | 1uHz~50MHz | 1uHz~40MHz | 1uHz~25MHz | 1uHz~15MHz |
| Resolution | 1uHz | |||
| Accuracy | ±2ppm, 18~28℃ | |||
| Sine Spectrum Purity | ||||
| Harmonic Distortion | Typical (0dBm) | |||
| DC-1MHz: <-60dBc | ||||
| 1MHz-10MHz: <-55dBc | ||||
| 10MHz-100MHz: <-50dBc | ||||
| 100MHz-160MHz: <-40dBc | ||||
| THD (Total Harmonic Distortion) | <0.1% (10Hz-20kHz, 0dBm) | |||
| Spurious Signal (Non-harmonic) | Typical (0dBm) | |||
| ≤10MHz: <-65dBc | ||||
| >10MHz: <-65dBc+6dB/octave | ||||
| Phase Noise | Typical (0dBm,10KHz offset) | |||
| 0MHz: ≤-115dBc/Hz | ||||
| Square Characteristics | ||||
| Rising/Falling Time | Typical (1Vpp) | Typical (1Vpp) | Typical (1Vpp) | |
| <8ns | <10ns | <12ns | ||
| Overshoot | Typical (100KHz, 1Vpp) | |||
| <3% | ||||
| Duty Cycle | ≤10MHz: 20.0%~80.0% | |||
| 10MHz~40MHz: 40.0%~60.0% | ||||
| >40MHz: 50.0% (fixed) | ||||
| Asymmetry | 1% +5ns of Period | |||
| Jitter | Typical (1MHz,1Vpp, 50Ω) | |||
| ≤ 5MHz: 2ppm+500ps | ||||
| > 5MHz: 500ps | ||||
