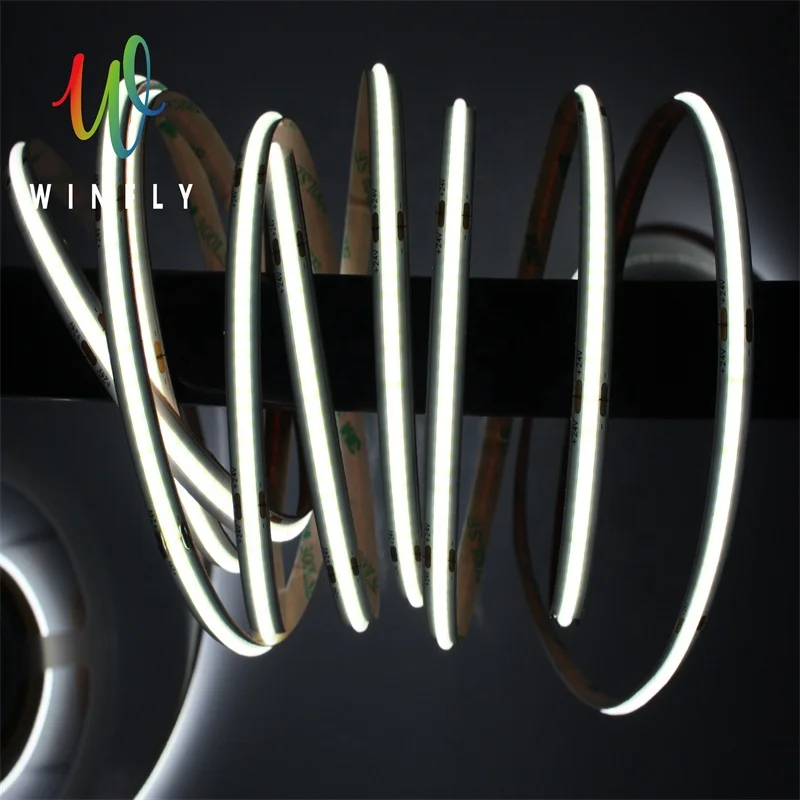

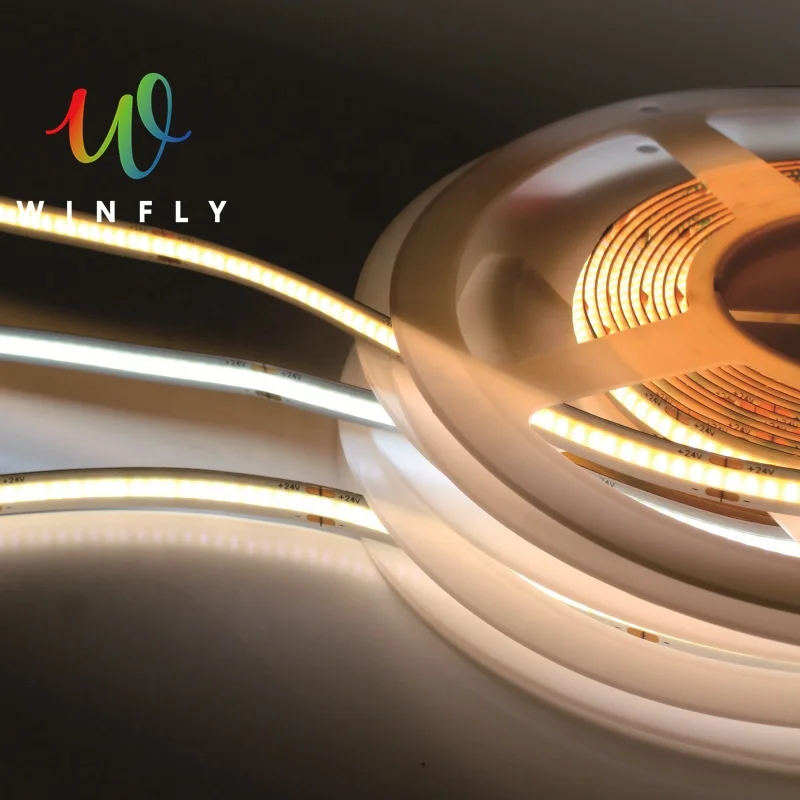

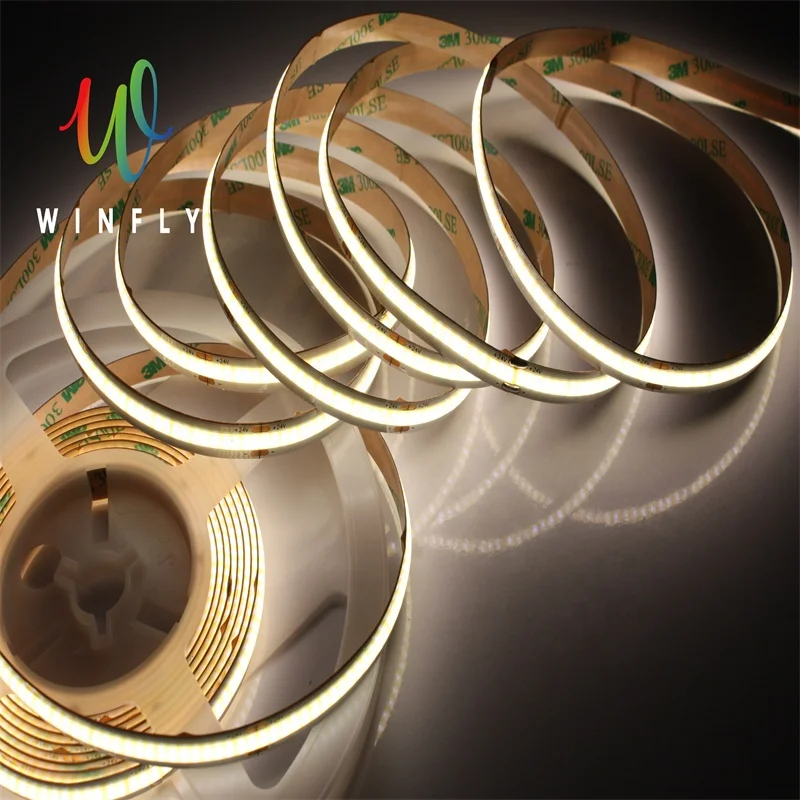

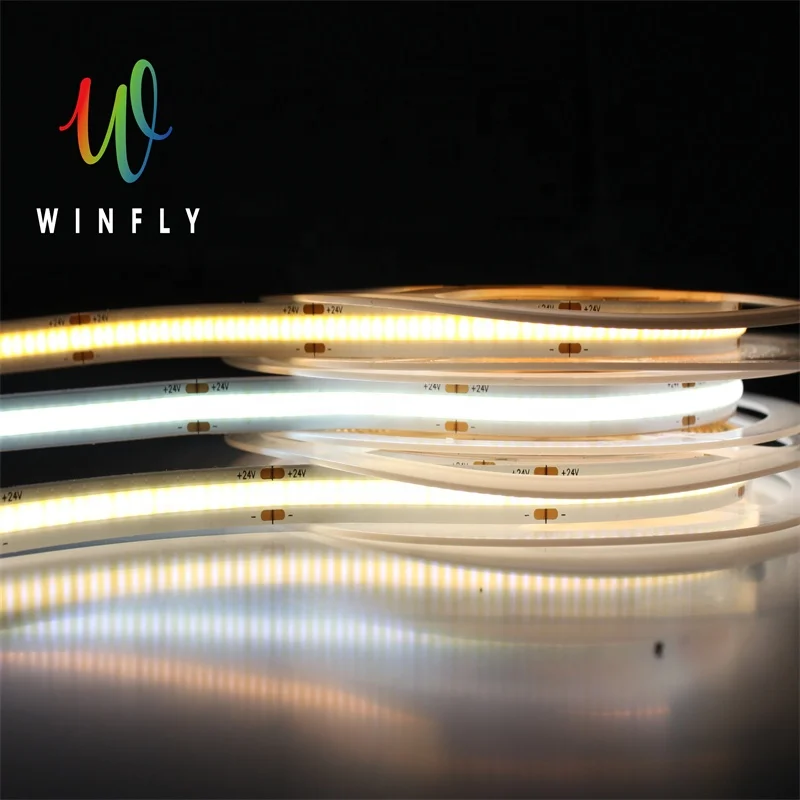

2021 New COB LED Neon Lights 546LED/m Flexible LED Light Strip 12V 24V 3000K 4000K 6000K IP67 IP68 Waterproof With Silicone Case
- Category: >>>
- Supplier: Shenzhen Winfly New Material Co. Ltd.
Share on (1600311614744):
Product Overview
Description
2021 New COB LED Neon Lights 546LED/m Flexible LED Light Strip 12V 24V 3000K 4000K 6000K IP67 IP68 Waterproof With Silicone Case
Specification:
LED Quantity: 546LED/m
Input Voltage: DC12/24V
FPCB Width: 10mm
Cutting Length: every 50mm
Color temperature: Warm White(3000K), Nature White(4000K), Cool White(6000K).
Color Rendering Index: Ra＞90
Operation temperature: -20℃-+45℃
Storage temperature: -20℃-+60℃
View angle: 180°
Package: 1× COB LED strip（power supply is not included）
LED Quantity: 546LED/m
Input Voltage: DC12/24V
FPCB Width: 10mm
Cutting Length: every 50mm
Color temperature: Warm White(3000K), Nature White(4000K), Cool White(6000K).
Color Rendering Index: Ra＞90
Operation temperature: -20℃-+45℃
Storage temperature: -20℃-+60℃
View angle: 180°
Package: 1× COB LED strip（power supply is not included）
Product Description
COB VS SMD
What's the difference between COB LED strip and traditional LED strip?
This product is no luminous spot flexible white LED light strip, the light all through the chip surface
coverage arc fluorescent colloid and substrate surface coating of high reflection refraction ink out, achieve
intensive continuous luminous effect. Largest lighting angle up to 180 °, the thickness of only
1.5mm,minimum bending radii 2cm. It is take 3M adhesive on the back.
coverage arc fluorescent colloid and substrate surface coating of high reflection refraction ink out, achieve
intensive continuous luminous effect. Largest lighting angle up to 180 °, the thickness of only
1.5mm,minimum bending radii 2cm. It is take 3M adhesive on the back.
Specifications
Model | WINFLY546 |
Voltage | DC 12V 24V |
CCT | 3000K/4000K/6500K |
FPCB Width | 10mm |
Ra | >90 |
SDCM | <5 |
Packing | 5 m/reel with anti-static bag packing. Blue thermal conductive tape on the back, red and black wires at one end |
Product Features
·No luminous spot, no shadow, light uniform and soft
·High efficiency, remarkable energy saving effect
·The maximum luminous angle is 180°
·Antistatic grade(MIL-STD-883E) HBM2(2000~4000V)
·This product have no harmful substances and complies with ROHS environmental standards
··Chip longitudinal distribution, high reliablility, minimum bending radii is 0.5cm
·COB LED strip have good color rendering consistency, CRI>90,SDCM<3
Application
WINFLY546

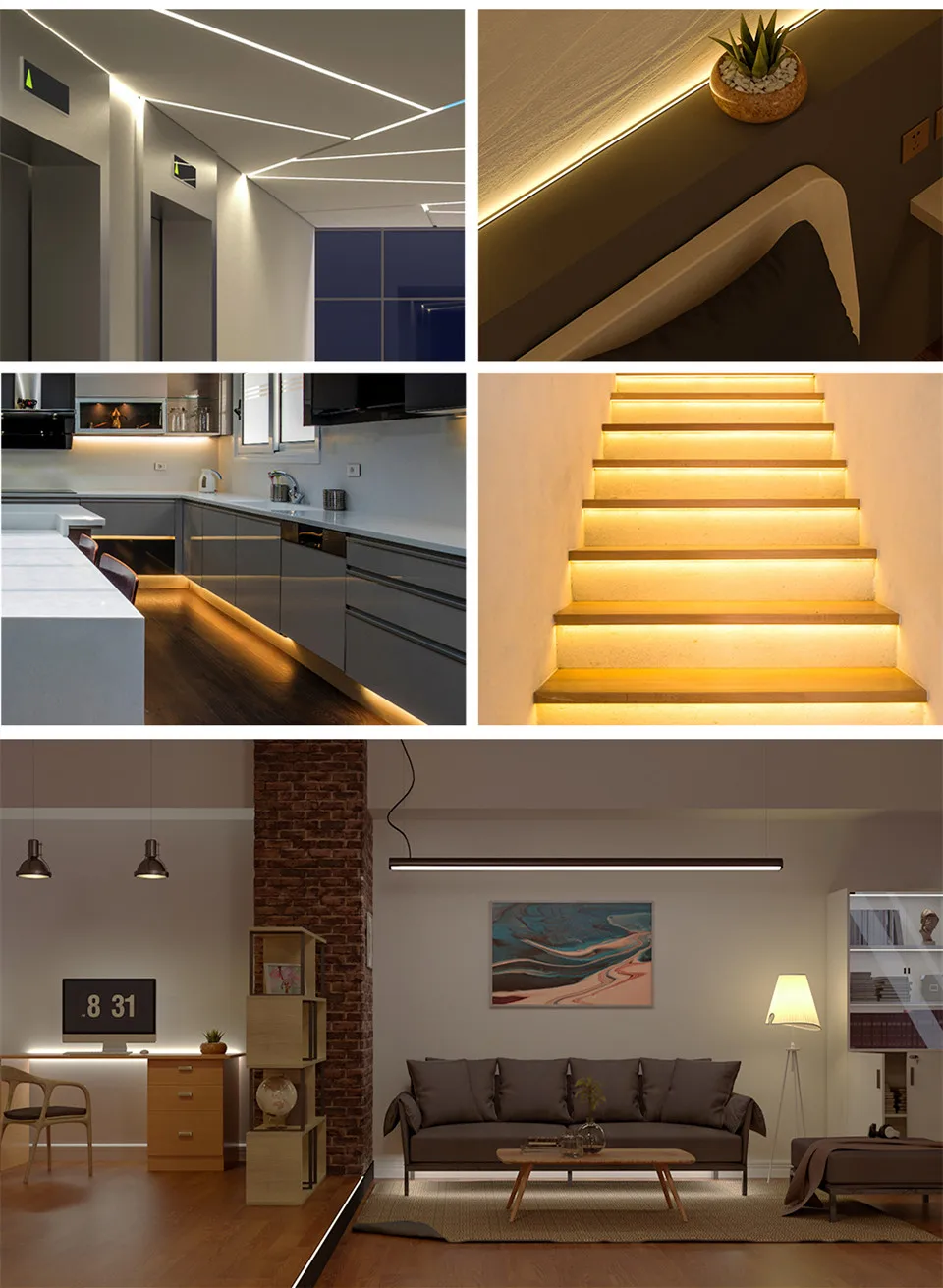

WINFLY546 COB LED strip is suitable for hotels, shopping malls, home furnishing, cabinets, exhibition racks, etc., cooperate with aluminum profile can used for main lighting, indirect lighting, dark slot lighting, outline drawing, decorative lighting and other purposes.
Product size and appearance drawing
Schematic diagram of electrical connection

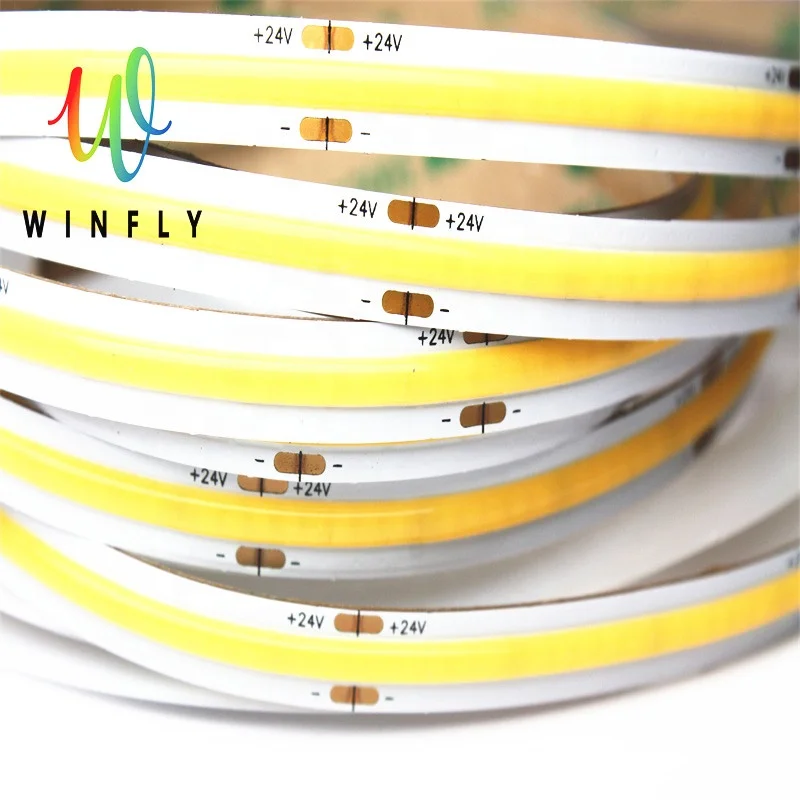

Make sure light strips is connected to the power supply with correct polarity. In general, the red line is positive and the black line is negative. The maximum connection length is 5 meters.
