Description

Model

Quantity

1

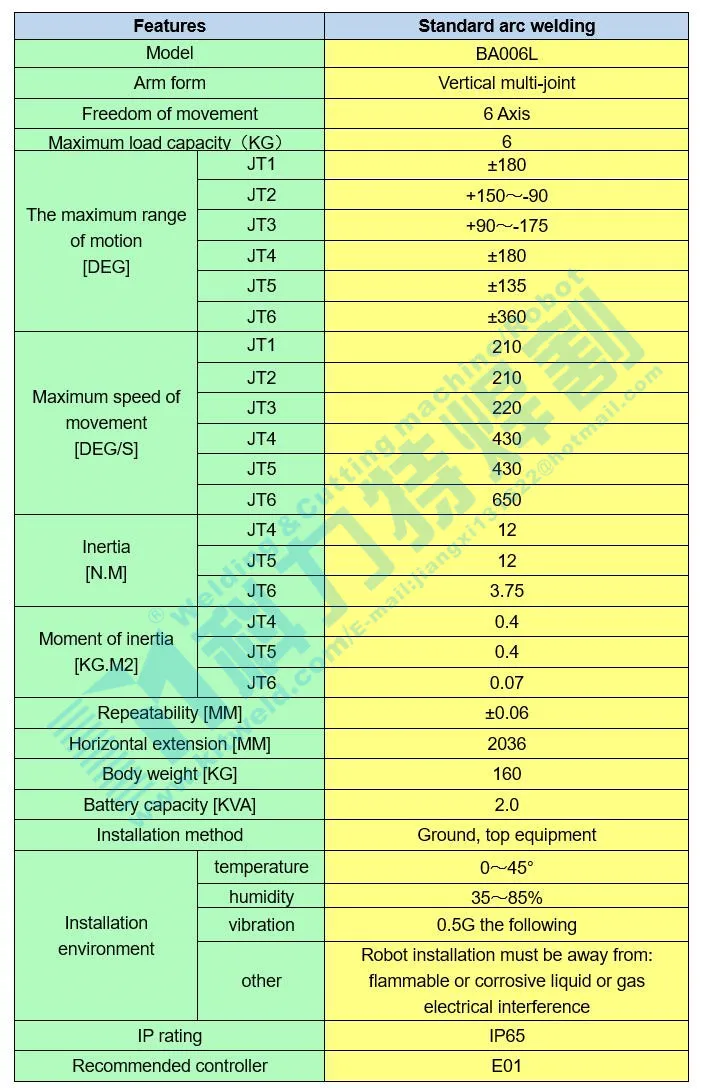

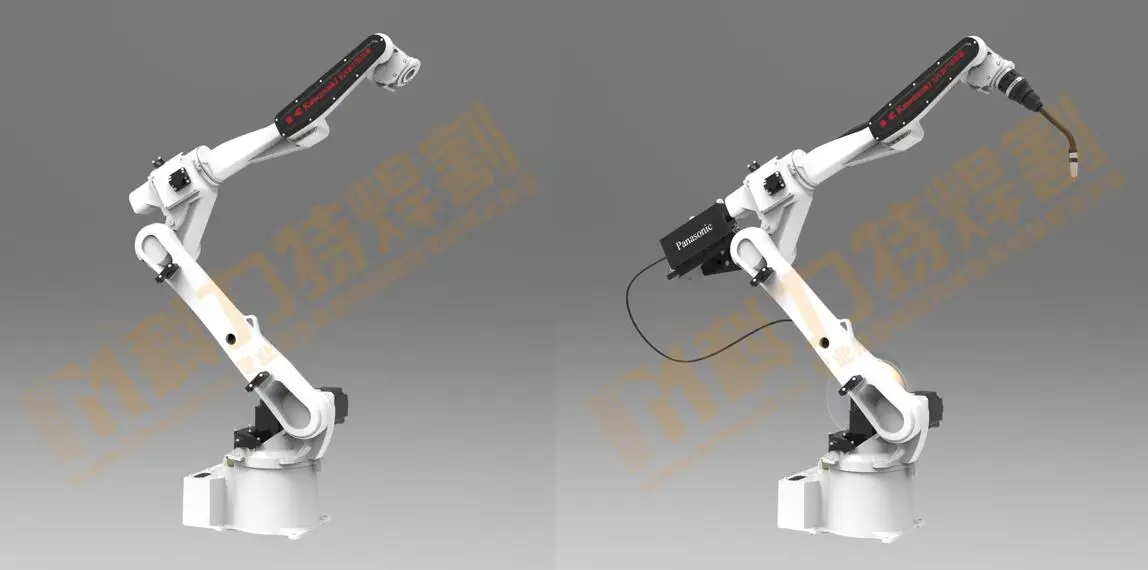

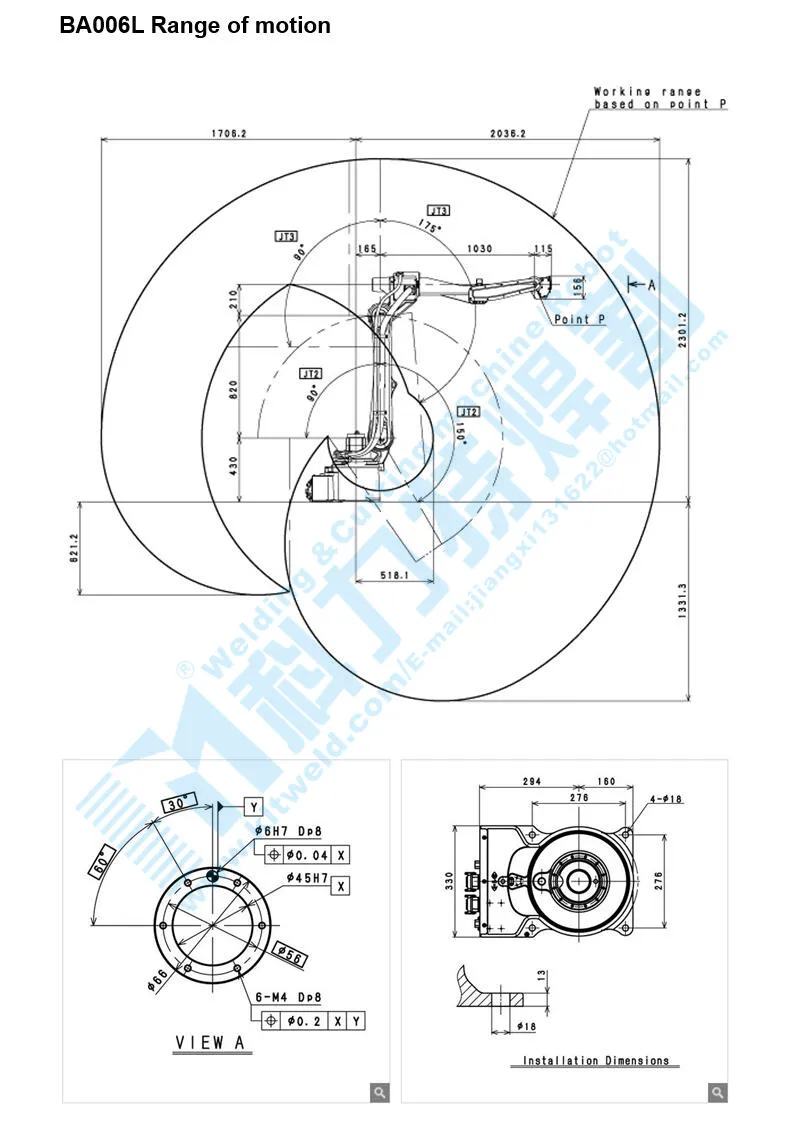

6 Axis Welding Robot

Model:BA006L

R=2036mm,Load=6kg

1set

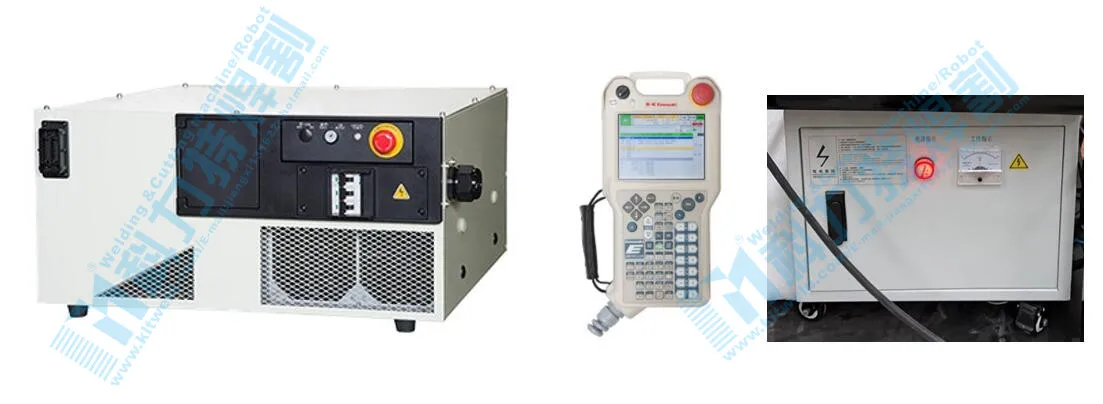

Teach pendant

Color LCD with touch-panel;

Emergency Stop SW, Teach Lock SW and Enable SW;

Cable Line: Standard configuration(10m)

Controller

Model:E01;

Input Power: AC200-AC220V±10%,50/60Hz,3 phases

Controlled axes: Std. 7 axes (Max 9 axes);

Memory capacity: 8MB;

I/O signals: GPIO board (Input 32/Output 32);

Dimensions: W550×D580×H278mm,40Kg

Transformer

AC 3*380V is converted to AC 3*220V

2

External axis servo motor

Add 7 and 8 Axis 2 KW

2sets

3

Robot extension cable

Robot extension cable (8m); And extension of external axis servo motor cable

2 sets

4

   Welding Power

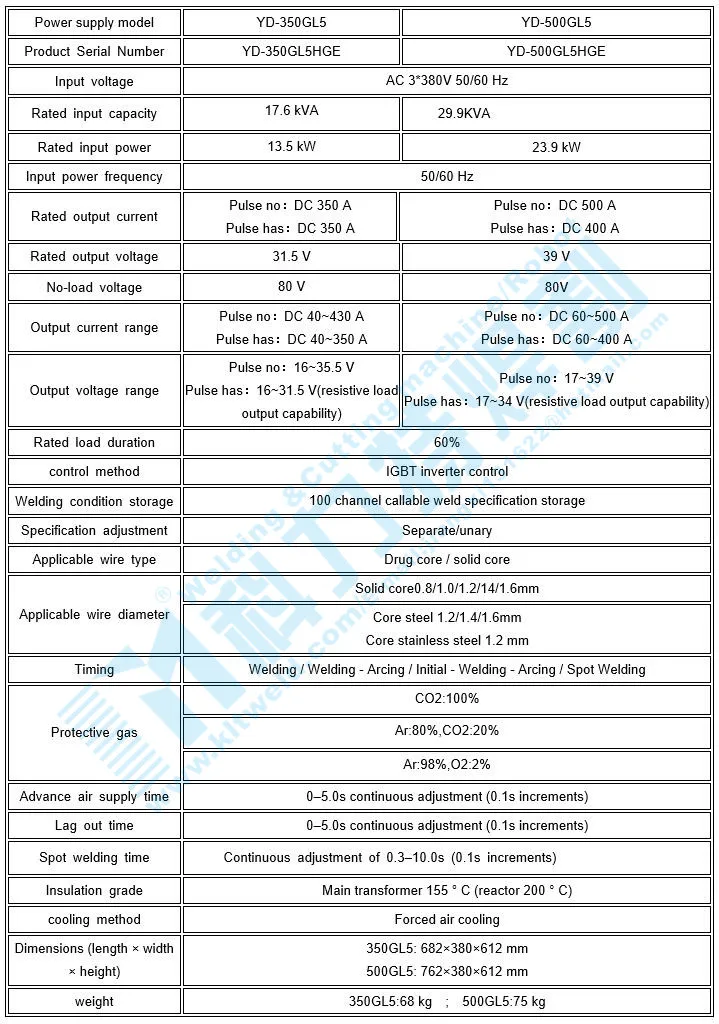

Model: Panasonic YD-500GL5

Load rate: 60% ;Pulse MIG/ Pulse MAG/CO2

 Contain: Wire feeder , Control cable

1set

Wire Feeder

Panasonic 6-axis robot dedicated wire feeder; Panasonic extension cable (5m)

5

welding torch

KLT-W500;

special welding gun for Carbon steel, stainless steel welding; Water-cooled welding torch

1set

6

Cooling water tank

Model:WL-20L

1set

7

Welding gun clearing station

Clean up the torch, fuel injection, cut the wire

(3 in 1) Chinese brand

1set

8

Wire feeding accessories

Wire feeding tray bracket and wire feeding tube

1set

9

Control cabinet bracket

Made by KELITEWELD

1set

10

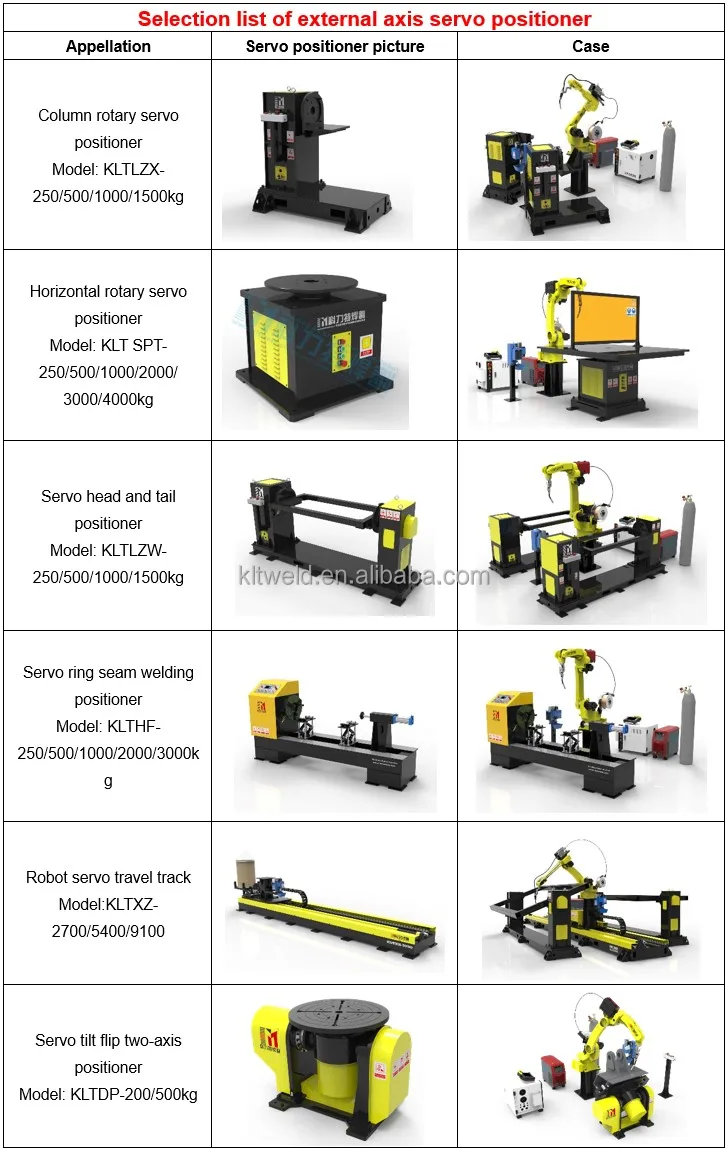

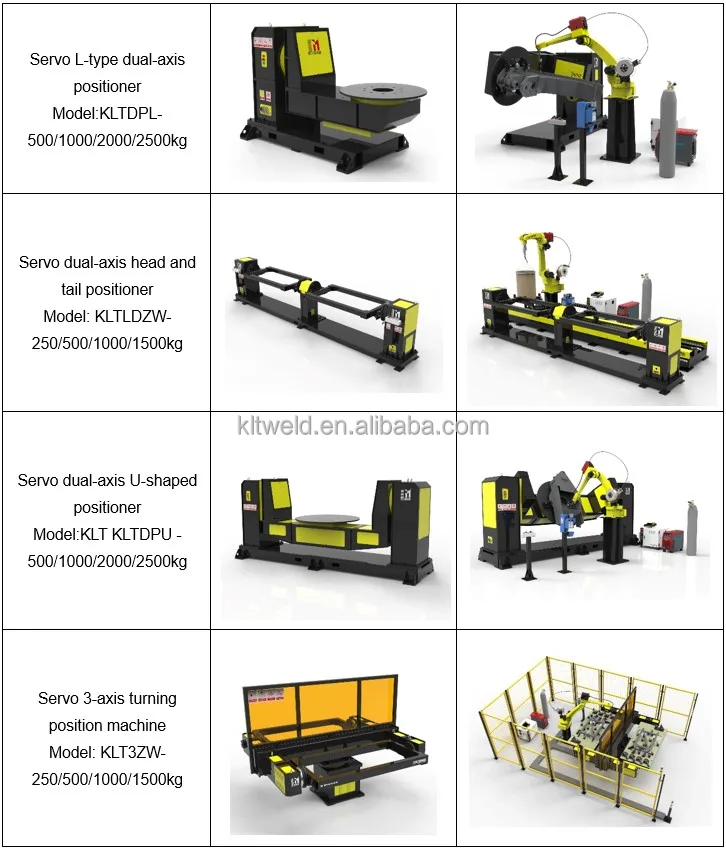

Double-axis servo positioner

KLTHP500

Load: 500kg; Flange diameter: 1400mm

Made by KELITEWELD

1 set

11

Electrical cable

Power cord, welding power ground cord, external conversion box, trachea, etc.

1 set

12

Conductive tip

Φ=1.0mm/Φ=1.2mm,

 1 row = 10 pieces

10 rows

13

Welding torch cover

500A welding torch ;

1 row = 5 pieces

10rows
