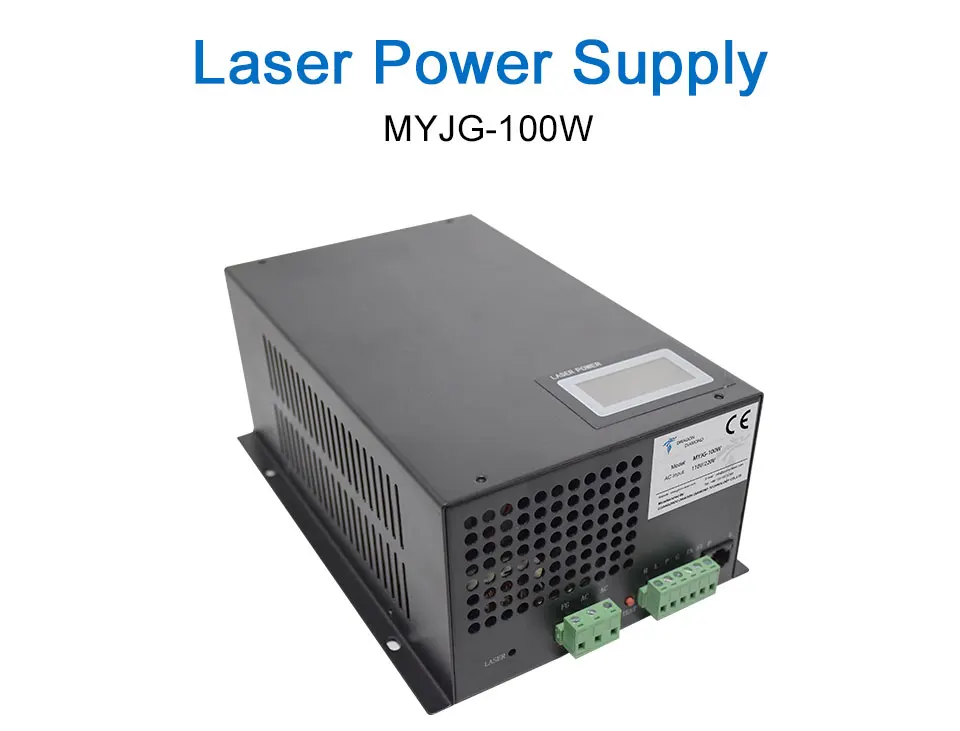

Dragon Diamond CO2 100W Laser Power Supply MYJG 100W co2 laser machine power supply For Laser Cutting Engraving Machine

Input

Input Voltage

AC220V/AC110V( Adjust with Switch )

AC frequency

47-44OHZ

Output

Max output voltage

28KV

Max output current

30mA

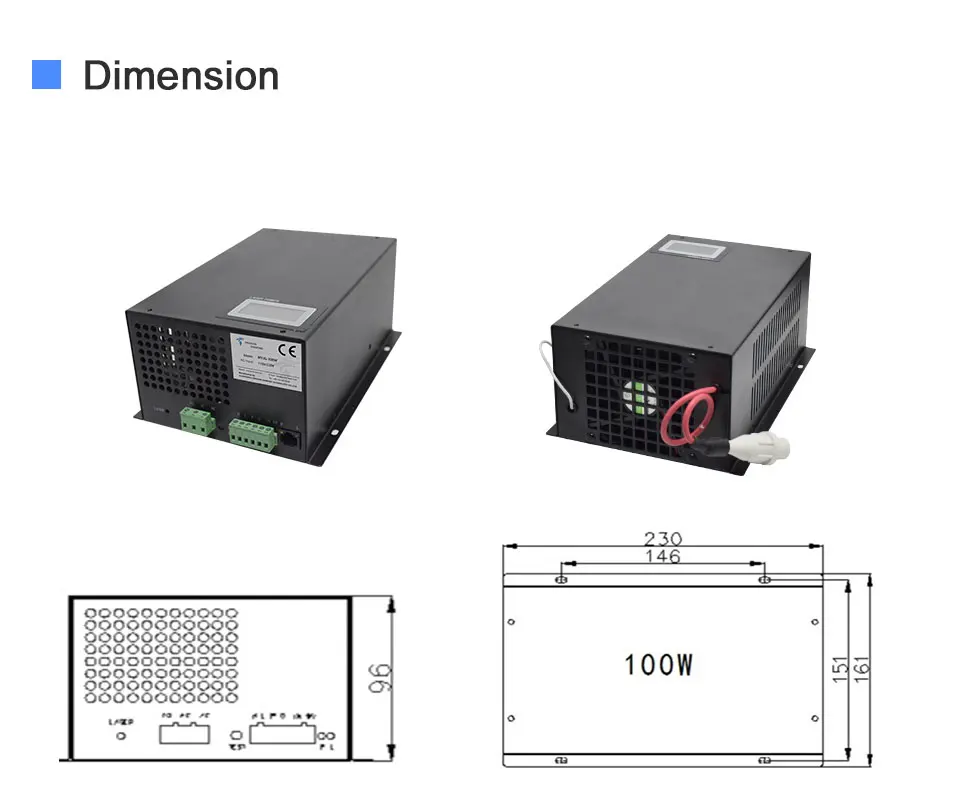

Size

230*161*91mm

Efficiency

91%

MTBF

≥ 30000 Hours

Response speed

≤1ms

Withstand Voltage

Input -Output,Input-Enclosure:AC1500V10mA60S, Output cathode is connected with enclosure .

Environment

-36 °~+65°

Cooling

Force -Air Cooling(FAC)

Voltage Range

High-Level

≥3V

Low-Level

≤0.7V

Start/ Stop Test

500 times 7 seconds
