12V200Ah lithium LiFePO4 battery with plastic case for boats, forklift solar energy storage
12V200Ah lithium LiFePO4 battery with plastic case for boats, forklift solar energy storage
12V200Ah lithium LiFePO4 battery with plastic case for boats, forklift solar energy storage
12V200Ah lithium LiFePO4 battery with plastic case for boats, forklift solar energy storage
12V200Ah lithium LiFePO4 battery with plastic case for boats, forklift solar energy storage
12V200Ah lithium LiFePO4 battery with plastic case for boats, forklift solar energy storage
12V200Ah lithium LiFePO4 battery with plastic case for boats, forklift solar energy storage

12V200Ah lithium LiFePO4 battery with plastic case for boats, forklift solar energy storage

Share on (1600311760042):


Price:$370.00 - $400.00

Quantity:


Product Overview

Description



Items
JD12-200





Basic
Nominal Voltage
12.8 V
Nominal Capacity
200 Ah
Total Energy
2.56 kWh
Cell Type
lithium-iron-phosphate
Cell Resistance
≤ 0.5 mΩ
Cell
3.2 V，200 Ah
Series and Parallel Circuits
1 P 4 S




Standard Charge
Charge Temperature
0 ~ 50 ℃
Max Charge Voltage
14.4 ± 0.1 V
Floating Charge Recommended Voltage
14.0 ± 0.1 V
Charge Current
30 A
Max Continuous Charge Current
80 A
Charge Mode
Commercial Power, Solar Energy, On-Board Engine
Charging Heating
No



Standard Discharge
Discharge Temperature
-20 ~ 60 ℃
Output Voltage
11.0 ~ 14.0 V
Discharge Current
150 A
Max Continuous Discharge Current
200 A
Pulse Current
Can Support 300 A / 10 S
Discharging Heating
No

Mechanica
Pack Number
1
Pack Size

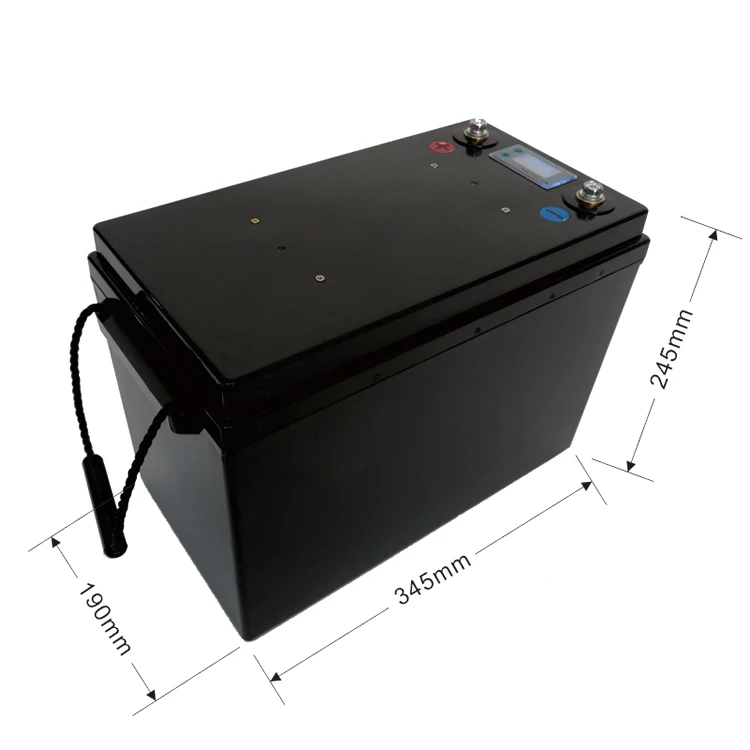

Length345 * Width190* Height245mm
Pack Weight
20±1 Kg

Storage
Short Period (≤ 1 Month)
-20 ~ 35 ℃， 45% ~ 75% RH
Long Period (＞ 1 Month)
-10 ~ 35 ℃， 45% ~ 75% RH
Recommended Temperature & Humidity
10 ～ 35 ℃， 45% ~ 75% RH
Discharge temperature characteristic（0.2 C）
-20 ℃
≥ 70%
0 ℃
≥ 80%
25 ℃
100%
55 ℃
≥ 95%


Others
Cycle Life
≥2000（100%DOD）

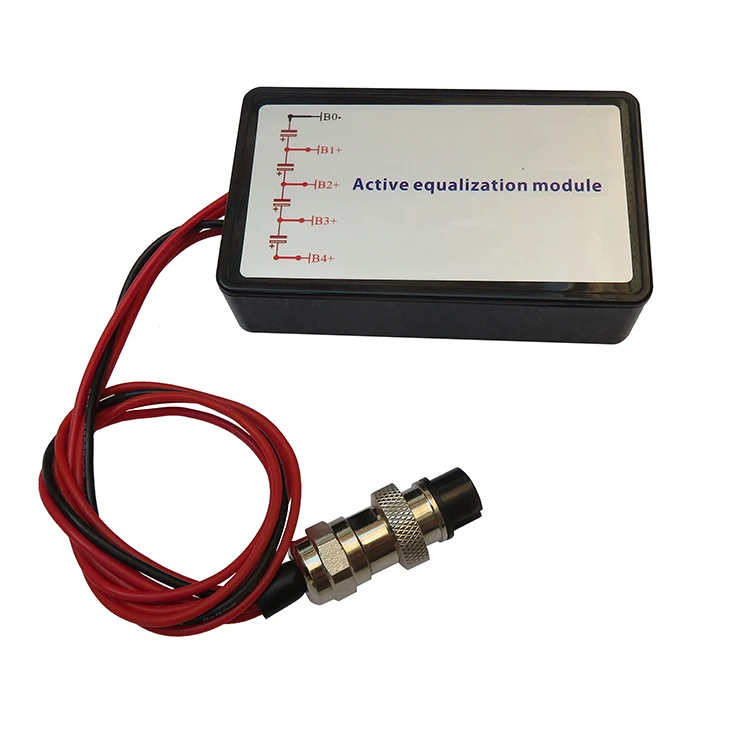

Balance interface

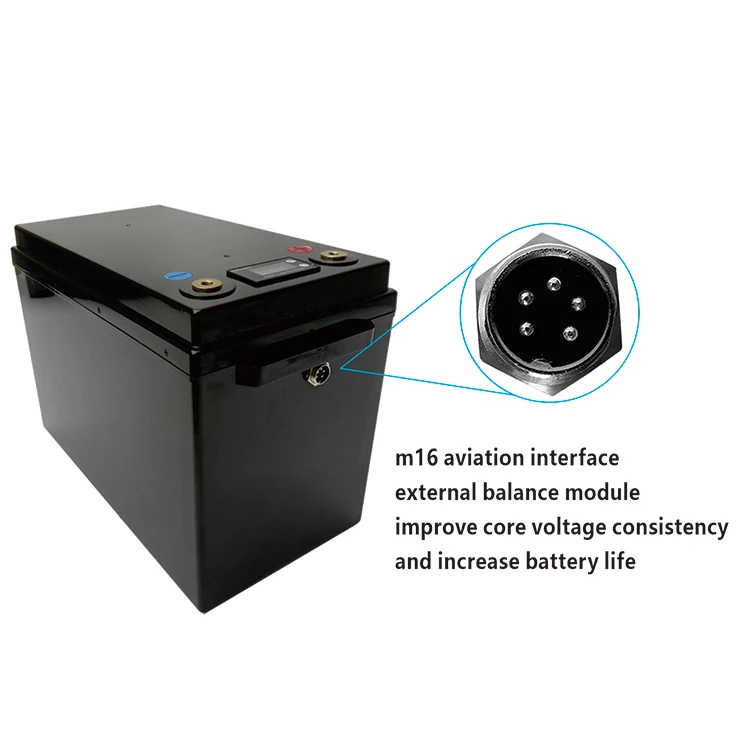

M16 * 5-core aviation connector
BMS
Yes
Output Interface
M8 Wiring Piles


Long Term Storage Instructions: First charge the battery pack 80% and place it under the recommended storage conditions. Do a full
cycle of charge and discharge at least once a month


Product Description

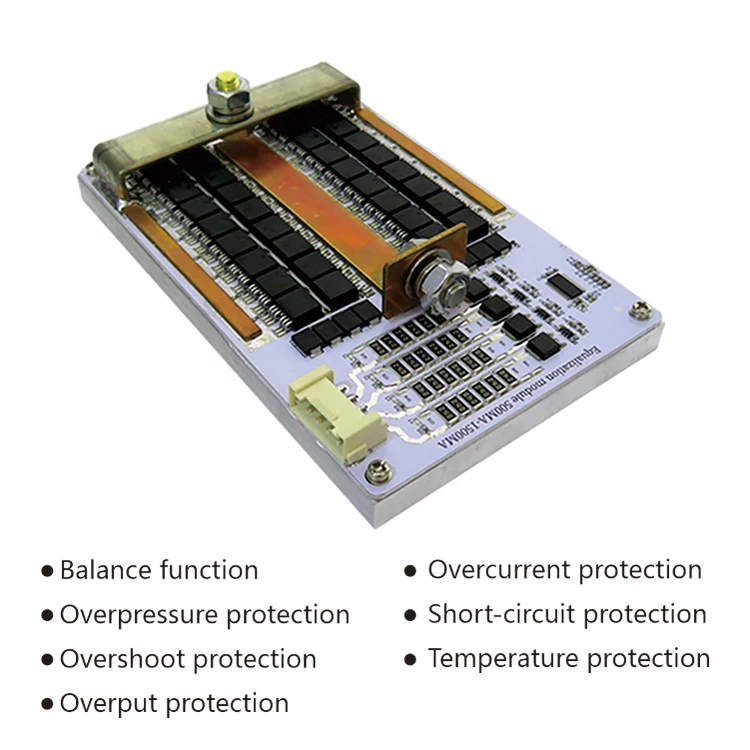

BMS with 2MM thick aluminum substrate.
9MM aluminum alloy heat cooling base.
Passive 800MA equilibrium current.
