80mm portable receipt printer label printer ATP BP35
- Category: >>>
- Supplier: XIAMEN ATP TECHNOLOGY CO. LTD
Share on (1600311793546):
Product Overview
Description
Specification

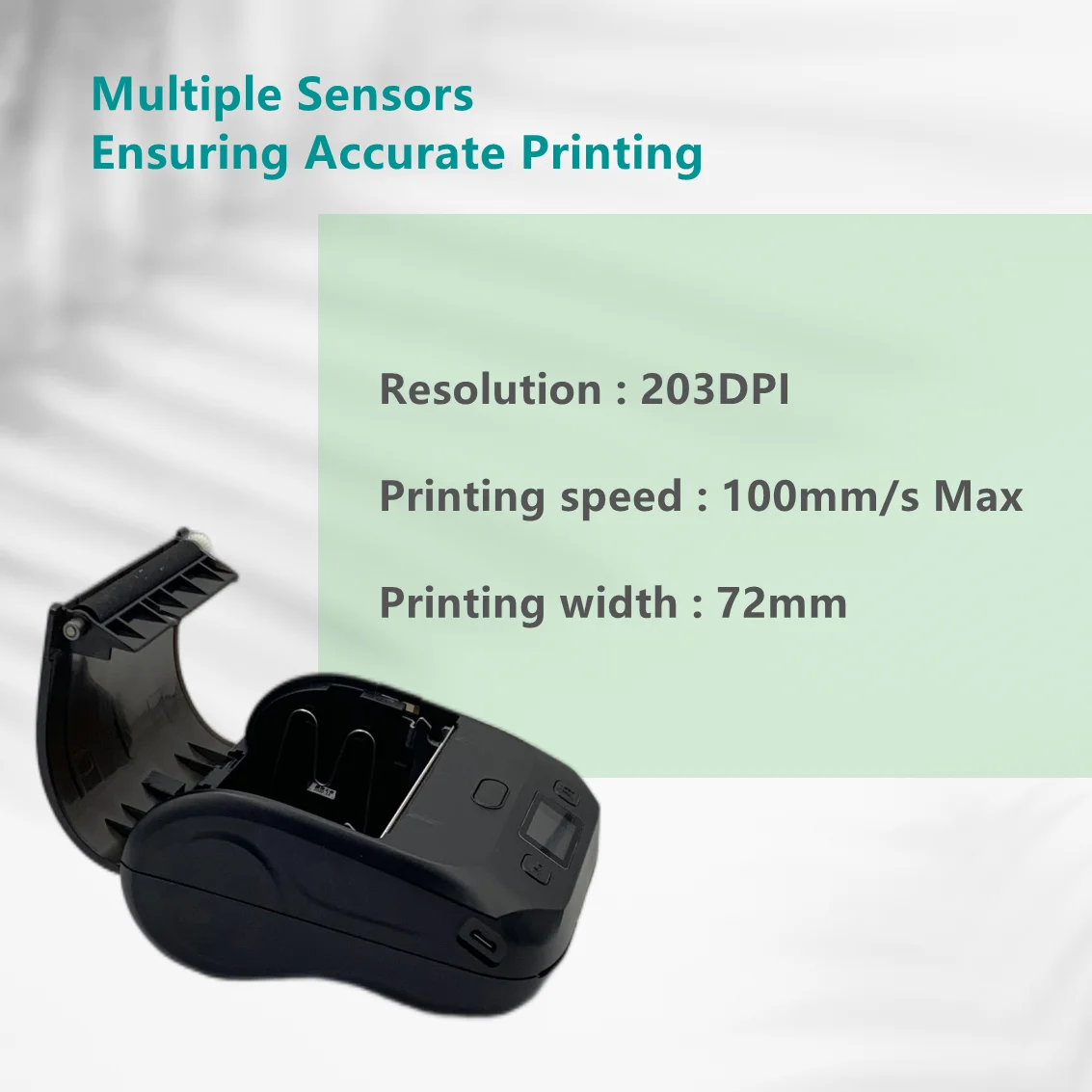

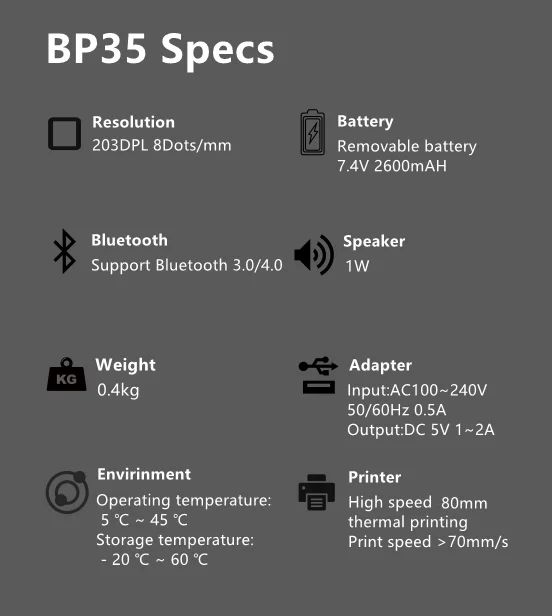

Printing parameter | Printing method | Thermal dot line printing | ||||||||
Resolution of level | 203dpi (8 dots/MM) | |||||||||
Printing width | 72MM | |||||||||
Printing speed(max) | 40-60MM 12.5% print density | |||||||||
Full power printing | 150-200MM 12.5% print density | |||||||||
Print order | ESC/POS, label, PCL（optional） | |||||||||
Print content | Text, image, curve, 1D code: UPC-A, UPC-E, EAN-8, EAN-13, Coda Bar, | |||||||||
Code39, ITF, Code128, Code93 | ||||||||||
Code39, ITF, Code128, Code93 | ||||||||||
QR code: QRCode, PDF417, DataMatrix | ||||||||||
Communication parameter | Serial port | RS232C | ||||||||
BT | BT 4.0 | |||||||||
Battery parameter | Type | Lithium Ion Battery | ||||||||
Voltage | 7.4V | |||||||||
Battery capacity | 2600 mAh | |||||||||
Battery storage environment | Temperature -20 to 45 degrees, relative humidity is not more than 80% | |||||||||
Battery Life | After 300 cycles of charging, the battery capacity will be reduced to about 80%. | |||||||||
Charging parameter | Input | AC100~240V 50/60Hz 0.5A | ||||||||
Output | DC 5V 1~2A | |||||||||
Charging method | Adapter charging, PC USB charging, charging treasure charging. | |||||||||
Paper parameters | Paper type | Label paper, thermal coupon paper, thermal surface single paper | ||||||||
Paper form | Roll paper | |||||||||
Paper size | 80mm×50mm | |||||||||
Paper thickness | 0.05-0.15mm | |||||||||

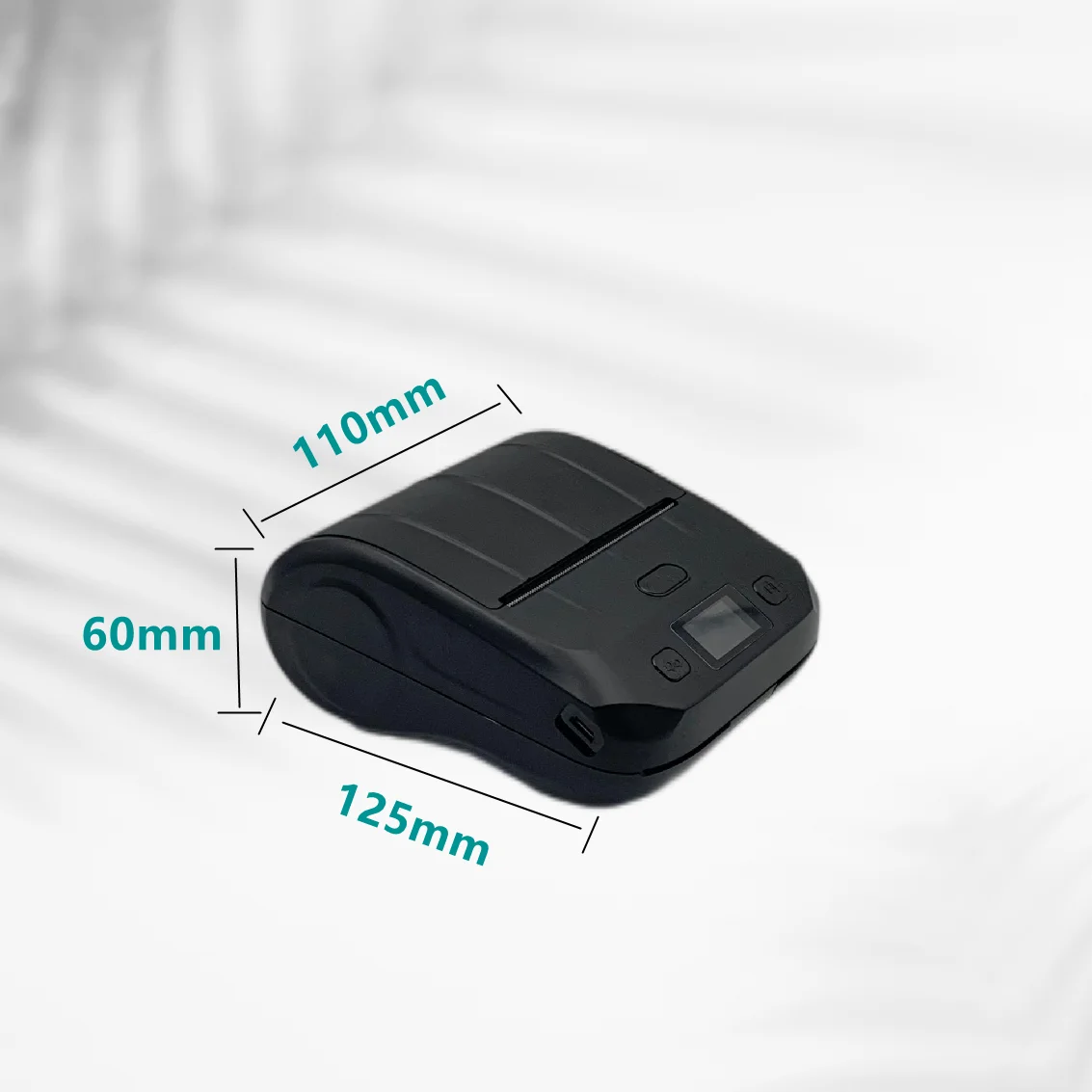

Other parameters | Dimension | 125mm(L)X110mm(W)X60mm (H) | ||||||||
Weight | 800g(including battery, not including paper), 400g( not including Weight battery and paper) | |||||||||
RAM | FLASH:8MB, RAM:32MB Receive buffer: 32MB | |||||||||
Targeting | Label detection, middle black mark detection | |||||||||
Protection level | IP54 | |||||||||

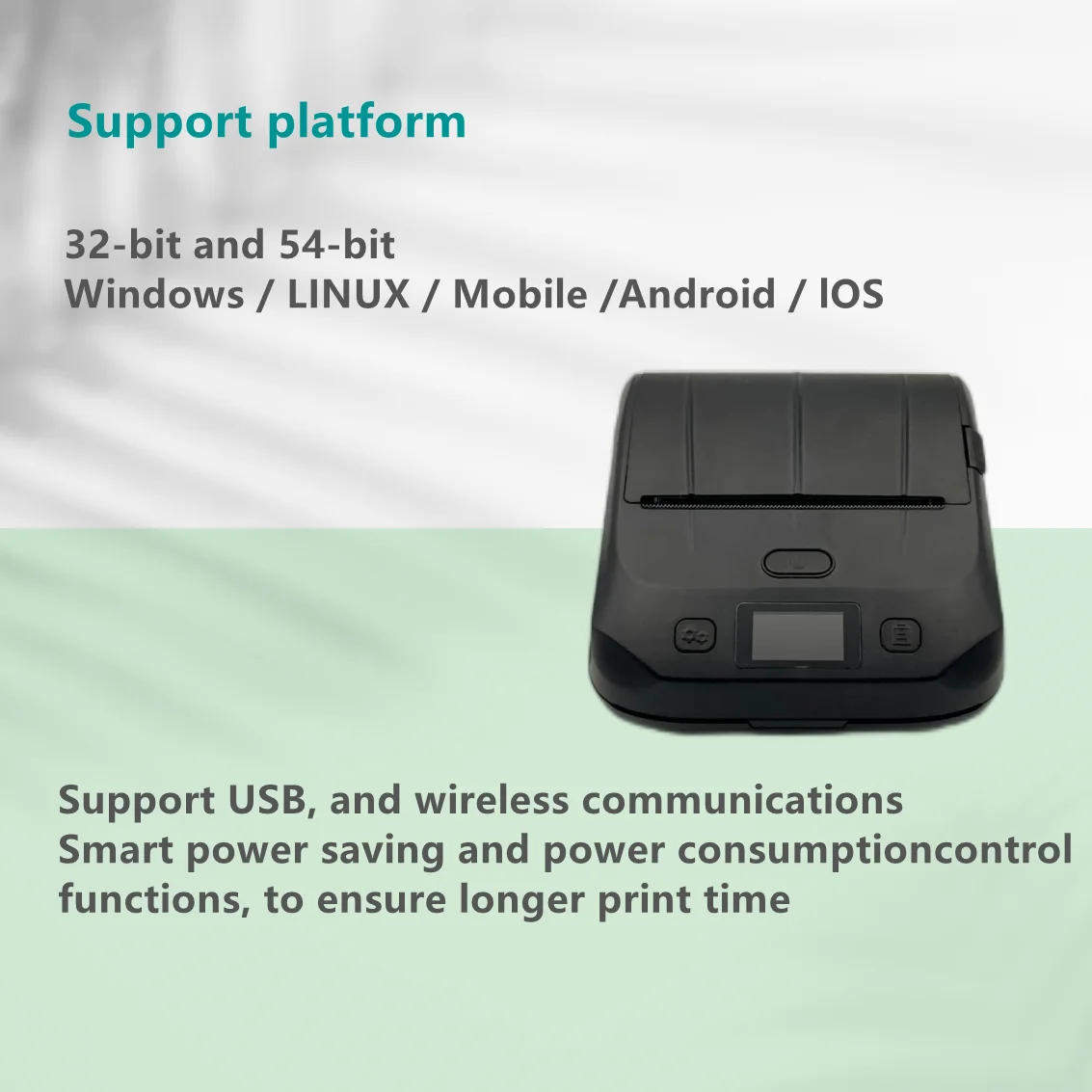

Support platform | 32-bit and 54-bit Windows/LINUX/Mobile/Android/IOS | |||||||||
