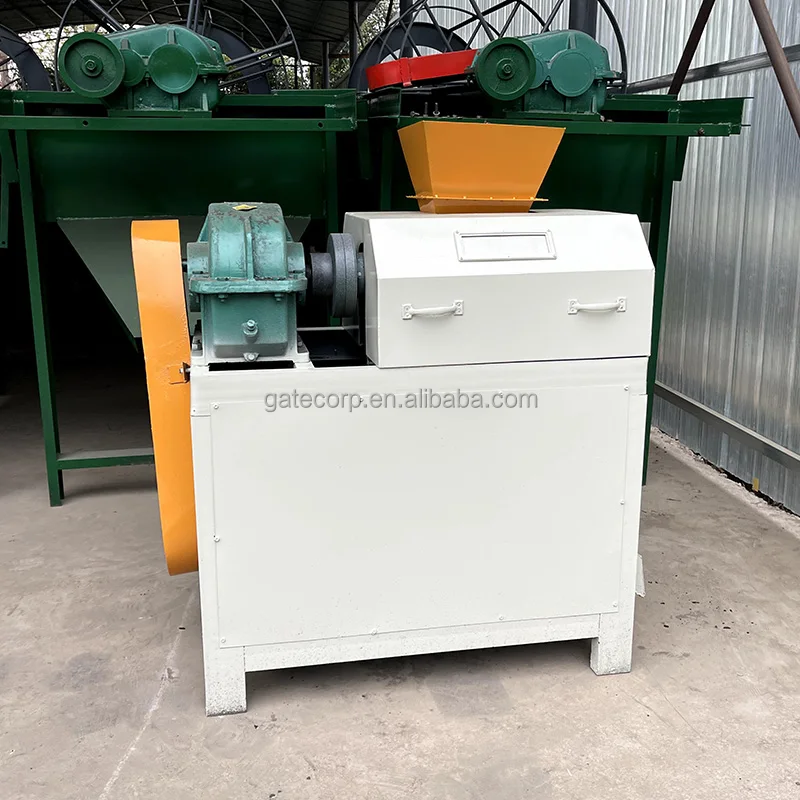

npk compound fertilizer production line equipment machinery double roller pellet press dry extrusion roll granulator

Share on (1600311890220):


Price:$10,999.00 - $20,999.00

Quantity:


Product Overview

Description



Product Description


npk compound fertilizer production line equipment machinery double roller pellet press dry extrusion roll granulator
1. Introduction of Urea Fertilizer Plant Urea Fertilizer Plant is widely applied to produce compound fertilizer and the capacity ranges from5000-200,000 tons/year. It can
granulate NPK, NP, ANP, DAP, MAP, CAN, SSP and other materials into compound fertilizer particles in one processing line. This equipment can specially used for manufacturing compound fertilizers with different concentrations and types, such as organic fertilizers, inorganic fertilizers, biological fertilizers and magnetic fertilizers, etc. It is mainly used for producing spherical particles with a diameter ranging from 1mm to 4mm.






2. Advantanges of Urea Fertilizer Plant
1. Equipped with advanced fertilizer manufacturing technique, this fertilizer production line can finish fertilizer granulation in one process.
2. Adopts advanced rotary drum granulator, granulating ratio is up to 90%, high intensity of granules,
3. The inner cylinder body adopts high quality rubber plate lining structure which prevents the raw material from sticking on the plate.
4. Wide adaptability of raw materials, suitable for compound fertilizer, pharmaceuticals, chemicals, fodder and so on.
5. High-quality, stable performance, anti-corrosion and wear-resistant materials components, abrasion proof, low energy
consumption, long service lifespan, easy maintenance and operation, etc.
6. High efficiency and economic returns, and the small part of feeding back material can be granulated again.
7. Adjustable capacity according to customers’ requirements.




Manufacturing process

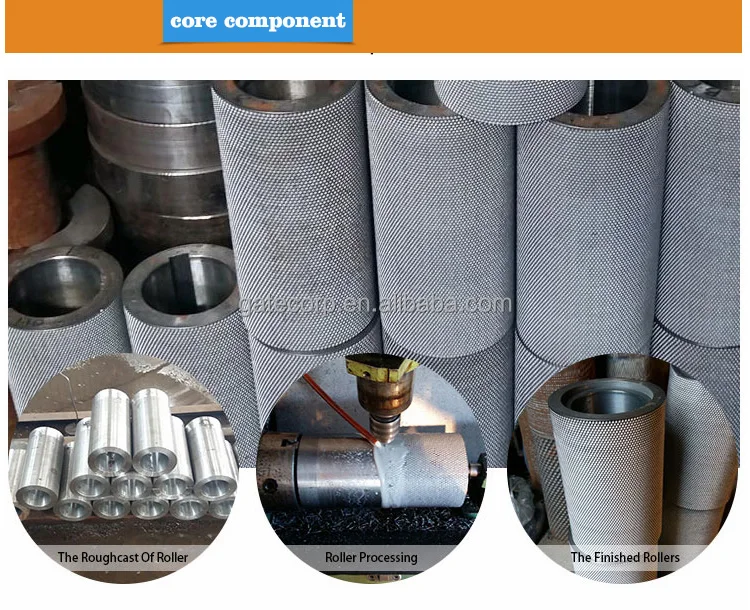

The roller was first forged and processed from special materials into roughcast, and then machined by numerical lathe and milling machine to be finished product. The roller with the features of rusty resistance, acid and alkali resistance, long service life,not easy to crack .

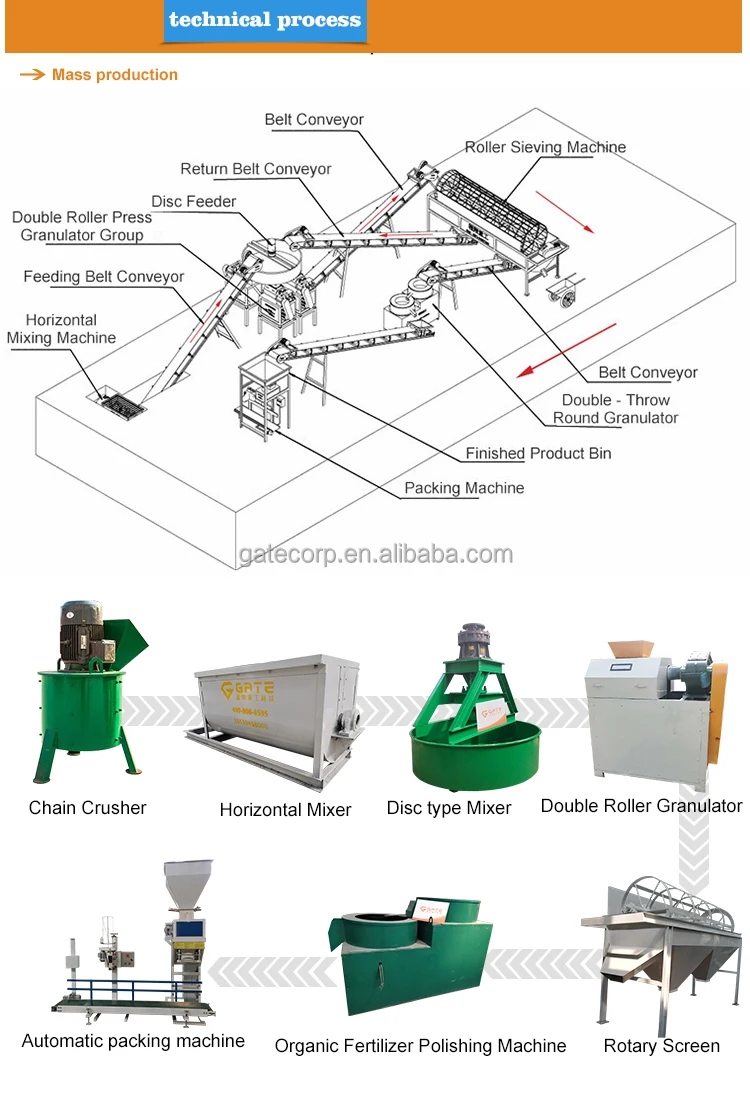

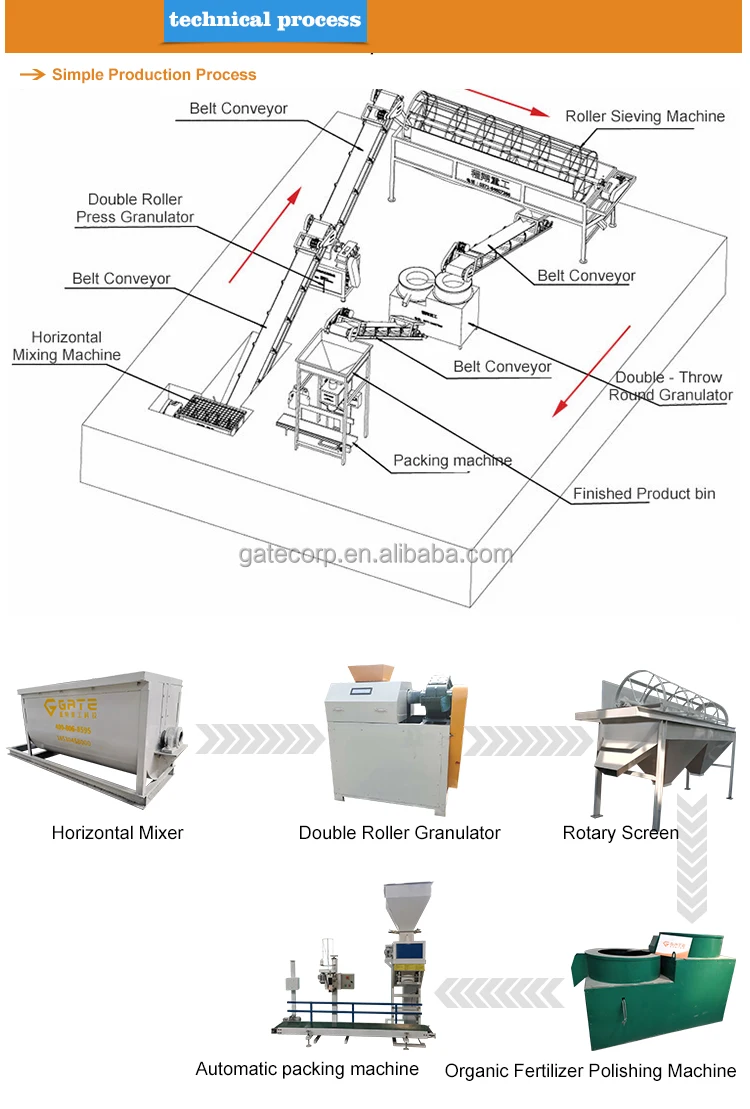

Working flow: input ( If blocked, use chain crusher to deal with ) ---- granulation - screening (select the right sieving hole
diameter)----finished granules---- the next process (optional equipment:
1, screening machine: the size of the granules will be more accurate.
2, coating machine: make the appearance of the granules more good.
3, weighing and package: facilitate the sale and transportation of products.

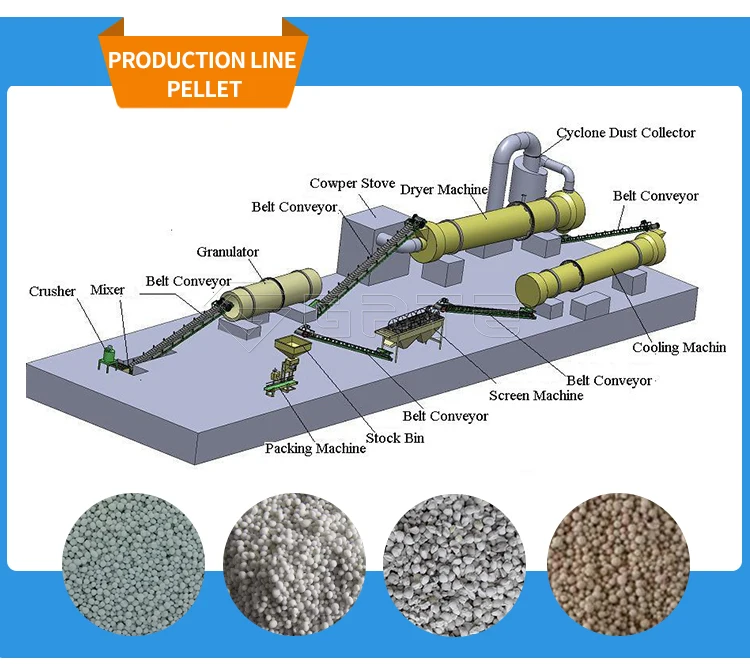

Technical parameter of fertilizer production line list for REFERENCE:

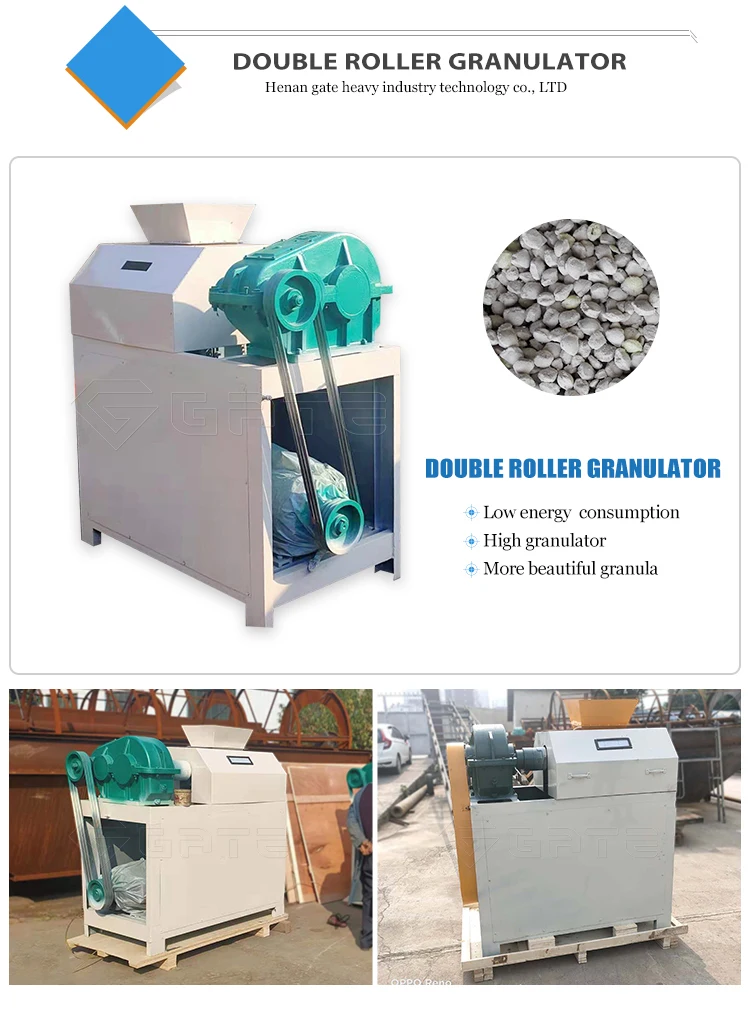

Compound fertilizer production line or Compound fertilizer plant is mainly used for producing Compound fertilizer. The line adopts double roller press granulator which has large capacity for fertilizer granulation, and no need drying, having small investment and low power consumption.The press rollers of the granulator can be designed to make different shapes and sizes of materials.



Item Name
Power (kw)
Qty (set)
Automatic Batching Machine
9
1
Chain Crusher
2*18.5
1
 Mixer Machine
11
1
Roller Press Granulator
4*22
4
Rotary Screening
7.5
1
Machine
5.5
1
Automatic Packing Machine
3
1


Item Name
Power(kw)
Qty(set)
Crusher
22
1
 Mixer
11
1
Granulator
15
2
Fertilizer Polisher
11
1
Rotary Dryer
7.5
1
Rotary Cooler
7.5
1
Rotary Screen
5.5
1
Rotary Coating
4
1
Automatic Packing
3
1
Hot Air Furnace
1


Item Name
Power(kw)
Qty(set)
Auto batching system
12
1
drum Granulator
22
1
Fertilizer Polisher
15
1
Rotary Dryer
15
1
Rotary Cooler
11
1
Rotary Screen
10
1
Rotary Coating
7.5
1
Automatic Packing
3
1


Item Name
Power(kw)
Qty(set)
Automatic Batching
4
1
Chain Crusher
22
1
Mixer Machine
11
1
Disc Granulator
11
1
Rotary Drum Dryer
11
1
Rotary Drum Cooler
7.5
1
Rotary Screener
5.5
1
Rotary Coating Machine
7.5
1
Auto Packing Machine
3
1
Dust Settling Chamber
1


Detailed Images










Packing & Delivery




Customer service:

In the sale of products, the interests of customers is our first consideration, our pursuit of fine service, from pre-sales advice, enthusiastic service to the sale of products to promote, we all require fine in the fine. Powerful design and development team, occasional visits, strict quality assurance and prompt after-sales service, each link has made careful arrangements to solve a series of customer worries.



Pre-sale:
1. accept customer inquiries, according to customer demand, determine the scale of operation, provide plant construction program;
2. to provide customers with project design, process design, suitable for your purchase of machinery and equipment program, in a timely manner to provide customers with relevant technical documents;
3. according to your special requirements, design products for your training technical operators preliminary design and construction design.

After Sale:
1. the company sent technical personnel to the scene to guide the installation of equipment, commissioning site and train operators
2. 24 hour all weather phone service, holiday service as usual.
3. establish customer files and track, as follows:
Establish customer files, master the place of sale equipment, operation status, return visit time and contact information; assign special after-sales service personnel to the site to instruct customers to install and debug. After the complete set of equipment has been installed, special technical personnel shall be sent to assist the customers on site for free, until the customer is satisfied.
4. the hotline daily information and processing of detailed registration, custody, timely handling customer problems.
5. Inform the customer of the equipment that has been in warranty period and inform the equipment maintenance details on a regular basis.



Our Company










FAQ


A. Does GATE  Professional manufacture of Fertilizer Making Machines?

HENAN GATE HEAVY INDUSTRY MACHINERY TECHNOLOGY CO.,LTD is a leading and professional manufacturer of fertilizer machine and whole fertilizer production line in China. We are expertise in manufacturing high quality equipment for fertilizer production.

B. What do you Provide for your Customers?
We can provide whole line of service, from technical consultancy, CAD drawing design, factory design, equipment production, shipment, and dispatch professional engineers to guide for installation and commissioning service, training your workers and technical stuff. Also, we have sufficient stock of spare parts, we can provide the spare parts at very fast speed and lowest cost.

C. What's the Production Period of the Fertilizer Machine?
for single fertilizer machine, our production time is 7 days;and for whole fertilizer production line, our production time is no more than 30 days.

D. What's the Quality Guarantee?Do you also accept the Third-party Inspection?
all of our machine have passed ISO and CE certification, we can guarantee the highest quality and our warranty time is 18 months after shipment date.we also accept the Bureau Veritas or other third-party inspection.

E. How about the  Installation and Training Work?
We will dispatch engineers to help customers for the installation and commissioing work of the machines, and provide training service for all of our customers.
