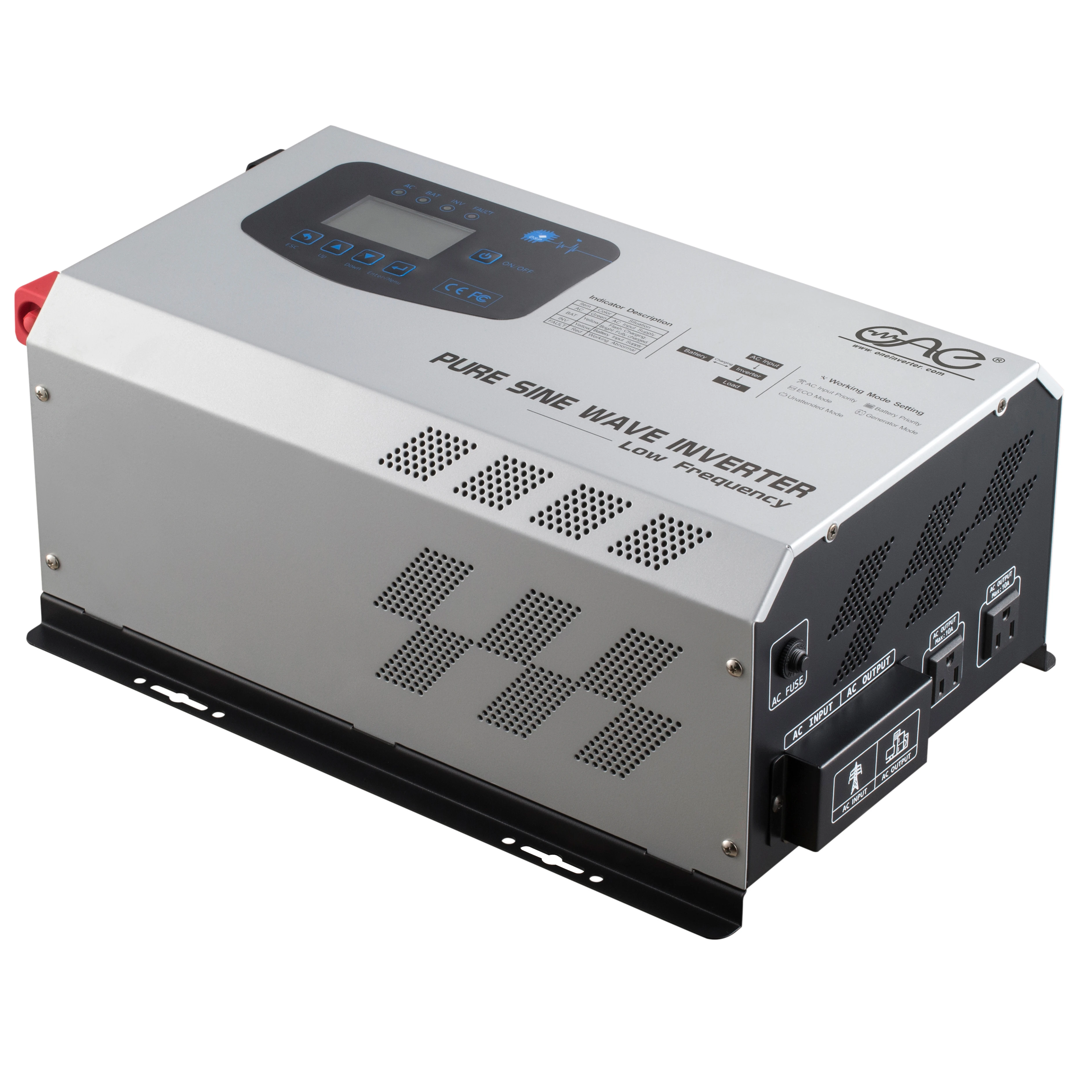

MODEL | FTS-1KW | FTS-1.5KW | FTS-2KW | FTS-3KW | FTS-4KW | FTS-5KW | FTS-6KW | |||||||
Rate Power | 1KW | 1.5KW | 2KW | 3KW | 4KW | 5KW | 6KW | |||||||
Surge power | 3KW | 4.5KW | 6KW | 9KW | 12KW | 15KW | 18KW | |||||||
INPUT | ||||||||||||||
Voltage | 220VAC | |||||||||||||
Selectable voltage range | 145-265VAC | 170-265VAC | ||||||||||||
Freuency range | 50Hz/60Hz±5Hz | |||||||||||||
OUTPUT | ||||||||||||||
AC voltage regulation (batt. mode) | (DC batt. mode) 220VAC±3% | |||||||||||||
Transfer time | ≤5ms | |||||||||||||
Wave form | Pure sine wave | |||||||||||||
BATTERY | ||||||||||||||
Battery voltage | 12/24VDC | 12/24/48VDC | 24/48VDC | |||||||||||
Foating charge voltage | 13.8v(12v)27.6v(24v)55.2v(48v) | |||||||||||||
Overcharge protection | 17v(12v) 34v(24v) 68v(48v) | |||||||||||||
SOLAR CHARGER & AC CHARGER | ||||||||||||||
Maximum PV array open circuit voltage | 150VDC | |||||||||||||
Maximum pv array power | 420w(12v) 840w(24v) | 1400w(12v) 2800w(48v) | ||||||||||||
Standby power consumption | 15w | |||||||||||||
Maximum AC charge current | 0-35A adjustable | |||||||||||||
Mppt solar charge current | 30A/50A (optional) | 30-60A (optional) | ||||||||||||
Maximum charging current | 85A | 95A | ||||||||||||
PHYSICAL | ||||||||||||||
Dimension DxWxH(cm) | 53x33.5x25cm | 63x28x20cm | ||||||||||||
N.W.(KGS) | 15 | 17 | 19 | 21 | 28 | 30 | 34 | |||||||
PACKING | ||||||||||||||
Dimension DxWxH(cm) | 60X38X27 | 78X38X28 | ||||||||||||
G.W.(kgs) | 17 | 19 | 21 | 23 | 30 | 32 | 36 | |||||||
ENVIRONMENT | ||||||||||||||
Humidity | 0-95%(No condensation) | |||||||||||||
Operating tempreture | 0-60℃ | |||||||||||||
Storage tempreture | 0-60℃ | |||||||||||||
*Product specifications are subject to change without further notice. | ||||||||||||||
