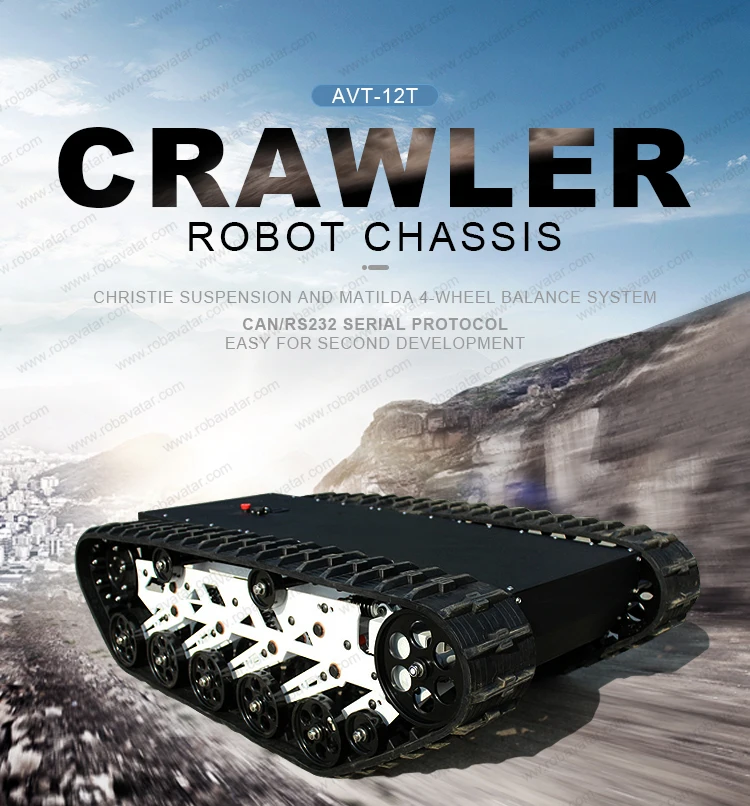

Security System Home Security Robot Outdoor Network Switch Rubber Tracked Chassis Platform



Product Description


With classic suspension design, automatic tension track, optimized vehicle structure, AVT-12T provides a wider stable platform for the customers. The vehicle adopts christy independent suspension design, 50mm shock stroke, 10 groups suspension arms and automatic tensioning suspension system, it’s suitable for the smooth running on the complex haline surface. It has superior obstacle climbing capacity, modular design, easy replacing components, wireless control, can realize zero radius rotation, 4 degrees of freedom.

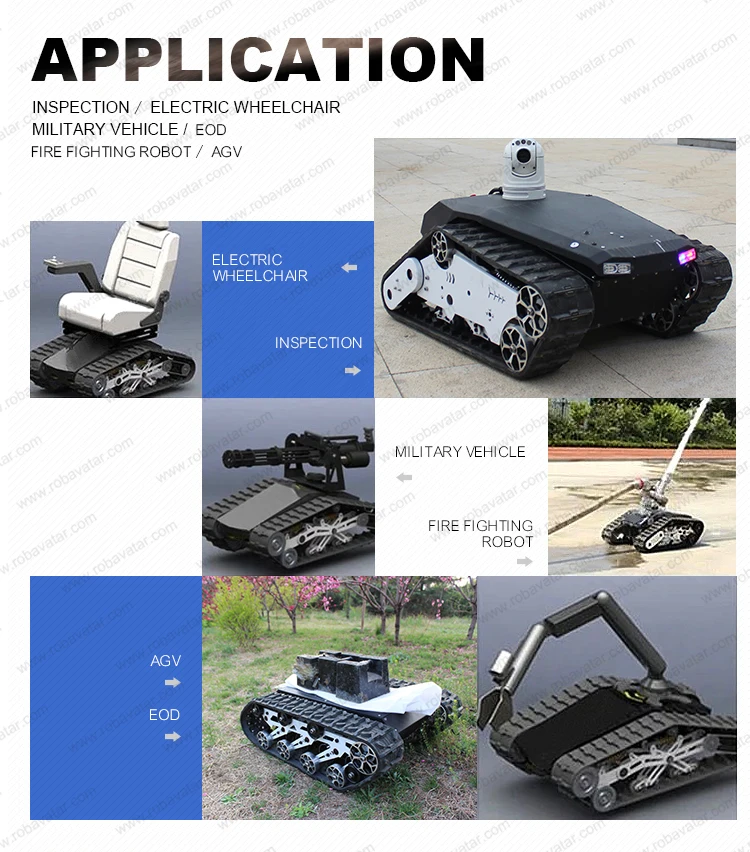

Application:


1. Exploration of inspection


2. The rescue vehicle


3. Scientific research and education


4. Fire control security guard


5. Special photography


6. Special transport


Features:


1. 175mm ground clearance, excellent traffic capacity.


2. Christie independent suspension, 72% ground ratio.

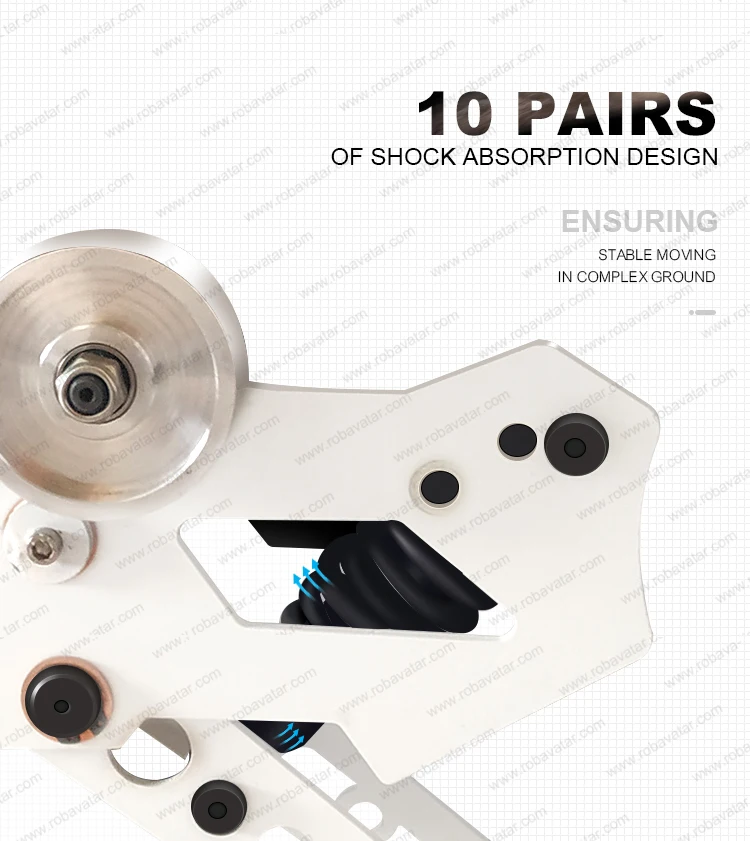

3. 10 groups of shock absorption design, ensure stable moving on complex ground.

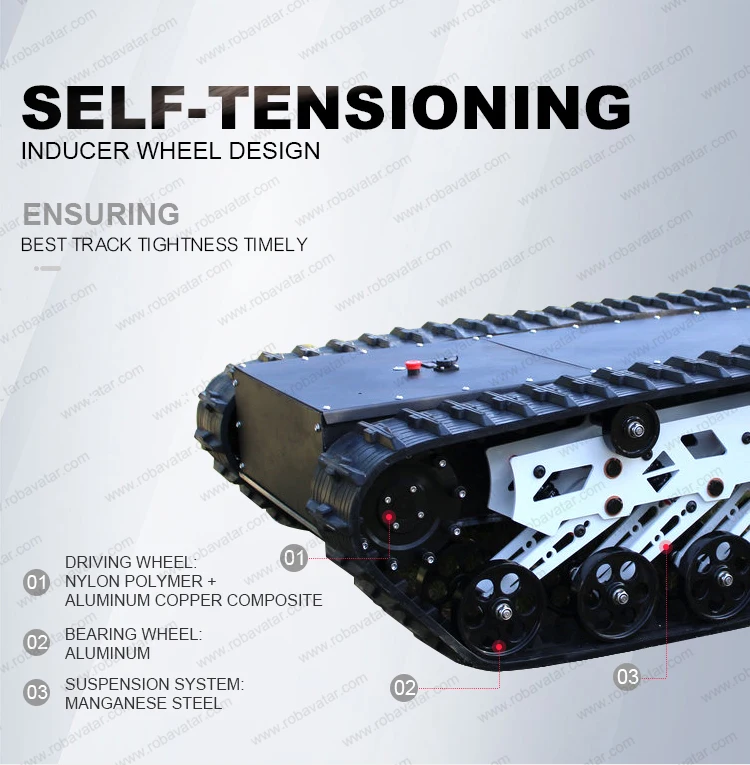

4. Self-tensioning inducer wheel design, ensure best track tightness timely.

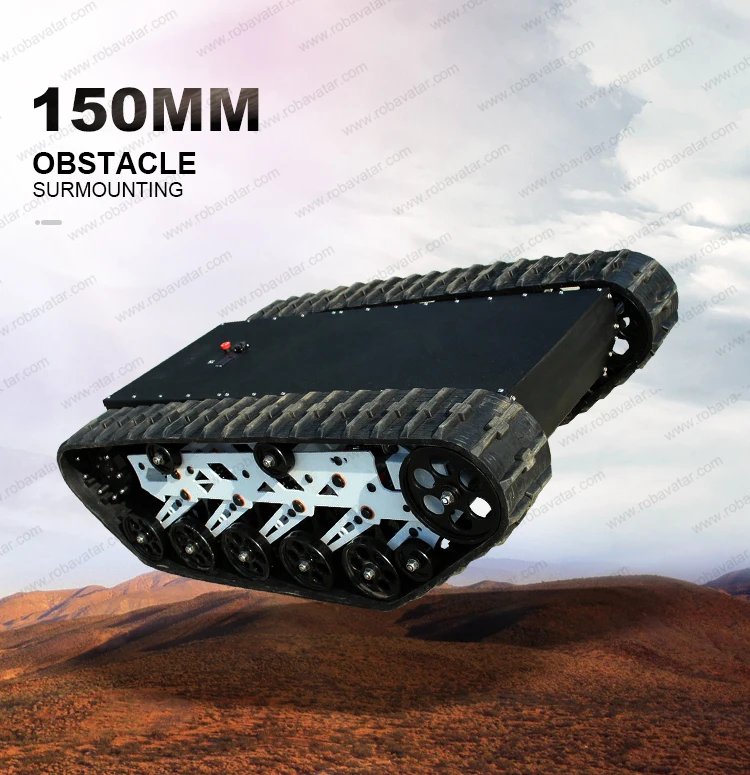

5. Can climb stairs.








Specification











































































Model



AVT-12T



Dimension



1185*770*440mm



Self Weight



150kg



Loading Capacity



80kg



Track Width



150mm



Inner Space



600*370*220mm



Ground Clearance



175mm



Max. Span Distance



320mm



IP Grade



IP54

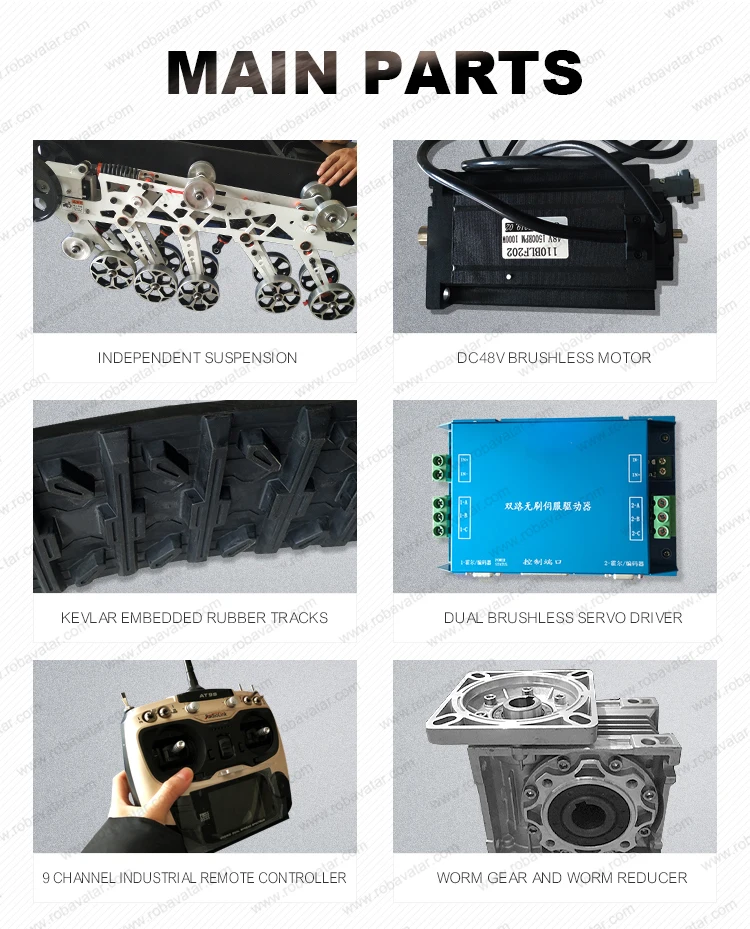

Suspension System



Independent*12



Wheel Material



Aluminum



Drive Ratio



15



Reducation Ratio



1:10



Motor Rated Torque



75NM



Running Speed



0-5km/h



Motor Power



3800W



Drive Wheel Dia.



160mm

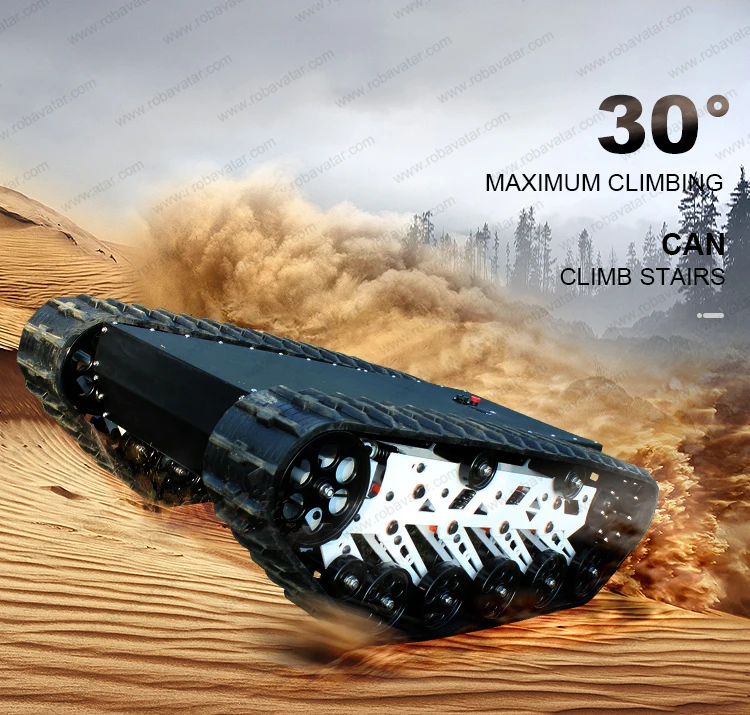

Climbing Ability



Max. 30°, can climb stairs



Motor



48V Brushless DC Motor



Body Material



304 stainless steel/alloy steel plate/aluminum/ high polymer material



Track Material



Quality Rubber Embedded with Kovlar Fiber



Surface Treatment



Black coating (dull polish)












Product Show


 Home Security Robot Outdoor Network Switch Rubber Tracked Chassis Platform Robot Outdoor Network Switch Rubber Tracked Chassis Platform Outdoor Network Switch Rubber Tracked Chassis Platform Rubber Tracked Chassis Platform Home Security Robot Outdoor Network Switch Rubber Tracked ChassisHome Security Robot Outdoor Network Switch Rubber Tracked Chassis Platform Security Rubber Tracked Chassis Platform  Robot Outdoor Network Switch Rubber Tracked Chassis Platform Home Security Robot Outdoor Network Switch Rubber Tracked Chassis Platform Crawler Chassis Crawler Platform  Robot Chassis


Electric Rubber Track Chassis

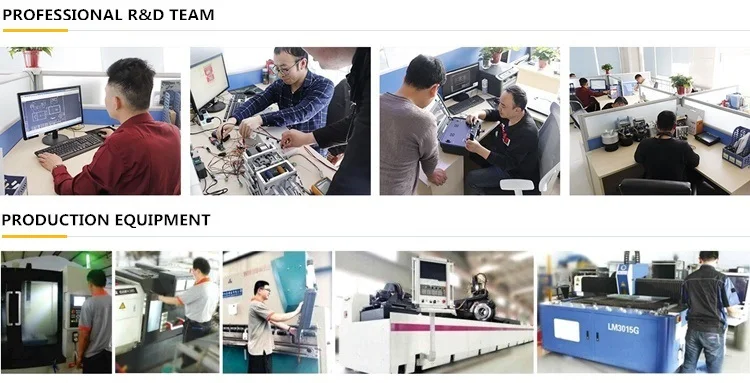

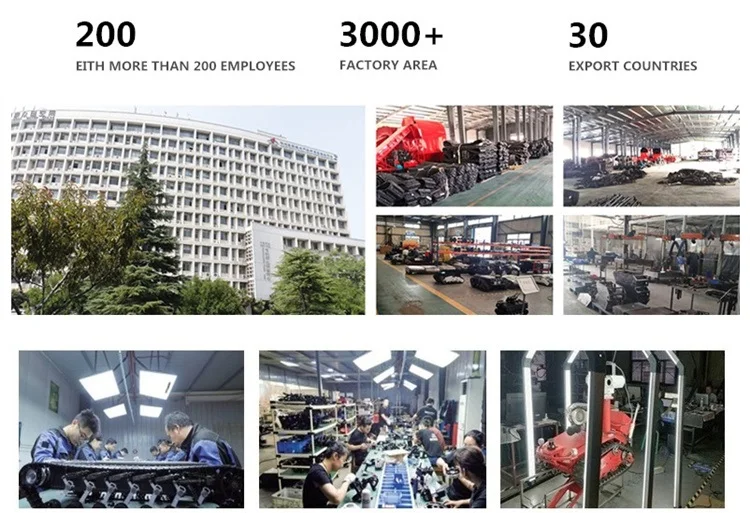

Company Information


 Tracked Chassis Platform Robot Chassis Car Rubber Track Chassis Vehicle Robot Chassis Vehicle Unamaned Robot Chassis








After-Sales Service


1.Warranty:one year for main machine, excluding easily wear parts. During this period, in case of damage or breakdown, we will repair to replace spare part freely, while the buyer should bear overseas freight.
2. Spare Parts: most of our spare parts are compatible with international standard. While, we offer spare parts all year round at cost price for our former clients.
3. Operation and Maintenance: we will offer you detailed operation manual, ensuring you can use it perfectly.
4. Online Service: your question will be answer within 24 hours during working days, 48 hours during holiday.
