Playable Voice Chip Editable/Erasable/Customizable/IC Chip/Led Driver IC
- Category: LED Drivers >>>
- Supplier: Shenzhen Waytronic Electronics Co. Ltd.
Share on (1600311997010):
Product Overview
Description

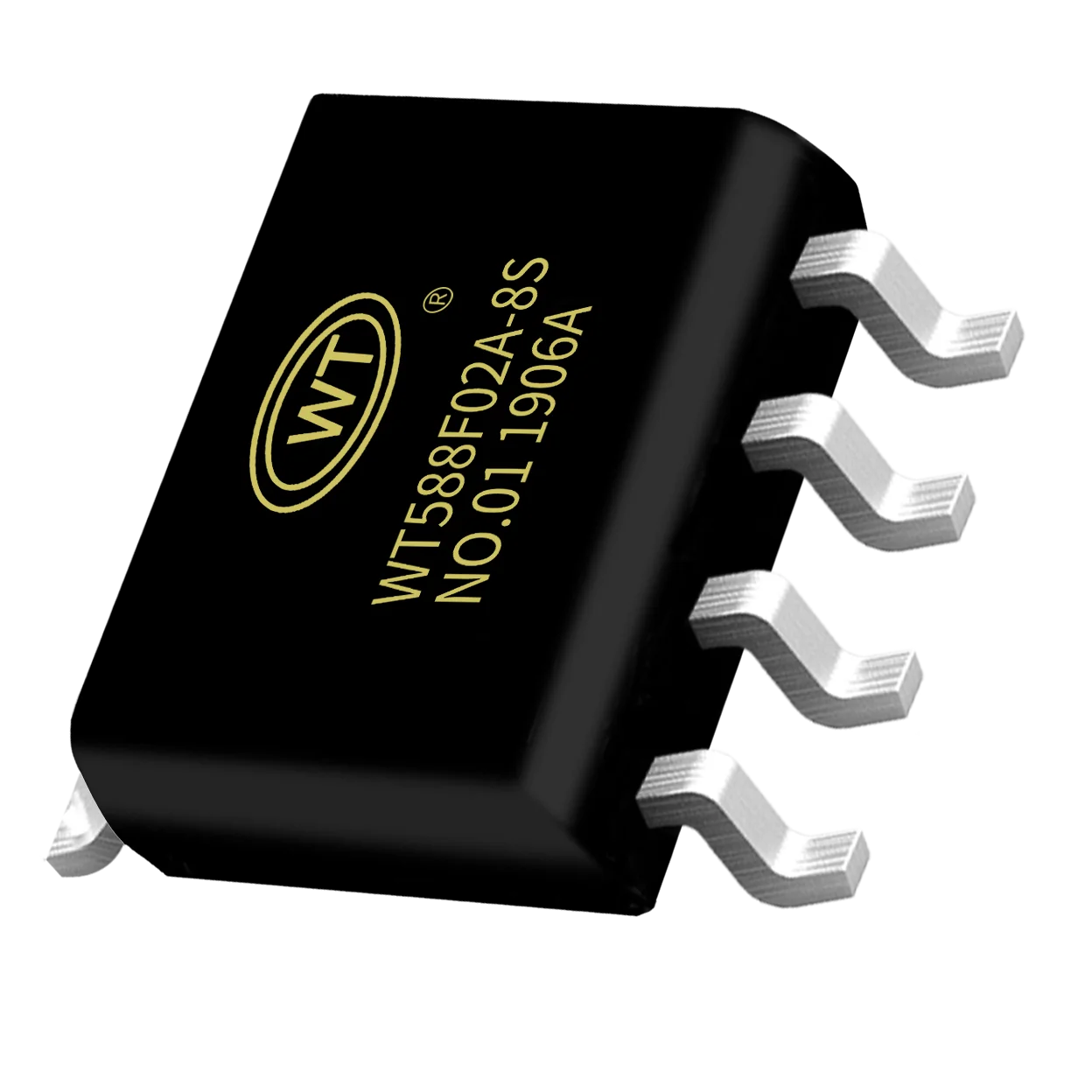

WT588F02A-8S
Voice chip specification
WT588F02A-8S is a 16-bit DSP voice chip newly developed by Shenzhen Waytronic Electronics Co., Ltd., internal oscillation 32Mhz,16-bit PWM decoding. Powerful functions make WT588F02A-8S a leader in the voice chip industry. At present, WT588F02A-8S can store up to 170 seconds of voice content with higher sound quality (if the customer has no requirements for sound quality, it can store up to 320 seconds of voice content). WT588F02A-8S is different from the traditional OTP chip. The biggest breakthrough is that customers can replace the internal voice content of the chip online through the supporting downloader; and the chip has built-in hardware SPI, UART, IIC, comparator and other resources, which can be customized a variety of personalized functional products.
Update voice
1. Online update: save the bin file to the online downloader, and connect the device through the online downloader to
change the voice. The operation is convenient and fast, and it can be used for the voice replacement of the PCB board.
change the voice. The operation is convenient and fast, and it can be used for the voice replacement of the PCB board.
Storage method
1. There is 220K byte storage space inside the chip (not including the main control program) .
1. There is 220K byte storage space inside the chip (not including the main control program) .
2. The chip main control program and internal storage space can be repeatedly erased and written.
Play mode
1. PWM output: 16-bit PWM pure audio output, which can directly drive 8Ω/0.5W speakers and buzzers,
2. DAC output: 14-bit DAC audio output, can be connected to an external power amplifier.
3. Support up to 4 channels 16K sampling rate mixing.
4. Supports up to 16-channel midi playback (8K sampling rate).
5. Support seamless connection function (audio source needs to be processed, please contact the salesman)(PWM and DAC output can be set by bin file).
1. PWM output: 16-bit PWM pure audio output, which can directly drive 8Ω/0.5W speakers and buzzers,
2. DAC output: 14-bit DAC audio output, can be connected to an external power amplifier.
3. Support up to 4 channels 16K sampling rate mixing.
4. Supports up to 16-channel midi playback (8K sampling rate).
5. Support seamless connection function (audio source needs to be processed, please contact the salesman)(PWM and DAC output can be set by bin file).
Control method
1. One-line serial port control/two-line serial port control.
2. Button function control (functions can be customized according to the actual situation).
(The main control program of serial port control and button control is different, please contact the salesman when placing an order).
1. One-line serial port control/two-line serial port control.
2. Button function control (functions can be customized according to the actual situation).
(The main control program of serial port control and button control is different, please contact the salesman when placing an order).
Operation instruction
1. Volume adjustment instructions .
2. Loop play instruction .
3. Play fixed voice commands .
4. Play pause command.
1. Volume adjustment instructions .
2. Loop play instruction .
3. Play fixed voice commands .
4. Play pause command.
Technical specifications
1. Power supply voltage DC2.0~5.5V .
2. Working temperature -20~75 degrees .
3. Humidity 5%~95%.
1. Power supply voltage DC2.0~5.5V .
2. Working temperature -20~75 degrees .
3. Humidity 5%~95%.
Application scenarios
1. Devices that require change voice frequently .
2. Outdoor equipment that needs to change the voice content.
1. Devices that require change voice frequently .
2. Outdoor equipment that needs to change the voice content.
Product Packaging

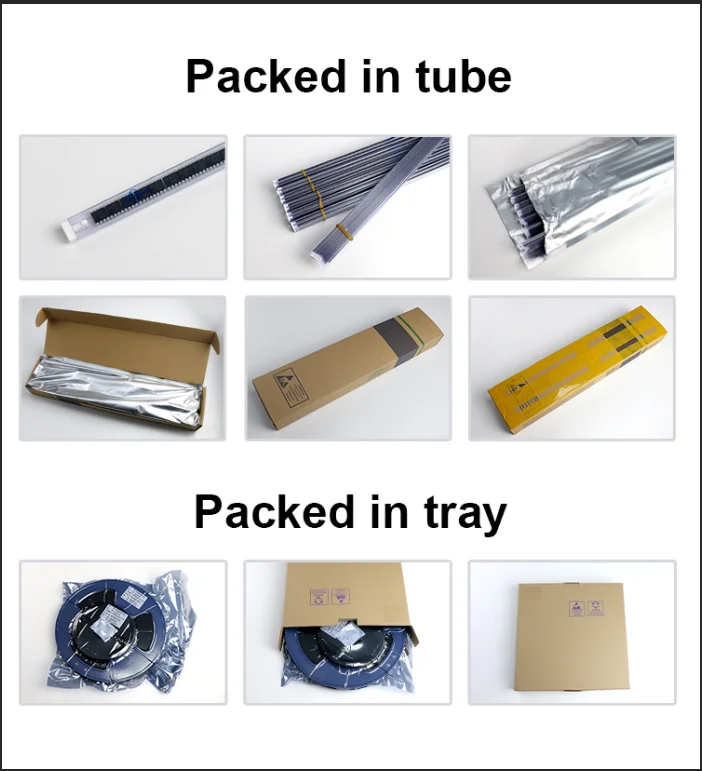

We have two packaging methods: tube packaging and tray packaging

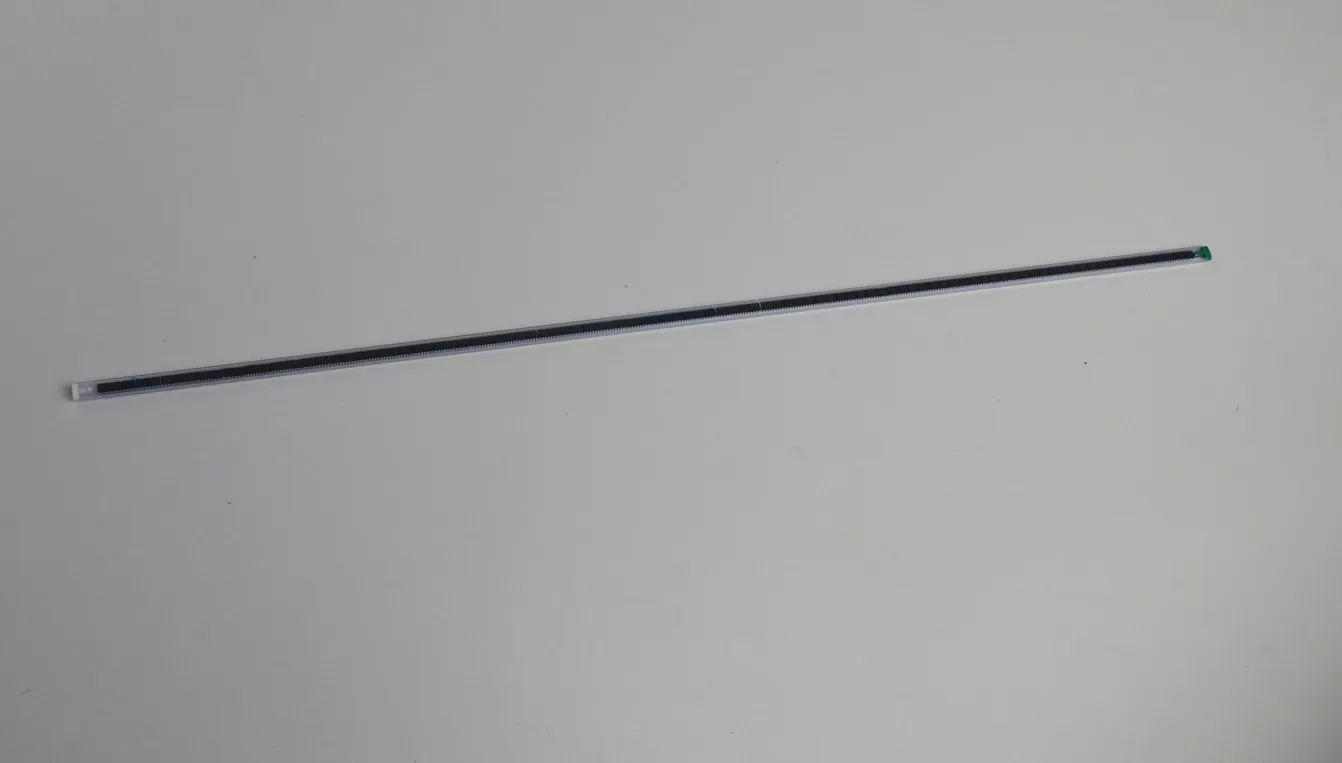

Tube： 100PCS/Tube 10000/ BOX （100 Tube）

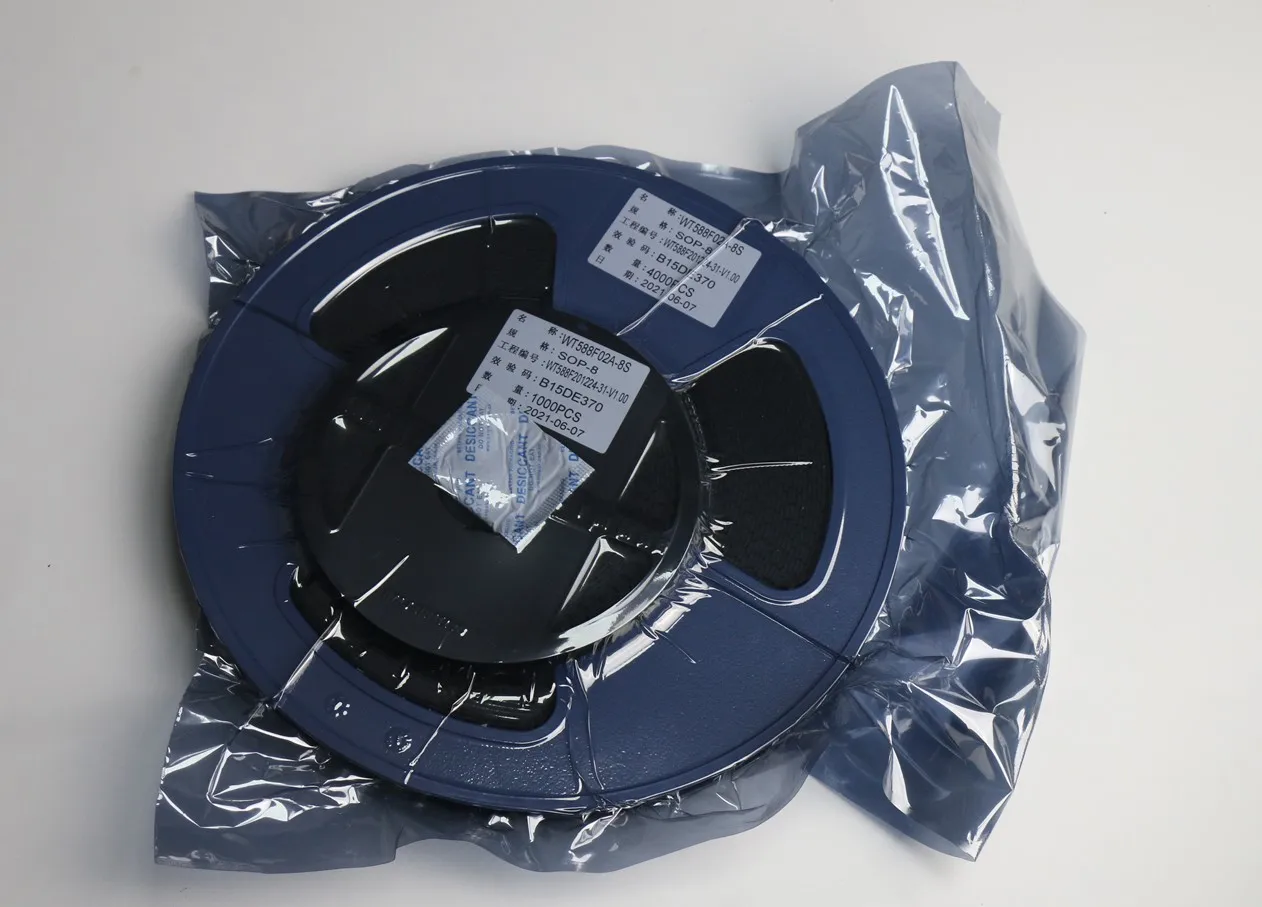

Tray packaging: 4000PCS/Tray
We will take every package seriously to ensure that you receive a perfect product
Shipping And Payment
Shipping
We provide customers with the following three modes of transportation
1 If you have a FedEx or DHL account, we will use your account to help you arrange packaging and transportation.
2 Using your designated source agent, your courier can come to our company to pick up the goods directly.
3 If you do not have the above two options, we will provide our transportation agency service and quotation.
2 Using your designated source agent, your courier can come to our company to pick up the goods directly.
3 If you do not have the above two options, we will provide our transportation agency service and quotation.
Payment
Payment methods For overseas buyers, we have the following payment methods .
1 Bank transfer (USD)-for large-value secure transactions .
2 PayPal for sample orders and small batch orders
3 Alibaba transaction
4 Various RMB transactions if you can.
2 PayPal for sample orders and small batch orders
3 Alibaba transaction
4 Various RMB transactions if you can.
Our communication channels
1 WeChat For fast technical support, we have several professional sales engineers waiting for your inquiry online .
2 Skype provides fast support for overseas customers who cannot use WeChat .
3 Email All formal business and technical communication.
4 Of course Alibaba and and WhatsApp.
1 WeChat For fast technical support, we have several professional sales engineers waiting for your inquiry online .
2 Skype provides fast support for overseas customers who cannot use WeChat .
3 Email All formal business and technical communication.
4 Of course Alibaba and and WhatsApp.
Company Profile
Who are we？
Shenzhen Waytronic Electronics Co., Ltd located in Baoan district , Shenzhen city , Guangdong province , was founded in Guangzhou.
In 1999 . After more than 20 years ' development , accumulated more than 30,00 cases of high-quality cooperative development and
application, and has excellent IC software and hardware.
The company currently ranks among the top three private enterprises in China's voice chips.
Our Mission & Our Vision
Our Mission: Provide more intelligent interactive experience, make the complex simple, make life better.
Our Vision: Be the most influential company in the voice industry and intelligent internet of things.
Our Values: Create and share together,Create the best value for customers, achieve staff dreams.
Staff Code of Conduct: I am the root of all problems. Problems will end here.
In 1999 . After more than 20 years ' development , accumulated more than 30,00 cases of high-quality cooperative development and
application, and has excellent IC software and hardware.
The company currently ranks among the top three private enterprises in China's voice chips.
Our Mission & Our Vision
Our Mission: Provide more intelligent interactive experience, make the complex simple, make life better.
Our Vision: Be the most influential company in the voice industry and intelligent internet of things.
Our Values: Create and share together,Create the best value for customers, achieve staff dreams.
Staff Code of Conduct: I am the root of all problems. Problems will end here.

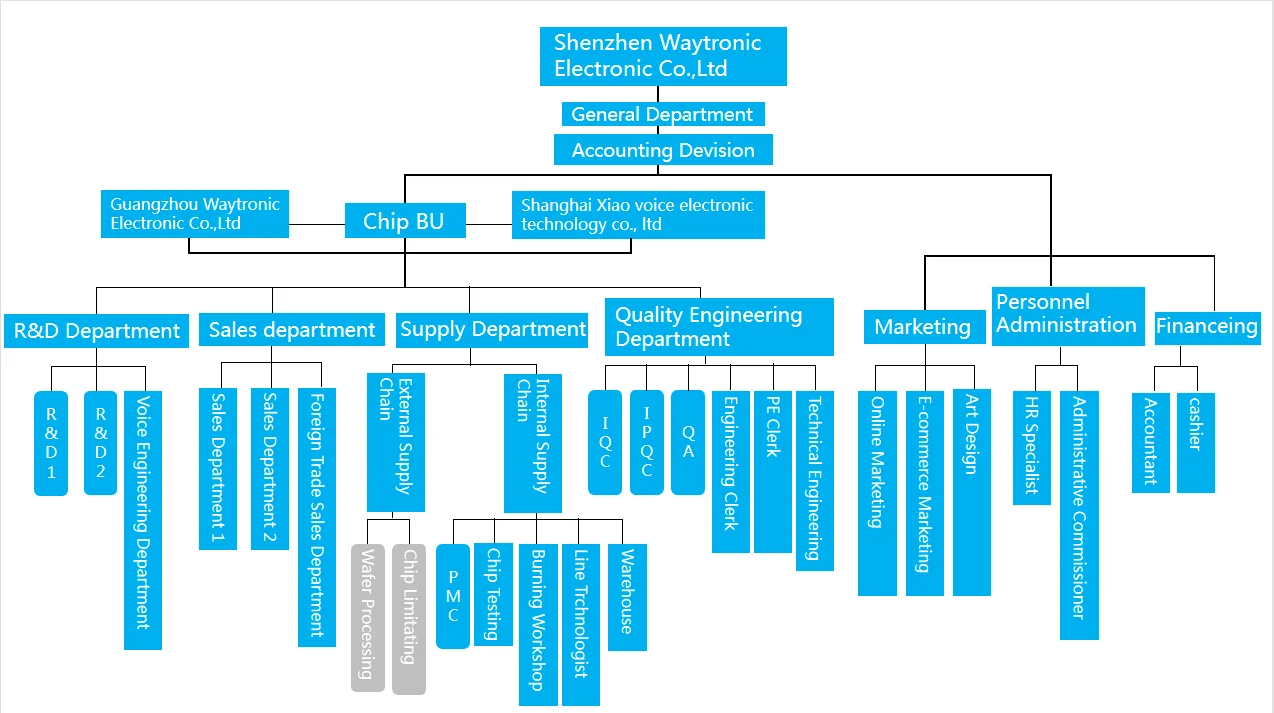

Structure of company
Our business team
Our company has a senior sales team of 30 people

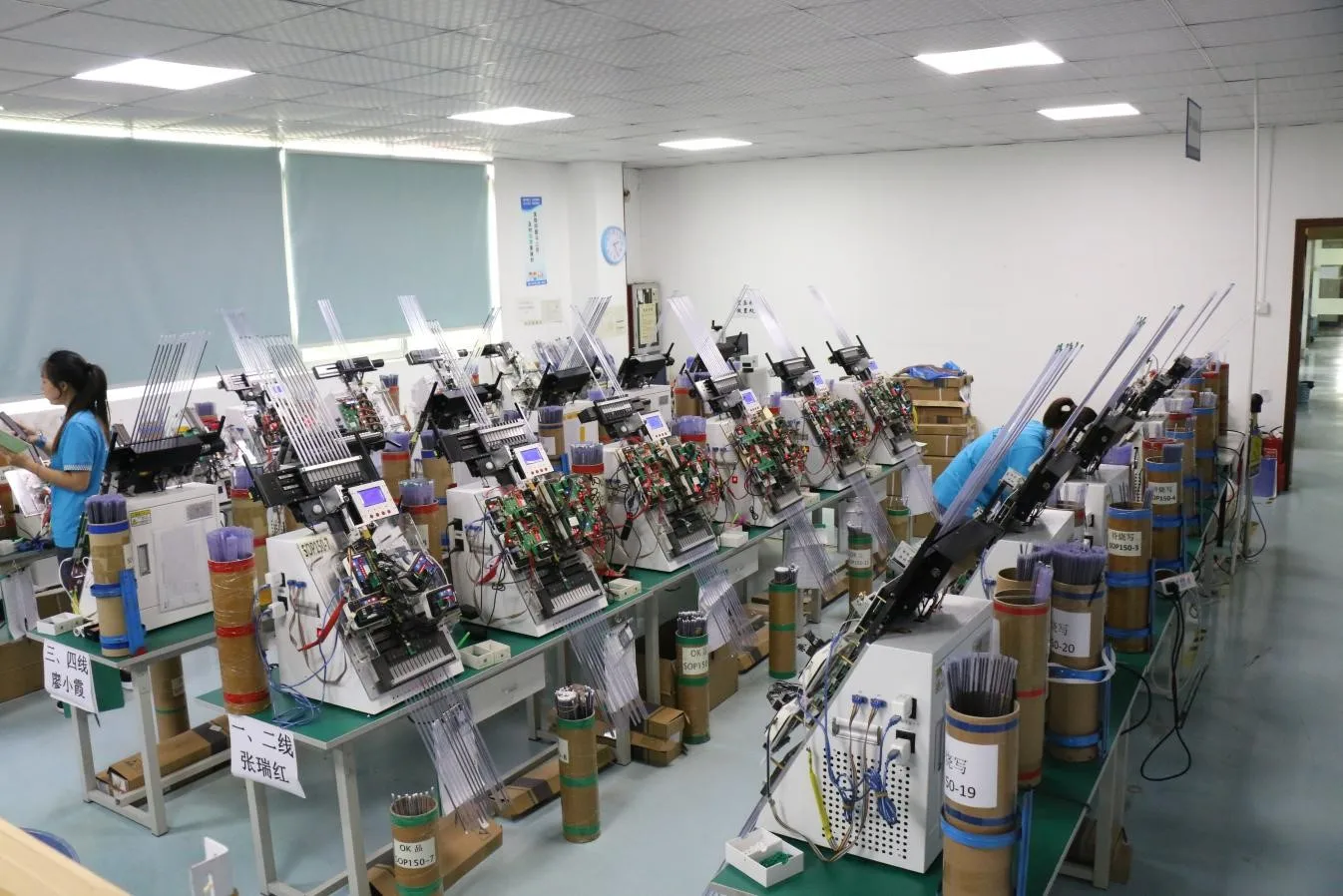

Factory scale:
With a factory area of 2,000 square meters, it has more than 200 employees, can reach the monthly production capacity of more than 15 million pieces. According to customer needs, rapid research and development, rapid sample preparation and rapid delivery.
Our service model
Waytronic always insists on providing fast voice and intelligent Internet of Things application solutions for customer engineer sand shortening the product development cycle. With the goal of meeting and exceeding the expectations of customer engineers , we are committed to providing customer engineers with high-quality voice solutions and comprehensive optimal BOM that exceedexpectations.

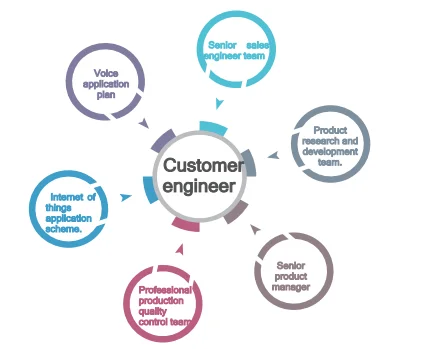

Triangle service model
1) Sales Engineer: Understand the specific needs of customers and be familiar with customer applications .
.2) Scheme Engineer:Graspthe customer's application requirements in depth to provide fast application, high-quality voice scheme and comprehensive optimal BOM .
3)FAES Engineer: It is composed of experienced senior engineers in the industry, and provides one-to-one/many-to-one technical support services.
3)FAES Engineer: It is composed of experienced senior engineers in the industry, and provides one-to-one/many-to-one technical support services.
SGS | CE | RoHs inspection and certification.
Passed ISO9001：2015 quality Management system certification.
