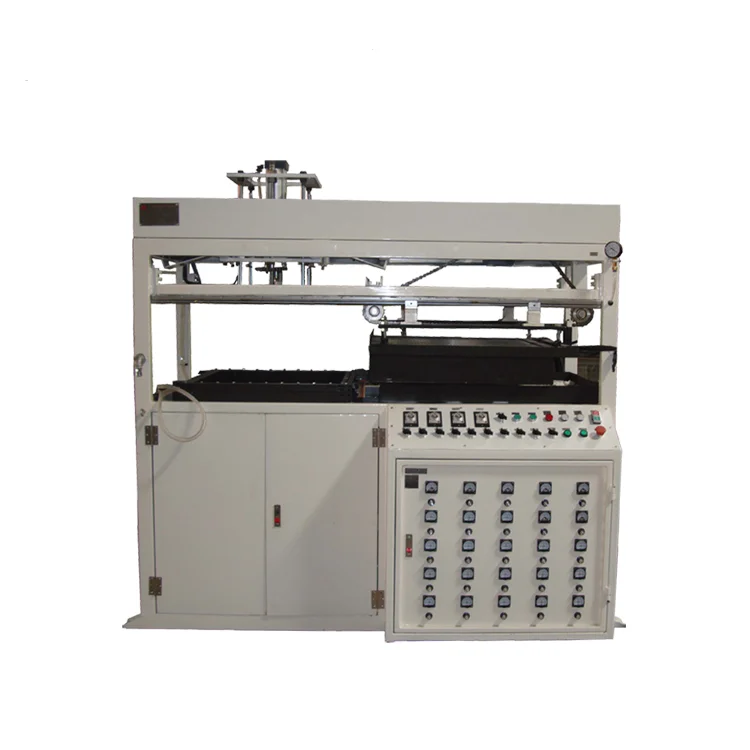

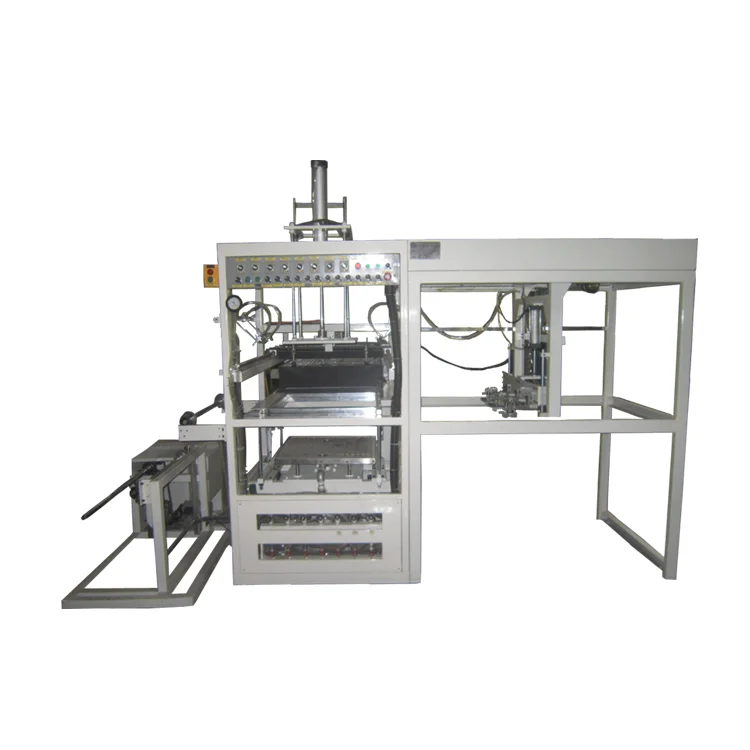

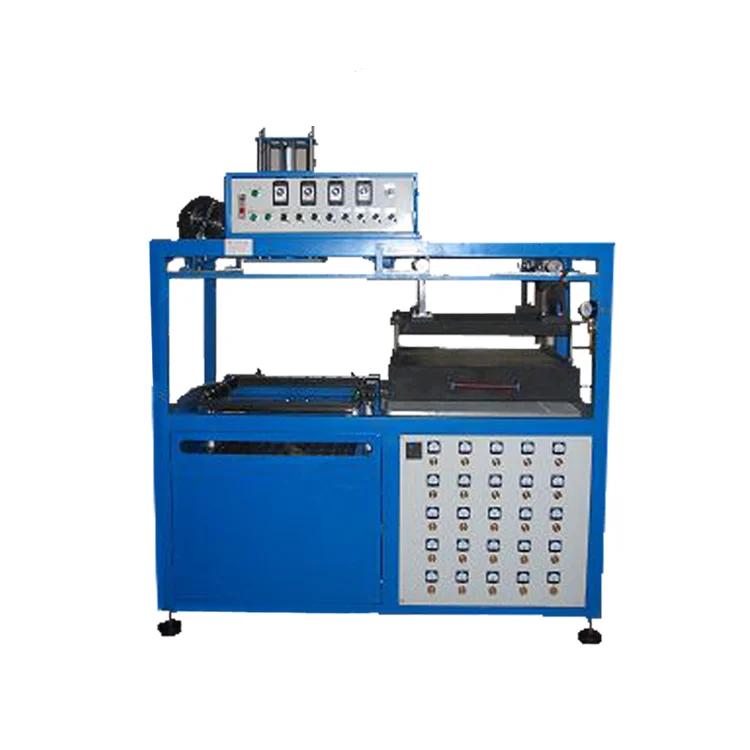

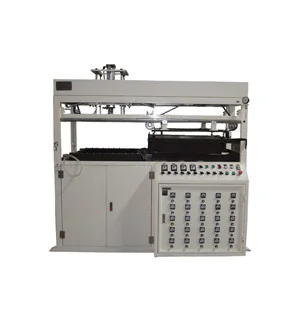

Полуавтоматическая пластиковая вакуумная формовочная машина

Product Overview

Description

♦ Vacuum forming, commonly known as vacuforming, is a simplified version of thermoforming, whereby a sheet of plastic is heated to a forming temperature, stretched onto or into a single-surface mold, and held against the mold by applying vacuum between the mold surface and the sheet. The vacuum forming process can be used to make most product packaging, speaker casings and even car dashboards.

  Feature

1. By relay under automatic mode.
2. The sheet moving by air cylinder: its speed can be adjustable, the torque is large and high precision.
3.It is reliable in thick sheets.
4.Digital display pressure regulating module control oven temperature: voltage stabilization, temperature stabilization and beautiful and graceful.

5.The customer must offer the sample or drawing, then we can design and produce the forming mold and cutting mold.The machine is no-including the cost of those molds.

 The main component:

Timer and relay: "CKC" Taiwan

Pneumatic components: "Airtac" Taiwan

Infrared ceramic heater: "SME" China

Temperature control: "TCL" stepless fine-tuning China

Vacuum pump: made in China

Increase of the function:

° Function automatically take the mill furnace;

°Pneumatic collection material function;

° Pneumatic pull-chip functions;

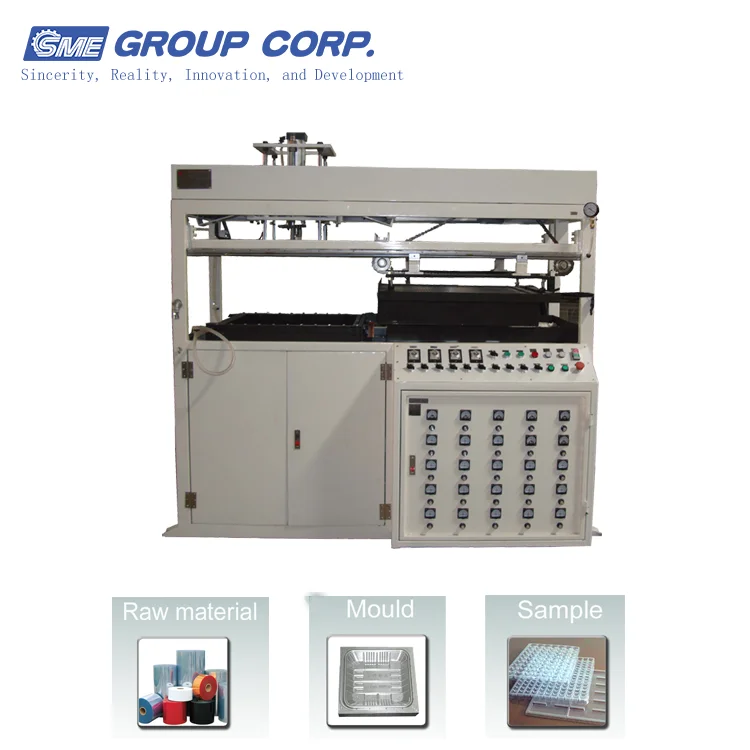

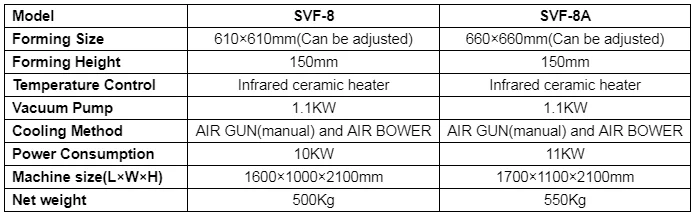

 Technical Data SVF series

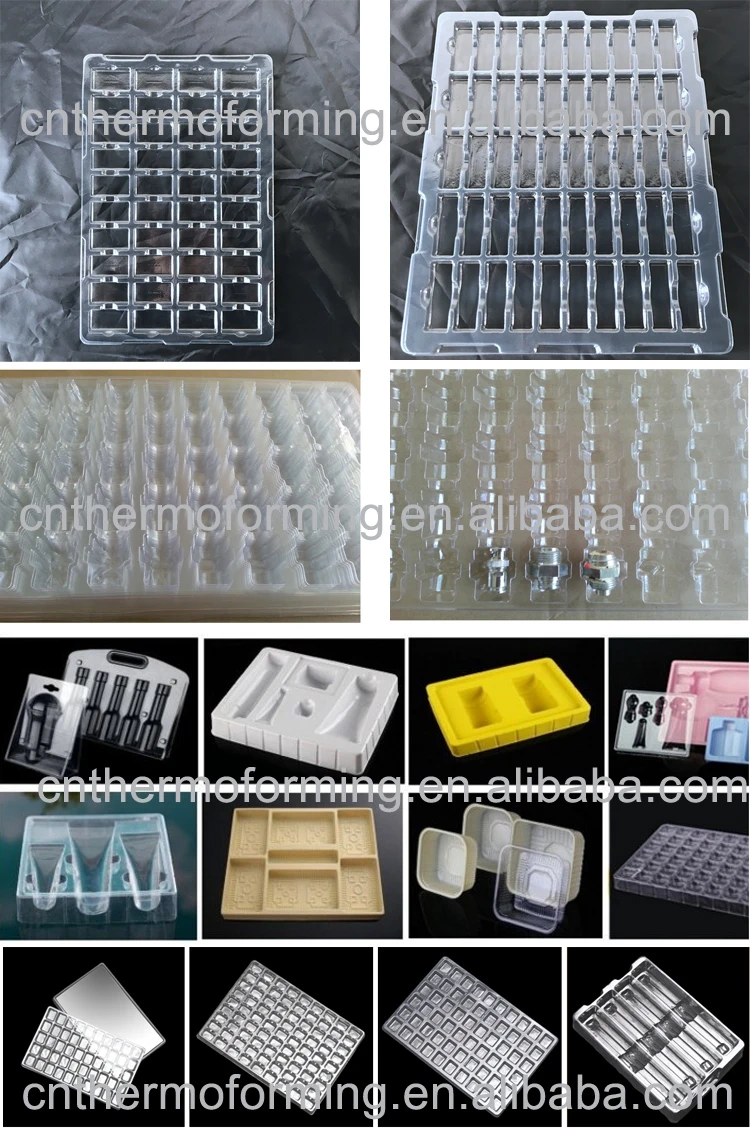

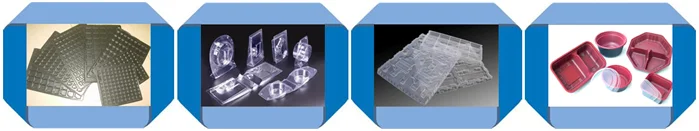

  Samples

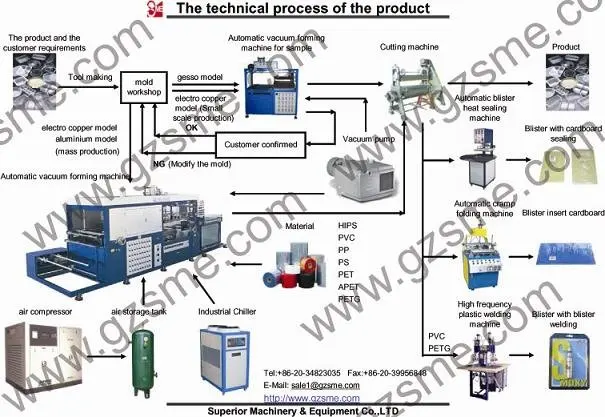

♦Technical process

1.    Payment terms:40% paid for deposit by T/T before production arranged, the balance to be paid before shipment;

2.    Delivery time: 25-35 days after receipt of deposit;

3.    Guarantee: One year;

We supply you spare parts for 1 year, but the freight will be on buyer’s account;

4.    Installation: Our company can send one technician to the buyer’s side for machine installation, test running machine and basic training. If it exceeds one week, the buyer needs to pay US$100 one day for the technician as the salary. The visa and round trip tickets, accommodation will be on the buyer's account;

5.    Note: The above machines are designed for power supply Tri-phase, 380V/50HZ. The price of machine part will be 5% higher if we should make special design to suit for the power supply;

6.    Validity: 60days.
