Product Overview
Description
Product Description
Length of hull | 7.5m 25ft |
Beam | 2.45m |
HP rating | 200-400 |
Max people | 8 |
Warranty | 3 years |
Foam floatation | Yes |
MEASUREMENTS | Easy Craft | ||||
Length of the hull(m) | 7.5 | Weight(boat only kg) | 1790kg | ||
Beam (m) | 2.45 | Min. HP | 200 | ||
STANDARDS | 9m Full Cabin | ||||
Live Bait Tank under walk through with window | √ | Bunks Cabin with Squabs (Vinyl) | √ | ||
Fish Tank | √ | Seat Softrider Pedestal Driver with slider | √ | ||
Bollard Foredeck | √ | Seat Softrider Pedestal Passenger | √ | ||
Cleats X 4 Stern and Midship | √ | Battery and oil tank shelf/compartment | √ | ||
Alloy Fairlead and Roller | √ | hardtop lights (LED) | √ | ||
Lights Navigation and Mast. LED | √ | Bilge pump | √ | ||
Rod Holders in pontoons | √ | sliding window | √ | ||
Side Pontoon Storage Trays | √ | Sliding Door | √ | ||
Pro-deck floor with toe space | X | Ladder (T-bar single step) with grab rails | √ | ||
Switch control Panel | √ | Drink Holders | √ | ||
Hatch Offshore Foredeck | √ | Single Engine Pod 25 Inch | √ | ||
Rocket Launcher (7) rod rack | √ | Transducer Mount Bracket | √ | ||
Checker plate floor or carpeted | √ | Battery swich | √ | ||
Grab Rail Roof rooftop and rear cabin X3 | √ | Seats rear fold down | √ | ||
Grab rails dash and inside roof | √ | cushions cabin | √ | ||
Fuel tank | 350L | Transom Wave Deflector | √ | ||
Painting | √ | transducer Mount Bracket | √ | ||
Options | 7.5m Full Cabin | ||||
Steering – Hydraulic | √ | Marine Toilet | √ | ||
washing pump system | √ | upgrade damping seat | √ | ||
Teak floor | √ | Marine Compass | √ | ||
Anchor Chain & Warp | √ | Boat Trailer | √ | ||
Electric Anchor winch | √ | Cabin Door | √ | ||
Carpeted dash and hardtop | √ | Simrad radar | √ | ||
Lowrence VHF | √ | Music player | √ | ||
Easy craft series | ||||||||
SPECIFICATIONS | GB-600 | GB-685 | GB-750 | GB-900 | ||||
Length Maximum(m) | 6.25 | 7 | 7.7 | 9.3 | ||||
Length of the hull(m) | 6 | 6.85 | 7.5 | 9 | ||||
Beam (m) | 2.25 | 2.45 | 2.45 | 2.45 | ||||
Depth(m) | 1.1 | 1.2 | 1.29 | 1.55 | ||||
Hull Thickness(mm) | 5 | 6 | 6 | 6 | ||||
Tube Thickness(mm) | 3 | 4 | 4 | 4 | ||||
Transom Shaft（Single engine） | 25'' | 30'' | 30'' | 30'' | ||||
Transom Shaft（Twin engine） | х | 25'' | 25'' | 25'' | ||||
Dry weight(kgs) | 980 | 1450 | 1700 | 2700 | ||||
Min. HP | 115 | 175 | 200 | 2*175 | ||||
MAX. HP | 175 | 250 | 350 | 2*250 | ||||
Person capacity(Max) | 6 | 7 | 8 | 10 | ||||
Warranty : | 3 years | 3 years | 3 years | 3 years | ||||

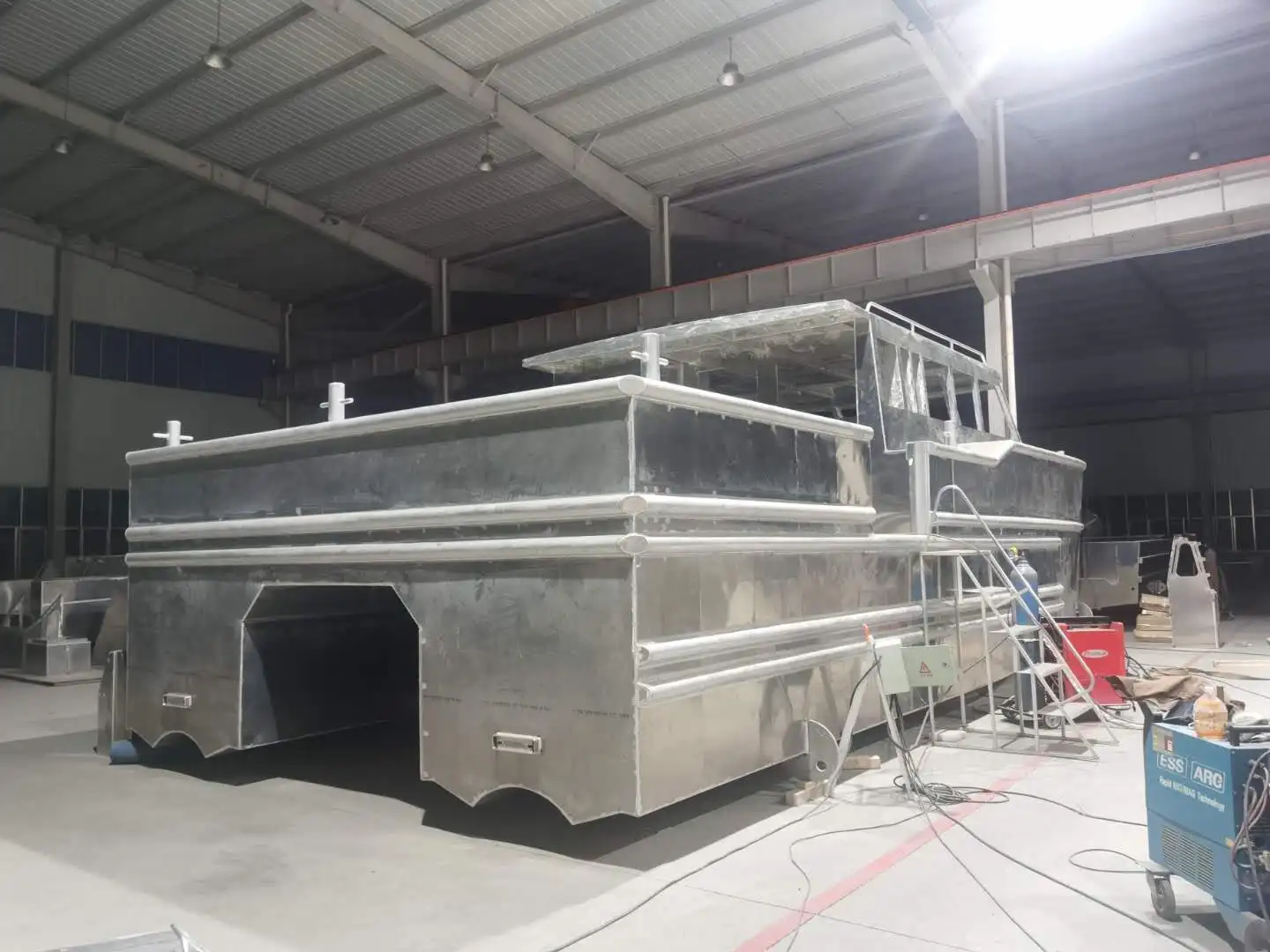

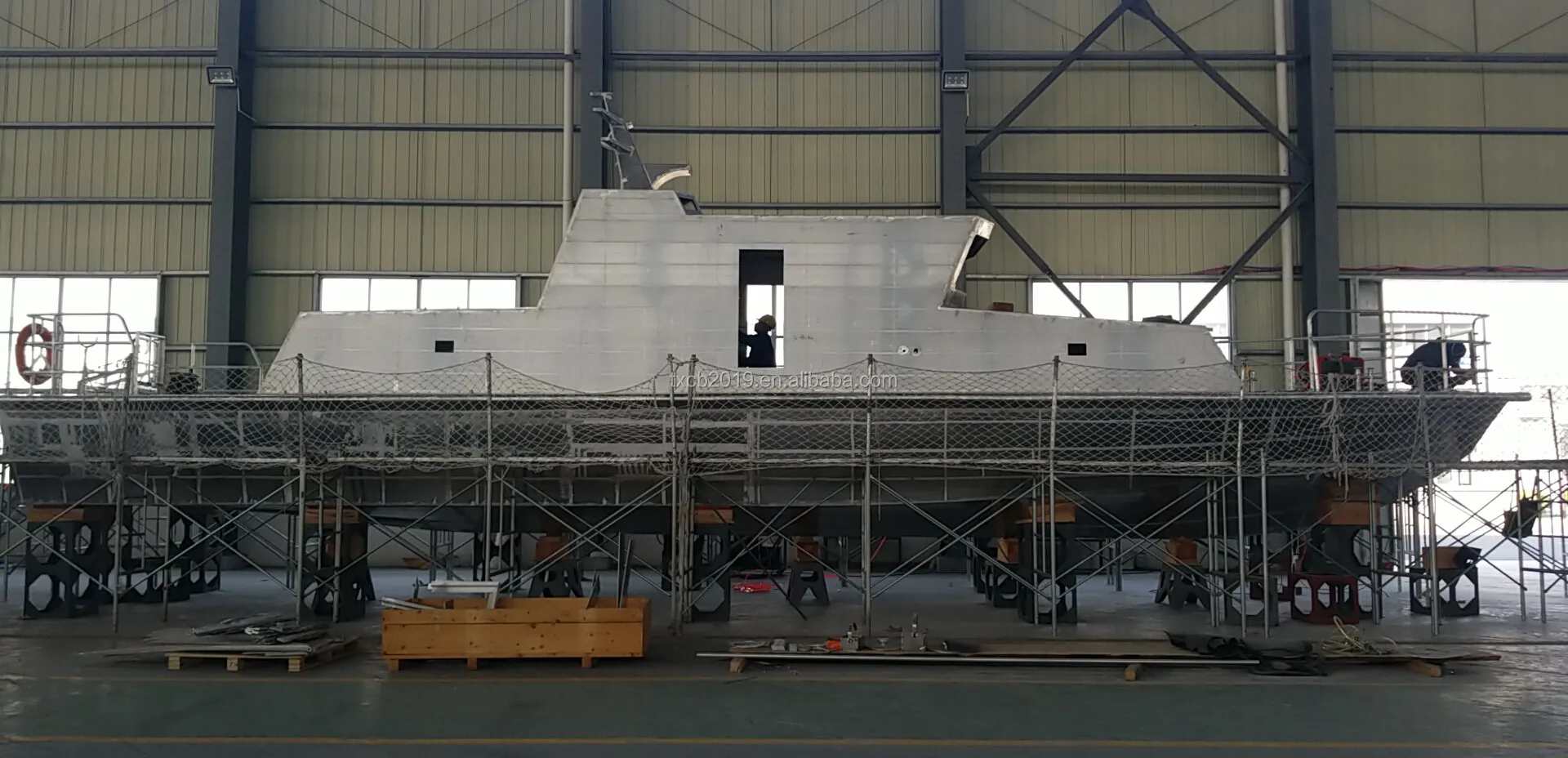

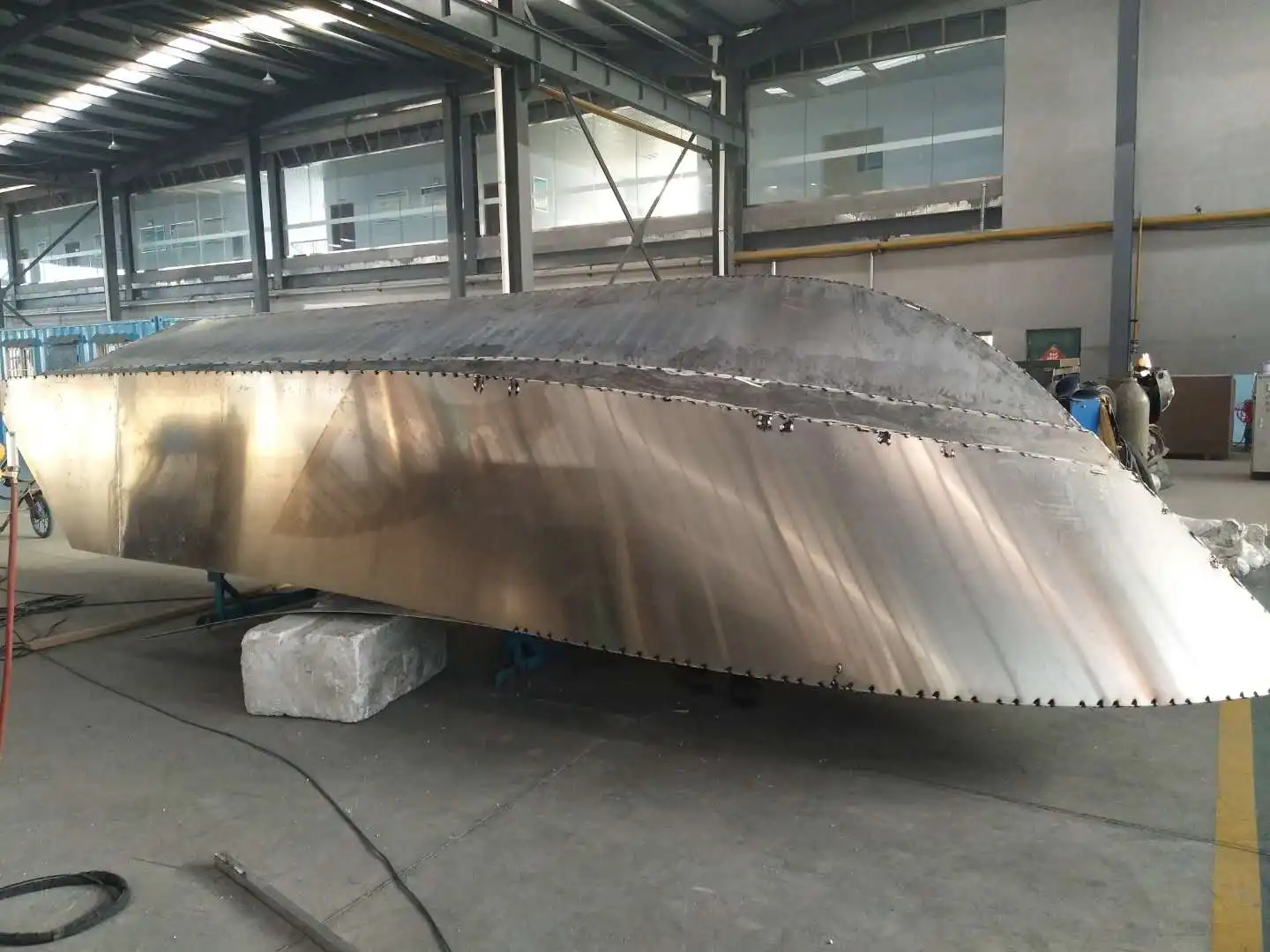

Manufacturing Technology
1.All of our fishing & working boat are made of Marine-grade aluminum 5083-h116 with China Ship Classification society ( CCS )
2.Welding Specification :
1) TIG and MIG are to be adopted for this ship .
2) The ultrasonic inspection to be carried out for the cross joint of seam and other important place .
3) From 5083-H116 material to welding wires to welding use gas & experienced qualified welders .
4) The bottom is double bottom system and constructed on the longitudinal system of framing .
5) Solid floors will be provided at every frame station , the side transverse frames will be fitted at a space of 500mm ."
1) TIG and MIG are to be adopted for this ship .
2) The ultrasonic inspection to be carried out for the cross joint of seam and other important place .
3) From 5083-H116 material to welding wires to welding use gas & experienced qualified welders .
4) The bottom is double bottom system and constructed on the longitudinal system of framing .
5) Solid floors will be provided at every frame station , the side transverse frames will be fitted at a space of 500mm ."
3.The Core Features Of Our safe Design
1) The Whole hull structure Manual bilge pump system
2) The underfloor fuel tank with cutoff valves and fuel inspection hose with heavy duty fuel hoses .
3) Balance testing , Flotation and deck water-Tight and flotation testing make sure 100% safe "
2) The underfloor fuel tank with cutoff valves and fuel inspection hose with heavy duty fuel hoses .
3) Balance testing , Flotation and deck water-Tight and flotation testing make sure 100% safe "

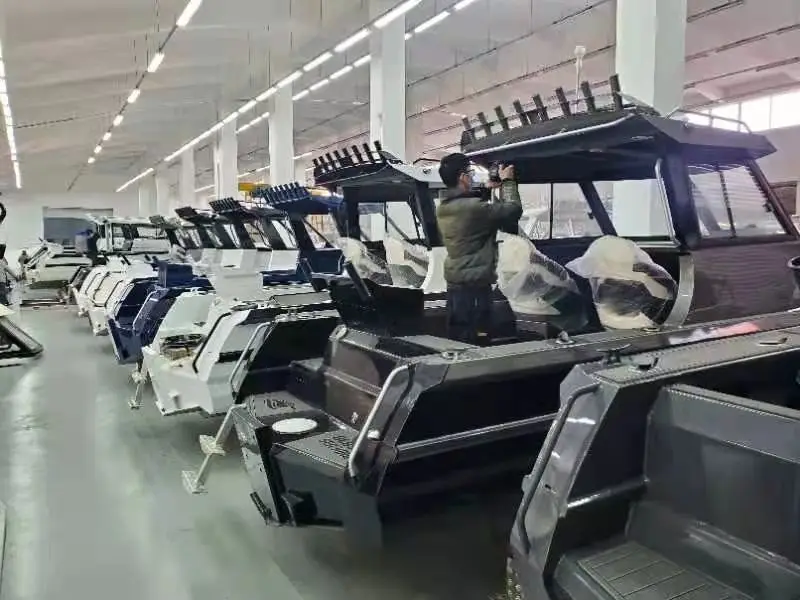

Factory Information
Taixin Ship is a very professional boat manufacturer with advcanced technology and rich experience.Our products including fishing boat,landing craft,patrol boat,diving boat,passenger boat,rescue boat,fire fighting boating and so on.It is not about lucky in sailing but we believe that the performance when it matters.
