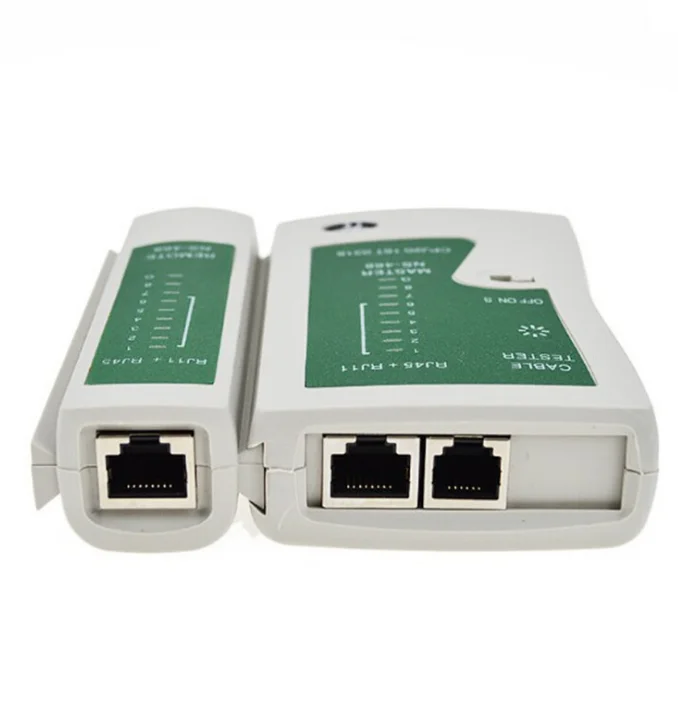

The dual-purpose multifunctional cable tester can test the telephone interface RJ11 and network RJ45 interface. Connect the cables to be tested to the main tester and the remote tester respectively, toggle the switch ON for the normal test speed, and the S key for the slow test. The tested cable is normal, and the numbers of the two test terminals will flash from 1 to 8 one by one at the same time.

Dual-purpose multifunctional cable tester
It adopts automatic scanning method, rapid test, streamlined appearance, and ergonomic design. Smooth and concise lines, drop-proof, light-proof design, more in line with on-site construction.

1. Function:

1. Test the twisted pair 1, 2, 3, 4, 5, 6, 7, 8, and G wire pairs one by one (pair), and can distinguish which one (right) is wrong, short circuit and open circuit.
2. Switch ON is the normal test speed, "S" is the slow test speed, and M is the manual gear.

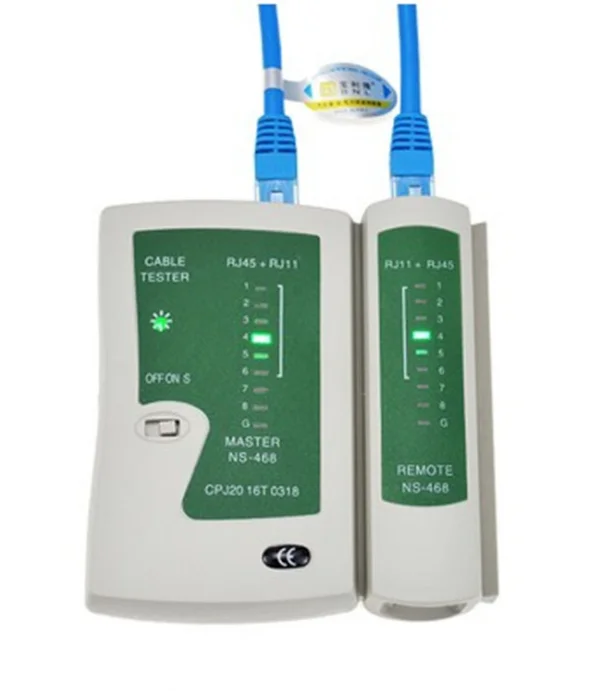

2. Twisted-pair test: Turn on the power and insert the network cable plugs into the main tester and remote tester respectively. The indicator lights of the host flash from 1 to G one by one, as shown in the figure below:

Main tester: 1-2-3-4-5-6-7-8-G
Remote tester: 1-2-3-4-5-6-7-8-G (RJ45)
1-2-3-4-5-6------(RJ11)
1-2-3-4----------(RJ11)
If the wiring is not normal, it will be displayed as follows:
1. When a network cable such as line 3 is disconnected, the main tester and remote test terminal No. 3 lights will not light up.
2. When several lines are unavailable, several lines will not light up. When the network cable is less than 2 lines connected, the light will not light up.
3. When the two ends of the network cables are out of order, for example 2, 4 wires are out of order, the display is as follows:

The main tester remains unchanged: 1-2-3-4-5-6-7-8-G
The remote test terminal is: 1-4-3-2-5-6-7-8-G

4. When two network cables are short-circuited, the main tester does not light up, and the two short-circuited cables on the remote test terminal are both lightly lit. If there are more than 3 (including 3)
When short-circuited, the lights of all the short-circuited wire numbers are off.

3. Two matching jumpers (such as 110P4-RJ45) need to be connected to the tester if testing the distribution frame and wall mount module.

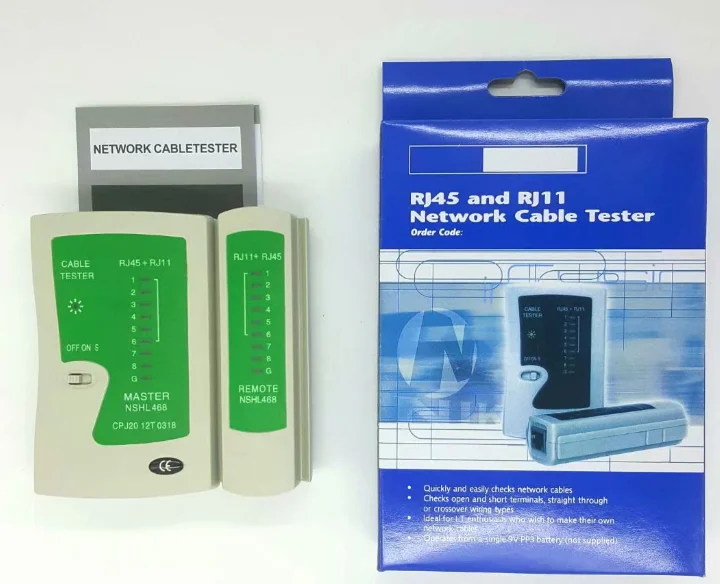

Packing: one line tester, one manual
