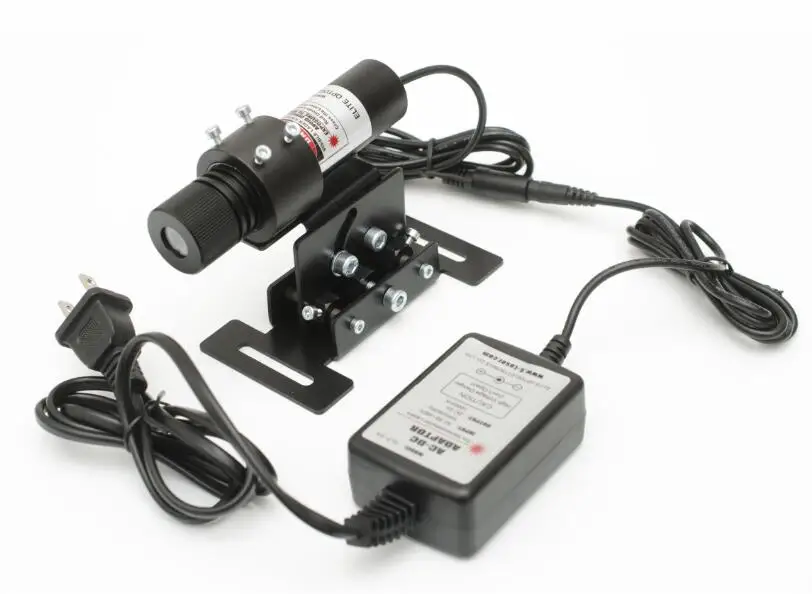

Red Line Laser module 650nm 200mW 5V laser alignment
- Category: >>>
- Supplier: Elite Optoelectronics Co. Ltd.
Share on (1600312416916):
Product Overview
Description
Specification | Industrial Diode Laser Module | ||||||
Wavelength | 635nm, 650nm, 660nm, 670nm, 685nm, 705nm, 730nm | ||||||
Output Power | 1, 5, 10, 20, 35, 50, 80, 100, 150 and 200mW（Custom） | ||||||
CDRH Class | I, II, IIIa, IIIb | ||||||
Aperture | Ø1.0mm, Ø1.5mm, Ø2.0mm, Ø2.4mm, Ø3.0mm, Ø5.0mm, Ø6.0mm | ||||||
Divergence | 0.1mrad, 0.2mrad, 0.3mrad, 0.5mrad, 0.8mrad, 1.0mrad | ||||||
Circular Beam Size | Ø0.5mm(@0.5m), Ø1.0mm(@1m), Ø4.0mm(@5m), Ø5.0mm(@10m) | ||||||
Elliptical Beam Size | 1x2mm(a1m), 2x4mm(@2m), 3x6mm(@5mm), 5x10mm(@10m), 8x16mm(@20m） | ||||||
Operating Current | < 300mA | ||||||
Input Voltage | 3.0V, 5.0V, 9.0V, 12.0V, 24.0V | ||||||
Operating Temperature | -20℃~60℃ | ||||||
Storage Temperature | -40℃~85℃ | ||||||
MTBF | >10,000hours | ||||||
3 High Features
1.High Quality
Elite industrial laser diode modules use high-quality laser diode.
2.High Stability

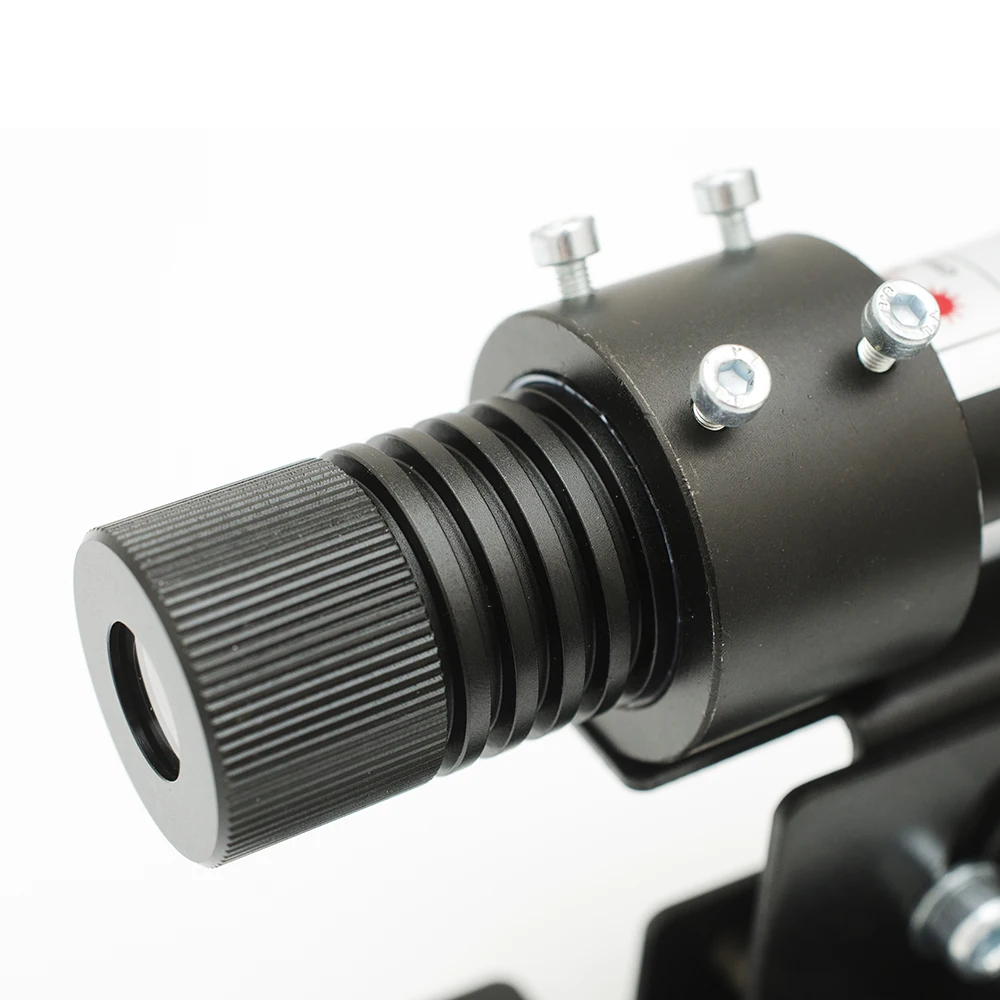

Specially designed collimating lens and high stable driven circuit.
3.High Reliability

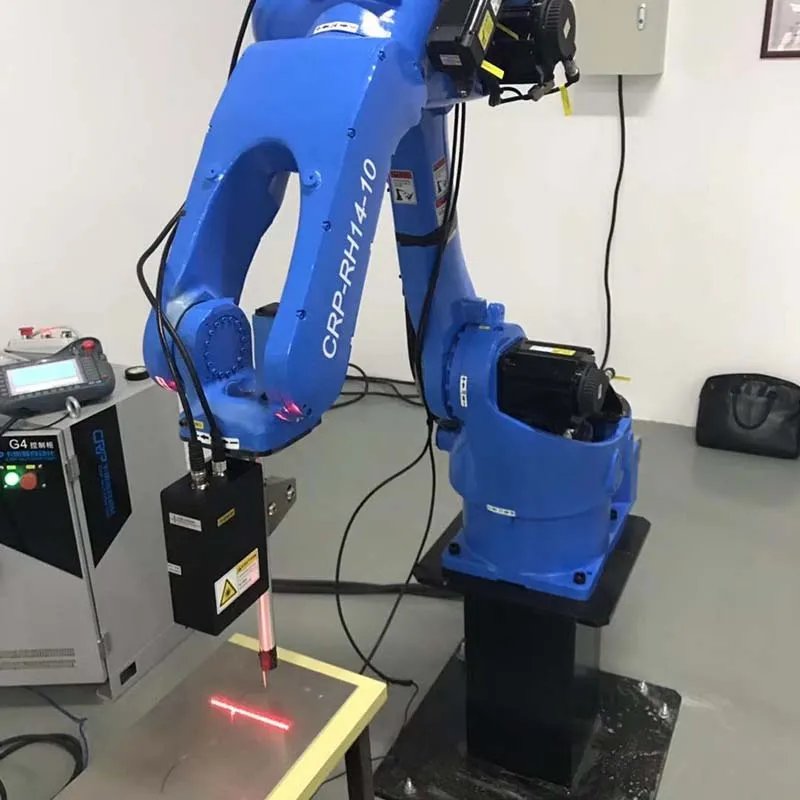

More than 10000 hours of use.For high precision instrumrnt and equipment,widely used in precise positioning and high-precision detection.
APC Driving Circuit
The output optical power of LD is stabilized so that it does not change with the increase of temperature and service time.
Low Cost&Long Life
On the one hand, improve the service life, on the other hand, make the volume smaller.
water-resistant IP55~65
Protect the laser module from water and dust.
