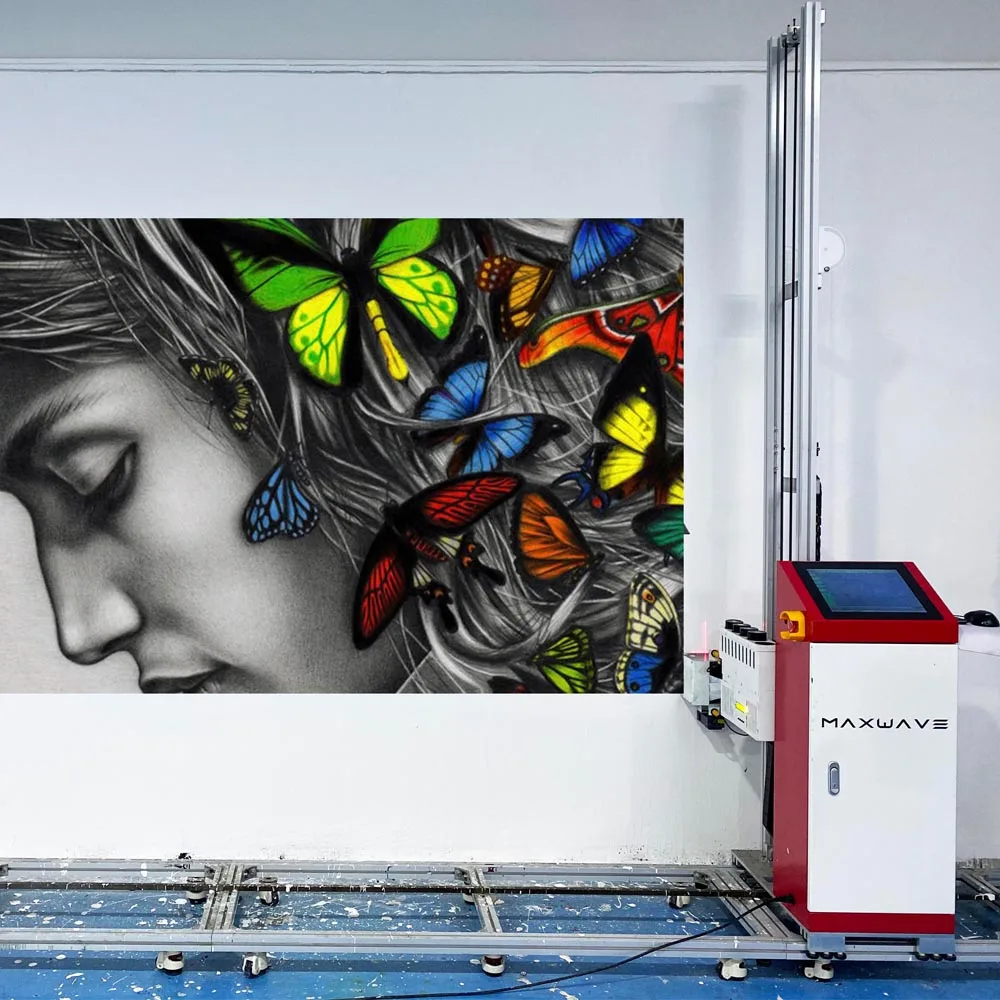

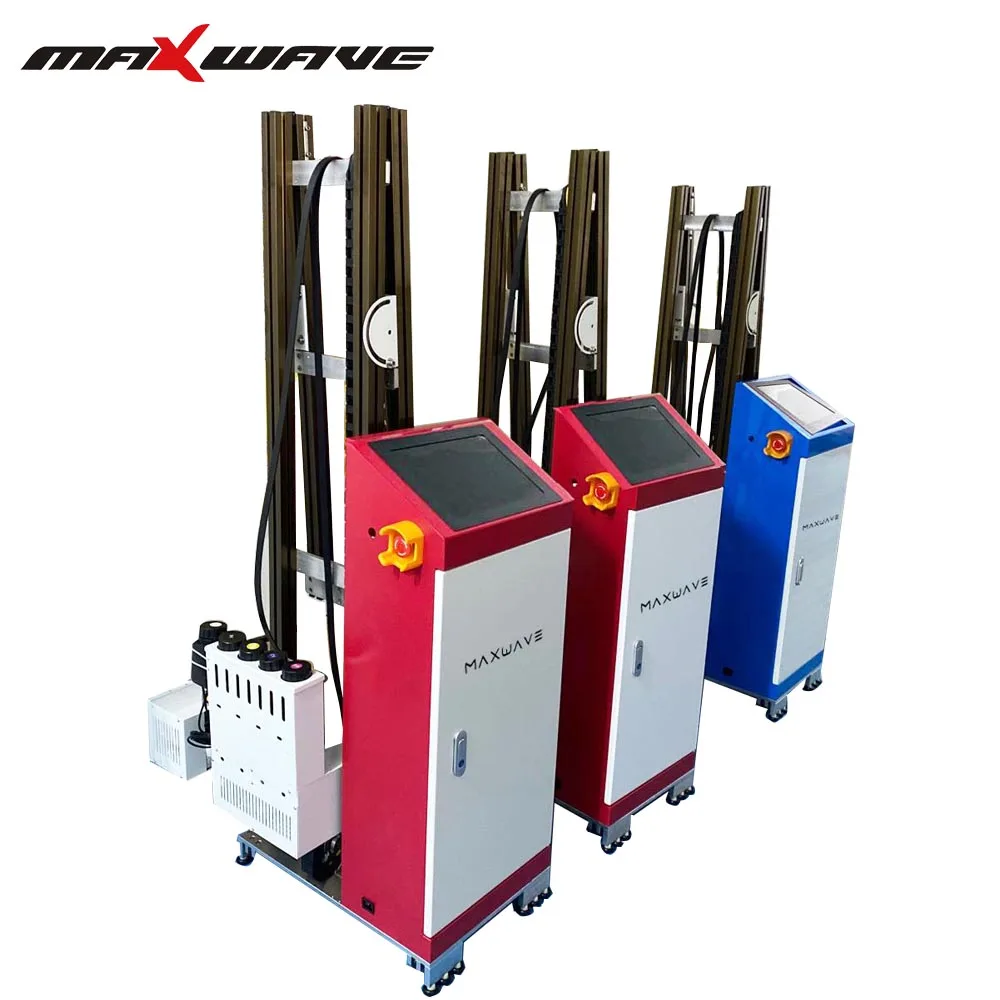

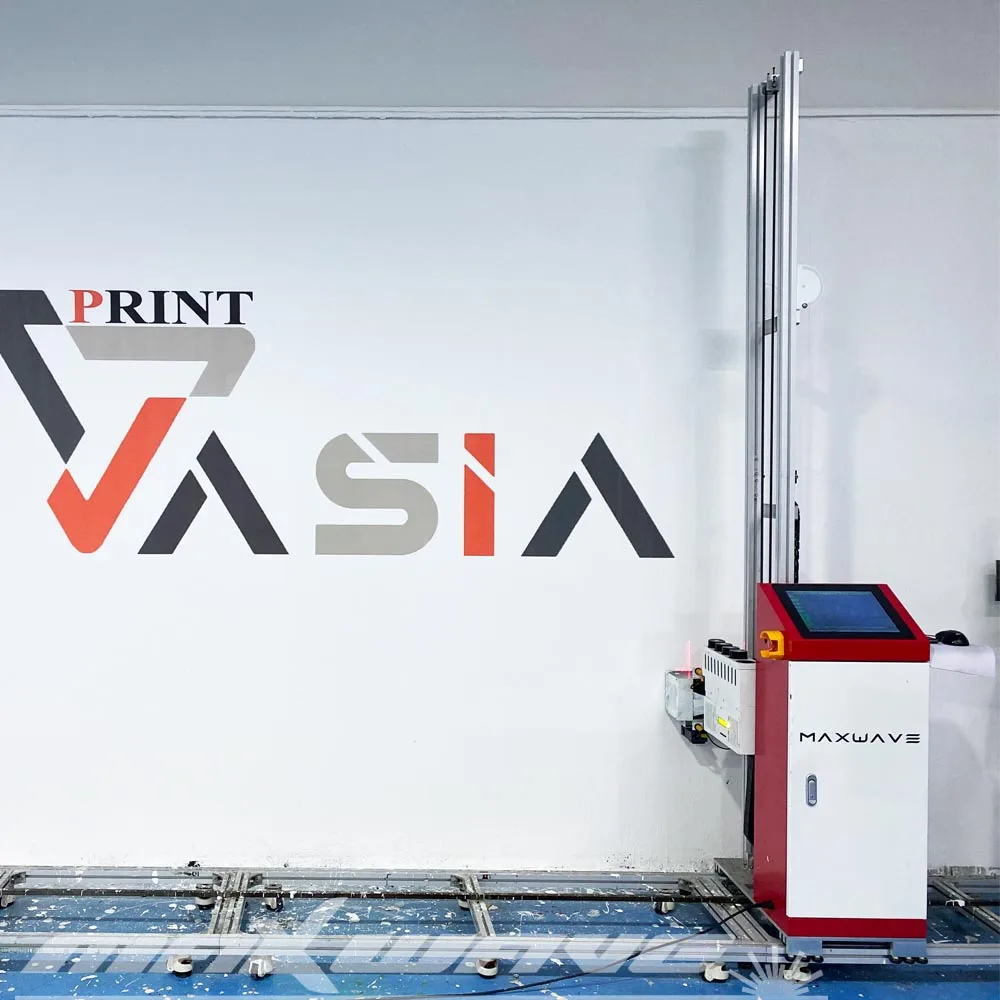

Adhesive Wall Art 3D Wall Printer Amazing UV Oil Print Painting Machine with DX7 Single Head for CMYKW UV ink Full Color Print

Product Overview

Description

In order to meet customer demand for the majority of the wide format printing, Maxwaver Laser launched a new Vertical wall printer. This direct to wall inkjet printer adopts the imported piezoelectric nozzle in Japan. The painting is clear and bright, the design of the machine is smooth, the machine body is removable, portable and easy to use. This machine is applicable to a variety of wall painting, such as wall putty powder, paint the walls, tile walls, diatom mud wall, canvas, paper, glass, ceramic, wood, metal etc.(Every Customer Will Send One Bottle 1000ml Glass Liquid For Free.)





















MW-UP200 parameters
Printing software		Urtraprint professional printing software
Using ink		Special environmental protection organic UV ink (waterproof, anti stripping)
Control mode		Wired / wireless printing
Transportation		Foldable
Power consumption		No load 20W, maximum 250w
Surface tracking		Hyperbolic banner sensor, up and down bidirectional induction
Ink supply system		Positive pressure system single color single supply, 4-color ink bin one body
Print size		2.5Height, more than 2 meters can be seamless splicing
Construction noise		Standby < 20db, drawing < 70db
Supporting pictures		Photos taken by mobile phone / camera and Internet
Power requirements		Household electricity: 220 VAC or 380 VAC
Applicable media		White wall, ceramic tile, glass, metal, acrylic, paper, etc
Format of national film		include PSD.CDR, JPG, JPEG, PNG, BMP, tiff, EPS, AI and PDF
Color drawing technology		Micro piezoelectricity spray technology, variable ink drop, high tolerance error emerging technology, automatic memory recovery
		technology for construction interruption
Print Resolution		360x720dpi/720x1080dpi/720x1440dpi/1080x1440dpi/1440x2880dpi
Operating environment		20 ° c-50 ° C (- 4f-122f), 10% - 70% relative humidity, non condensing state
Storage environment		21c-5o ° C (- 22f-140 ° f), 10% - 70% relative humidity, non condensing state
operating platform		Windows xP/7/8/9/10
Certification qualification		Green environmental protection certification, national standard test qualified (GB 18582-2001, gbt9756-2001), CE certification
Printing speed	PASS		M2 / h (M 2/ h)
Fast mode	A		15
Production mode	B		10
Quality model	C		7
HD mode	D		5
External dimension	Machine scale mm); length 700* width 300* height 2600		Package size (mm): length 800*width 460*height 2700
Machine weight	Machine 60kg (fuselage 30kg + 3 guide rails 30kg)		Gross weight 115KG in wooden case

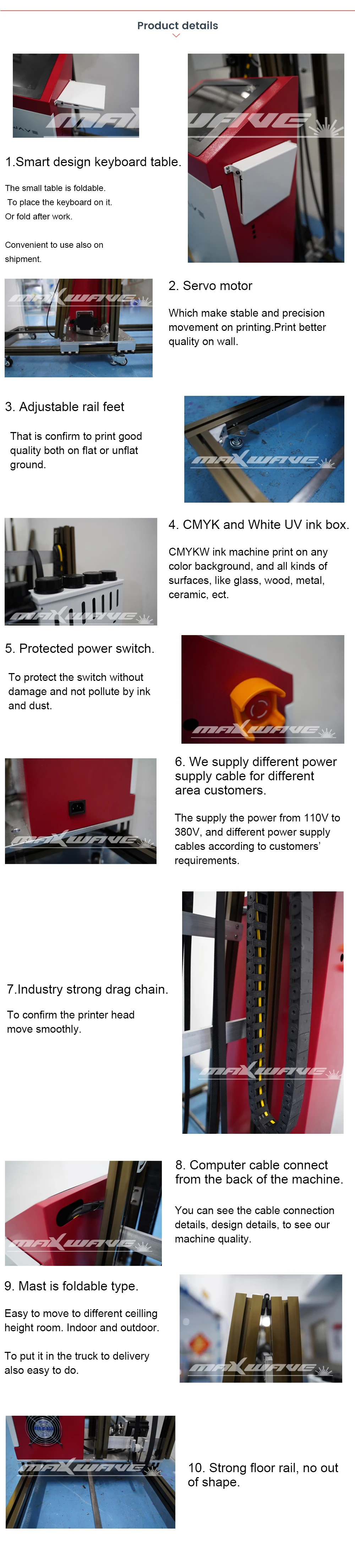

Key components
Nozzle specification	Epson 10 generation high precision printing nozzle 2	Electric machinery	3 Imported intelligent servo motor + reducer
main board	8Core high speed CPU, 4GB memory, high speed USB 1o	Wall detection	2Nano distance detectors
level	Imported precision level	Power failure alarm	Real time power failure alarm system
UPS power supply	Super uninterruptible power supply with 3 hours of power failure	Laser positioningLaser positioning	Precise infrared laser positioning system
Shaft guide	High strength precision railway track, 4 sections, 1.5m, 6m in total	Shaft guide	Imported linear drive module
Ink supply technology	Positive pressure system ink supply, need to draw ink	Gift Gallery	Free 2T Library
Language	Chinese / English
Note: the above parameters are design parameters. In case of any difference, the actual use efficiency of the equipment shall prevail.





Print samples (Shared by customer)

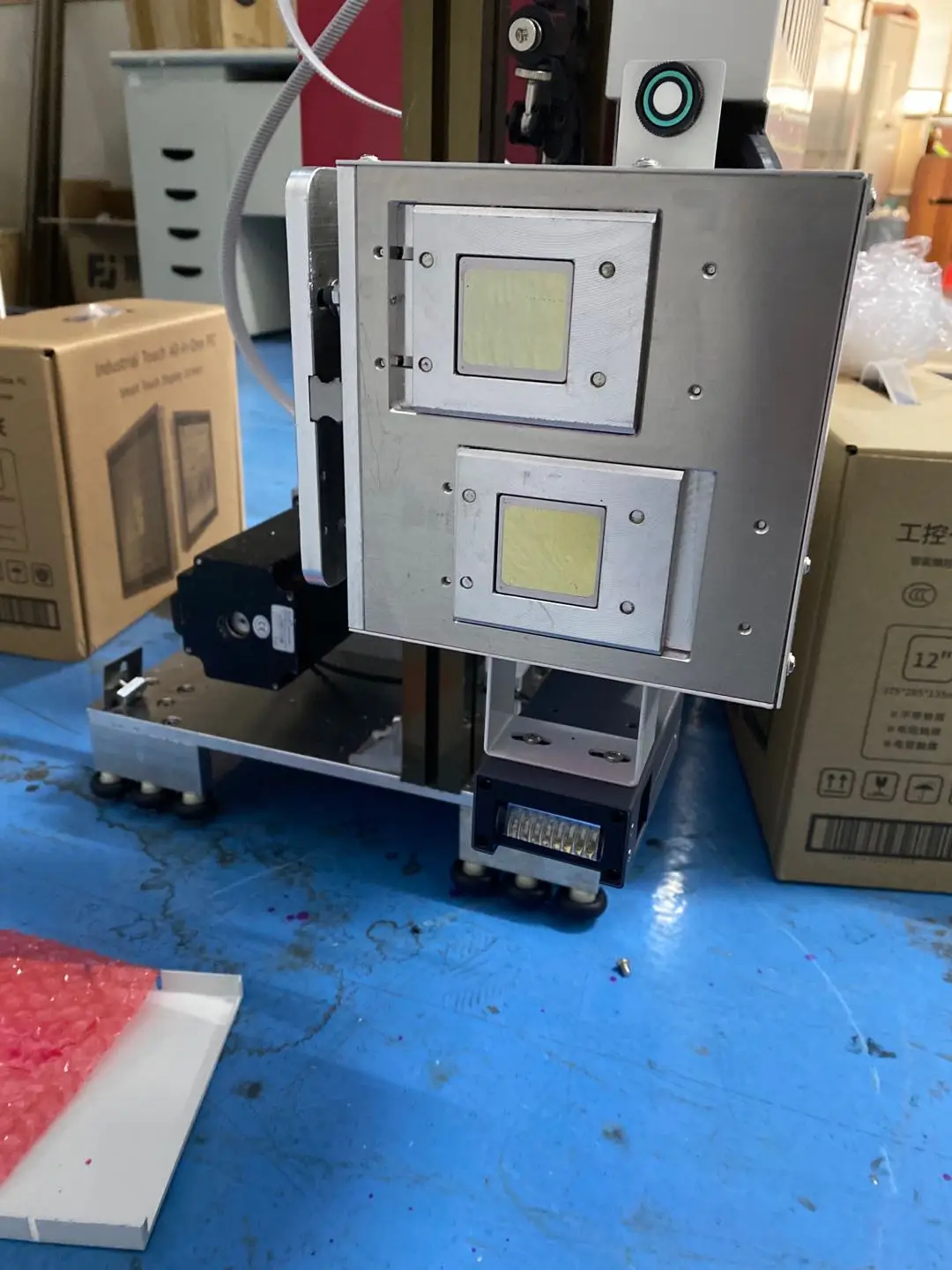

Main consumbles for our wall printer: (UV ink and Print head)



1.This direct to wall printer adopts imported Japan piezoelectric nozzles.
2. This vertical wall printer use Epson UV ink, no need to heat at minus 10 ℃ to zero 60 ℃ in the normal work environment, no ice, and constantly inking.
3. Single base color, one-way ink supply channel. Even for the system of automatic pressure supply, 340ml pigment library, multi-color one, easy to take, and the screen of the horizontal wall printer is clear and bright.
4. The body design of vertical wall printer lines smooth, without a large chassis, the program software all integrated to facilitate the demolition and handling, to work under any environment.
5. This wall mural printer printing resolution is of 360 * 720dpi or 720 * 720dpi or 720 * 1080dpi or 720dip*2880dpi.
6. Inkjet screen actual size of the wide format printing machine: high 2500mm wide , wide 6000mm of the screen need to do seamless stitching, seamless splicing will not affect the overall effect of the screen.

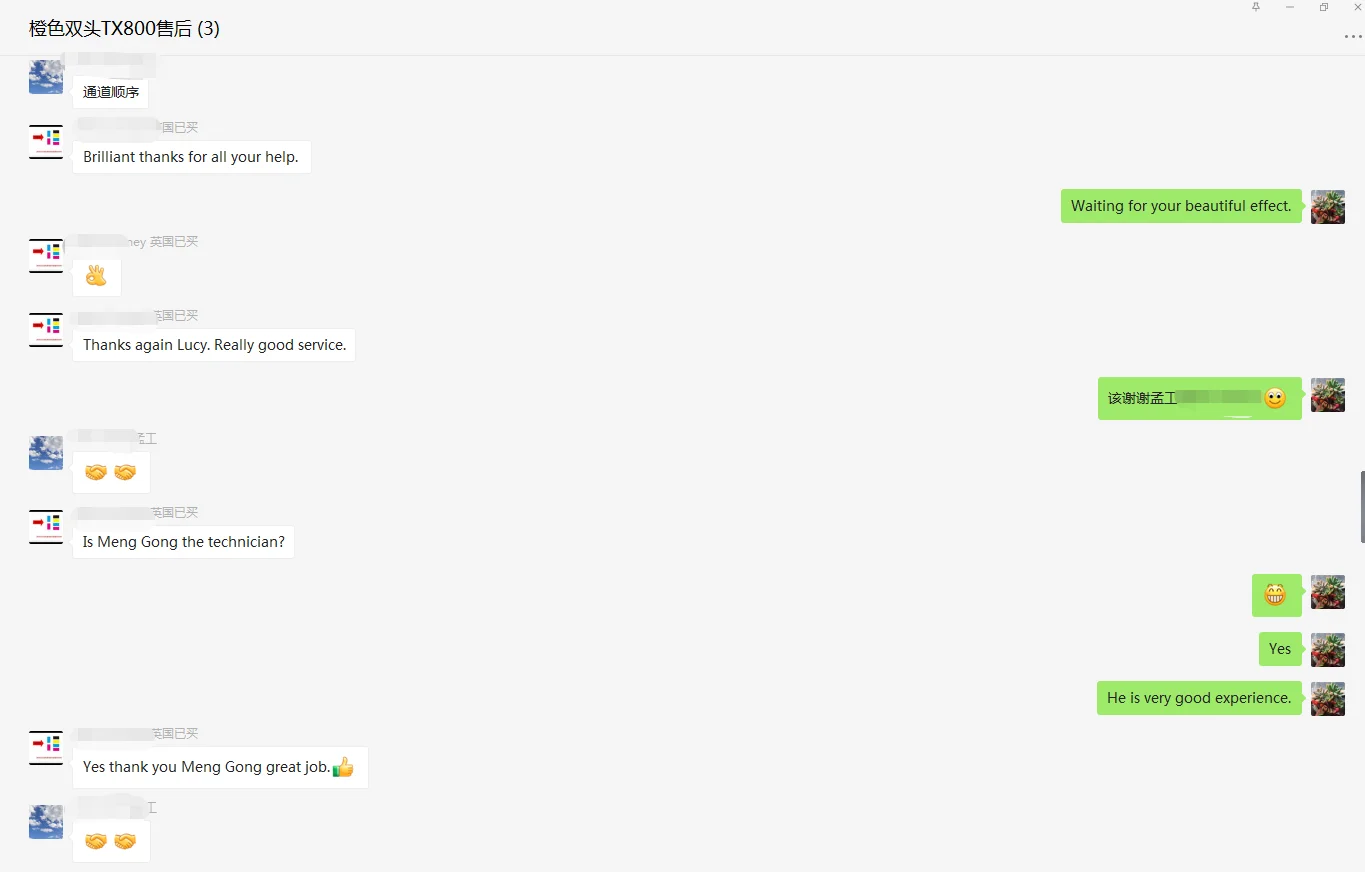

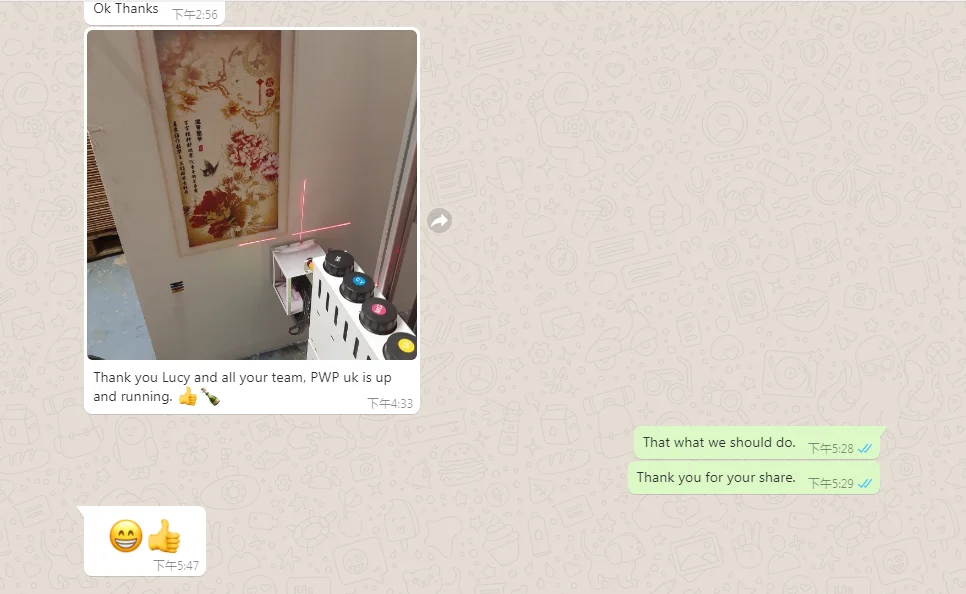

Customer's feedback:



 FAQ:

1.What is the machine include?

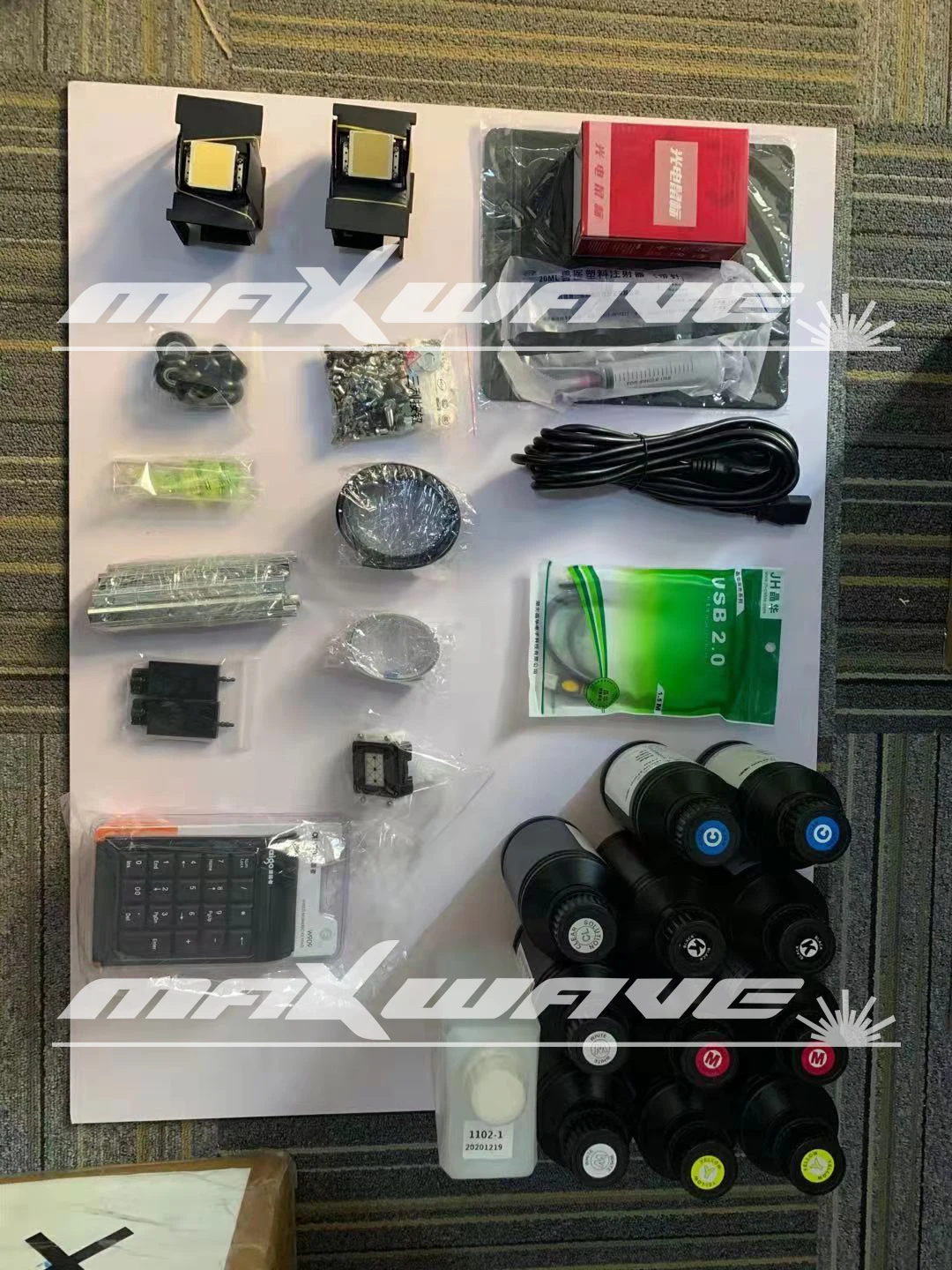

Include 3 meters mast, 6 meters rail, double printer head, one group CMYKW UV ink, softwares (UltraPrint and Photoshop,ect), computer bulit-in. Machine Accessories to maintain and install the machine.(For free: one bottle 1000ml glass liquid, 1000ml cleaning agent)



2. What guarantee with the machine?

We supply 2 years quality guarantee for our customers. All on-line services for free. We have full set of install and maintain videos and manual for our customers, we also supply remote training after machine arrived customer by our experienced after sale service team.



3.What is the main consumables for the machine?

Print head and ink. We suggest customer buy two extra ship together with the machine. One head can use several month to half year. One group ink can print about 200 square meters.
