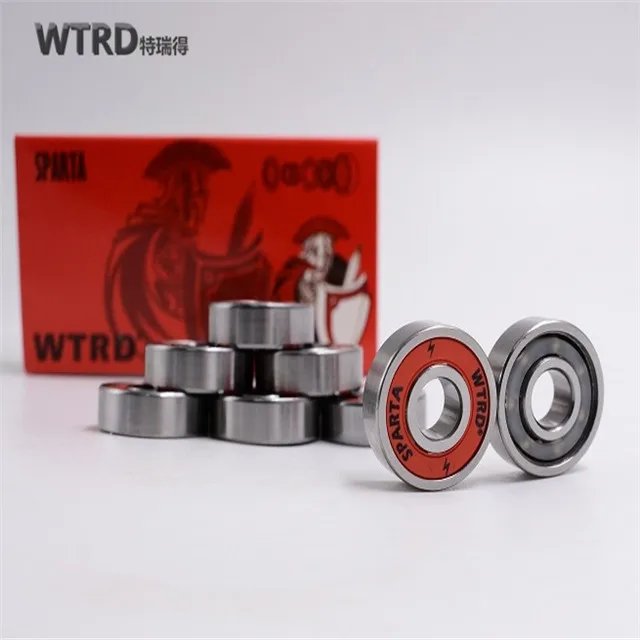

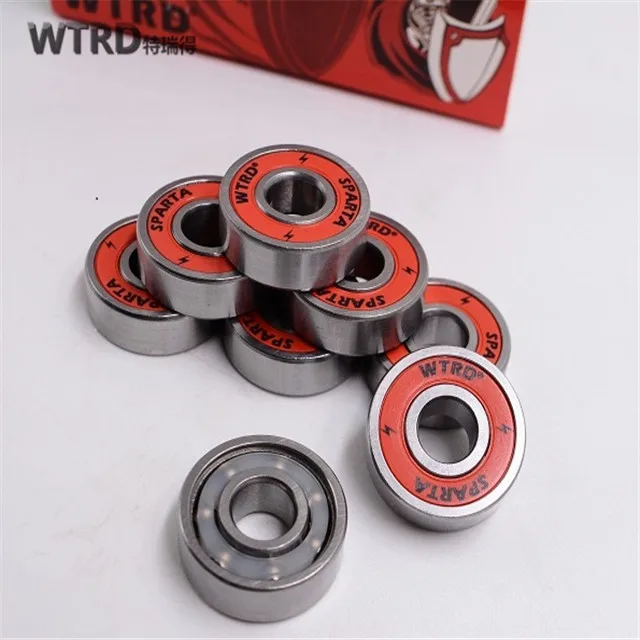

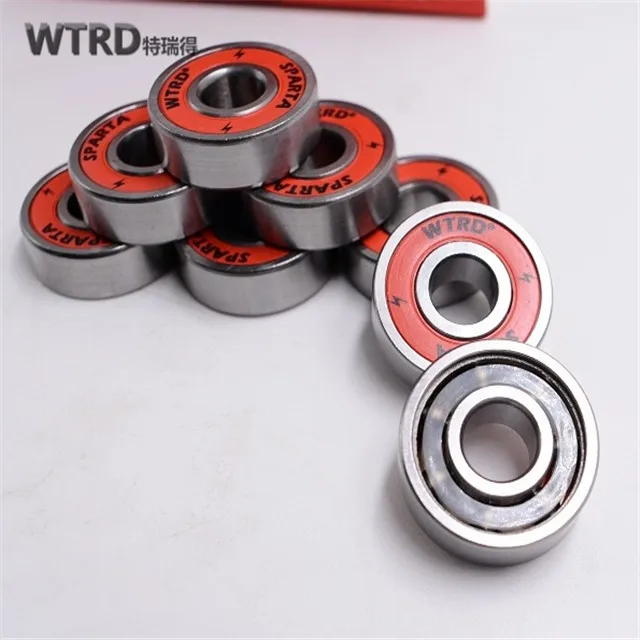

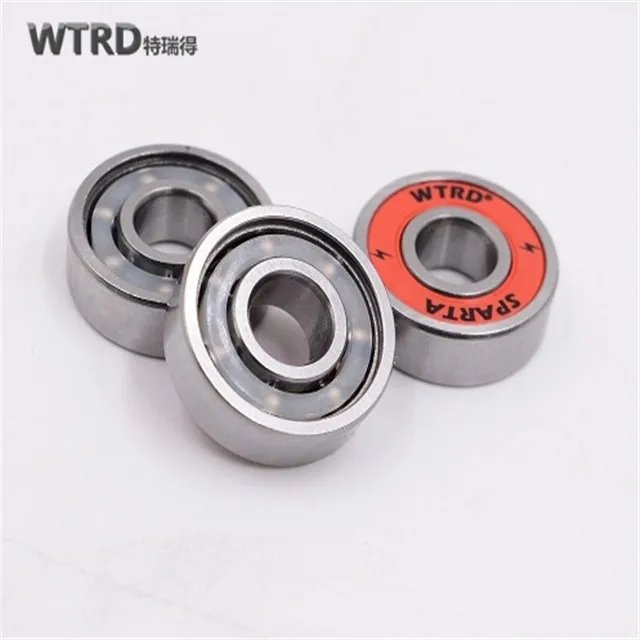

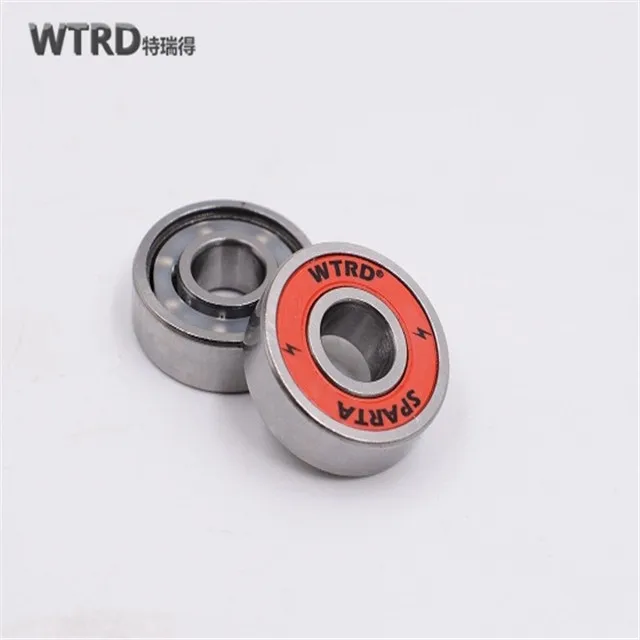

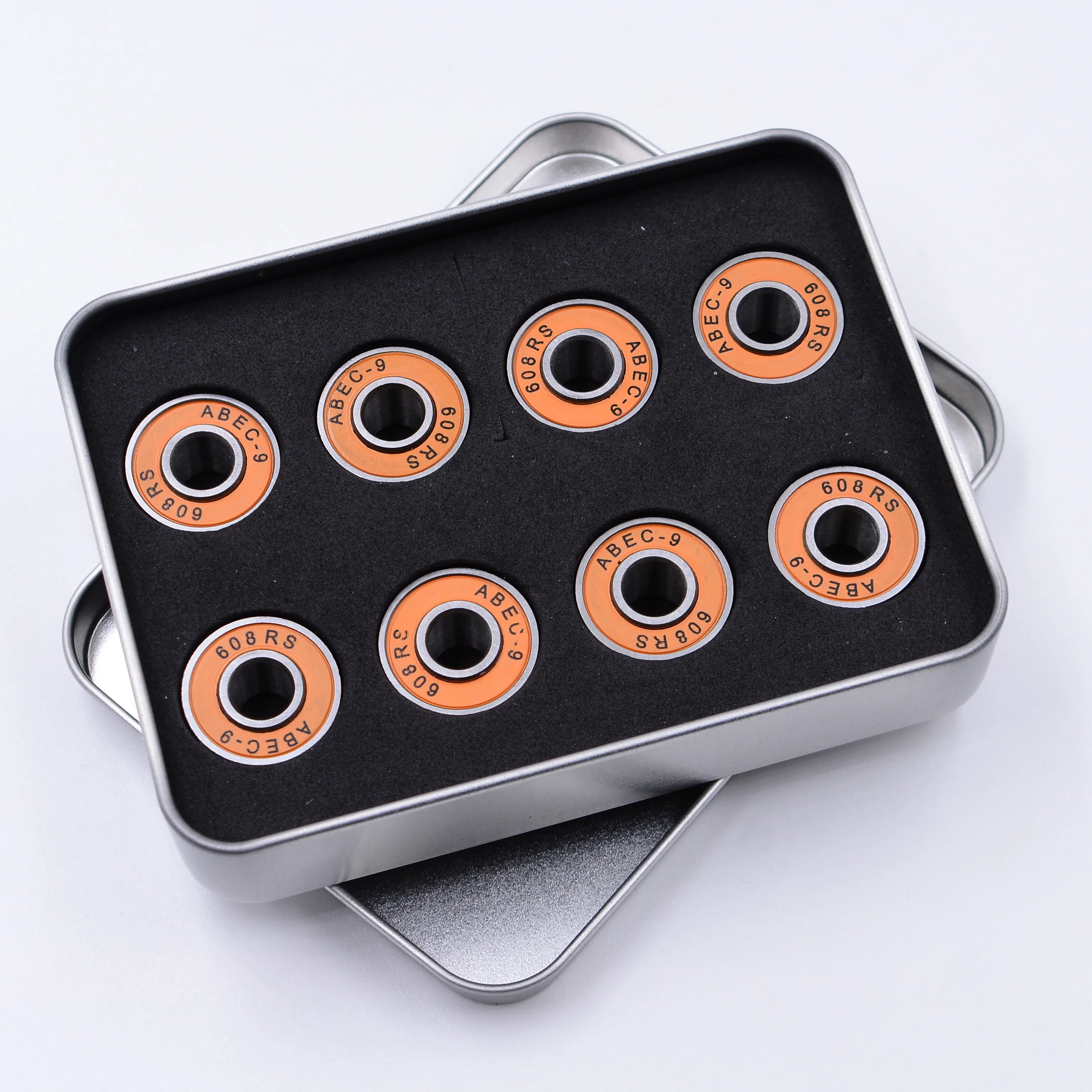

ABEC 5 Skateboard ball bearing 608 RS 600 2RS skateboard bearing

Product Overview

Description

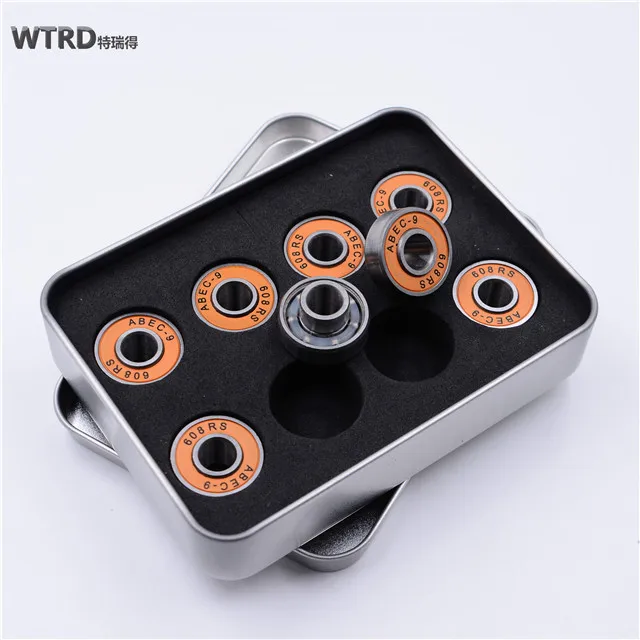

ABEC-5 Skateboard ball bearing 608 RS



Features:

1. Seals: Open Type, Sealed Type, Shielded Type;

2. Cage: Machined Brass Cage, Steel Cage, Plastic Cage;

3. Outer Ring: With our Without Snap Ring Groove;

4. Precision Grade: P0, P6, P5, P4;

5. Clearance Grsde: C2, C0, C3, C4, C5;

6. Vibration Grade: Z1V1, Z2V2, Z3V3.



Description:

Deep groove ball bearings are the most common Rolling bearings. Its structure is simple and easy to use. Used primarily for radial load, but when you increase the radial clearance of bearings, has a certain amount of angular contact ball bearings, can be subjected to combined radial and axial loads. When in high speed and inappropriate use of thrust ball bearings can also be subjected to purely axial loads. Compared with other types of bearing of the same size, the bearings low friction, high speed limit. But not shock resistant and should not be subjected to heavy loads



Types:

– Single row deep groove ball bearings

– Single row deep groove ball bearings with filling slots

– Stainless steel deep groove ball bearings

– Double row deep groove ball bearings

– Hybrid deep groove ball bearings

– Deep groove ball bearings for high temperature applications



Application

Deep groove ball bearings can be used for transmission, instruments, electrical machinery, transport vehicles, agricultural machinery, household appliances, internal combustion engines, construction machinery, engineering machinery.



BEARING	Bore	Outer Diameter	Width
TYPE	d	D	B
NO.	mm in	mm in	mm in
605	5 .1969	14 .5512	5 .1969
606	6 .2362	17 .6693	6 .2362
607	7 .2756	19 .7480	6 .2362

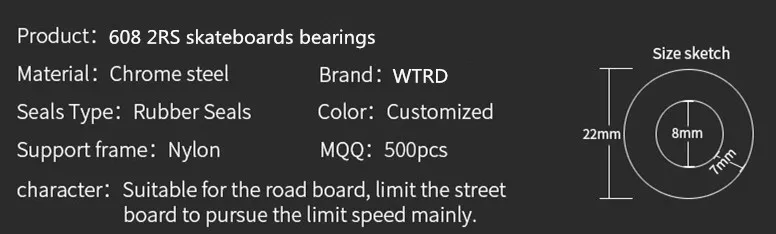

608	8 .3150	22 .8661	7 .2756
609	9 .3543	24 .9449	7 .2756
6000	10 .3937	26 1.0236	8 .3150
6001	12 .4724	28 1.1024	8 .3150
6002	15 .5906	32 1.2598	9 .3543
6003	17 .6693	35 1.3780	10 .3937
6004	20 .7874	42 1.6535	12 .4724
6005	25 .9843	47 1.8504	12 .4724
6006	30 1.1811	55 2.1654	13 .5118
6007	35 1.3779	62 2.4409	14 .5512
6008	40 1.5748	68 2.6772	15.5906
