China made factory direct sales of 2 phase 0.8N.m 1A high torque stepper motor Nema 23 with CE certificate
- Category: >>>
- Supplier: Changzhou Prostepper Co. Ltd.
Share on (1600312800666):
Product Overview
Description
Product Description

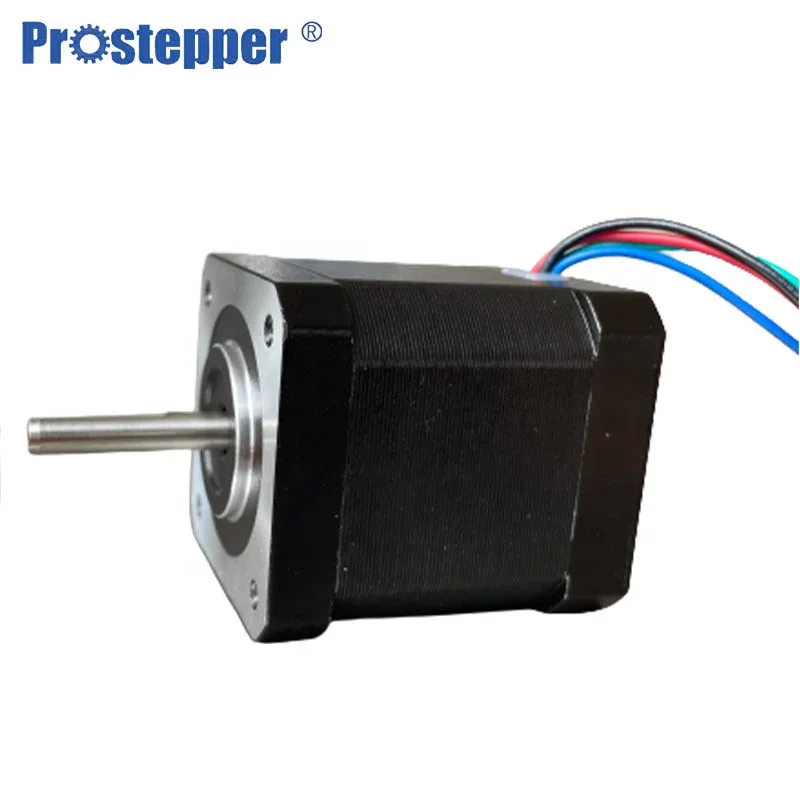

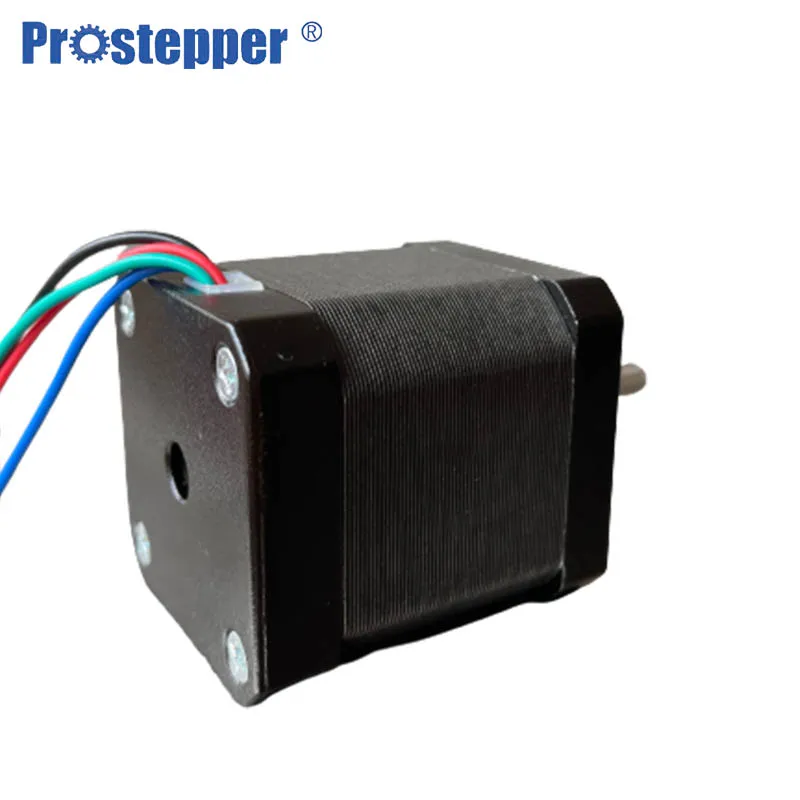

China made factory direct sales of 2 phase 0.8N.m 1A high torque stepper motor Nema 23 with CE certificate
Our stepping motor can be used in house appliance,Robot, music fountain, industrial electronic automation equipment, medical equipment, advertising equipment, stage lighting equipment, printer, textile machinery, external applicable equipment of computer. Welcome to you visit our factory and negotiate business with us.APPLICATIONS
CCTV
Medical equipment (Peristaltic pump , CT Scanners)
Textile machinery Industrial automation (Engraving machine)
Office automation (3D printer)
CCTV
Medical equipment (Peristaltic pump , CT Scanners)
Textile machinery Industrial automation (Engraving machine)
Office automation (3D printer)
Specification
Product name | Nema23 stepper motor |
Model | PST57H245-4P10 |
Holding Torque | 0.8 N.m |
Rated Current A/Phase | 1 A |
Resistance Ω/Phase | 4.7 Ω |
Inductance mH/Phase | 10.8 mH |
Inertia | 180 g.cm² |
Weight | 0.56 kg |
Body Length | 45.5 mm |
Frame Size | 42*42mm |

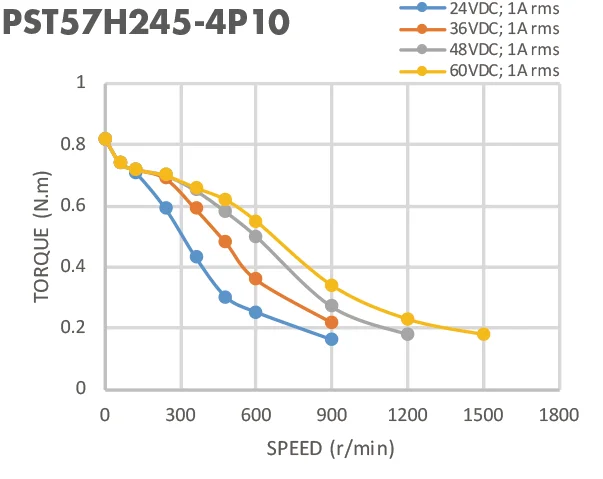

Speed/Torque Characteristics(Reference Value)
The Speed/torque curve is based on Prostepper's test conditions.When the conditions change, the dynamic torque changes too.
The rated current in the specification is an effective value, Plesae adjust the driver‘s current below the rated current.
The rated current in the specification is an effective value, Plesae adjust the driver‘s current below the rated current.

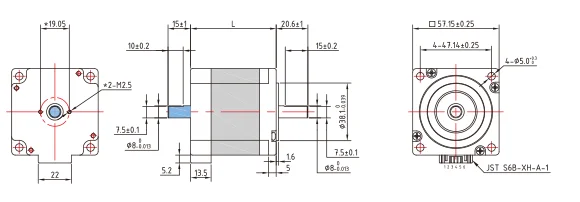

Outline(Unit:mm)
NOTE
This outline shows a dual-shaft motor.
The single-shaft motor does not have the blue part shaft and the * mark hole demensions.
The single-shaft motor does not have the blue part shaft and the * mark hole demensions.
Packing & Delivery
Inner package is EPE foam, the outer package is carton.
Carton size also can be customized according to the customer's requirements.
Carton size also can be customized according to the customer's requirements.
Company Profile
Prostepper has a large customers group across over the world, with products being exporting to over 10 countries, including the United States; Germany, Switzerland; Italy Korea and Japan, etc. Our products are widely used in various industries, such as textile Machinery, medical, robotics; Packaging, printing, communications, office automation; semiconductor industry and different industrial automation equipment.
With advanced stepper motor production equipment and production line, quality management systems and test equipment. The products are mainly used in various type of automatic precision control equipment such as stage lighting, absorbing the essence of motor manufacturing, so that the quality of products is continuously improved and the enterprise is constantly developing. Prostepper motor insists on using stable quality and creating a good reputation to realize prostepper's commitment to customers.
With advanced stepper motor production equipment and production line, quality management systems and test equipment. The products are mainly used in various type of automatic precision control equipment such as stage lighting, absorbing the essence of motor manufacturing, so that the quality of products is continuously improved and the enterprise is constantly developing. Prostepper motor insists on using stable quality and creating a good reputation to realize prostepper's commitment to customers.
FAQ
1. who are we?
We are based in Jiangsu, China, start from 2004,sell to USA, Germany, Switzerland; Italy Korea and Japan, etc.
There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Hybrid Stepper Motor
4. why should you buy from us not from other suppliers?
CHANGZHOU PROSTEPPER CO.,LTD. was established in 2004 as Jiangsu High-Tech Enterprise, which is engaging in Developing, designing and producing professional stepper motor and brushless motor. It's motor manufacturing and R&D history dated from 1998.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,CPT,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,Japanese
We are based in Jiangsu, China, start from 2004,sell to USA, Germany, Switzerland; Italy Korea and Japan, etc.
There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Hybrid Stepper Motor
4. why should you buy from us not from other suppliers?
CHANGZHOU PROSTEPPER CO.,LTD. was established in 2004 as Jiangsu High-Tech Enterprise, which is engaging in Developing, designing and producing professional stepper motor and brushless motor. It's motor manufacturing and R&D history dated from 1998.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,CPT,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,Japanese
