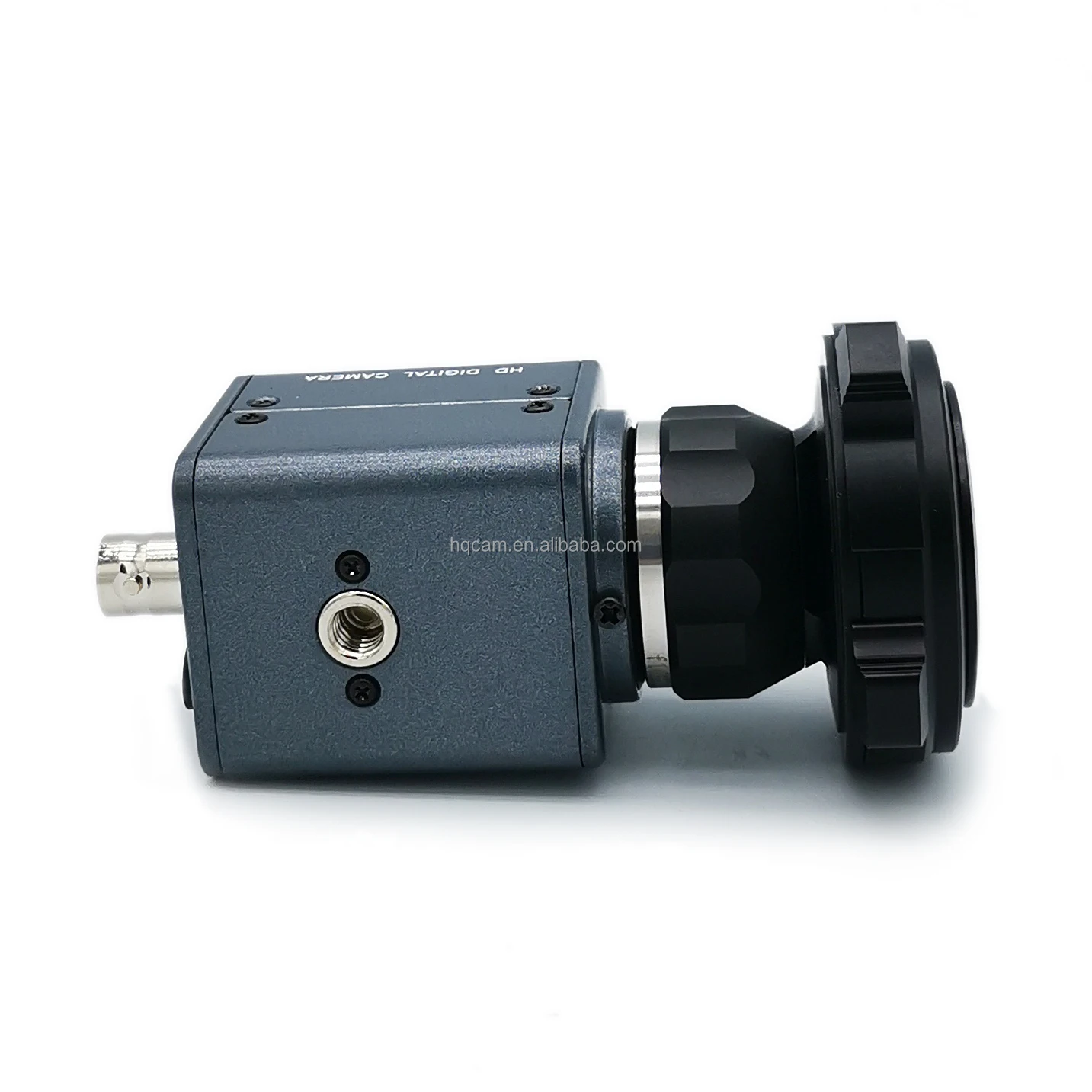

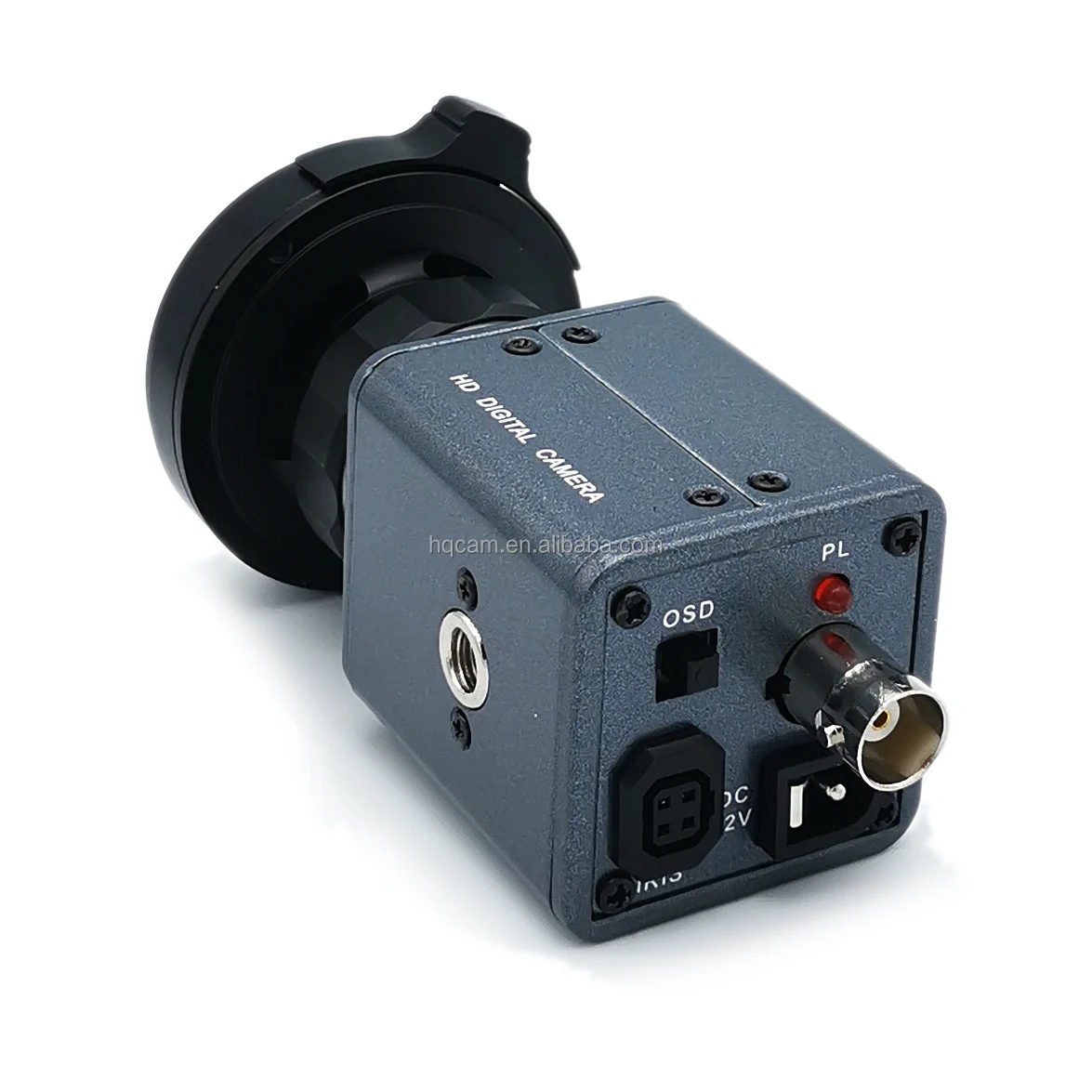

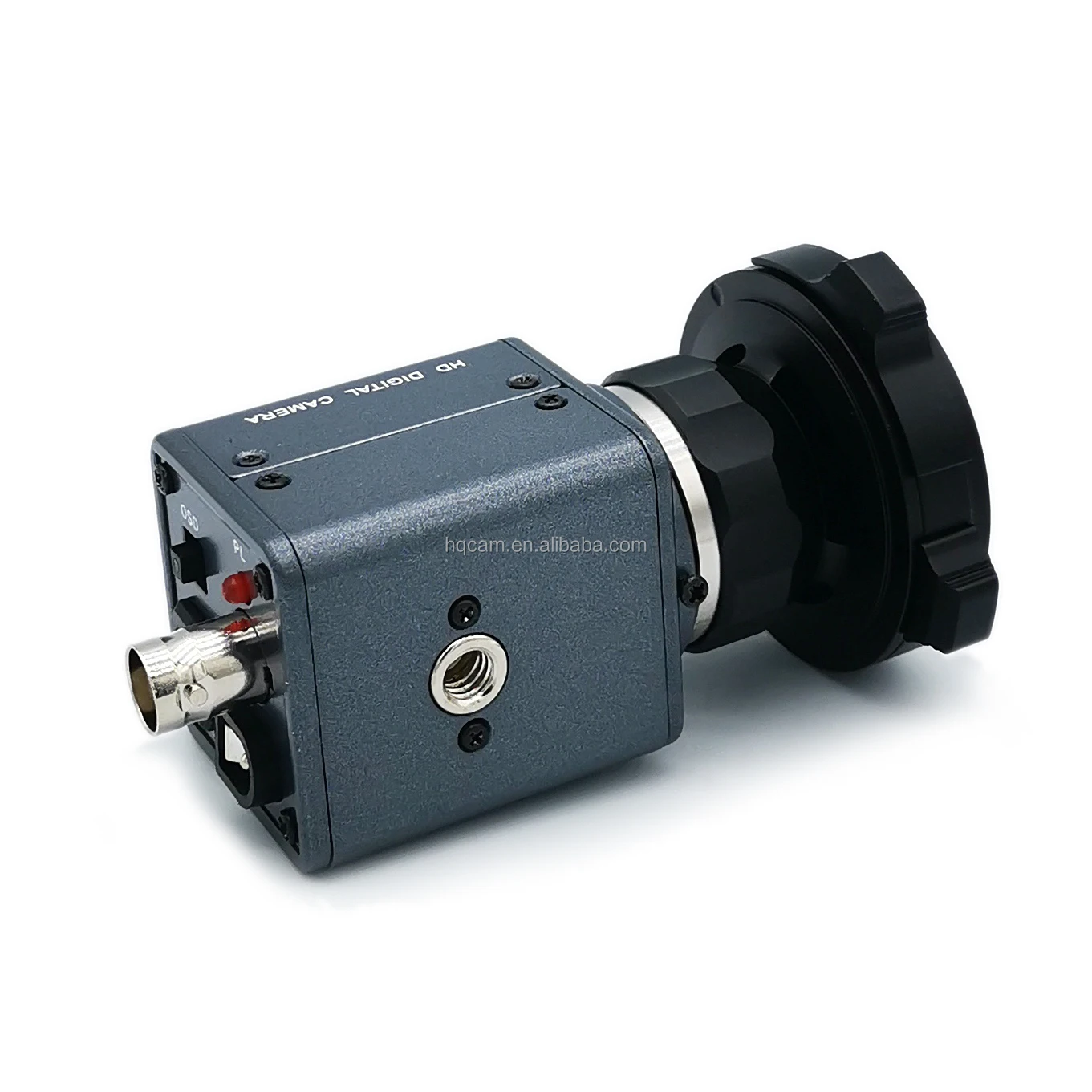

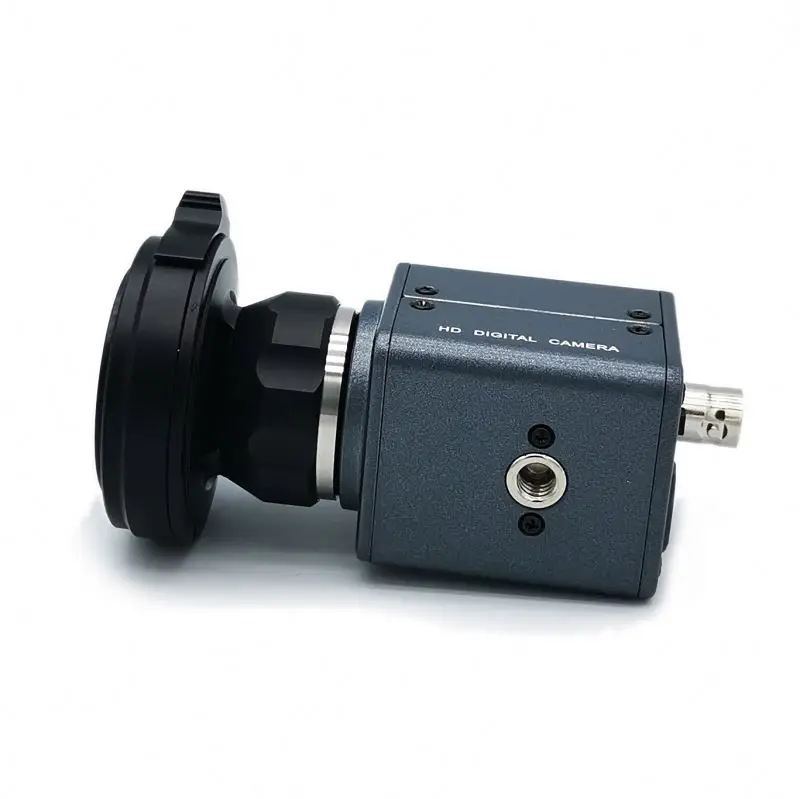

Cheap CCD 700TVL portable medical rigid endoscopic endoscopy camera head for vet pet animal camera cvbs
- Category: >>>
- Supplier: Shenzhen Hanqin Electronic Technology Co. Ltd.
Share on (1600312854692):
Product Overview
Description
Products Description
Image sensor | 1/3 CCD |
Language | English/Chinese |
Effective pixels | P:795(H)*596(P) |
Scanning frequency | N:60HZ P:60HZ |
Scan mode | Interlacing scan |
Horizontal resolution | 700TVL |
Digital zoom | 0-60x |
DNR | 3D Denoise |
SNR | ≥50dB |

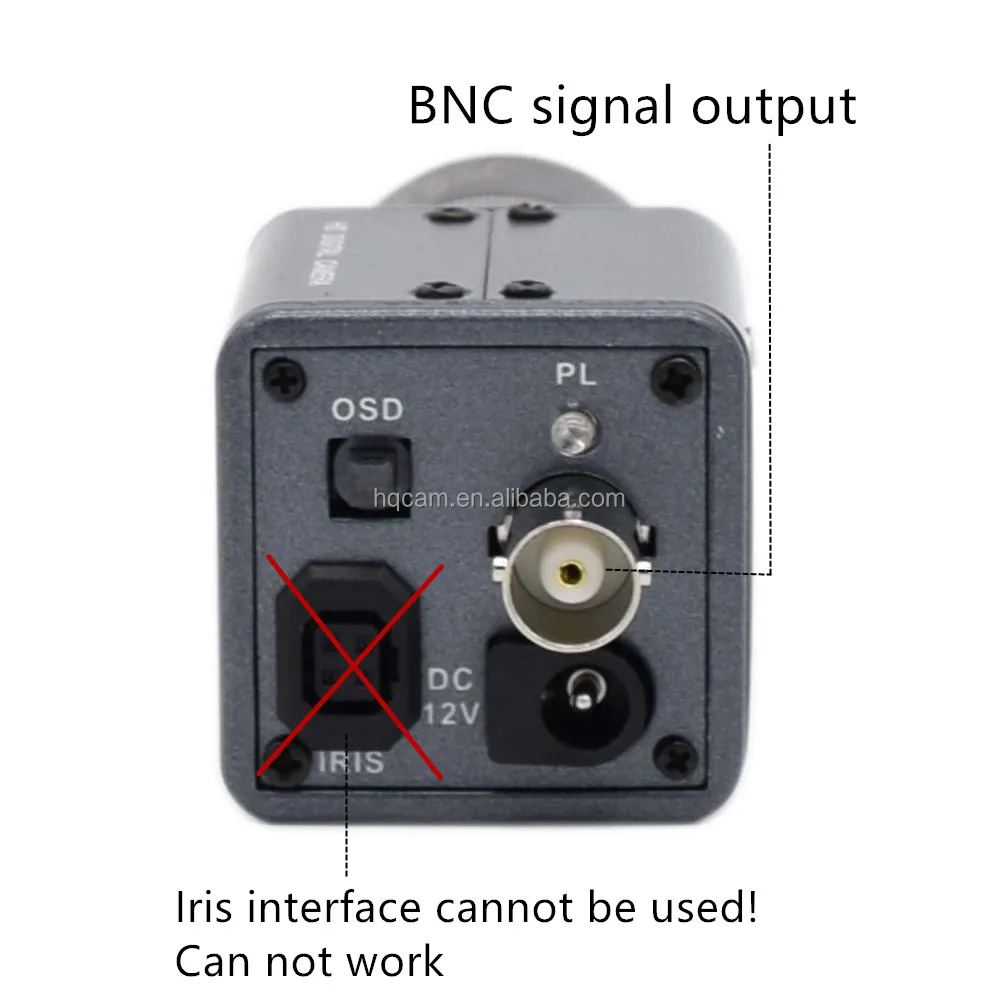

Output port | USB, BNC, AV |
Brightness | ODS adjustable |
DSS | 30x |
Application:
can be used for arthroscopy, ENT, cystoscope, hysteroscopy, etc.
Product advantages:
1. Standard 700lines, effective pixels is 795(H)*596(V). 2. Geometric distortion and the ability for color rendition has been tested qualified by related organization. 4. Multi-output : BNC, AV, can connect to medical monitor, TV. 4. Extinction speed is less than 0.2s. 6. The resolution of endoscope camera is up to 700lines. 7. With menu button to adjust parameters
Packing list:
CCD CAMER X1pcs
Bayonet lens X1pcs

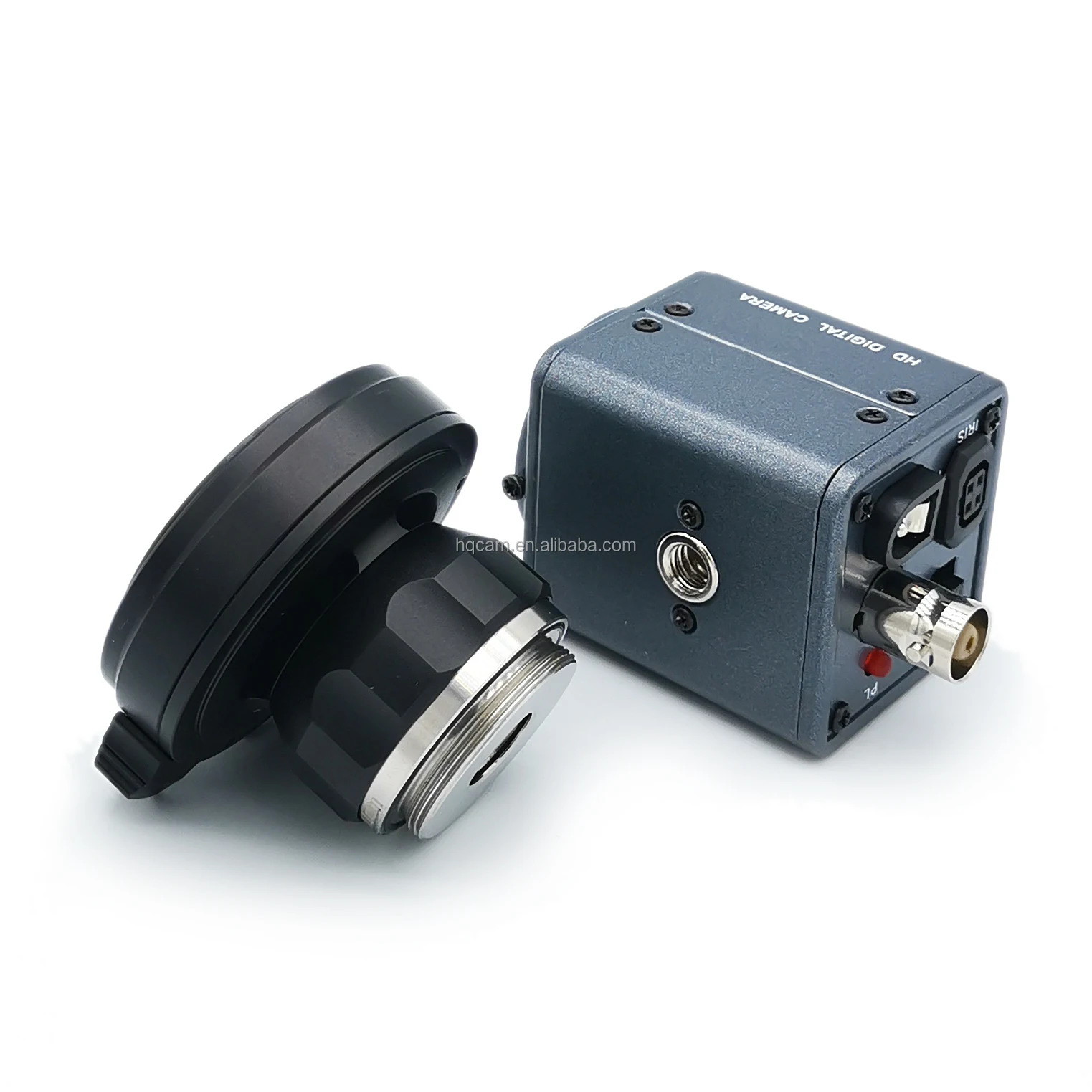

C-mount camera lens for endoscopy adapter
C-MOUNT coupler lens for medical endoscope camera
Various sizes are available
18-35mm Endoscope Zoom Adapter with C Mount,
Coupler | f14mm |
Coupler | f16mm |
Coupler | f18mm |
Coupler | f20mm |
Coupler | f22mm |
Coupler | f25mm |
Coupler | f28mm |
Coupler | f32mm |
Coupler | f35mm |
Zoom Coupler | f15-25mm |
Zoom Couper | f18-35mm |
18-35mm Endoscope Zoom Adapter with C Mount,
is with the focal length from 18mm to 35mm, with ultra clear image, suitable for 1/2,1/3, 1/4 inch display chip, which is applicable to a variety of medical endoscopes: ENT,
arthroscopy, laparoscopy,choledochoscopy, ureteroscope, hysteroscopy, cystoscopy, ureteral nephroscope, percutaneous nephrolithotomy, ventricular mirror,arthroscopy, etc.
Compatible with such brands as Wolf , Olympus, Pentax, Nordisk, Stryker, and other major domestic brands.
Image Sensor: Processor: | 1/3" So ny Super HAD CCD II So ny Enhanced 960H Effio-E 4140 DSP |
Horizontal Resolution: Effective Pixels: | 750 TV Lines PAL:976(H)x582(V) & NTSC: 976(H)x494(V) |
Lens: | NA |
Signal system | PAL / NTSC |
IR Illuminators: Min Illumination: | 0.001Lux 0.001 Lux,F1.2( 0 Lux IR ON ) |
wavelengh | --- |
Back Light Compensation | Auto |
Auto Iris | Video / DC |
Gamma | 0.45 |
S/N Ratio: | 48db (AGC-OFF) |
Scanning System: | 2:1 Internal |
Synchronization System : | Internal Synchronization |
Shutter Speed: | 1/60-1/15000 (second) |
Video Output: | 1.0Vp-p, 75 OHM |
Power Supply: | 12V DC (Sold separately) |
Operation Temperature | -10C ~ 50C / 0F ~ 110 F |
Weatherproof | YES |
Qualification certif
Related Products
| PRODUCT CATEGORIES | ||||||||
 |  |  |  | |||||

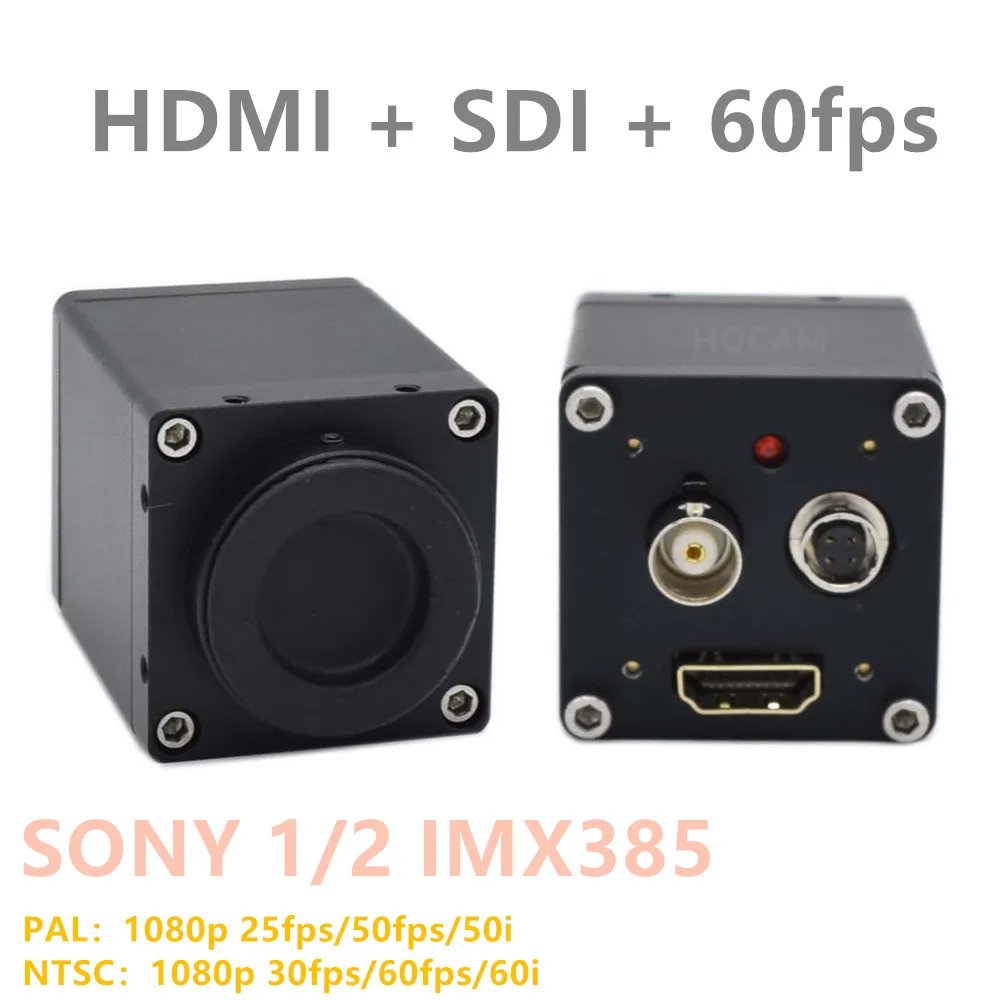

| SDI medical module | sdi camera | SDI box camera | SDI acquisition card | |||||
 |  |  |  | |||||
