HDTV BNC output 1080P 3G SDI 100m transmit HDMI to SDI video converter for CCTV camera
- Category: >>>
- Supplier: Shenzhen Chirui Video Technology Co. Ltd.
Share on (1600312868282):
Product Overview
Description
HDTV BNC output 1080P 3G-SDI 100m transmit HDMI to SDI video converter for CCTV camera
The MINI HDMI to SDI Converter allows HDMI signals to be shown on SDI display while ensuring high bit rates of 2.970 Gbit/s to give you high resolution signal without any loss. For professionals this means that it is now easier to convert your high def HDMI signal with audio to SDI for long distance transmission and display your work on SDI display.
Specification:
| Item | Specification |
| output | BNC(SD-SDI/HD-SDI/3G-SDI) |
| Input | HDMI |
SDI transmission rate. | 2.970 Gbit/s and 2.970/1.001 Gbit/s |
Protocol | HDMI 1.3, HDCP 1.2 |
Resolution | Up to 1920*1080@60Hz |
Power adapter format | 5V |
ESD Human Body Protection Model | ± 8kV (air discharge), ± 4kV (contact discharge) |
| Output Distance | ≤15m AWG26 HDMI Cable |
| Input Distance | ≤15m AWG26 HDMI Cable |

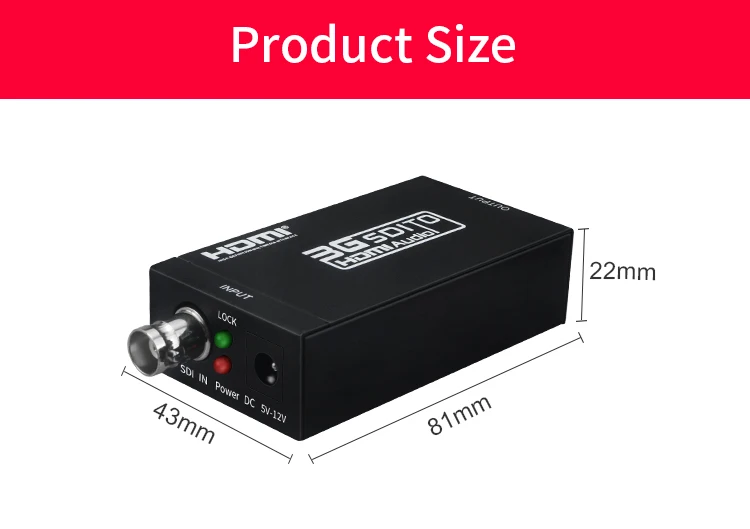

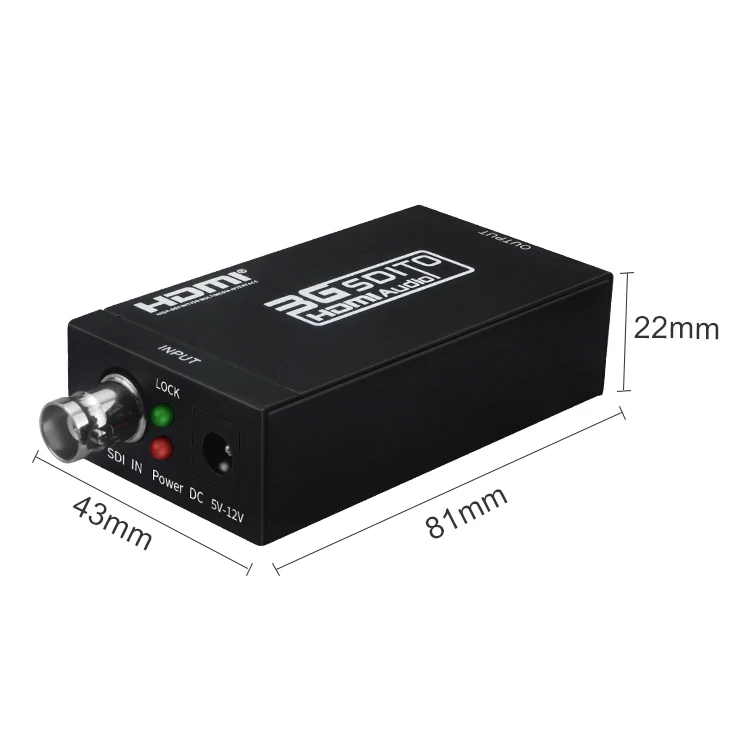

Dimension | 80x41x25mm |
Weight | 150g |
Working temperature | -15 to +55℃ |
| Storage humidity | 5 to 90% |

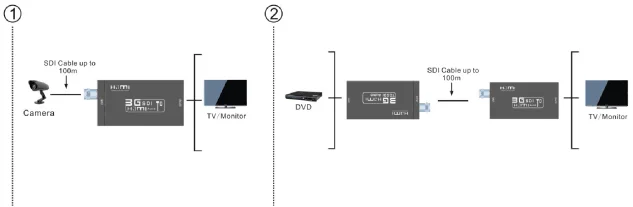

Application Diagram:
Connection and Operation:
1: Connect the HDMI source to the converter input with one HDMI cable
2: Connect the converter SDI output to the displays with SDI cable
3: Connect 5V/1A power adapter to the converter

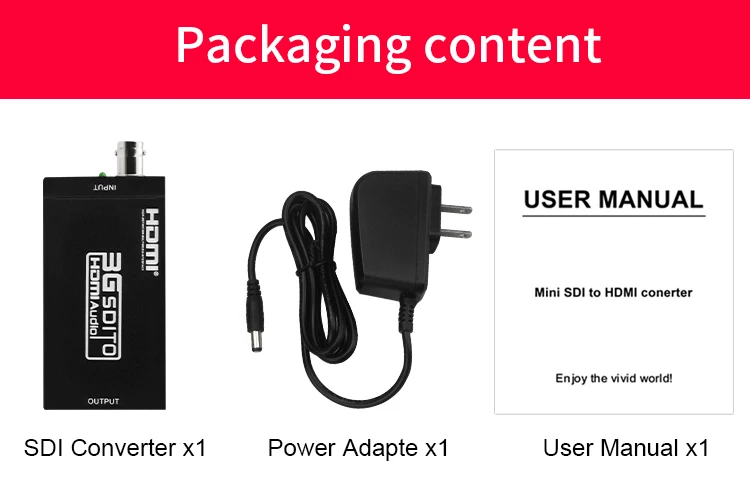

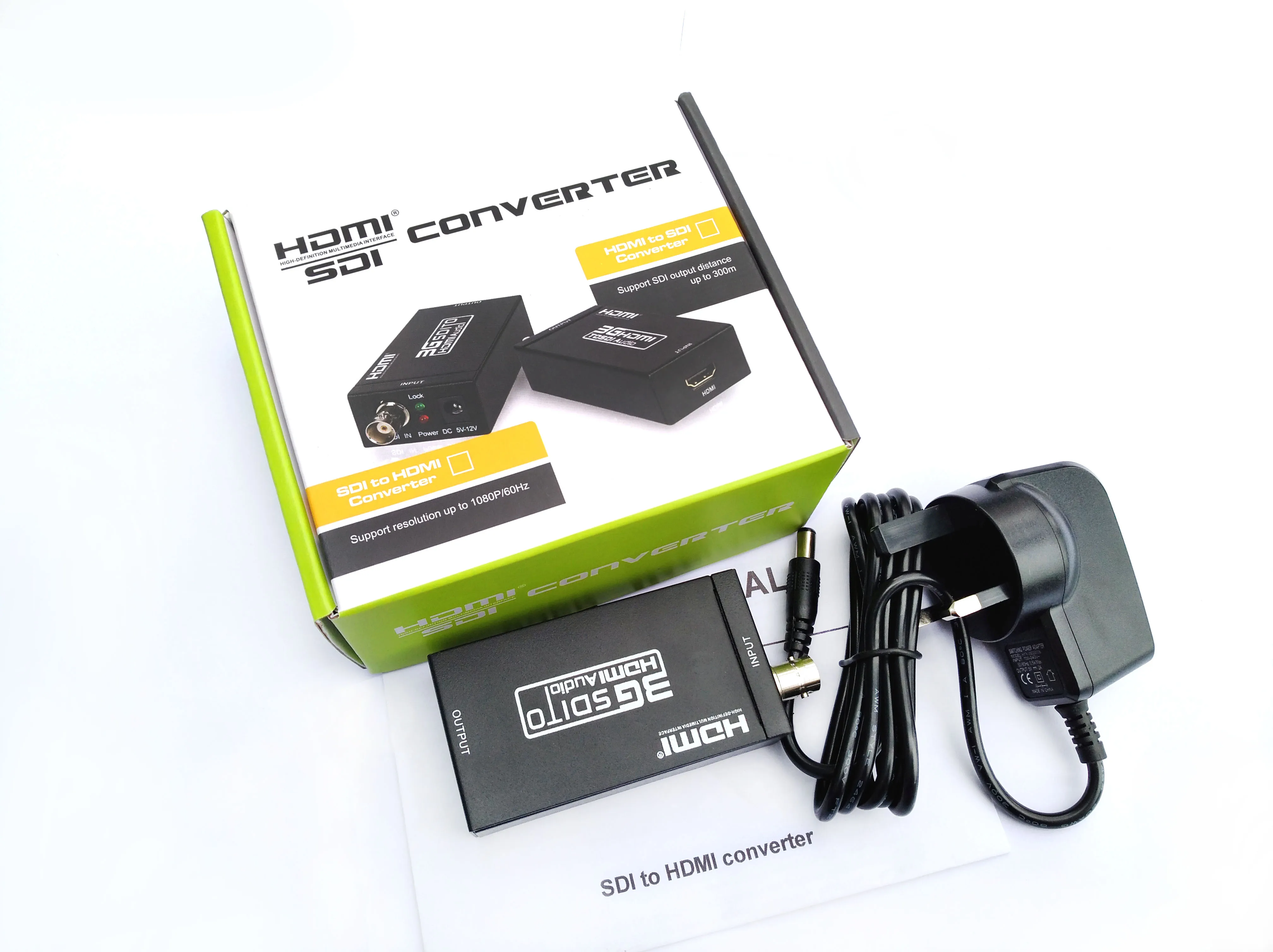

Package include :
1. HDMI to SDI converter
2. Power adapter
3. User manual
Applications
Related Products
Company Information
Shenzhen ChiRui Video Technology Co., Ltd (CreHiVi) is a professional high-tech company, specializing in audio and video products design, production and trading.
We are constantly exploring and developing new products in the HDMI field.
Mainly divided into three parts.
1. HDMI Splitter/Switcher/Extender
2. HDMI USB3.0 Capture Card
3. HDMI H.264/265 Encoder 1080p/4K
Exhibition
FAQ
1. After-sales Service
1 year warranty for all kinds of products;
2. Payment
T/T, Paypal. Credit insurance on alibaba.
3.Transportation
Transported by DHL,UPS,EMS, Fedex, Air freight, sea freight.
4.Can I get a sample for testing firstly?
Even if we are doing wholesale business, We could fully understand the further cooperation is based on time andquality. So one set of sample to test is totally welcomed. Also OEM/ODM is acceptable.
5. How long will I receive the product?
There are enough stock for most of products, regularly the delivery time is around 1~4 work days(except busy season)after payment received.
