MEIYA Heat Pump industrial cold air Fish Maw Dryer Meat Dry Machine Drying Equipment Meat Dehydrator beef jerky dryer
- Category: >>>
- Supplier: Guangzhou Meiya Electric Equipment Technology Co. Ltd.
Share on (1600312901252):
Product Overview
Description
Product Overview

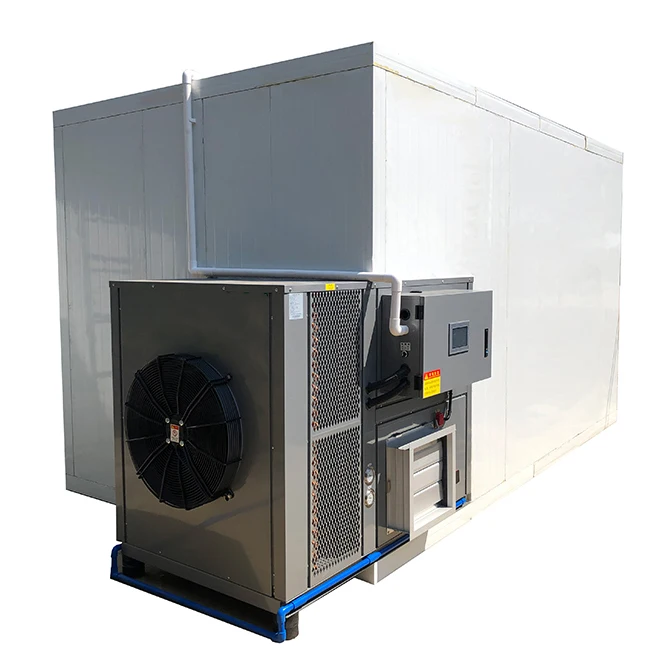

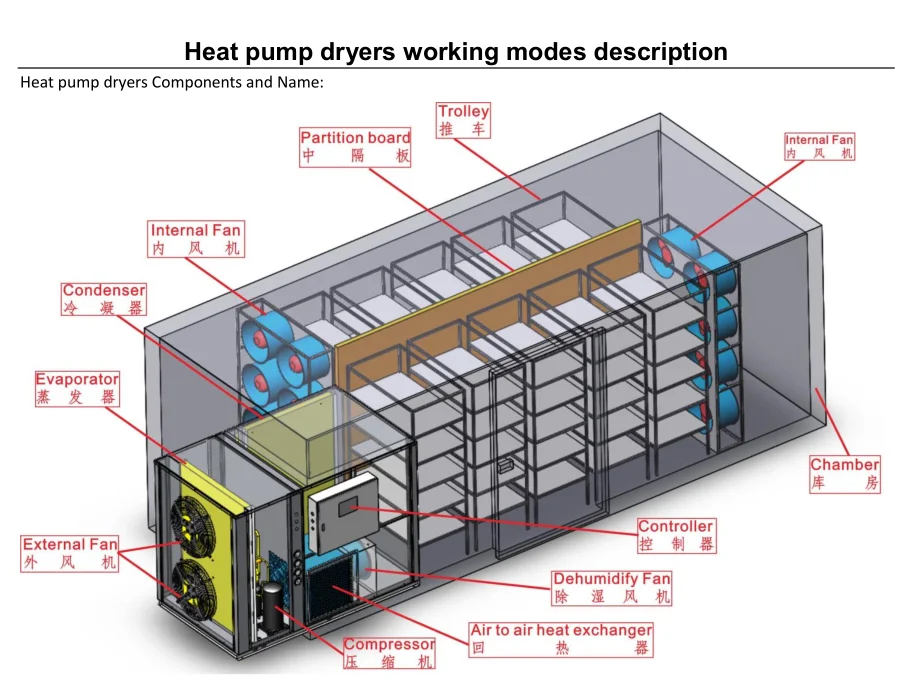

What is the Meiya Heat Pump Drying Machine?
"MEIYA" air source dryer uses the inverse Carnot principle to absorb the free heat in the air by inputting a small amount of
electric energy and transfer it to the drying room (inputting 1 kwh electric energy can generate 4 kwh electric energy), so as to increase the temperature of the drying room and realize the drying of materials with corresponding dehumidification equipment.
electric energy and transfer it to the drying room (inputting 1 kwh electric energy can generate 4 kwh electric energy), so as to increase the temperature of the drying room and realize the drying of materials with corresponding dehumidification equipment.

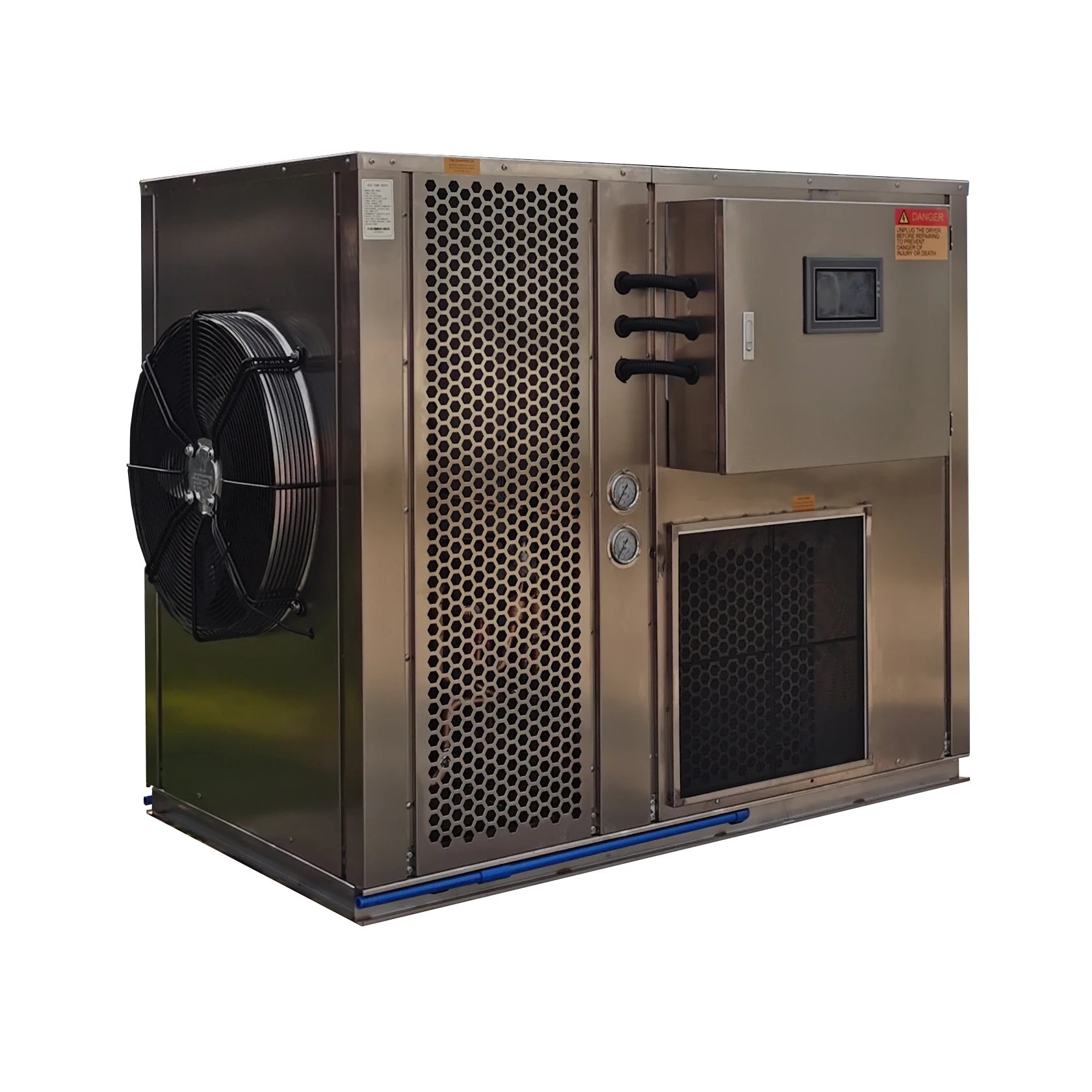

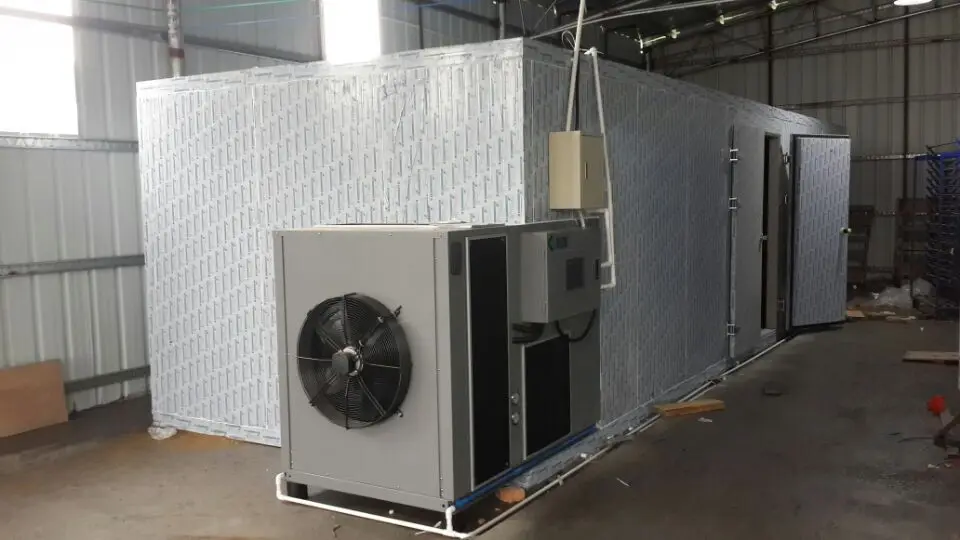

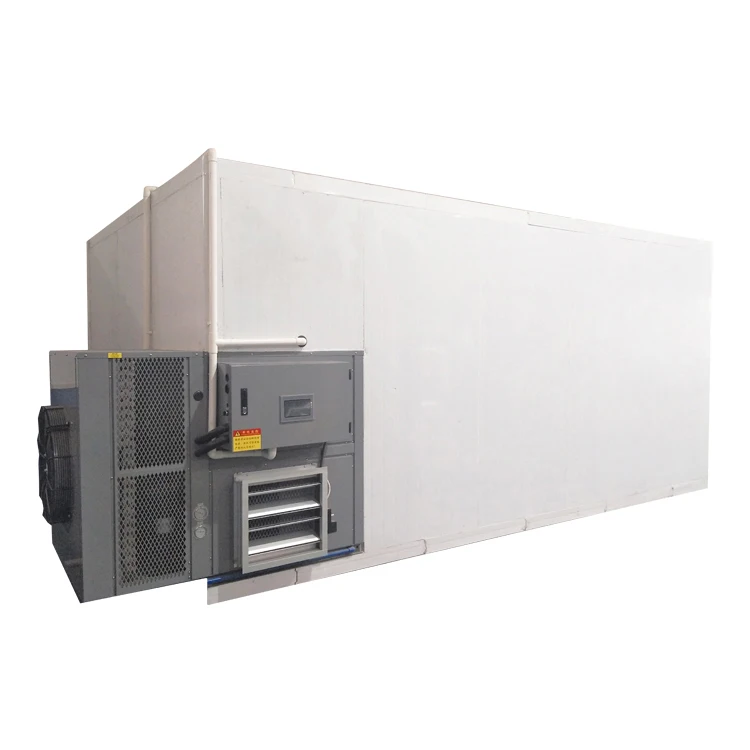

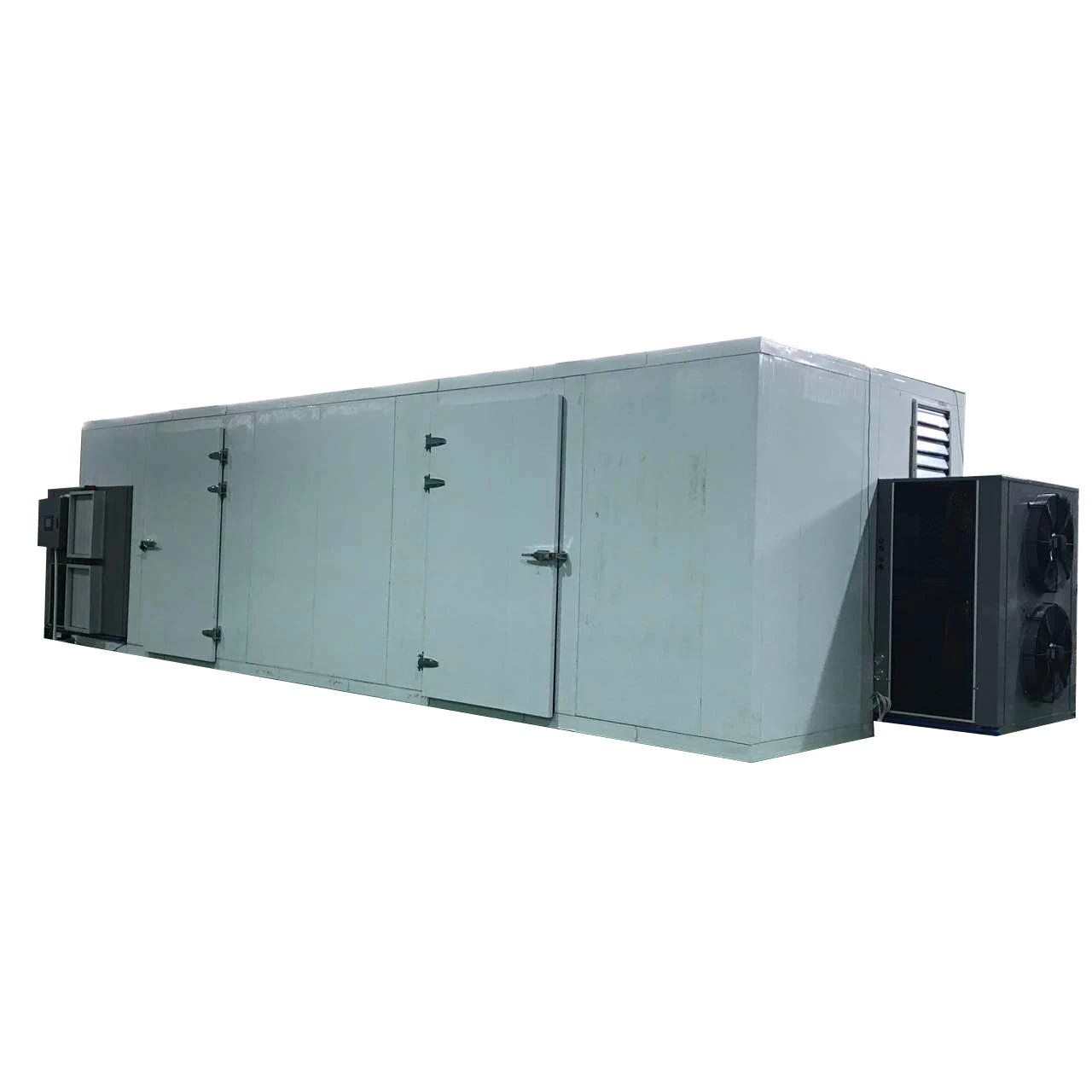

MEIYA Heat Pump Drying Machine
*Heat pump is an efficient heating device (heat energy produced/energy consumed > 100%). Heat pump dryer is an organic combination of heat pump and dryer.
*Intelligent operation requires no special person to be on duty: the intelligent touch screen microcomputer controller developed
by the sole proprietorship and consuming a lot of manpower and material resources is adopted, and the unit automatically operates without manual reaction;
*Intelligent operation requires no special person to be on duty: the intelligent touch screen microcomputer controller developed
by the sole proprietorship and consuming a lot of manpower and material resources is adopted, and the unit automatically operates without manual reaction;

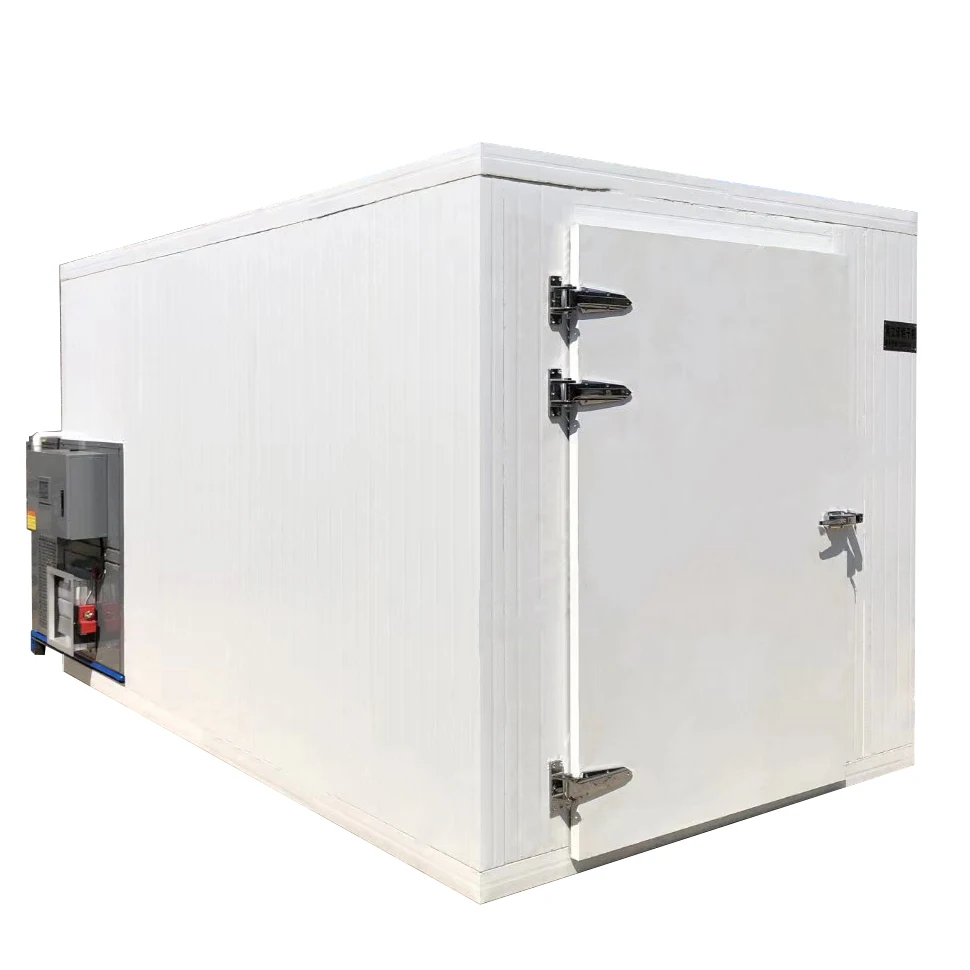

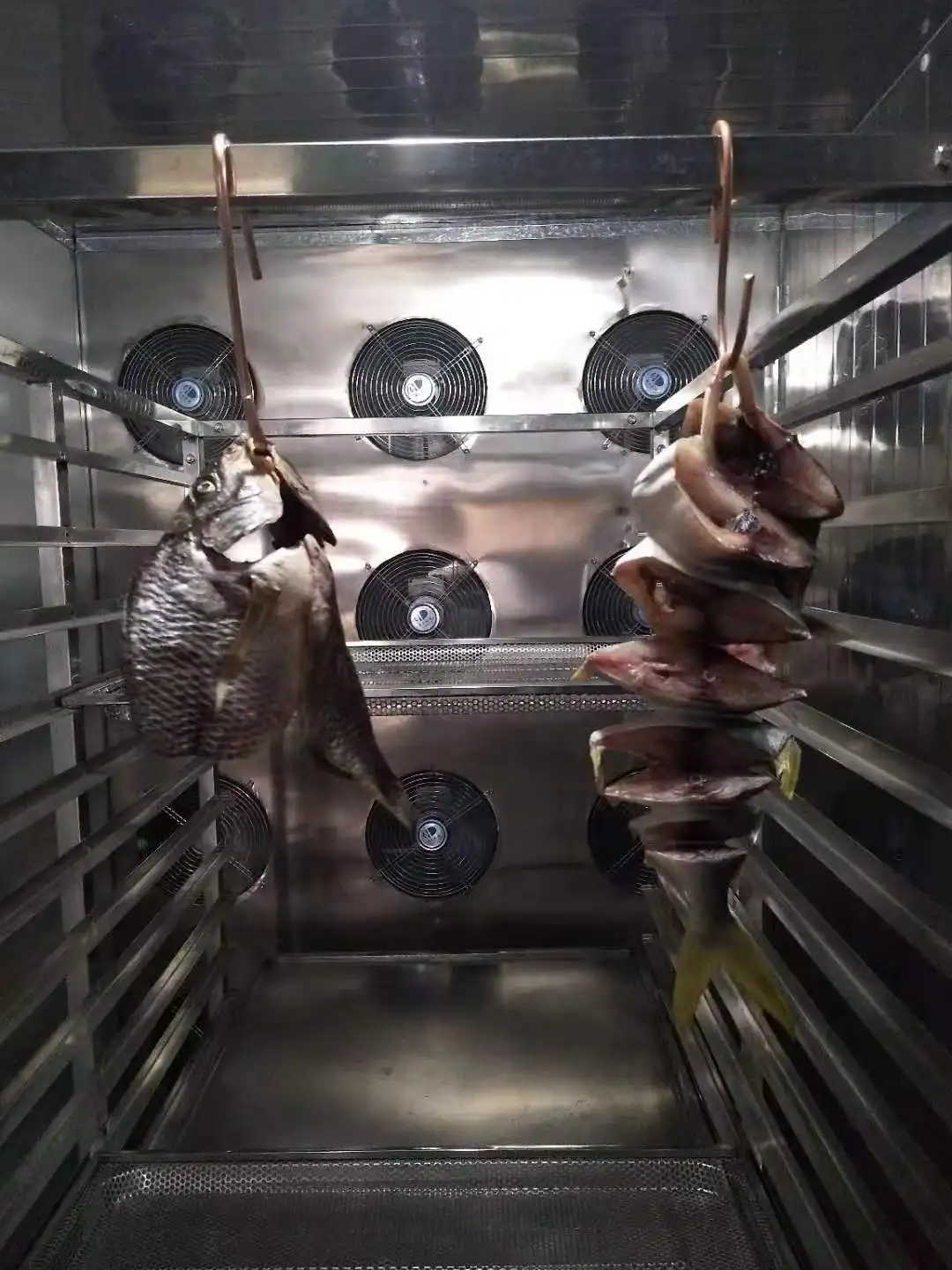

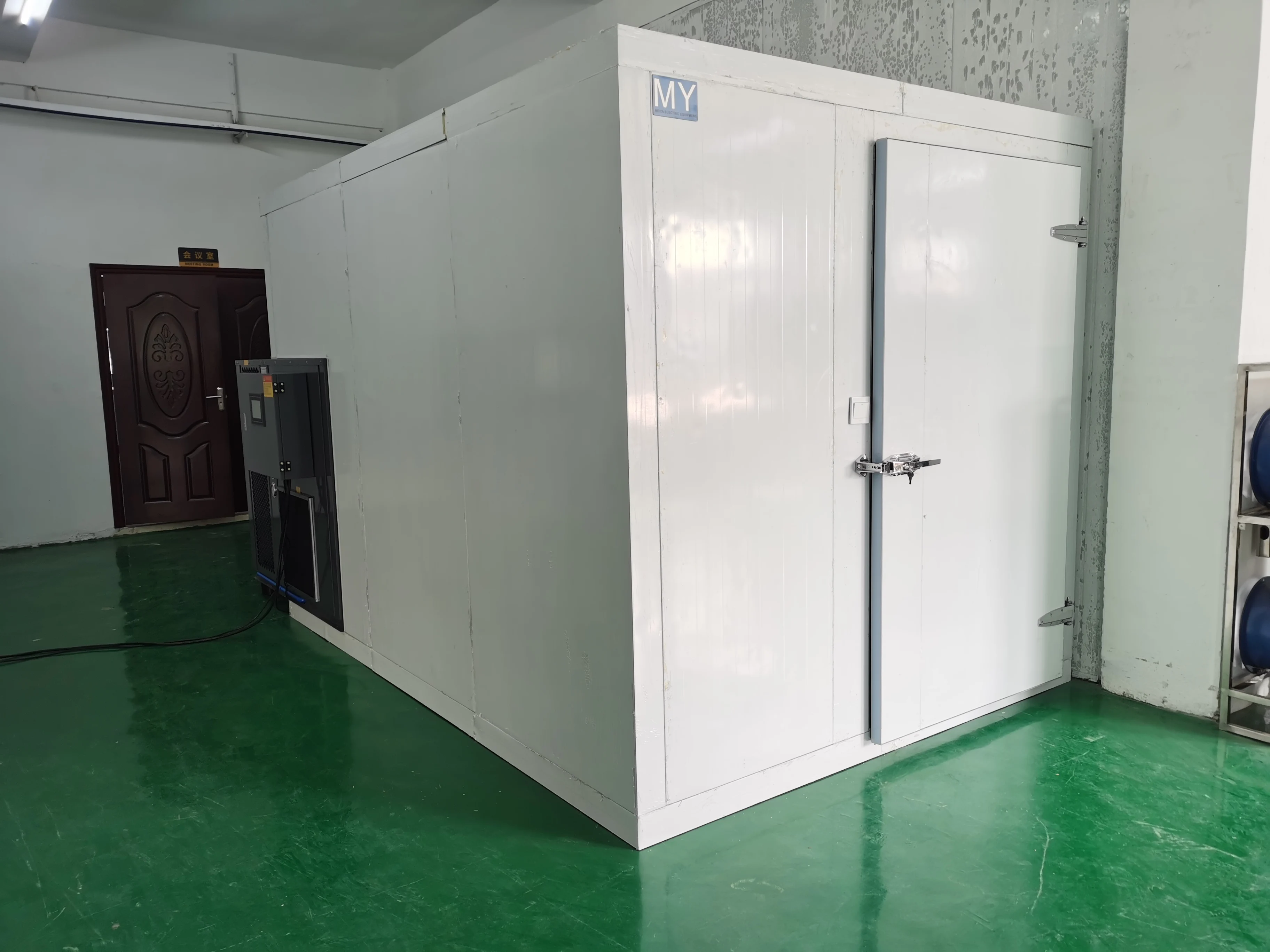

Drying room/Chamber
The equipment has a small floor area: it adopts a unique drying room design and does not need a large floor area such as sun drying, thus saving a large space rent. Only a small flat area is needed to install the whole set of MY drying equipment. High grade polyurethan-e material of 100 mm is used for effective heat preservation.

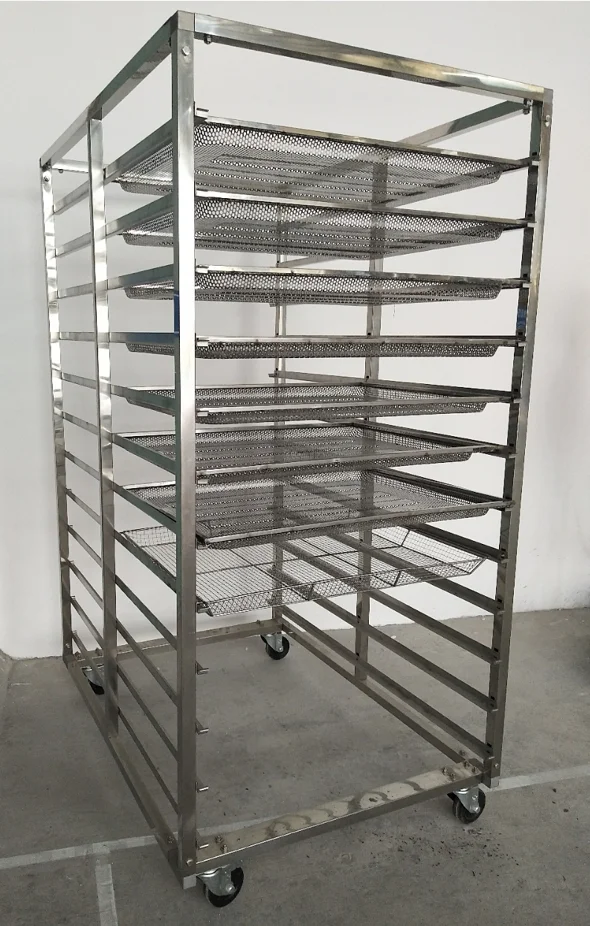

Troley and Trays
*It is made of high-grade stainless steel material and can be selected in size and model. It is widely used in food drying.

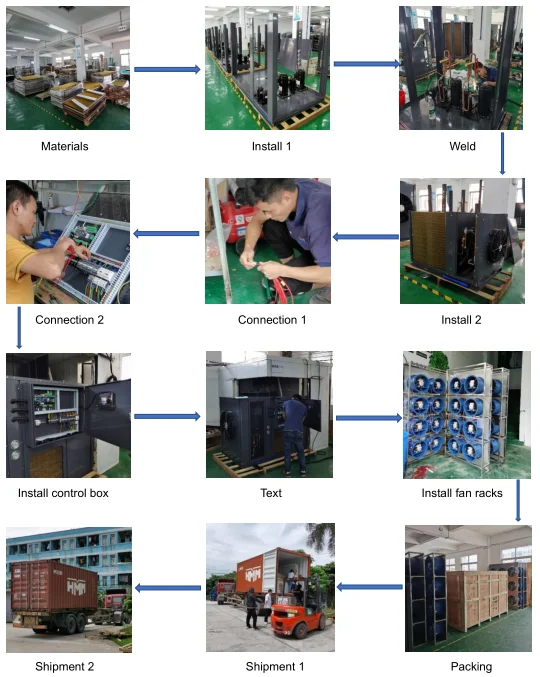

Perfect production process.
*Use is not restricted by weather: whether it is cloudy or rainy, day or night, windy or snowy, stable operation 24 hours a day.
Perfect production process.
*Use is not restricted by weather: whether it is cloudy or rainy, day or night, windy or snowy, stable operation 24 hours a day.

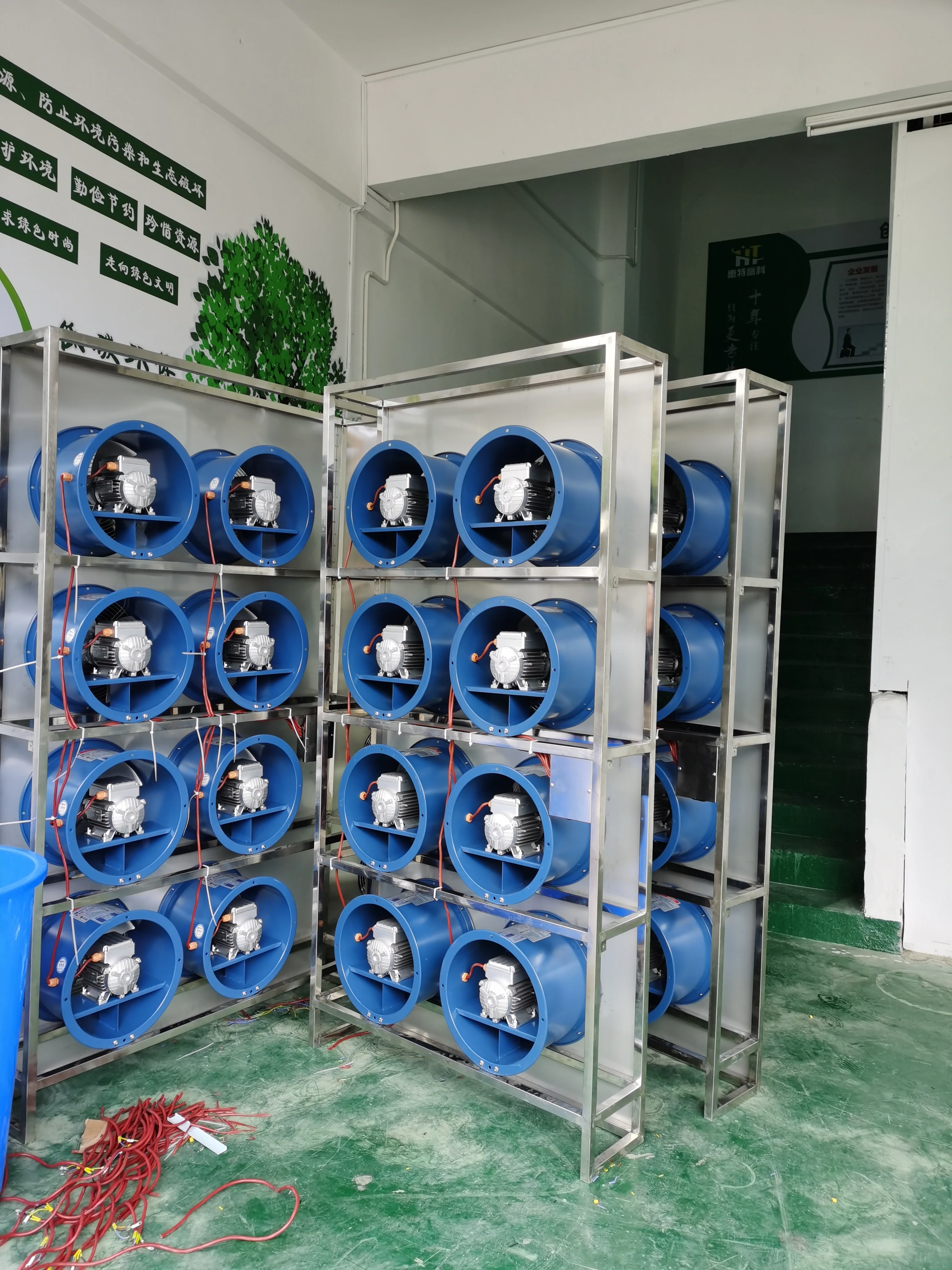

Fan rack
*Stainless steel fan rack, durable, anti-corrosion, according to the size of the drying room, the best quality to customers.
*The equipment is durable: it can be used normally for 15 years with one investment, which will produce long-term benefits.
*The equipment is durable: it can be used normally for 15 years with one investment, which will produce long-term benefits.
PRODUCT SPECIFICATIONS
Model | Power supply | Power (KW) | Heating capacity (KW) | Dehumidify capacity (L/H) | Dryer size (mm) | Drying chamber size(mm) |
MY-03RD | 220V,1PH,50/60HZ 380V,3PH,50/60HZ | 5.5 | 10.5 | 12.0 | 1650*856*1280 | 3800*2190*2200 |
MY-06RD | 380V,3PH,50/60HZ | 5.5 | 21.0 | 25.0 | 1650*1056*1280 | 6150*2190*2200 |
MY-12RD | 19.4 | 42.0 | 50.0 | 2089*1260*1580 | 6350*3230*2200 | |
MY-15RD | 21.8 | 50.0 | 60.0 | 2089*1260*1580 | 6350*4670*2200 | |
Double MY-03RD | 11.0 | 21.0 | 24.0 | 1650*856*1280 | 7050*2190*2200 | |
Double MY-06RD | 19.8 | 42.0 | 50.0 | 1650*1056*1280 | 10100*2190*2200 | |
Double MY-12RD | 32.8 | 84.0 | 100.0 | 2089*1260*1580 | 11860*3230*2200 | |
Double MY-15RD | 43.6 | 100.0 | 120.0 | 2089*1260*1580 | 13930*4670*2200 |

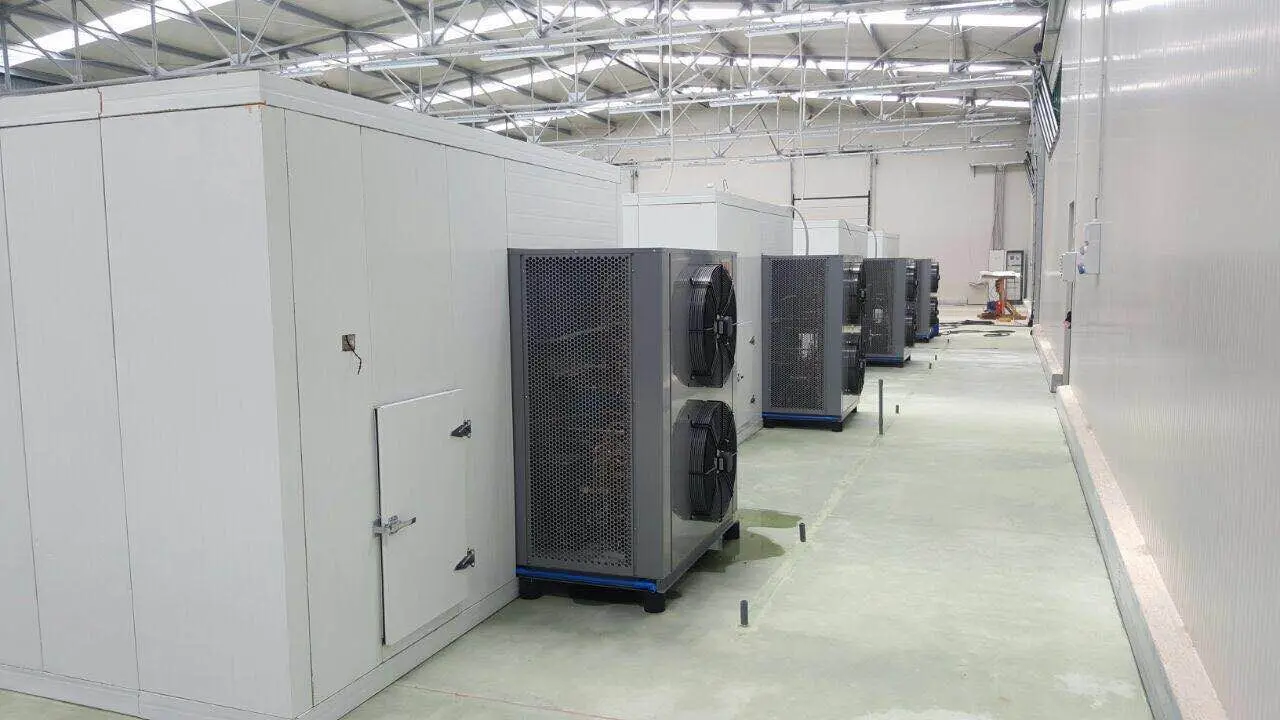

Successful Project
Project in Thailand
Project in India
Project in Russia

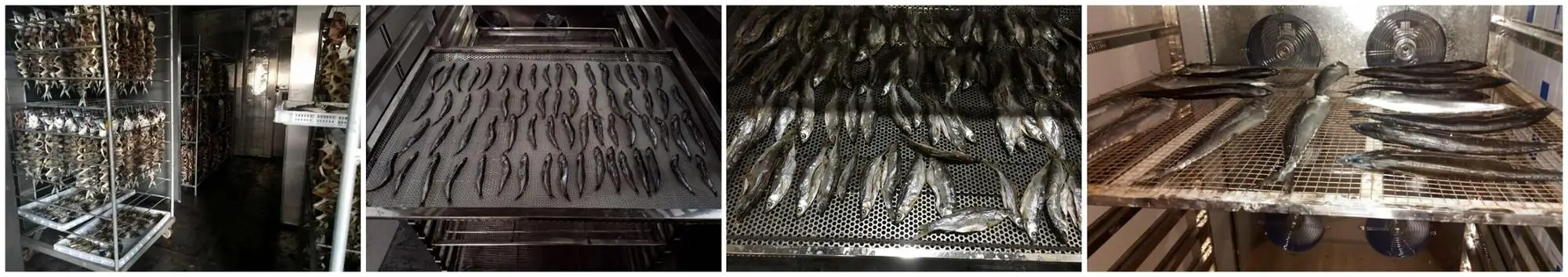

How to dry fish?
Preparation: As the water content and oil content of fish are relatively large, the first stage of drying adopts low-temperature drying, the temperature design is about 25- 30℃, the drying time is 8 hours, the humidity is controlled at 40%.
Temperature control: The second stage of drying temperature is 35-40℃, the drying time is continued for 8 hours, and the humidity is controlled at 15%. The early temperature shall not be too high since the high temperature has a negative impact on drying quality.
Humanity control: After drying for 16-25 hours, the dried fish is finished. Fish contain a lot of water, but also fat and grease, so it is very hard to remove water from them. Therefore, control over the speed of dehydration is of importance. Be ventilated well in the drying process to prevent water vapor from staying on the surface of casings.

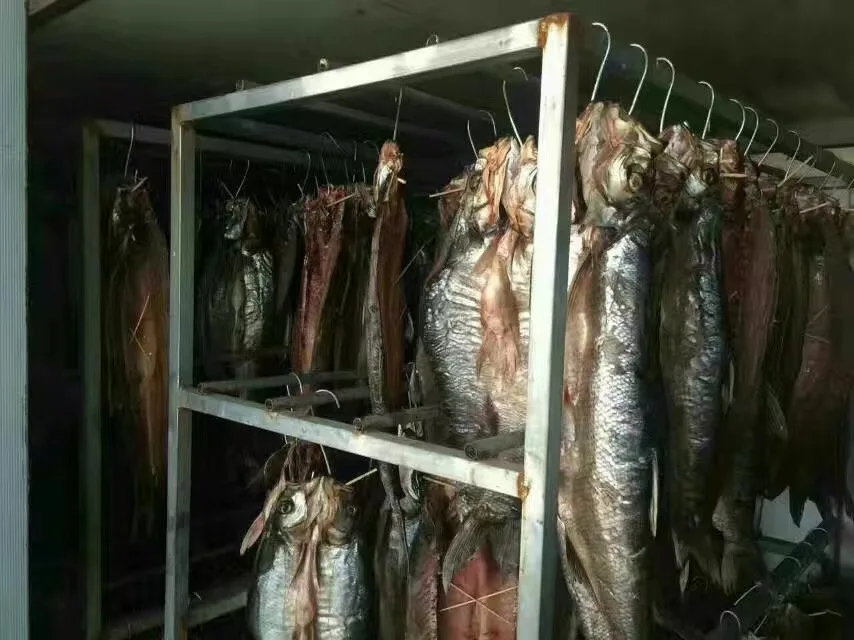

Customer Photos

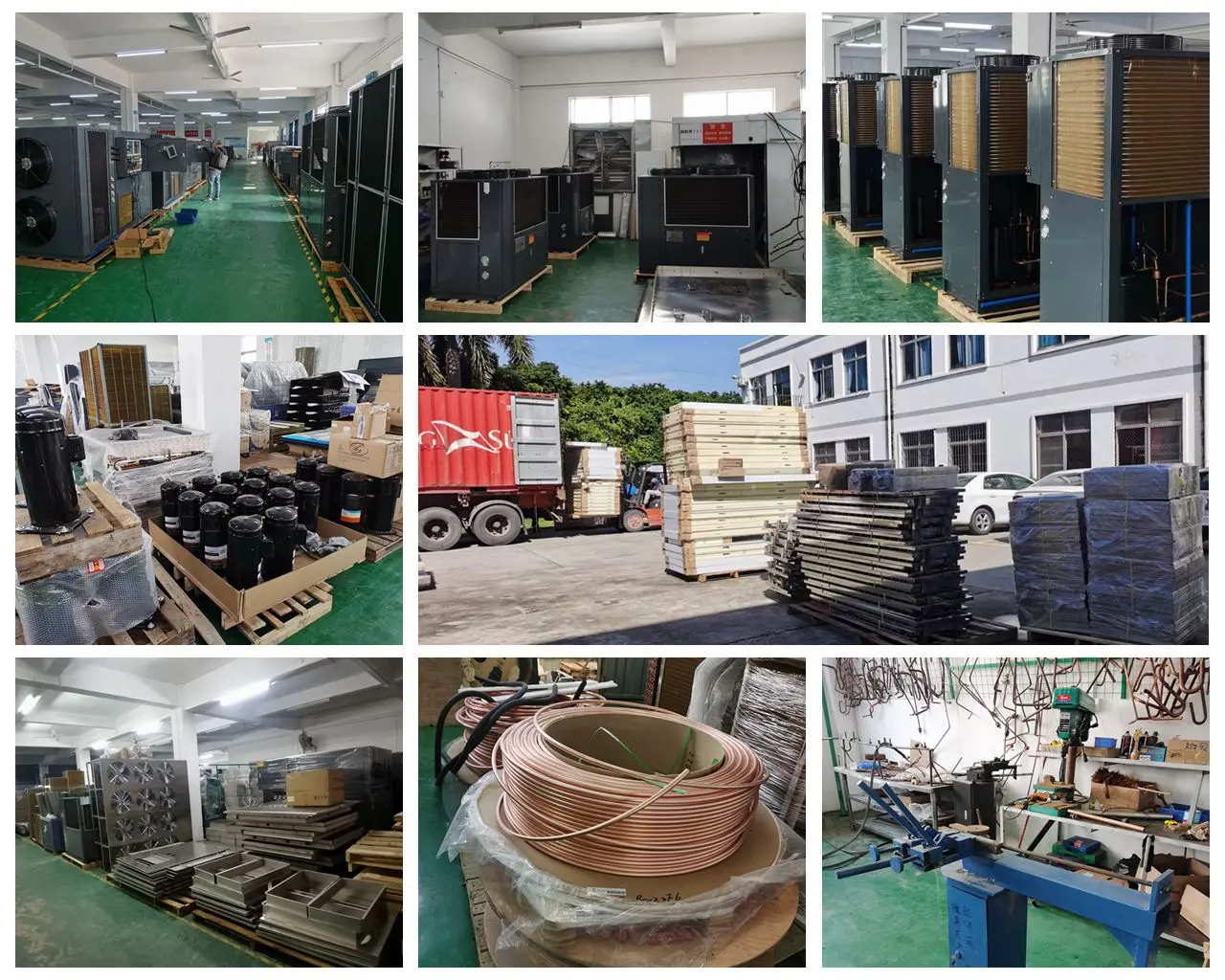

About us
Drying purpose
The purpose of drying is to remove moisture or solvent in materials and semi-finished products, so as to facilitate the
packaging, transportation, storage, processing and use of materials, improve the quality of raw materials, and make the raw materials have more quality advantages than the original drying methods.
packaging, transportation, storage, processing and use of materials, improve the quality of raw materials, and make the raw materials have more quality advantages than the original drying methods.
1. To save labor costs for the purpose. Meiya heat pump dryer does not need to be on duty, which saves the labor of the original drying mode and improves the output.
2. In order to improve the quality of drying raw materials. Meiya heat pump dryer uses closed air to dry materials through 360 degree thermal cycle, which provides high help for the quality assurance of raw materials, and makes the quality of materials reach a higher level and has more advantages in the market.
3. For the purpose of convenient storage. The materials dried by magnesium sub heat pump dryer are easier to store and have longer storage time than the raw materials.
4. In order to maintain the content of material composition. The use of materials that are not dried by heat pump dryer can keep the original ingredients of materials from being lost to the greatest extent and lock the nutrients of materials, which is more suitable for people's health and health preservation in modern society.
5. In order to facilitate processing. Some agricultural and sideline products, medicinal materials, chemical raw materials, etc., need to be crushed to a certain size range and moisture content for processing and use. Such as coconut powder, garlic powder, spice powder, medicinal powder, grain, etc. are dried before processing.
6. In order to create profits. The use of magnesium sub heat pump dryer can save costs for enterprises, improve product quality and output, and create higher benefits.
2. In order to improve the quality of drying raw materials. Meiya heat pump dryer uses closed air to dry materials through 360 degree thermal cycle, which provides high help for the quality assurance of raw materials, and makes the quality of materials reach a higher level and has more advantages in the market.
3. For the purpose of convenient storage. The materials dried by magnesium sub heat pump dryer are easier to store and have longer storage time than the raw materials.
4. In order to maintain the content of material composition. The use of materials that are not dried by heat pump dryer can keep the original ingredients of materials from being lost to the greatest extent and lock the nutrients of materials, which is more suitable for people's health and health preservation in modern society.
5. In order to facilitate processing. Some agricultural and sideline products, medicinal materials, chemical raw materials, etc., need to be crushed to a certain size range and moisture content for processing and use. Such as coconut powder, garlic powder, spice powder, medicinal powder, grain, etc. are dried before processing.
6. In order to create profits. The use of magnesium sub heat pump dryer can save costs for enterprises, improve product quality and output, and create higher benefits.

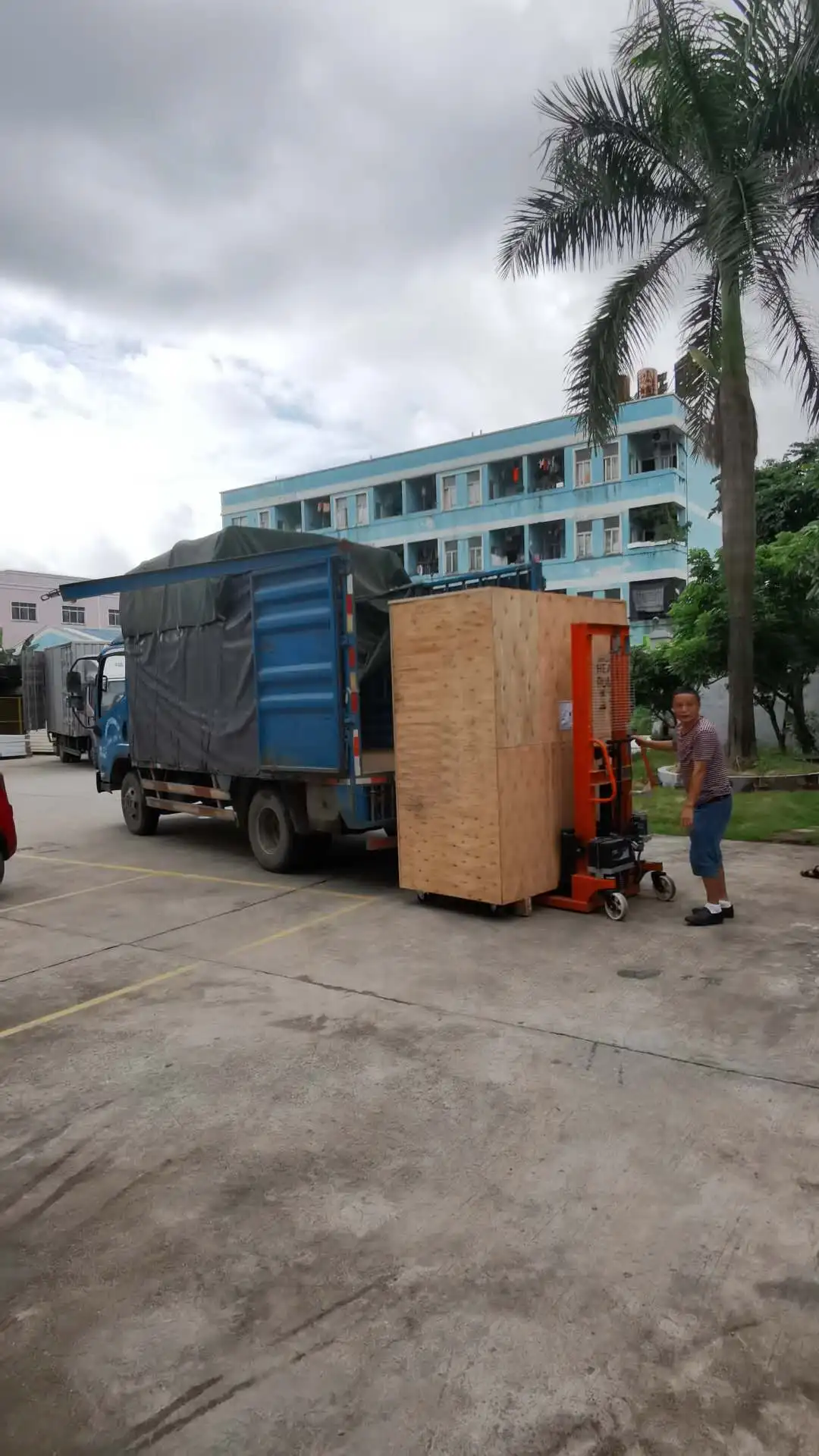

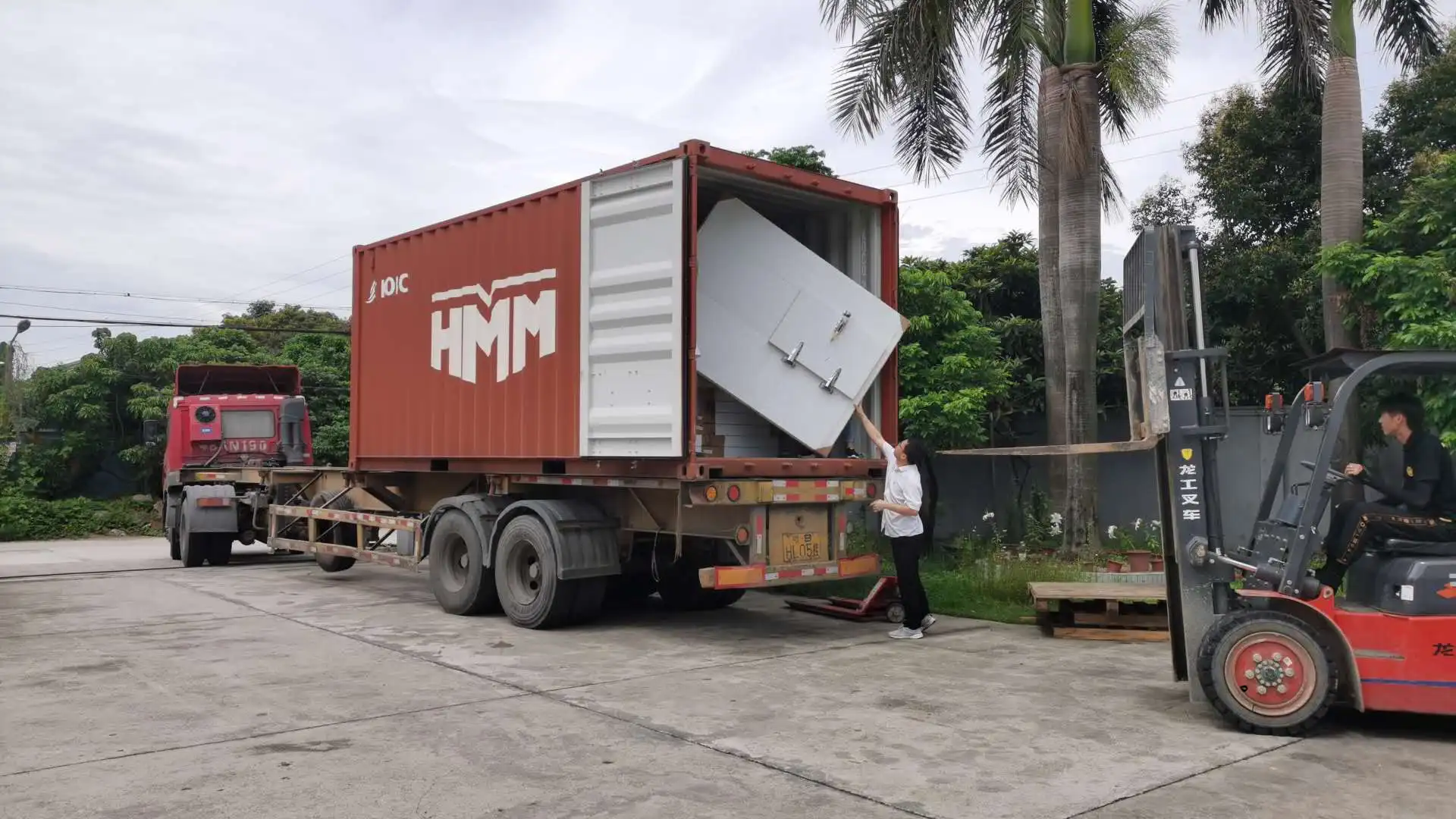

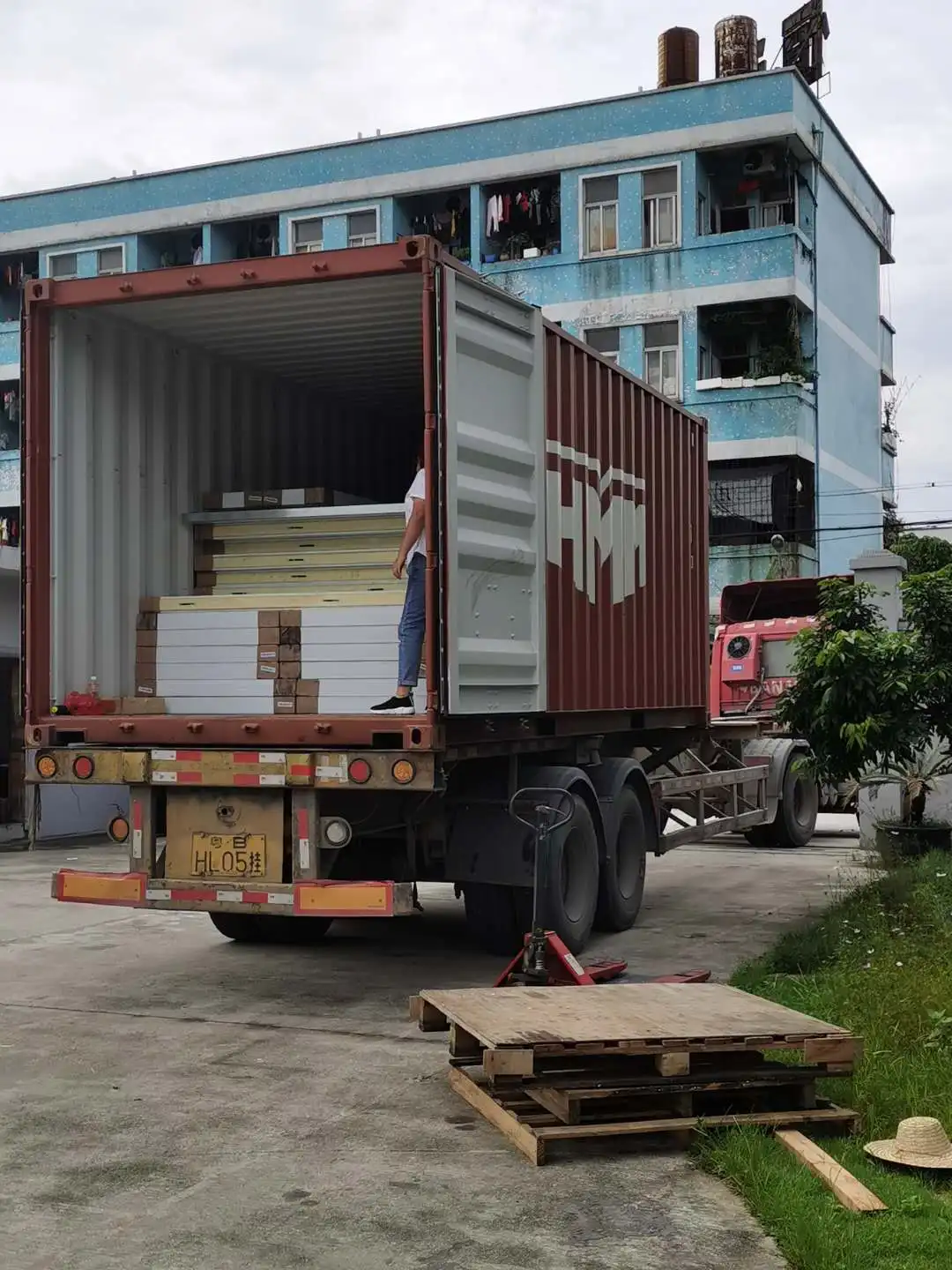

Shipping
Delivery | ||
Size | 5.89m(L)*2.33m(W)*2.38m(D) | |
Weight | 3T | |
Packaging Details | The normal package is plywood box (Size:L*W*H). If export to european countries, the plywood box will be fumigated. If container is too tigher, we will use pe film for packing or pack it according to customers special request. | |
Packing | ||
Size | 12.045m(L)*2.340m(W)*2.379m(D) | |
Weight | 5T | |
Packaging Details | The normal package is plywood box (Size:L*W*H). If export to european countries, the plywood box will be fumigat-ed. If container is too tigher, we will use pe film for packing or pack it according to customers special request. | |
SIMILAR PRODUCTS
Why Choose Us
Our Advantages
1. Use is not restricted by weather: whether it is cloudy or rainy, day or night, windy or snowy, stable operation 24 hours a day.
2. Energy Saving.
2. Energy Saving.
3. Good drying effect and even drying: the finished product after drying has very good color, aroma, taste and individual shape.
4. The equipment has a small floor area.
5. Intelligent operation requires no special person to be on duty.
6. Safety.
7. Environmental protection.
8. High utilization rate of heat energy.
9. Simple operation and maintenance.
10. Powerful functions.
11. The equipment is durable.
FAQ
Q1：Does the MEIYA drying machine running by Gas or electricity or Diesel?
A1：Electricity only but can be connected to solar energy, diesel generator.
Q2：Can the drying room be customized?
A2：Yes.
Q3：What is the material of drying machine cover ?
A3：We can do SS304# or coat steel, sure,difference material with different price.
Q4：What should I do if I am interested in your drying machine?
A4：Thanks very much for your attention. Please don't hesitate to contact us by mail or by phone, telling us which one model, how many sets, drying capacity, and special requirements etc.
Q5：Could you give me your catalogue?
A5：Yes, you can download it on website or send us email,we will send you asap.
Q2：Can the drying room be customized?
A2：Yes.
Q3：What is the material of drying machine cover ?
A3：We can do SS304# or coat steel, sure,difference material with different price.
Q4：What should I do if I am interested in your drying machine?
A4：Thanks very much for your attention. Please don't hesitate to contact us by mail or by phone, telling us which one model, how many sets, drying capacity, and special requirements etc.
Q5：Could you give me your catalogue?
A5：Yes, you can download it on website or send us email,we will send you asap.
Our Services
1. OEM service
2. Supply spare parts according to order quantity.
3. Technical support for your installation, operation and maintenance.
4. One year's warranty, and you can pay for extended warranty.
5. Spare parts and technical support at most economic prices after the warranty.
