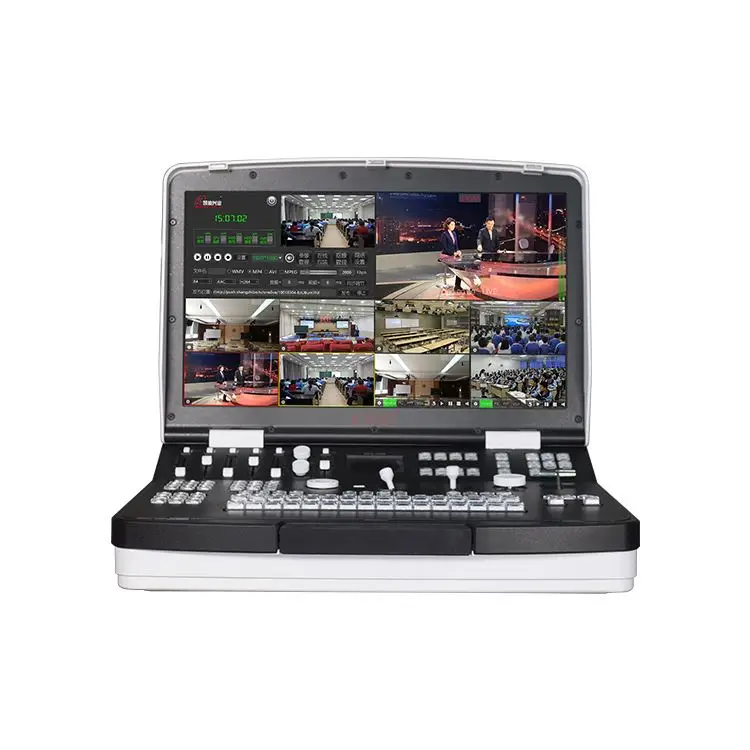

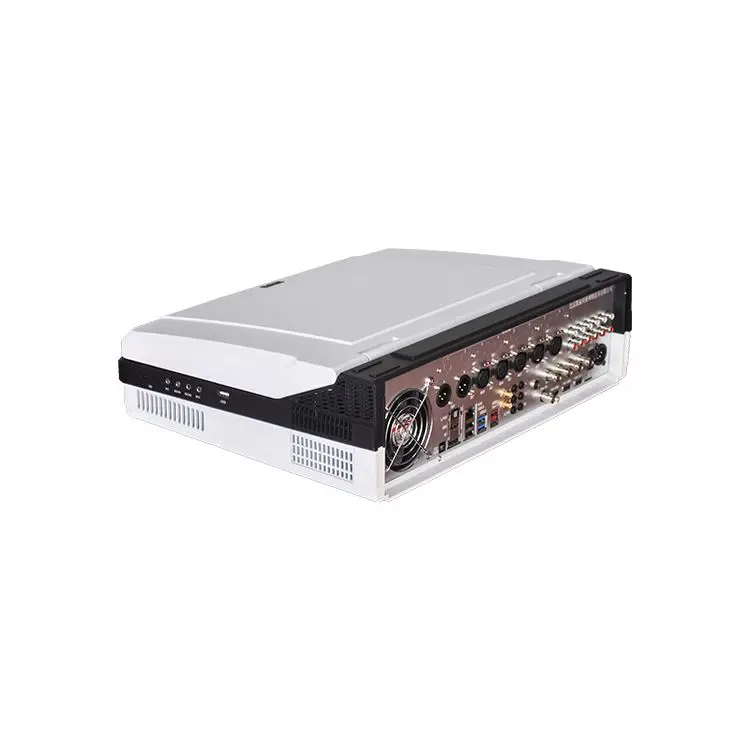

Best sale casting video equipment station cameras live cast

Product Overview

Description

1. Video processing: SDI+NDI+Stream+DDR file, mixed switching station;

2, Audio processing: digital mixer + analog mixer + audio hardware delay device;

3, Recording: HD video MPEg2-HL +MP4+ built-in hardware recording unit (backup);

4. Live broadcast: HTTP, RTMP;

5, Support wireless NDI HX,Stream;

6. Guide calls and TALLY;

Alpha online packaging system, virtual keying system, audio and video editing system;

8, 64-bit kernel, 4K encoding;

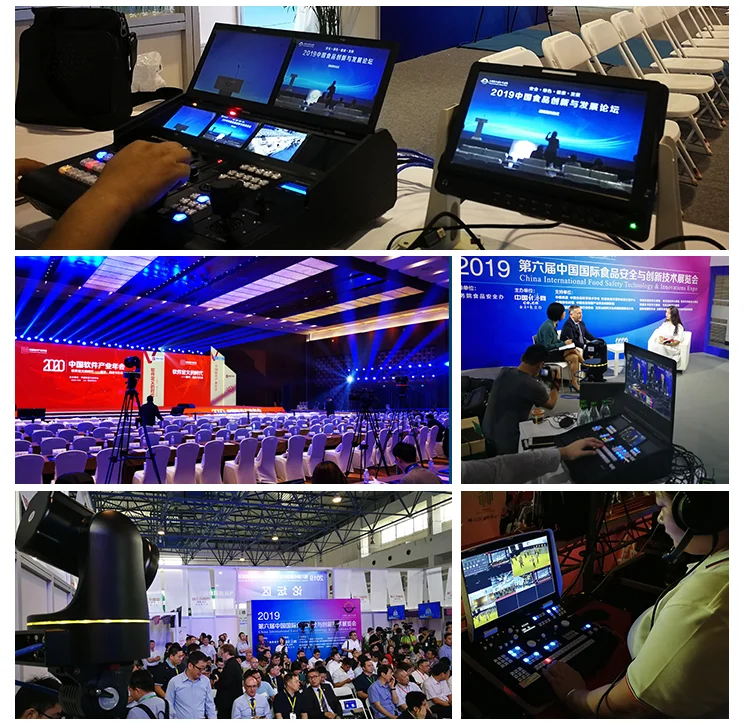

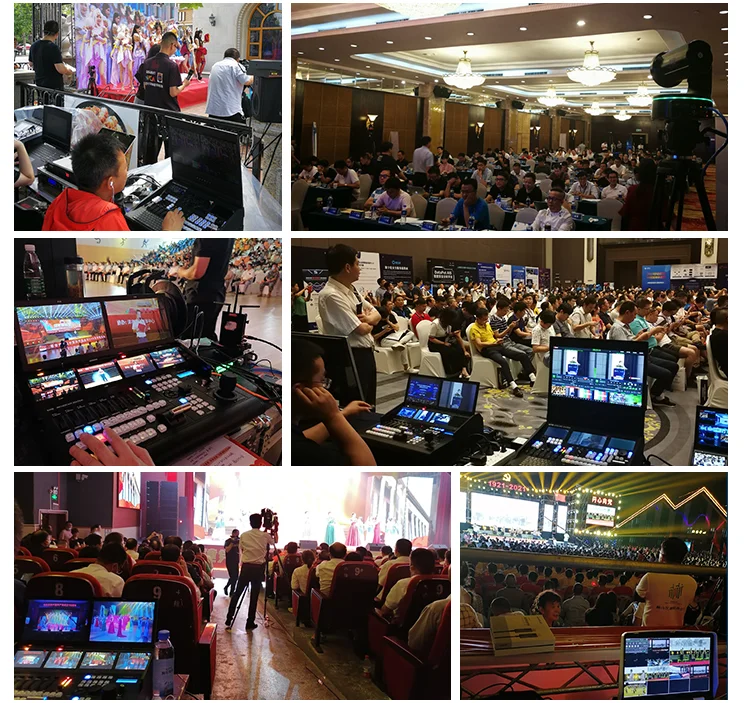

9, Application: studio, education recording, media live broadcast, all kinds of meetings and activities live broadcast;

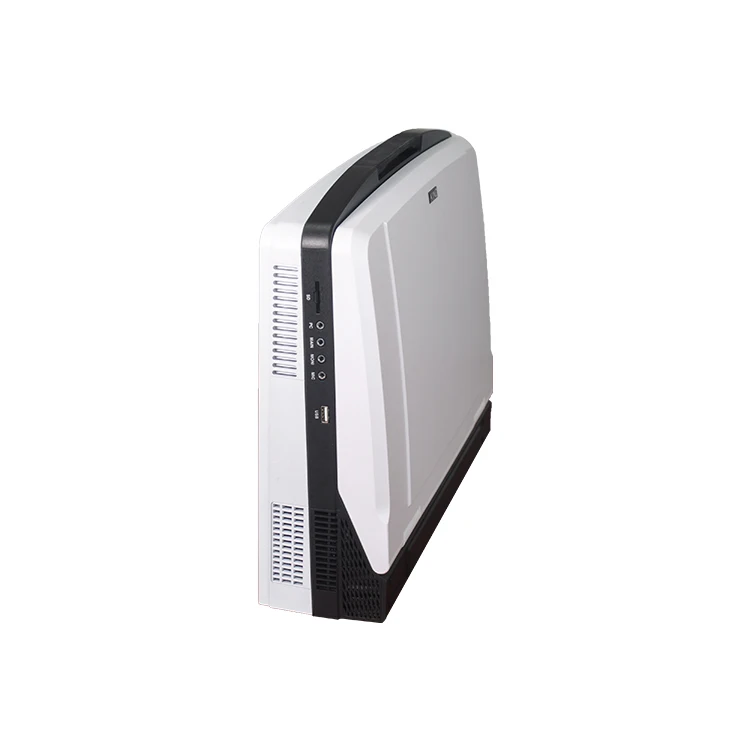

10, Size: 425mm340mm×120mm, weight: about 5kg;

Product specification sheet

Product technical parameters

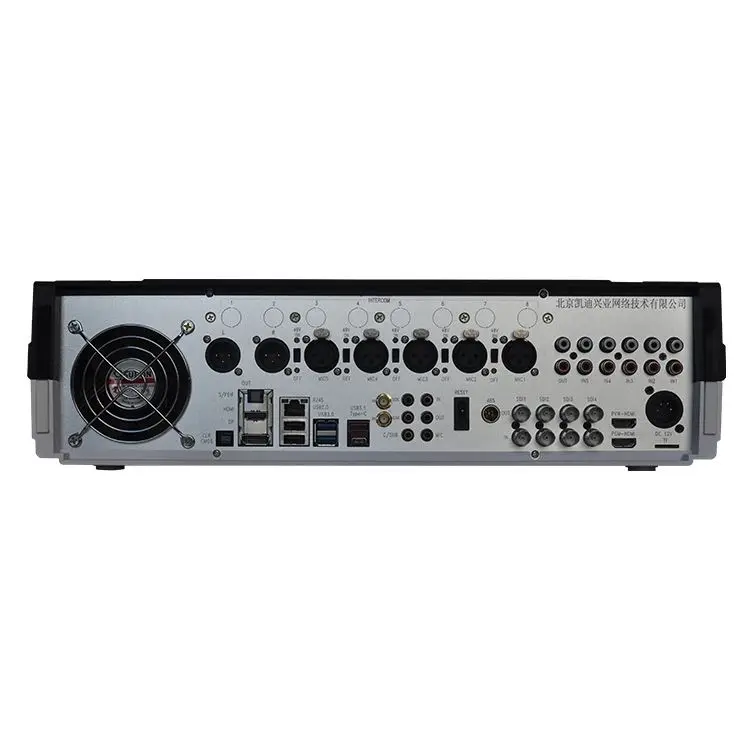

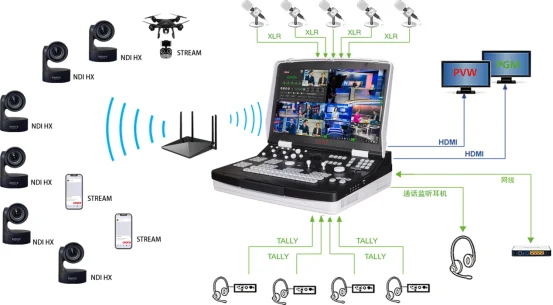

1, video input: SDI×4, HDMI×1, NDI×6, Stream×6, output: SDI×1, NDI×1, HDMI×2;

2. Built-in 16-channel HD mixed stunt station, broadcasting grade switch T-type push rod;

3, 4K mixed core, full digital IP Video processing, SDI, HDMI, NDI, Stream, local material DDR (picture, Video, PPT, playback, etc.) switch, hardware rotation encoder control DDR pause, forward and backward selection of player point and control playback, support broadcast wireless NDI and Stream access,  Support push flow and pull flow mode;

4, audio input: stereo (LEFT, RIGHT) IN×5;  Professional microphone (48V) XLR IN×5;  Stereo (LEFT, RIGHT) OUT×1;  Balanced output XLR OUT×2;  Main output monitoring 3.5×1;  Play monitoring 3.5×1;  MIC 3.5×2;

5, the built-in digital mixer + analog mixer, and embedded audio and embedded solution, realizes the digital and analog audio audio mixing, digital audio, analog stereo x 5 x5, mike XLR x5 tuning external input audio mixing, the modulated audio additive for HDMI output, at the same time can be separated into stereo output, built-in 48 v phantom power supply,  Stereo ×1 output, broadcast monitoring 3.5×1, broadcast monitoring 3.5×1, guide talk headset 3.5×1;

6. Built-in hardware audio delay device, audio processing by hardware encoder, and accurate synchronization between audio and video;

7, camera PTZ control, built-in hardware rocker controller and broadcast class hall zoom controller, control 8 cameras push, pull, shake, tilt, tilt;  8 groups of camera selection keys, 9 groups of preset shortcut keys and camera menu setting shortcut keys;

TALLY: Built-in 8-channel call guide system and 8-channel alert system

9. Built-in CG-Alaph subtitle and online packaging system, realizing more than ten layers of Alaph dynamic subtitle, Angle mark and platform mark, etc. 3d objects and light effect, dynamic material, DVE direct video, video material and other ways to achieve an all-round visual packaging of live programming;

10. Built-in image keying system, virtual image keying effect can be adjusted by hardware rotary encoder, and the virtual composite image can be used as a signal source to switch with other signals and files through t-type damping switch push rod;

11, built-in video coding system, can record constant frame constant code MP4, MPEG2 broadcast hd video files, built-in streaming media WMV9, H.264 coding system, built-in dual-code stream recording and live broadcasting system, built-in WMS and FMS release system and provide FMS audio and picture synchronization adjustment;

12. Built-in broadcast grade nonlinear editing system;

13, 64 bit coding system, 4K coding core, I9 above CPU, 16G memory, 1TM.2 hard disk, 4G alone display,17.3 inch display portable acquisition and recording all-in-one machine;

16, WIN10 operating system;

17. The volume and weight of the equipment shall meet the standards of cabin baggage carrying in domestic airlines.

Beijing kind Network Technology Co., Ltd., formerly known as Beijing Kaidi Electronic Engineering Co., Ltd., was established in 1991. Its registered address is located in the core area of Zhongguancun, Beijing. It is one of the earliest Zhongguancun technology companies. In 2000, it was renamed as Beijing kind Network Technology. Co., Ltd.

After more than 20 years efforts, the company has its market position. At the same time, it has continuously developed new products, expanded new markets. The quality, performance, and technological content of the company's products are now at the forefront of the industry, with strong market competitiveness. The Company currently has 14 software copyright registration certificates, 7 software product registration certificates, 3 registered trademarks, and has obtained a number of utility model patent certificates, appearance design patent certificates, software product enterprise certificates, and ISO9001 quality system certification certificates. , ISO14001 Environmental Management System Certification, Occupational Health and Safety Management System Certification, National 3C Certification, Central Audio-visual Education Center "Digital Campus Comprehensive Solution" physical inspection certificate and many other qualifications. To

Now we holds the trademark "Kaidi Industrial", "KIND", "KINIVE", and its leading products include "LIVECAST STATION", "LIVEVR STATION" LIVECAM STATION"BROADCAST STATION, and formed many subsidiary products around the three system products, a large number of supporting software products and complete application system solutions. The company’s products have won the bid for the Central Government Procurement Network Government Centralized Procurement Agreement supply project and are listed as a supplier of the Central Government Procurement Agreement.

product quality and after-sales service regard as the foundation of the company's life.

We abide to the principle of "technological innovation, loyal service, and trust worthiness". With good technical advantages, standardized management, professional and meticulous service, and a vigorous team, it has won a good reputation in the industry and its customers have covered schools. , Media, government agencies, national enterprises and institutions, hospitals, troops, electric power and other industries.
