For harsh conditions wire control 400mm stroke hydraulic actuator for electric tricycle

Product Overview

Description

For harsh conditions wire control 400mm stroke hydraulic actuator for electric tricycle



Description

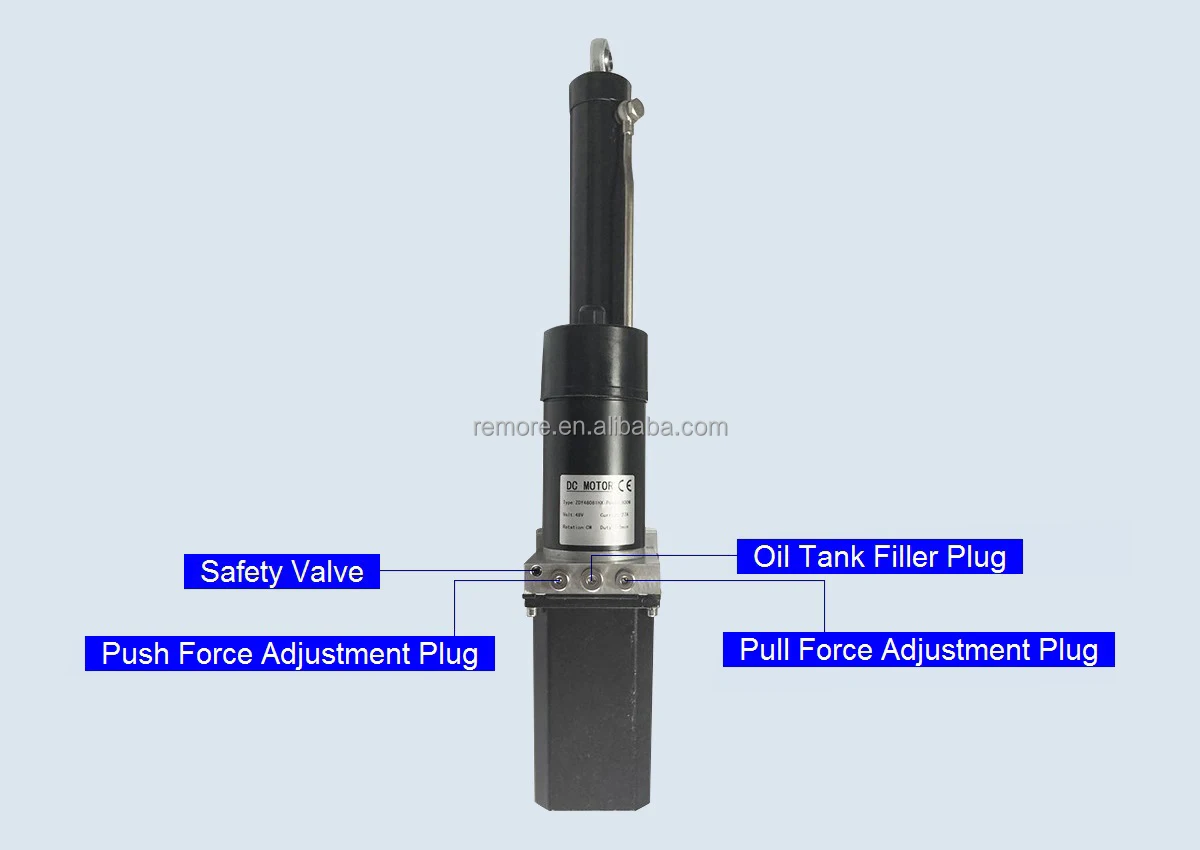

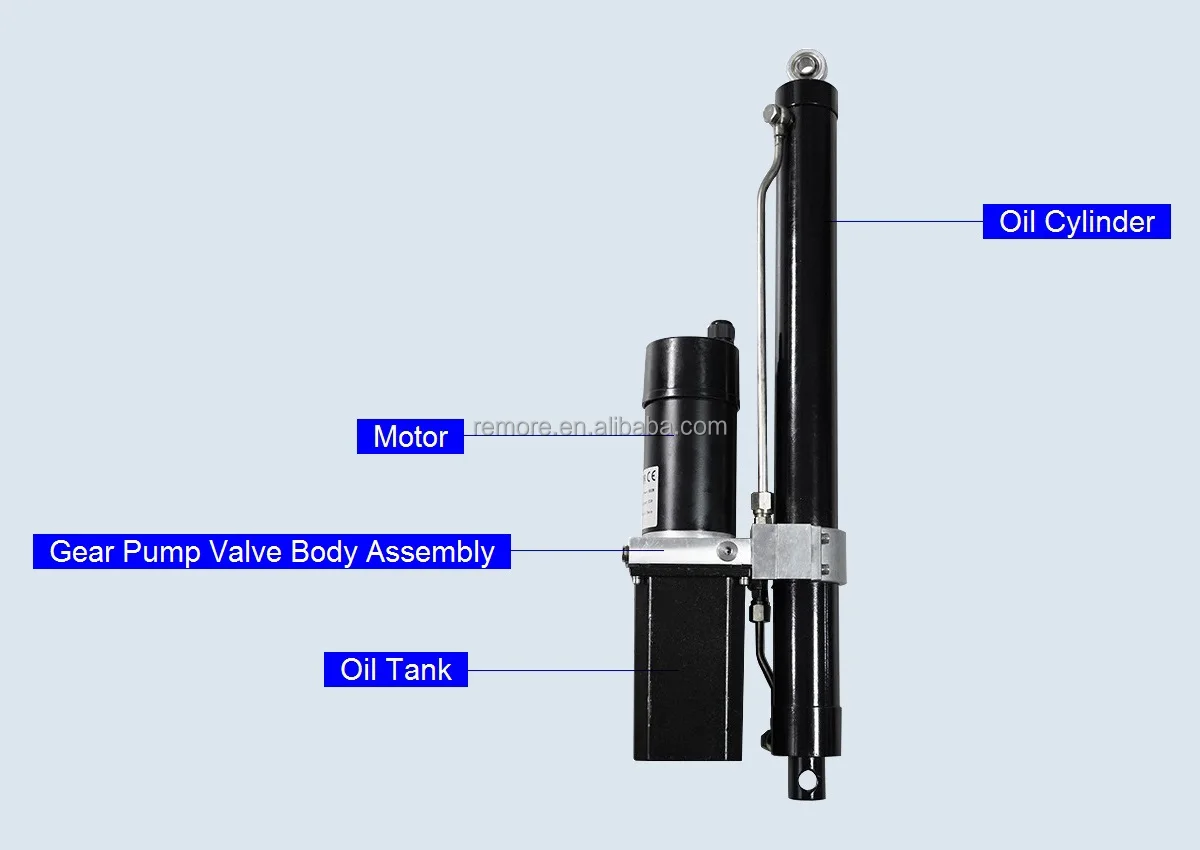

Remore’s electric-hydraulic actuator REH40S has compact structure, heavy load and stable performance. Besides, compared with traditional hydraulic actuators, it’s much easier to operate: just connect to the power and you can use it. So, it is widely used for e-tricycle, lifting platform, industrial equipment, agricultural machine and other heavy load harsh conditions.





Specification



Model No.	REH40S
Voltage	24V/48V DC
Power	800W
Stroke	50-1000mm Customized
Push Load Capacity	20000N
Pull Load Capacity	13000N
Speed	16~18mm/s, 25~27mm/s, 36~38mm/s
Frequency	Max. 6min Continuous Operation
Protection Class	IP54
Operation Temperature	-30~70℃

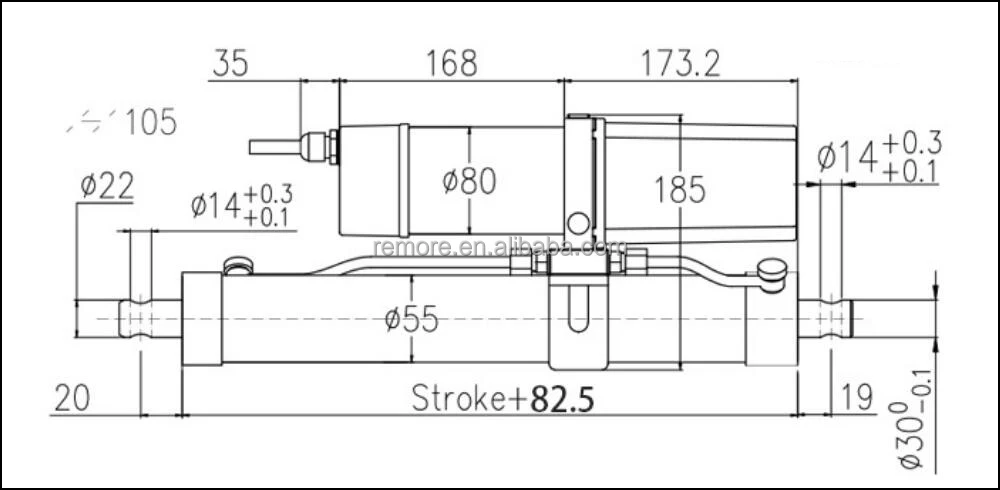

Drawing and Dimension

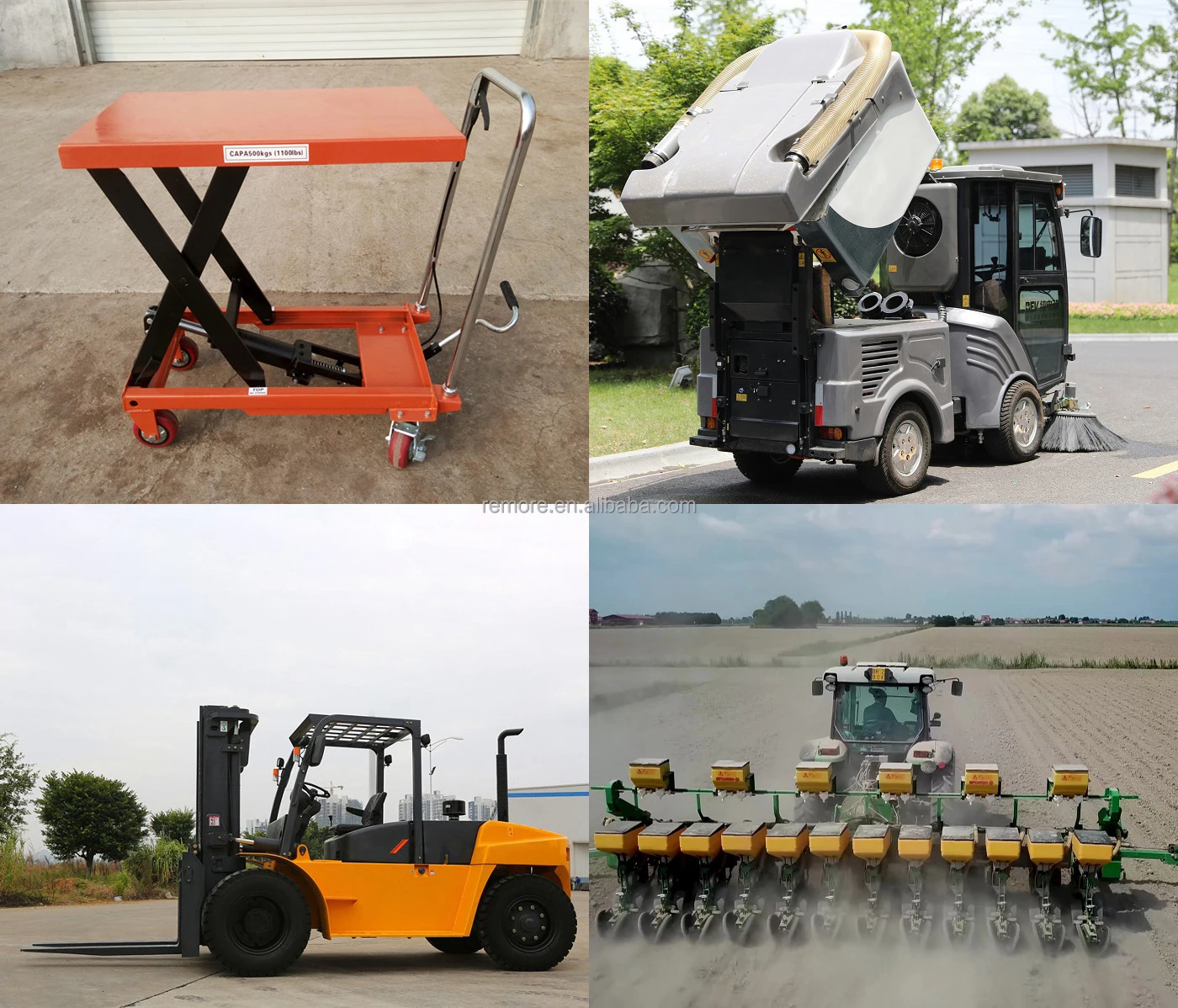

Applications







You May Also Like

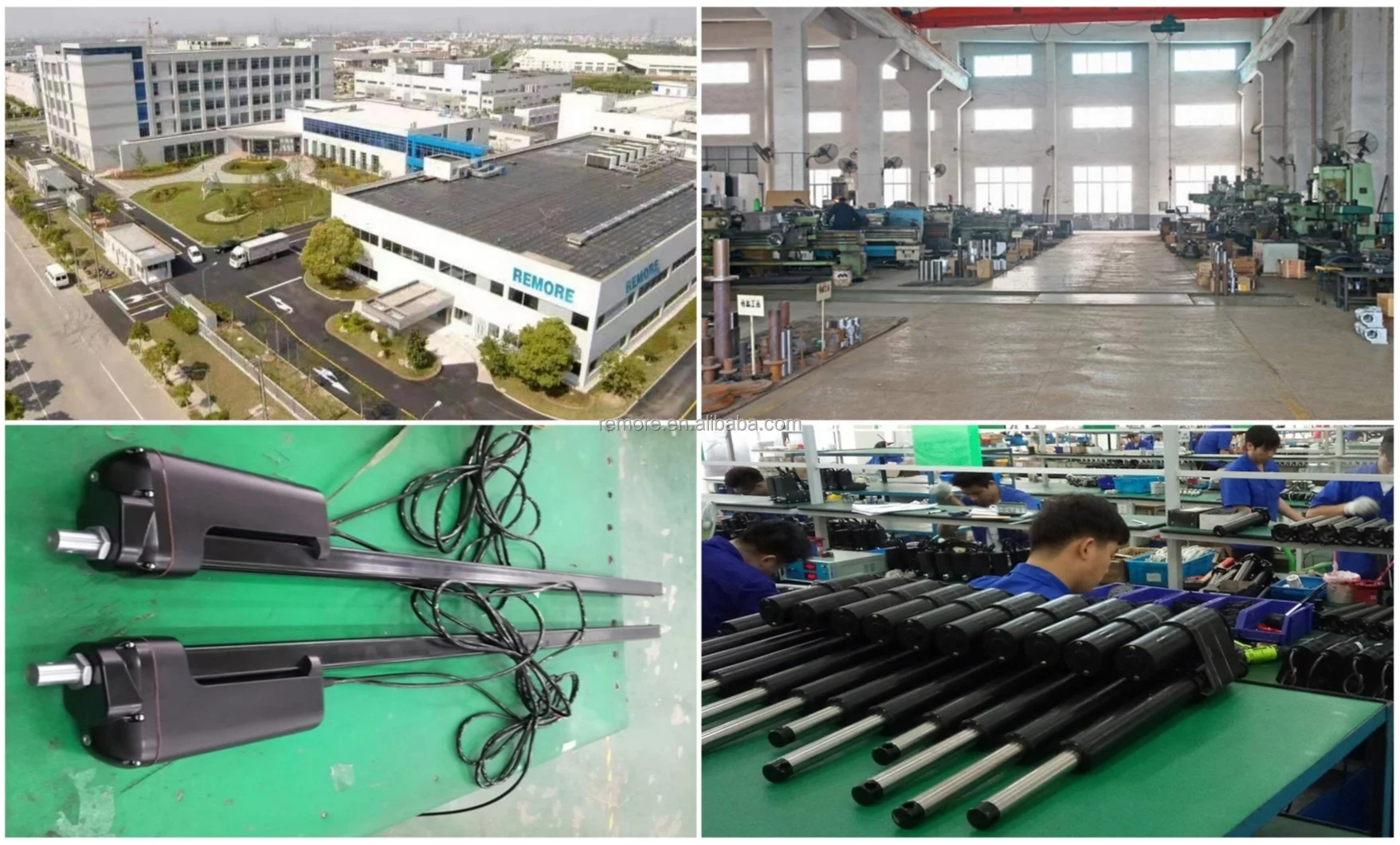

Our Company
