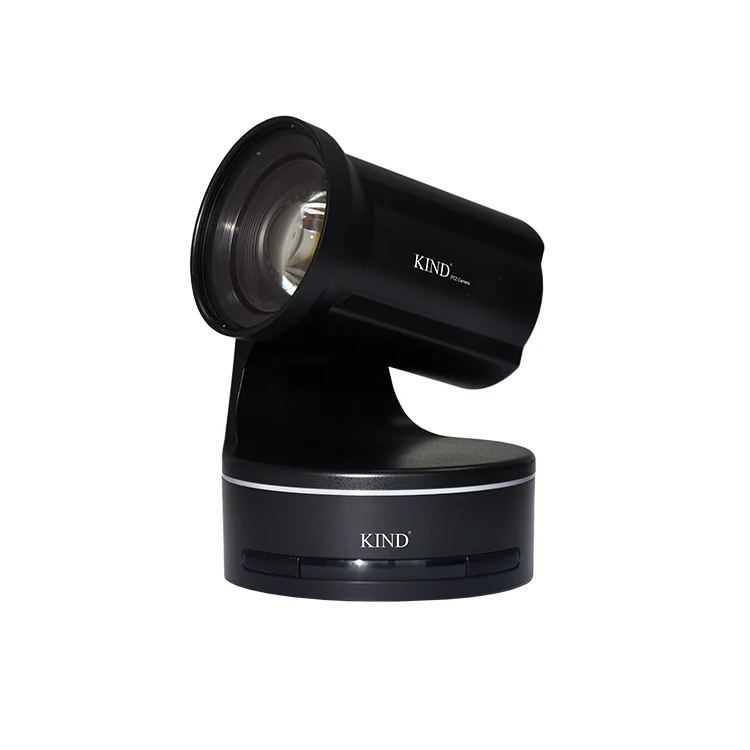

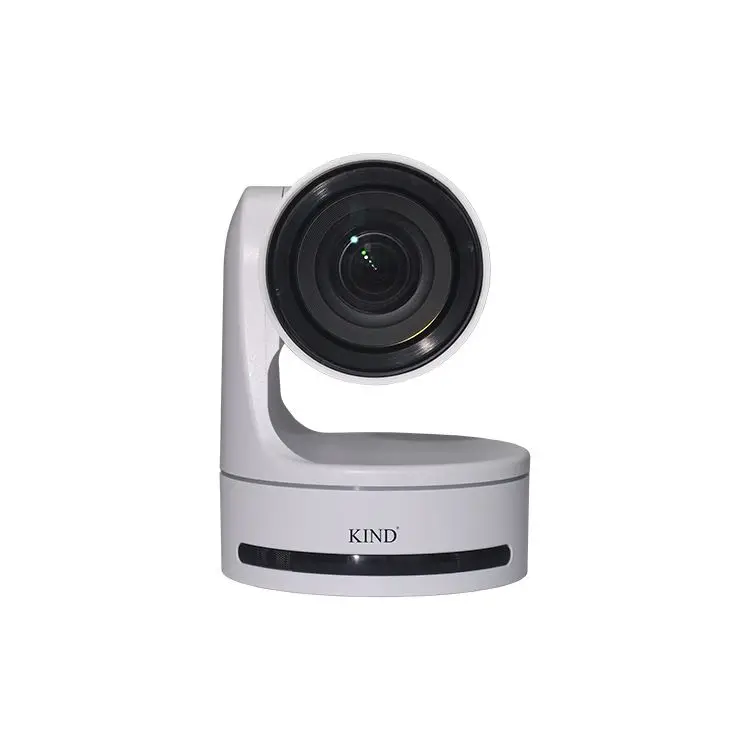

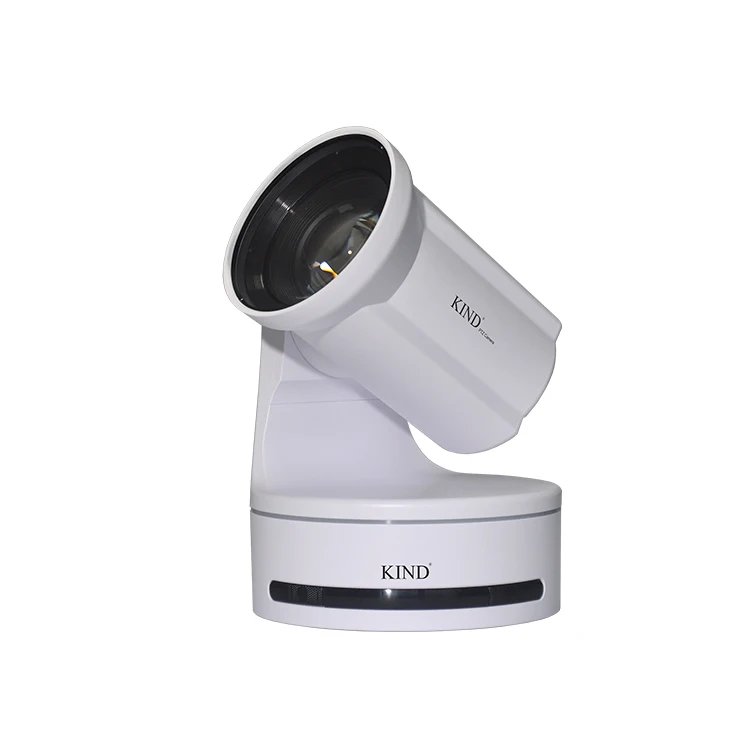

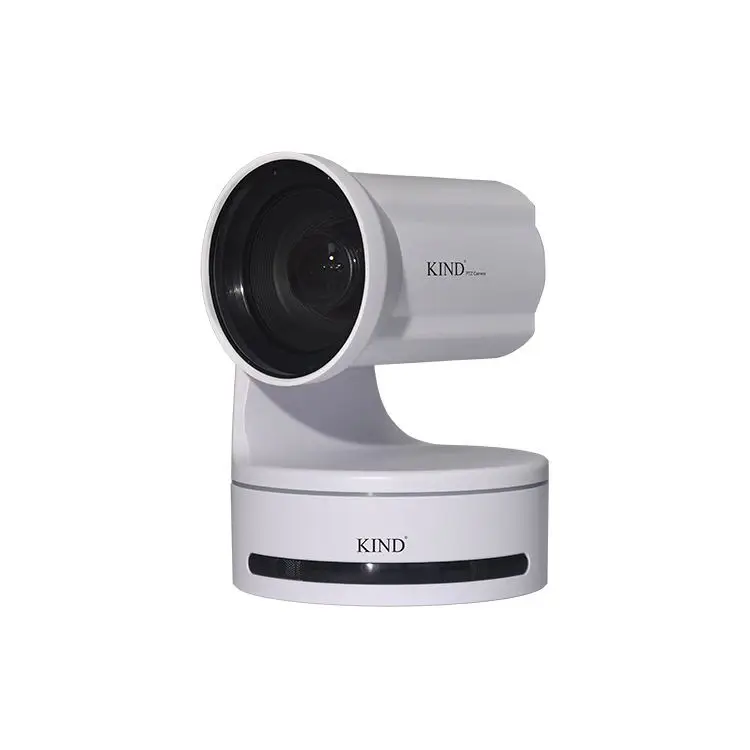

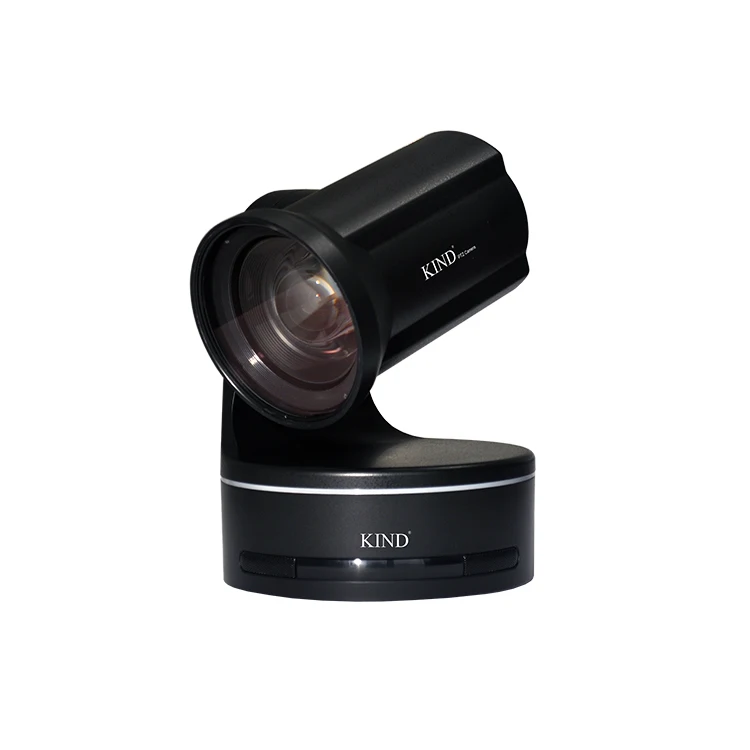

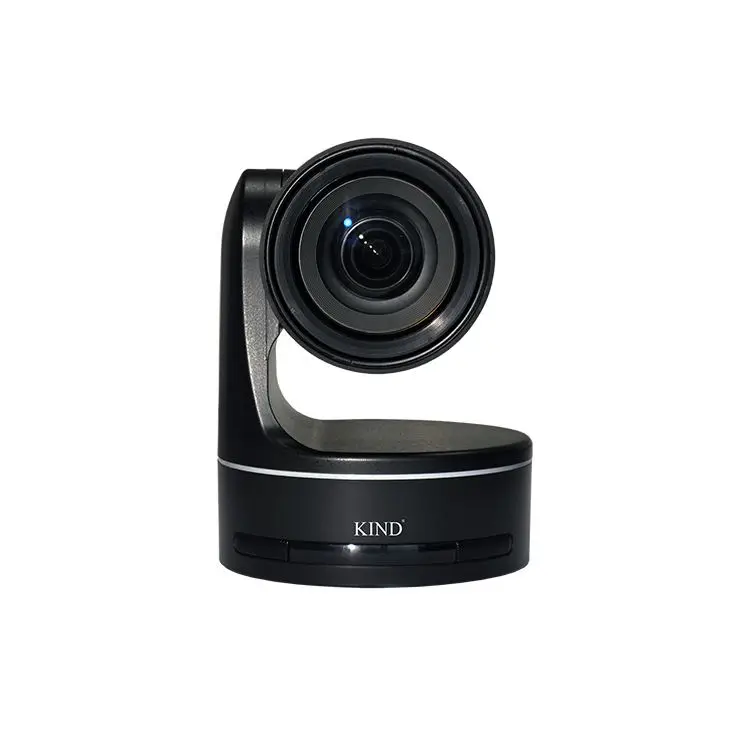

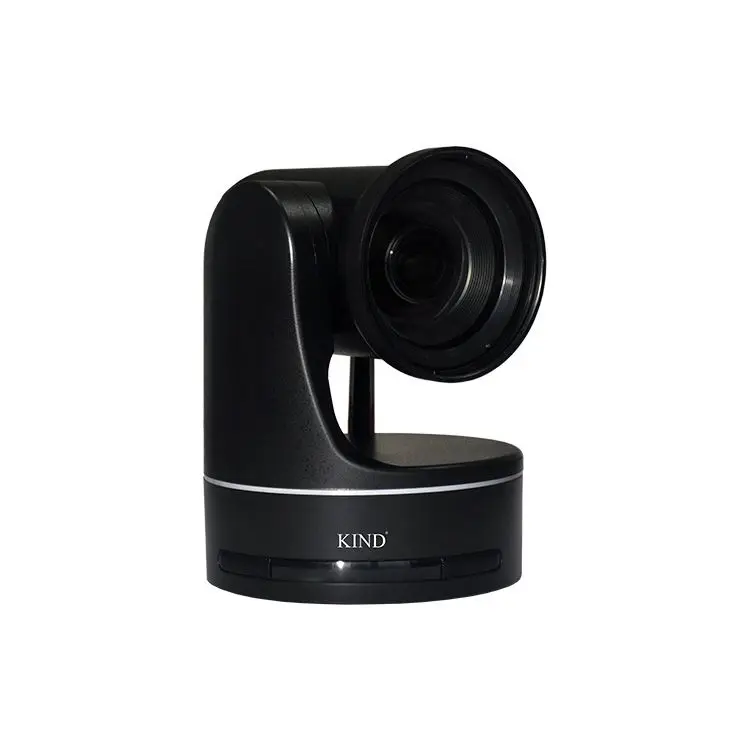

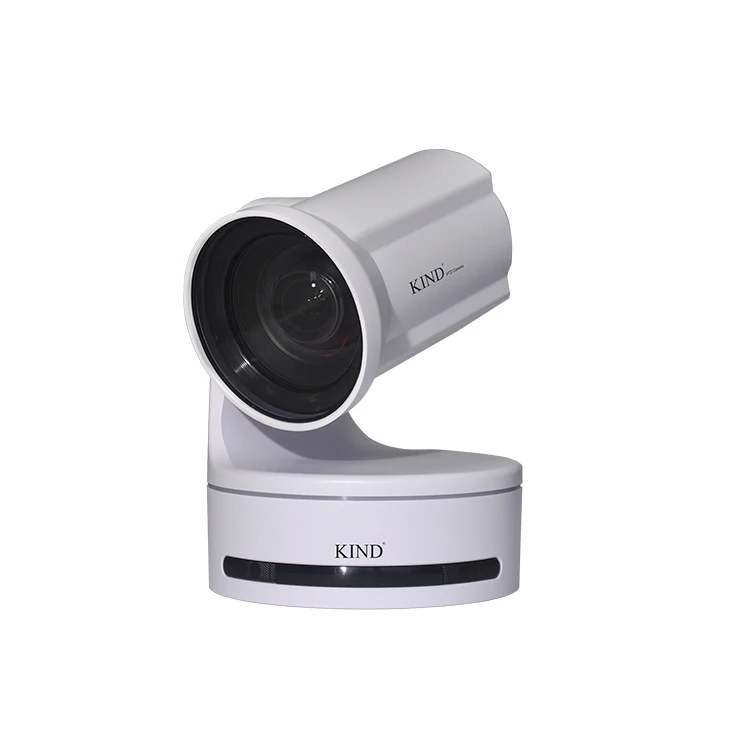

Акция 4k управление full HD видеовыход PTZ камера

Product Overview

Description

1. 1/1.8 Exmor RS CMOS;

2. The lens diameter is 105mm;

3. Super wide angle, 92° diagonal and 85° horizontal;

4. Servo motor high-speed pan/tilt, pan and tilt speed: speed 0.1°~300°/sec;

5. 12x optical zoom;

6. Full HD 1920×1080 video output, HDMI, SDI, 360°TALLY light;

7. Audio XLR×2 input with 48V fantasy power supply, embedded audio, built-in dual φ9.7 microphone array omnidirectional microphone;

8. A 75Ω coaxial cable or Category 6 network cable transmits five signals, they are full HD video + audio + PTZ control + TALLY + power supply;

9. Application: studio, education recording and broadcasting, media live broadcasting, multi-camera shooting;

10. Size: 160mm155mm×230mm; Weight: about 2kg;

Product specification sheet

Product technical parameters

High-end business level camera

Imager: 1/1.8 large target surface Exmor RS CMOS imager;

Lens filter diameter: 105mm, multi-layer antireflection, light transmittance>99%;

Optical zoom: 12 times;

Viewing angle: 92° diagonal (wide-angle end), horizontal 85° (wide-angle end);

Distortion: -2%~0.2%;

Pan/tilt angle: pan -170°~+170, tilt +90°~-30°;

Pan/tilt speed: servo motor control, pan 0.1°~300°/sec, tilt 0.1°~300°/sec;

Pan/tilt accuracy: repeatability accuracy error <0.01°;

Pan/tilt slow mode: support;

Effective pixels: 2.4 million effective pixels;

Minimum illumination: 0.01 lux;

Signal to noise ratio: 55dB;

Resolution: 1920×1080;

Focusing system: automatic/manual;

White balance: automatic/manual;

Focal length: f=4.2mm~50.4mm, F1.8 (Wide) ~ F2.8 (Tele);

Minimum object distance: 1000mm~INF (Wide), 1500mm~INF (Tele);

Video format: HD: 1080p/60, 1080p/50, 1080i/60, 1080i/50

Preset positions: 128;

Camera control interface: VISCA RS-422, RJ45 (input/output);

Audio interface: XLR3 type 3-pin (female) (×2) input, line/microphone +48 V optional, line: +4dBu, microphone: -70dBu--30dBu;

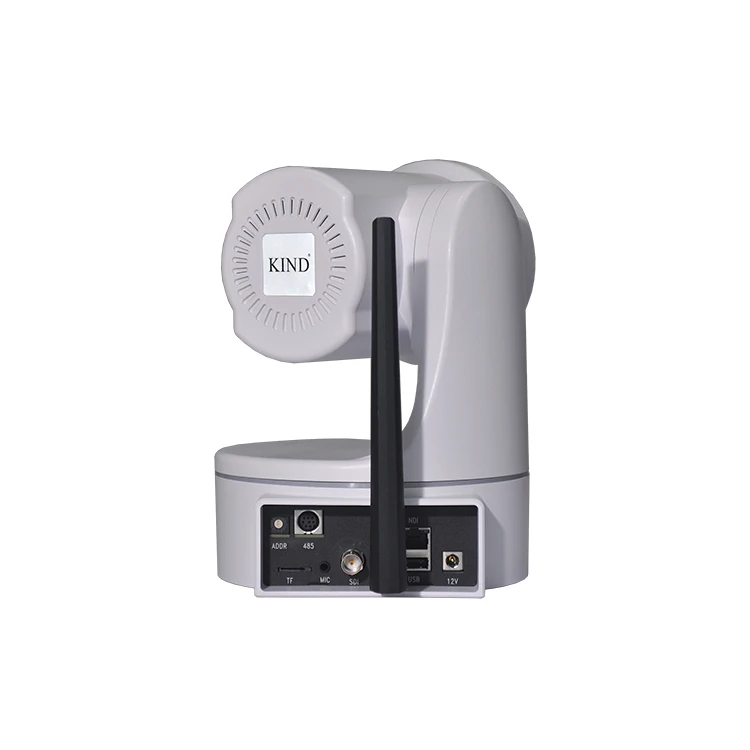

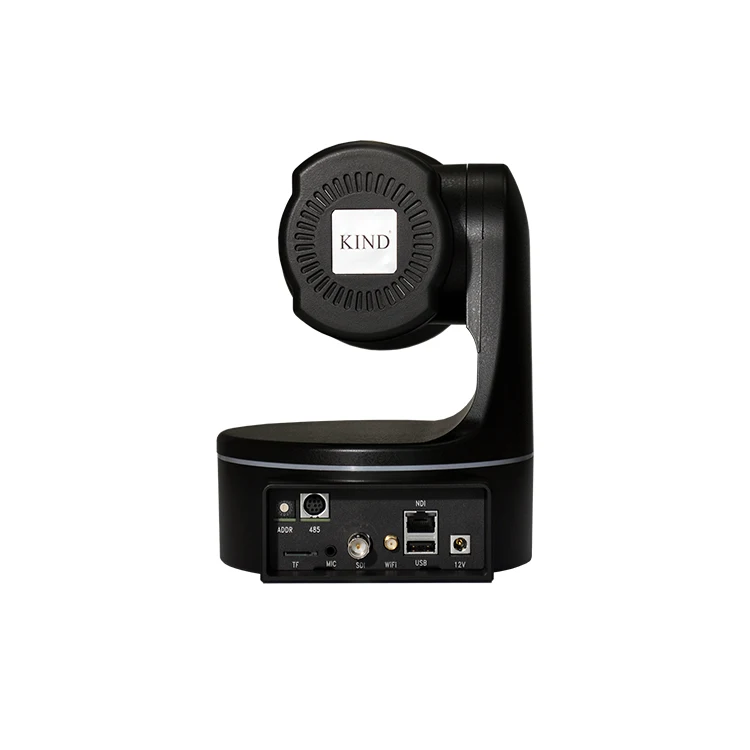

Video interface: BNC (×1), 1.0 Vp-p, 75Ω, 3G-SDI output × 1, HDMI output × 1;

Built-in array microphone: dual φ9.7 microphone digital array microphone, omnidirectional, low noise, support 360-degree omnidirectional pickup, the maximum pickup distance is 10 meters; support 32K sampling and AEC, AGC, ANS processing, I2S digital audio Output 48KHz; clear sound, good sound quality restoration, comfortable hearing, high definition, high reduction degree, high signal-to-noise ratio, low distortion, low noise;

DC input: DC jack 12DC, DC10.8V-13.2V;

Director prompt: 360°TALLY light;

Control and transmission: A 75Ω coaxial cable controls and transmits five signals, which are: camera full HD SDI video signal + camera and XLR audio signal + camera power supply + camera PTZ control + guide signal TALLY;

High-end business-level professional camera Imager: 1/1.8 large target surface Exmor RS CMOS imager; Lens filter diameter: 105mm, multi-layer antireflection, light transmittance>99%; Optical zoom: 12 times; Viewing angle: 92° diagonal (wide-angle end), horizontal 85° (wide-angle end); Distortion: -2%~0.2%; Pan/tilt angle: pan -170°~+170, tilt +90°~-45°; Pan/ tilt speed: servo motor control, pan 0.1°~300°/sec, tilt 0.1°~300°/sec; Pan/tilt accuracy: repeatability accuracy error <0.01°; Pan/tilt slow mode: support; Effective pixels: 2.4 million effective pixels; Minimum illumination: 0.01 lux; Signal to noise ratio: 55dB; Resolution: 1920×1080; Focusing system: automatic/manual; White balance: automatic/manual; Focal length: f=4.2mm~50.4mm, F1.8 (Wide) ~ F2.8 (Tele); Minimum object distance: 1000mm~INF (Wide), 1500mm~INF (Tele); Video format: HD: 1080p/60, 1080p/50, 1080p/30, 1080p/25, 1080i/60, 1080i/50, 720p/60, 720p/50, 720p/30, 720p/25; Preset positions: 128; Camera control interface: VISCA RS-422, RJ45 (input/output); Audio interface: XLR3 type 3-pin (female) (×2) input, line/microphone +48 V optional, line: +4dBu, microphone: -70dBu--30dBu; Video interface: BNC (×1), 1.0 Vp-p, 75Ω, HD/SD-SDI output × 1, HDMI output × 1; DC input: 12DC, DC10.8V-13.2V; Director prompt: 360°TALLY light; Control and transmission: A 75Ω coaxial cable or Category 6 network cable controls and transmit five signals. They are: camera full HD HD-SDI video signal + camera and XLR audio signal + camera power supply + camera PTZ control + broadcast guide prompt Signal TALLY ;
