Manual Hydraulic Coin Cell Case Crimping Machine CR2032 Crimper



Product Description

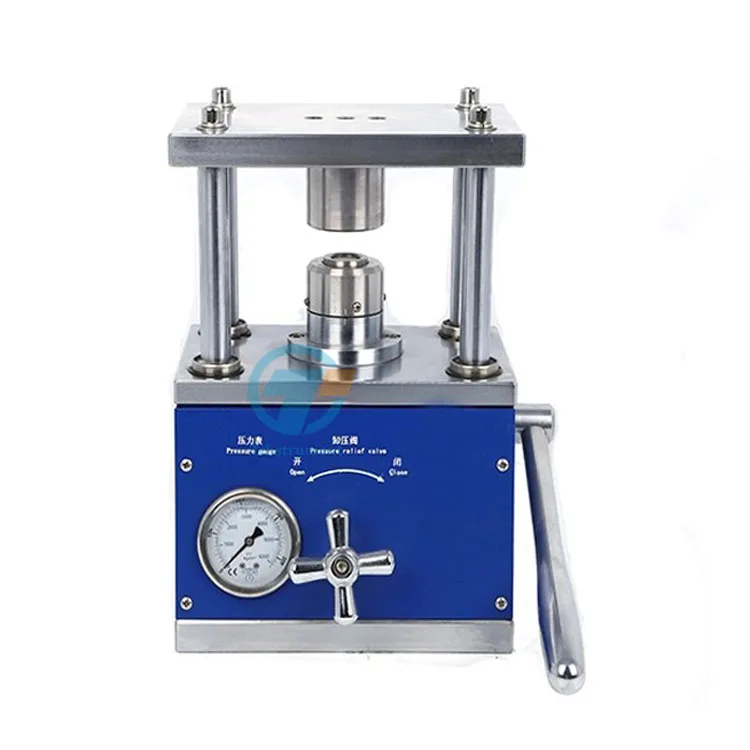

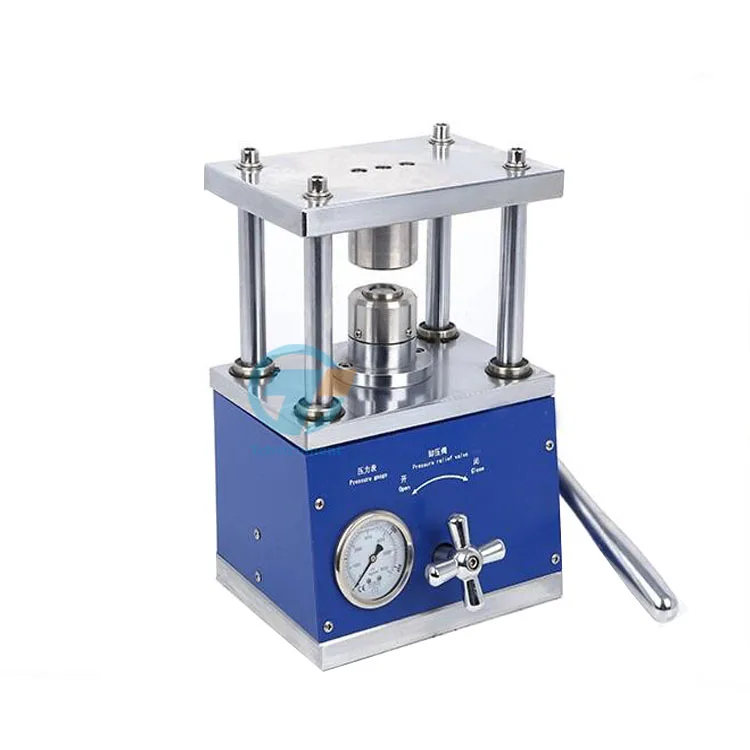

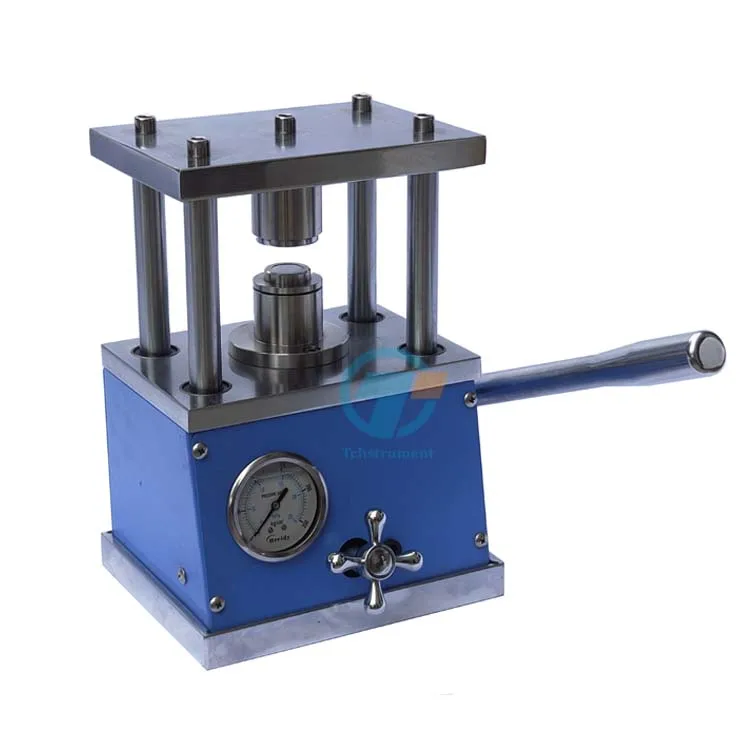

TCH-MSK-110 is a new design and coin cell crimper with lighter weight and a smaller footprint. The crimper is suitable for sealing various types of coin cells such as CR2032,CR2025,and CR2016 with included die. It can also crimp CR2325, CR2450, AG3, AG5 and other special size cases with optional die sets.   We don't suggest to use the machine inside glovebox.





Specification of the Manual Hydraulic Coin Cell Case Crimping Machine CR2032 Crimper





























Features

  • Heavy duty steel frame

  • PTFE Anti-Corrosion Core prevents coin cells from being short-circuited

  • An Aluminum tray is included to put at the bottom of crimper for avoiding oil leakage by accident


Crimping Die



  • One set of crimping die for CR2032, CR2025, or CR2016 is included

  • Die is consumable,  please click picture below to order replacement

  • 100 pcs Coin cell cases (CR2032 cases) are included in the package for testing and immediate use

  • Optional die available from product option for crimping CR2325, CR2450, AG3, AG5

  • Note: we donot suggest carry AG5 cell cases.


Pressure

  • Max. 8 metric Tons hydraulic pump with automatic pressure relief

  • Recommended CR20XX series coin cell sealing pressure: 850 -1000psi

  • Effective piston area: 11.34 cm^2


Product  Weight & Dimensions



  • With handle positioned horizontally: 280mm(L) x 280mm(W)  x 333mm(H)

  • Without handle: 228mm(L) x 176.8mm(W) x 333mm(H)

  • Tray: 330mm(L) x 230mm(W) (See section Maintenance & Equipment Care below for more)

  • Net Weight:   26 kg (58 lbs)

  • Shipping weight & Size:   45 kg (100 lbs)  40" x 30" x 21"


ComplianceCE Certified
WarrantyOne Year limited warranty with lifetime support (Rusted and damaged parts due to improper storage condition or maintenance are not covered by warranty)




reference of the Manual Hydraulic Coin Cell Case Crimping Machine CR2032 Crimper






001 crimping machine.jpg02 cirmping machine.jpg


other related products for your choice


Optional Die Sets





 Additional CR20XX Assembling Die

 CR20XX Disassembling Die

CR1220 Crimping Die

 CR2325 Crimping Die

CR2325 Disassembling

CR2450 Crimping Die

 CR2450 Disassembling Die

AG3 (312) Crimping Die

 AG5 (13) Crimping Die

001.jpg01 disassamble die.jpg
