Factory Supplier Siger Siray Plus dental x ray stable and reliable technology Canon dc X RAY tube dental x ray machine
- Category: >>>
- Supplier: Zhuhai Siger Medical Equipment Co. Ltd.
Share on (1600312929155):
Product Overview
Description
Products Description
Safety class | I |
Tube voltage | 55 kV/60 kV/65 kV/70 kV |
Protection Type | Type B |
Tube current | 4 mA/7 mA |
Device operating mode | Intermittent-loading continuous-operations |
Load cycle | 1/60 |
Protection level | IP20 |
Total filtration | ≥1.5 mm Al(70 kV) |
Power supply voltage | AC230 V |
Inherent filtration | ≥1 mm Al(70 kV) |
Main fuse tube | T10 AL250 V/Φ5X20 |
Half-value layer | About 1.5 mm Al at 70 kV |
Input power | 900 VA |
Radiation leakage rate | Less than 0.25 mGy/h at a distance of 1m |
Power frequency | 50/60 Hz |
Loading time adjustment range | 0.02～3.2 s |

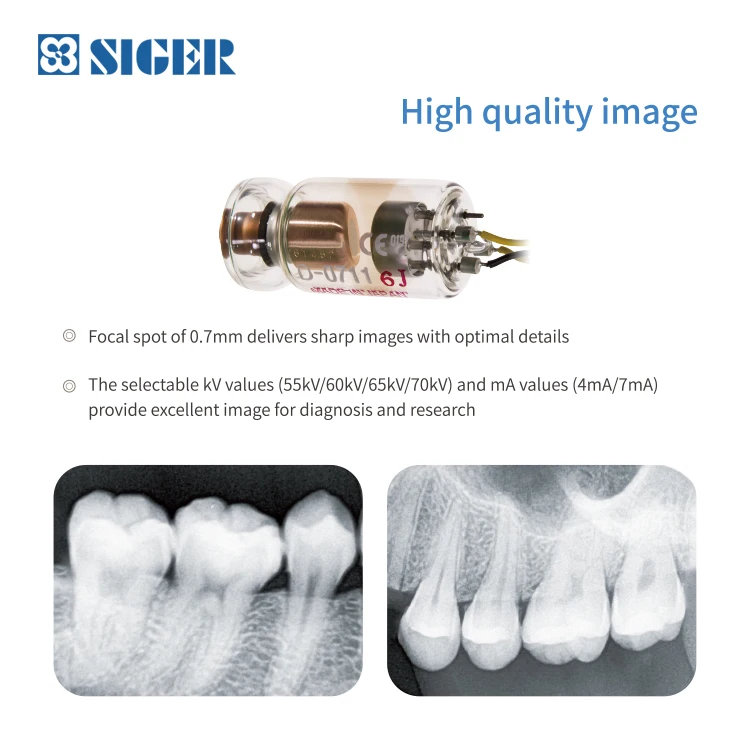

Ray focus | 0.7 mm |
Distance between the focus of the circular output load surface mouth of the snoot and the skin | 22 cm |
Anode angle | 16゜ |
The output radiation field of the circular output load surface mouth of the snoot | Φ6 cm |
Mass of SIRAY PLUS | 84 kg |
Apparent resistance | 0.2 Ω |
Accuracy of loading factors | Voltage：5%Current：11%Loading time:3% |
Accuracy of radiation output | 0.9% |
Generator | 100 k～200 kHz |
