DHB100 Blow Molding Machine
- Category: >>>
- Supplier: Ding Hao (changxing) Trading Co. Ltd.
Share on (1600312945653):
Product Overview
Description
Product Overview

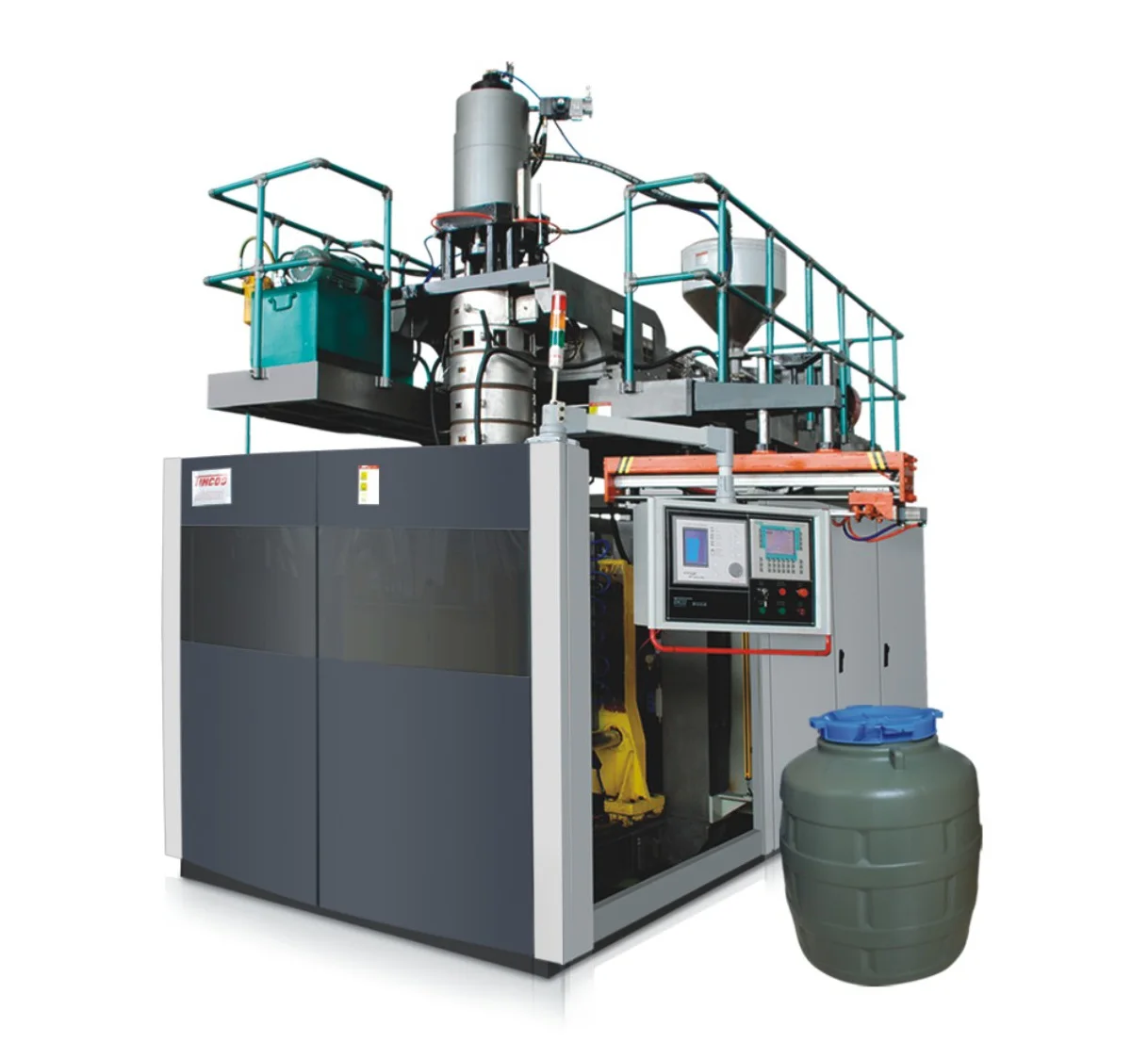

DHB100 Blow Molding Machine General Introduction

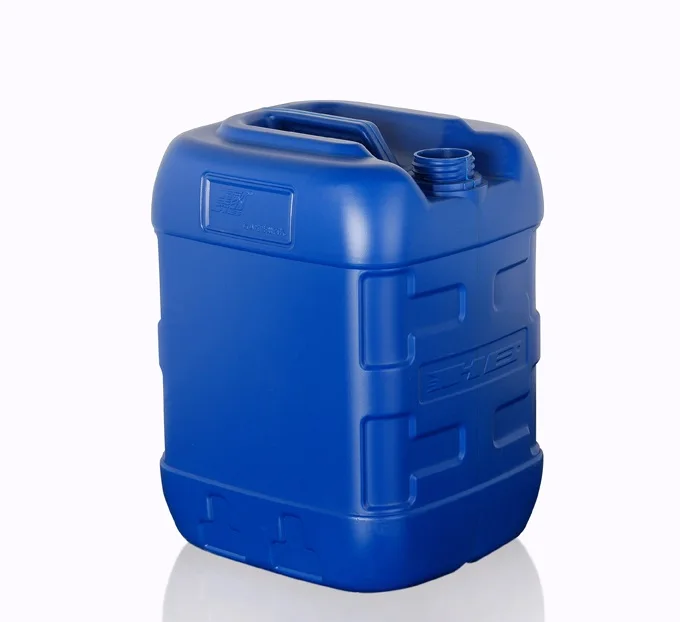

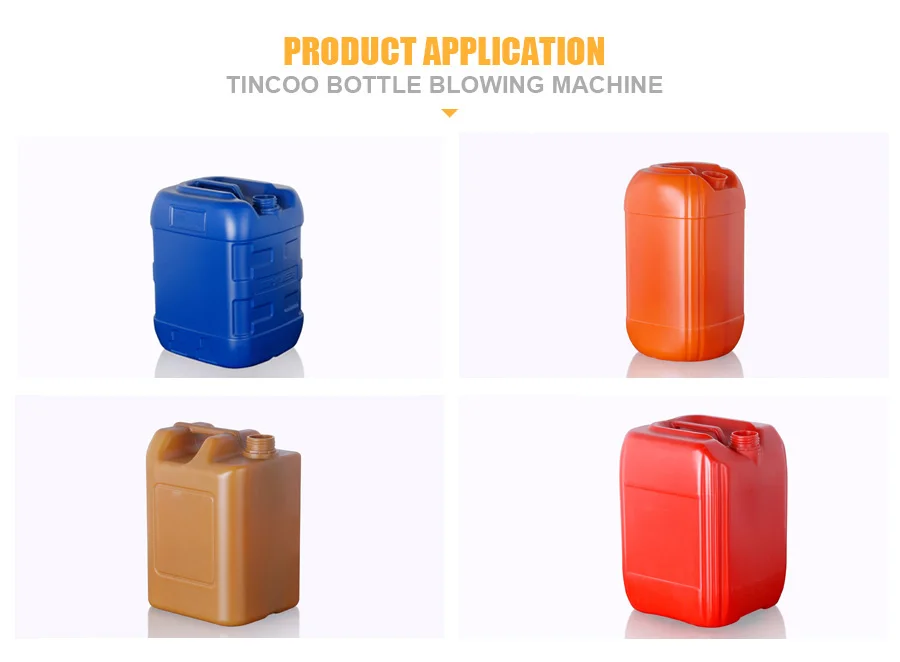

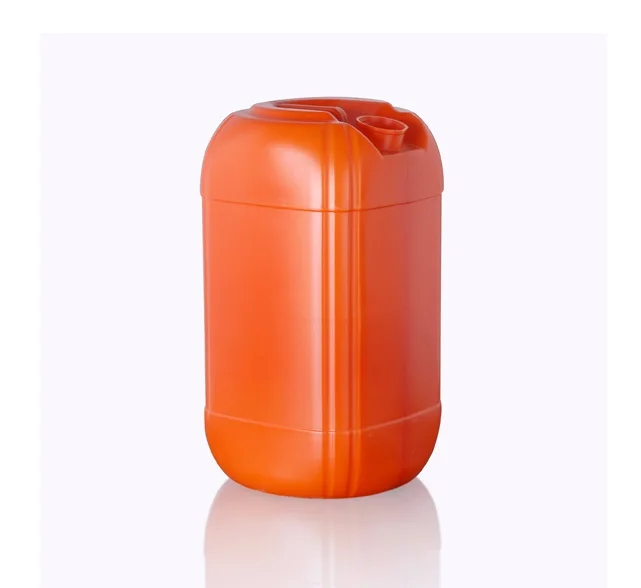

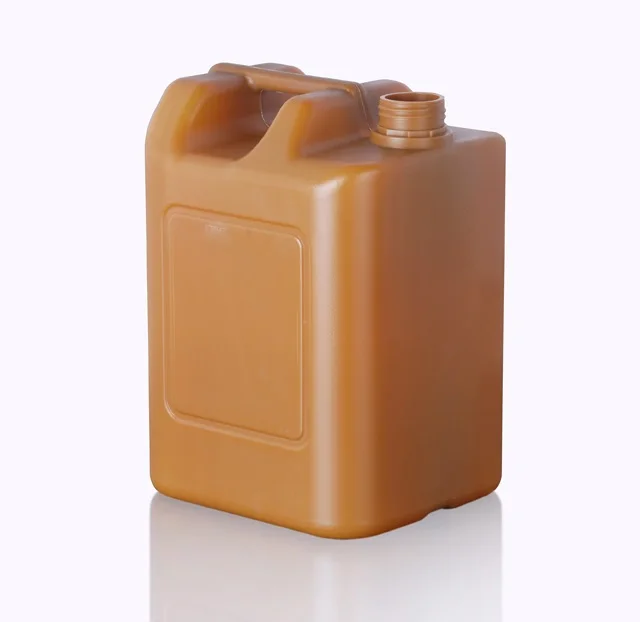

DHB100 blow molding machine is mainly applicable to the production of various packing barrels with PE and capacity between 10~120L,toolbox,motorcar parts such as gasoline tank,wind pipe and other large and medium-sized plastic hollow products.
The blow moulding machine adopts new patent of two pull-rod type closing-mold device; double-folding accumulator head; extrusion device, equipped with complete blowing device and product taking out device, and entirely achieves full automatic production.
DHB100 blow molding machine is mainly applicable to the production of various packing barrels with PE and capacity between 10~120L,toolbox,motorcar parts such as gasoline tank,wind pipe and other large and medium-sized plastic hollow products.
The blow moulding machine adopts new patent of two pull-rod type closing-mold device; double-folding accumulator head; extrusion device, equipped with complete blowing device and product taking out device, and entirely achieves full automatic production.
FEATURES AT A GLANCE
Advanced processing equipment:
1. Introducing advanced technology from Germany, Italy, Japan etc.
2. Involving advanced design and production of super large-scale blow-molding machine and engineering management capability.
3. Holding over 40 items Patent Technologies.
1. Introducing advanced technology from Germany, Italy, Japan etc.
2. Involving advanced design and production of super large-scale blow-molding machine and engineering management capability.
3. Holding over 40 items Patent Technologies.
1.This series adopts new patent of two pull-rod type closing-mold device;
double-folding accumulator head;extrusion device and product taking-out device, and entirely achieves full automatic production.
2.The electrical control system adopts Complete computer control to automatically conduct to automically conduct technical parameter optimization and trouble diagnosis with high control precision and good reliability.
3.This series,completely designed and manufactured according to German standards of same model is the model with ration of performance to price at present.
PRODUCT SPECIFICATIONS
SPECIFICATIONS | UNIT | DHB-100 |
Material | — | PE、PP… |
Max container capacity | L | 120 |
Number of die | set | 1 |
Output(dry cycle) | pcs/hr | 360 |
Total weight | ton | 18 |
Machine dimension(L×W×H) | m | 5.8×2.5×4.6 |
ACCUMULATOR HEAD | ||
Accumulator capacity | L | 12 |
Number of die heating | zone | 4 |
Power of die heating | KW | 25 |
Die diamenter | mm | 450 |
Injection pressure | Mpa | 8 |
Max.injection speed | kg/sec. | 1.5 |
CLAMPING UNIT | ||
Clamping force | KN | 500 |
Platen opening stroke | mm | 500-1200 |
Platen size | mm | 1020×1060 |
Max mould size(W×H) | mm | 800×1260 |
Mould thickness | mm | 510-650 |
EXTRUDER UNIT | ||
Screw diameter | mm | 100 |
Screw L/D | L/D | 25:1 |
Extruding volume | Kg/hr | 180-270 |
Screw speed | r/min | 10-86 |
Extruder heating power | KW | 26 |
Extruder driving power | KW | 55 |
Extruder | ||
Oil pump driving power | KW | 37 |
Servo driving power | KW | 4 |
Heating power | KW | — |
Average energy consumption | KW | 60 |
Air pressure | Mpa | 0.7 |
Air consumption | m³/min | 0.8 |
Cooling water consumption | m³/min | 0.6 |
Tincoo(Changxing) Packaging Technology Co.,Ltd
TINCOO MACHINERY is a professional supplier devoted to the designing & production of big-scaled and multi-layer extrusion molding machine. The company is located on the south shore of Taihu Lake--Huzhou, with total investment of 10 million dollars, covering a total area of 58,000 square meters. Machines from the company are mainly for export, and have been exported to more than 100 countries in Asia, Mid-East, Europe, Africa, Australia, and Latin-America. The marketing network has covered all over the world.

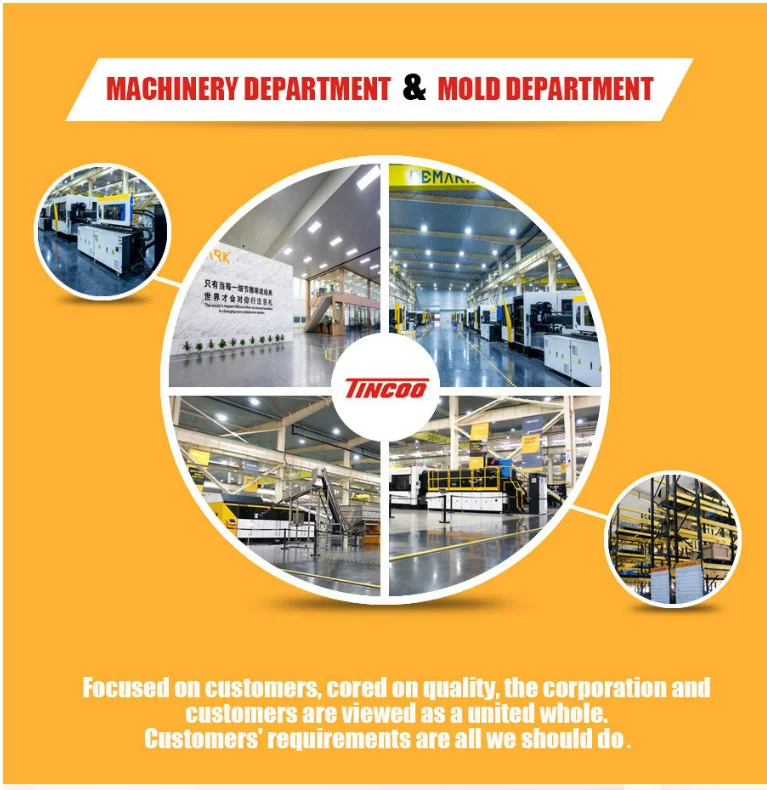

There are 2 general departments in our company: machinery department & mold department. Machinery department focuses on designing and developing various plastic extrusion blows molding machine by learning foreign advanced techniques& administration faith; mold department focuses on mould design and manufacturing of preform mold& extrusion mold&blow mold. According to different character of different plastic material, we have successfully designed different machines, which are suitable for different products: container of PE, PVC, PP, PC, PETG, PS, PAN, PA, PPE, PPO, ABS, POM, TRA, etc(like big tank, collapsible container car plastic hollow part, office equipment,sport facility, toys, mechanical container,5 gallon PC container,tool box, etc). We have an experienced team will design, produce and offer service after service with great team spirit.High quality but reasonable price has been widely approved by our customers from local and abroad.
There are 2 general departments in our company: machinery department & mold department. Machinery department focuses on designing and developing various plastic extrusion blows molding machine by learning foreign advanced techniques& administration faith; mold department focuses on mould design and manufacturing of preform mold& extrusion mold&blow mold. According to different character of different plastic material, we have successfully designed different machines, which are suitable for different products: container of PE, PVC, PP, PC, PETG, PS, PAN, PA, PPE, PPO, ABS, POM, TRA, etc(like big tank, collapsible container car plastic hollow part, office equipment,sport facility, toys, mechanical container,5 gallon PC container,tool box, etc). We have an experienced team will design, produce and offer service after service with great team spirit.High quality but reasonable price has been widely approved by our customers from local and abroad.
