Discharge 20mm 110mm pvc pipes making machine architectural water supply pvc pipe manufacturing machines
- Category: >>>
- Supplier: Zhangjiagang Kiwex Machinery Co. Ltd.
Share on (1600313005197):
Product Overview
Description

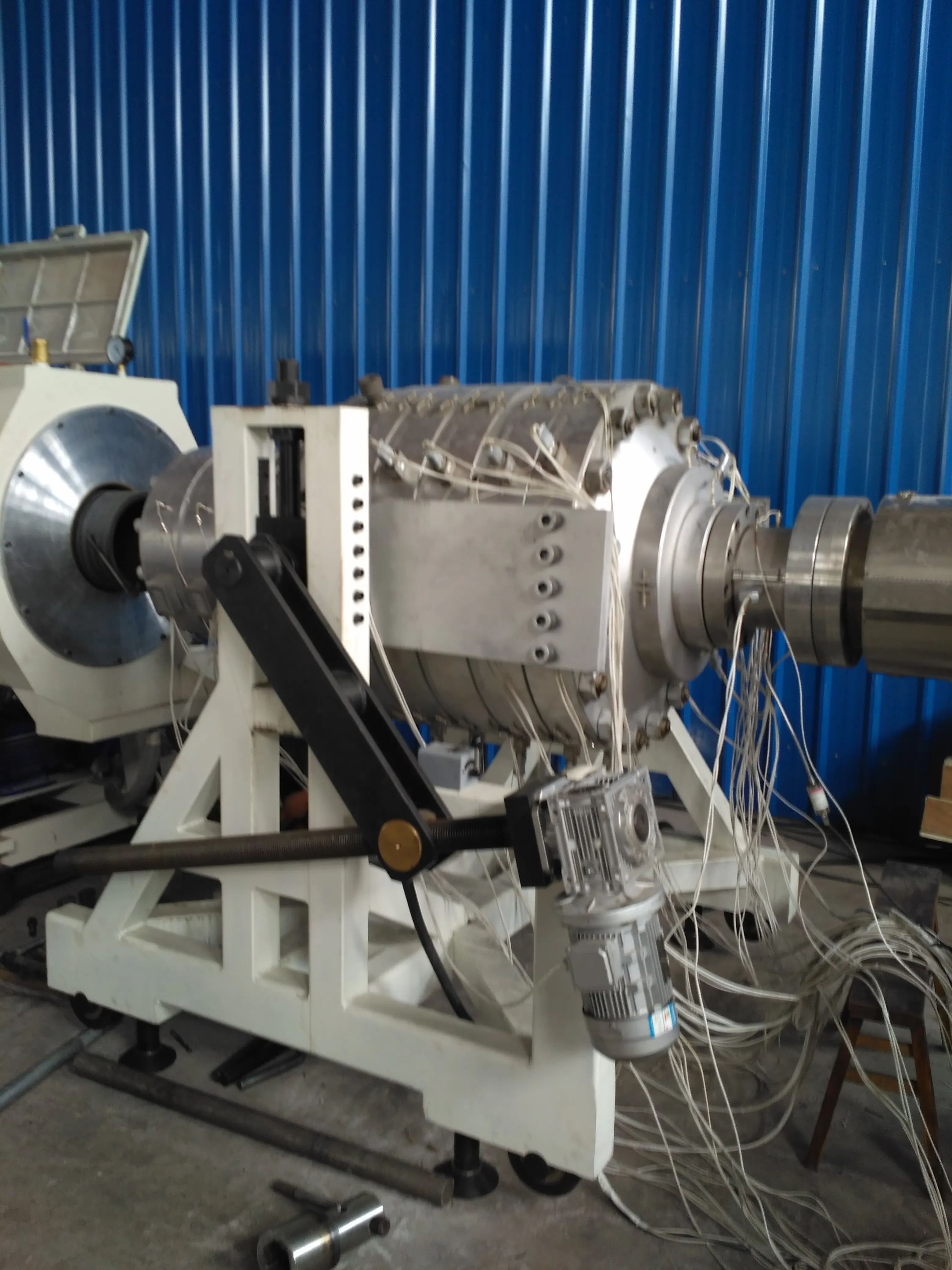

Conical twin screw extruder with mould
1)Adopting high quality screws and gears ,made of 38CrMoAlA treated by percolating nitrogen.
2) Adopting high quality reducer cabinet, driving by inclined gears which have been treated by percolating nitrogen and polishing.
3)The axle is made of 40Cr so pushing bearing runs stably.
4) Mould has 1 calibrator for each size and 3 pressure classes each size) and made of 40Cr, diameter fixing covers are made of
cast copper. With one die head, equipped with three grades of pressure.
2) Adopting high quality reducer cabinet, driving by inclined gears which have been treated by percolating nitrogen and polishing.
3)The axle is made of 40Cr so pushing bearing runs stably.
4) Mould has 1 calibrator for each size and 3 pressure classes each size) and made of 40Cr, diameter fixing covers are made of
cast copper. With one die head, equipped with three grades of pressure.

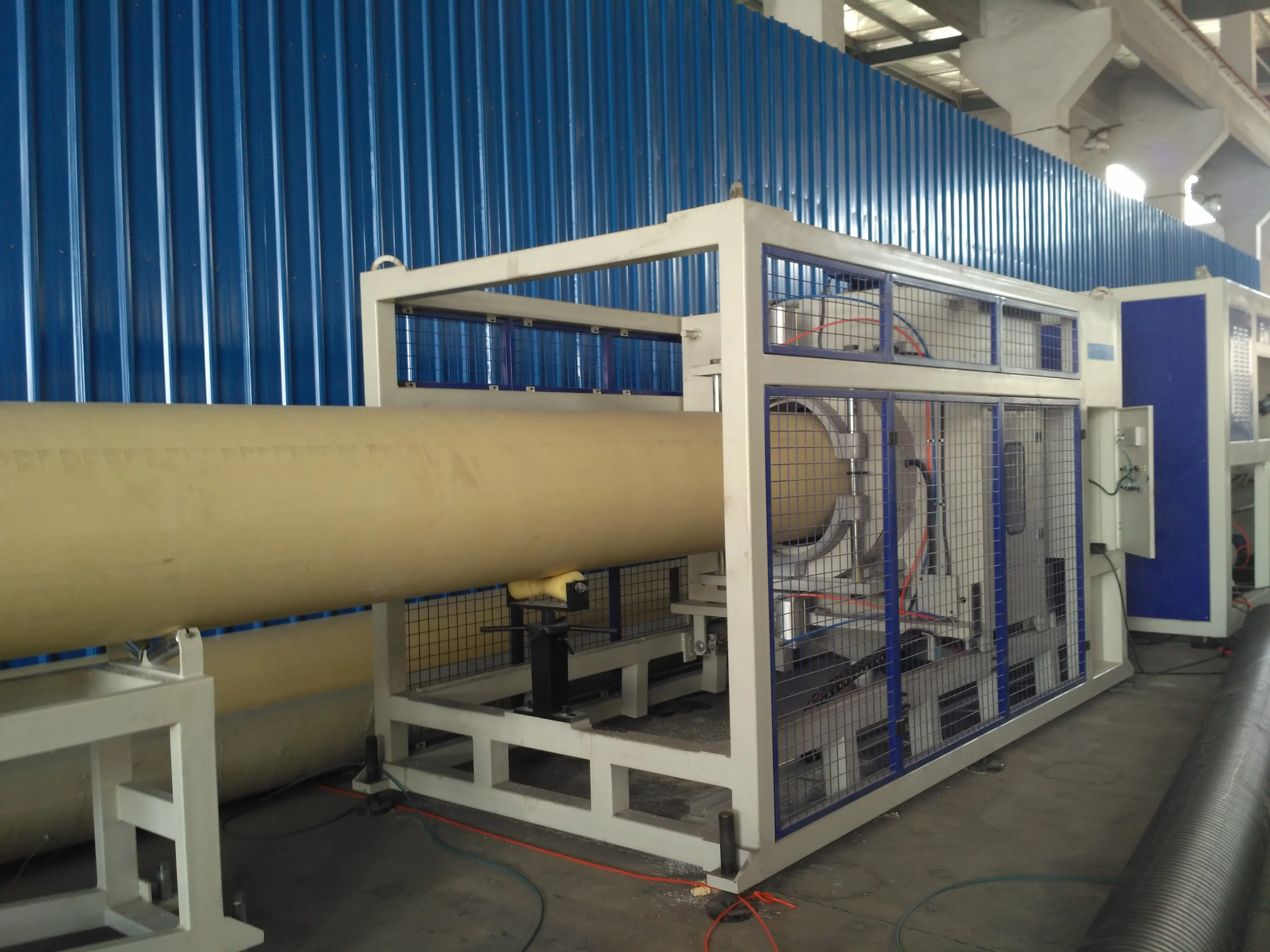

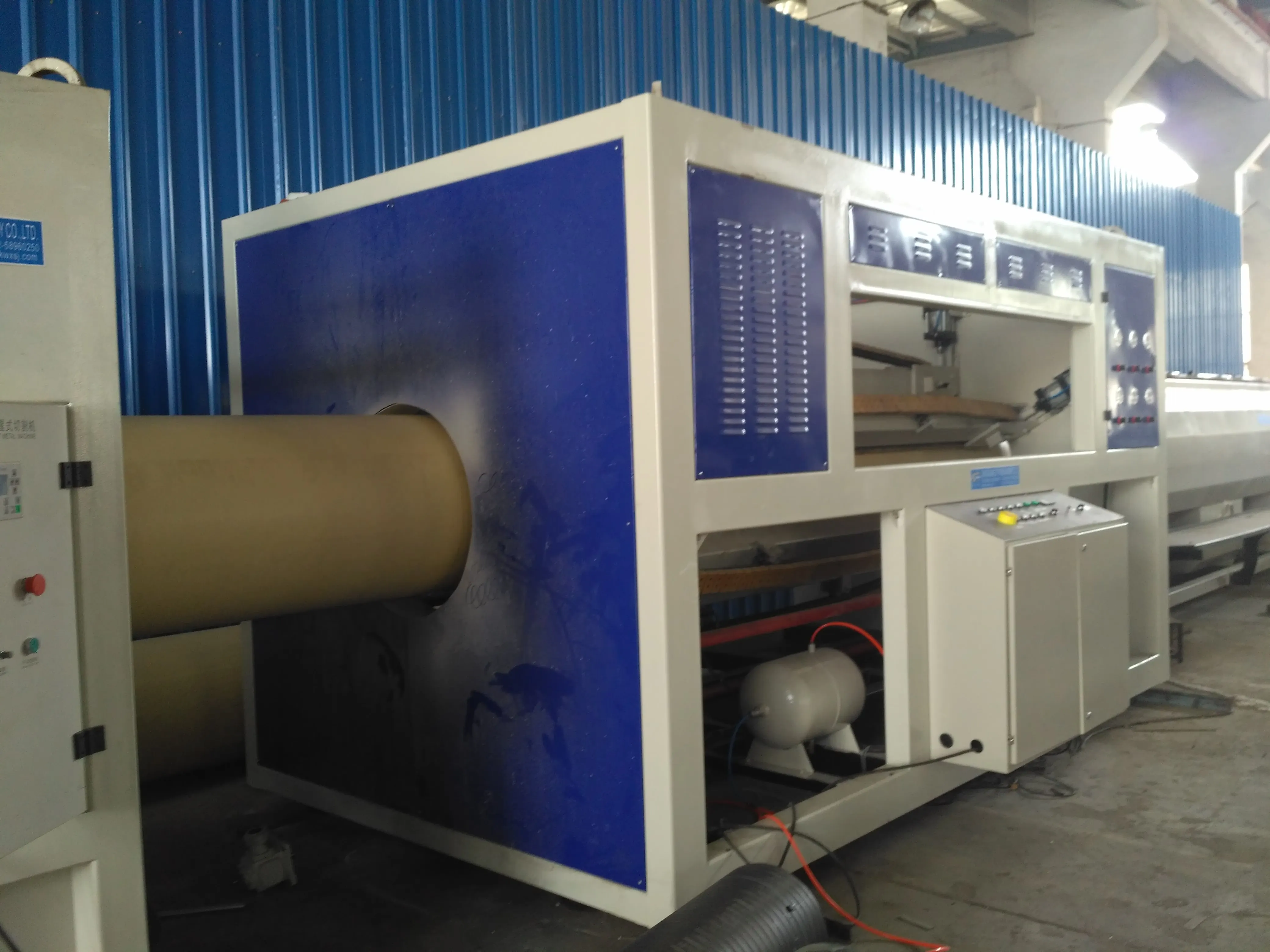

Haul-off unit (3 tracks) & Planetary cutter
Mode:3-claw pedrail
Clamp mode: Pneumatic/electric
Haul-off speed adjustment: Frequency conversion.
Mode:Planet round cutter, with pipe inner cutting device.
Sawdust collector: hop-pocket type
Following move mode: Pneumatic, following mode distance is not lower than 1800mm.
Clamp mode: Pneumatic/electric
Haul-off speed adjustment: Frequency conversion.
Mode:Planet round cutter, with pipe inner cutting device.
Sawdust collector: hop-pocket type
Following move mode: Pneumatic, following mode distance is not lower than 1800mm.
Model | Diameter rang (mm) | Output (kg/h) |
KWX-75 | 16-75 | 250 |
KWX-110 | 20-110 | 250 |
KWX-160 | 40-160 | 250 |
KWX-250 | 50-150 | 250 |
KWX-400 | 110-400 | 450 |
KWX-630 | 110-630 | 750 |
KWX-800 | 110-800 | 1000 |
KWX-1000 | 630-1000 | 1000 |
