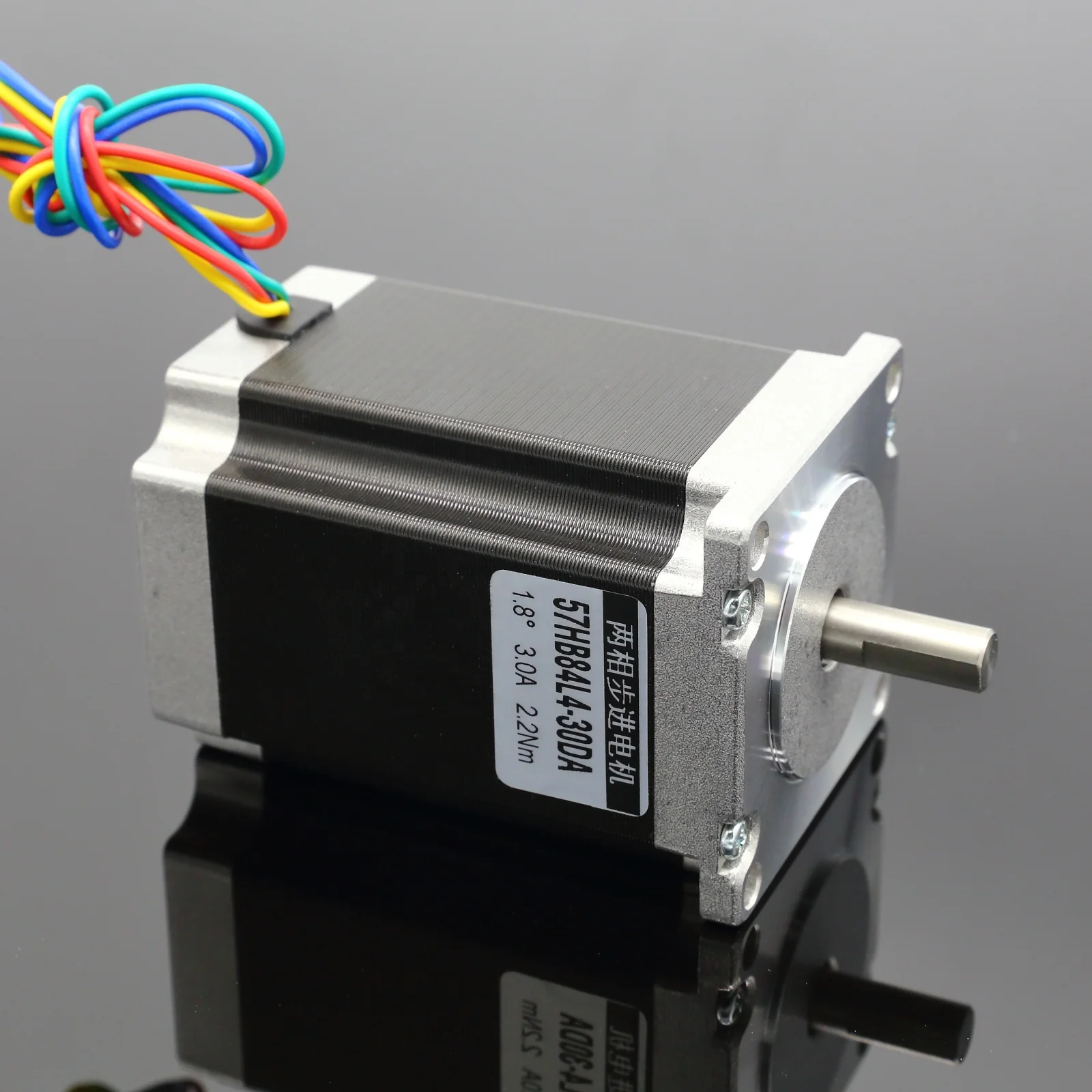

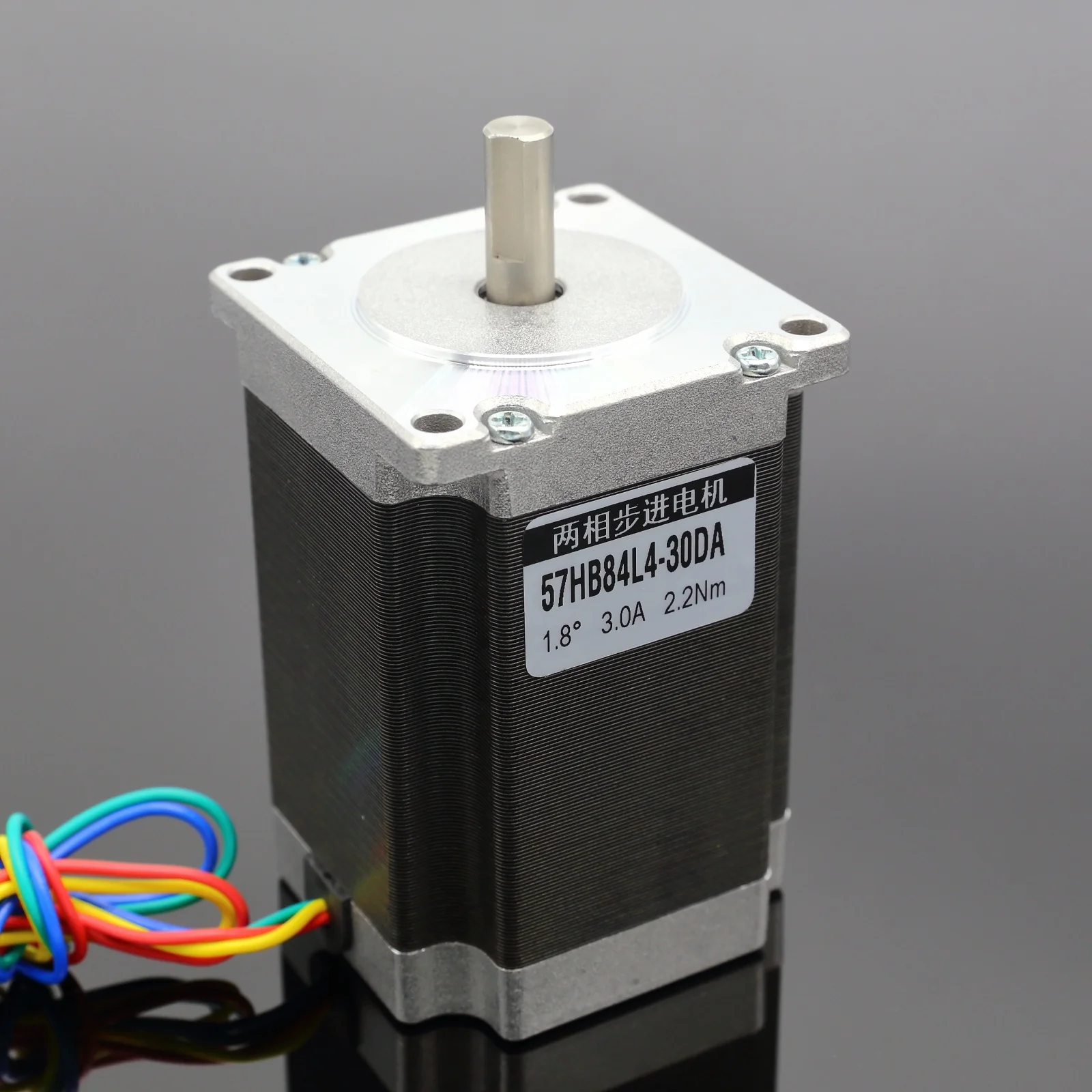

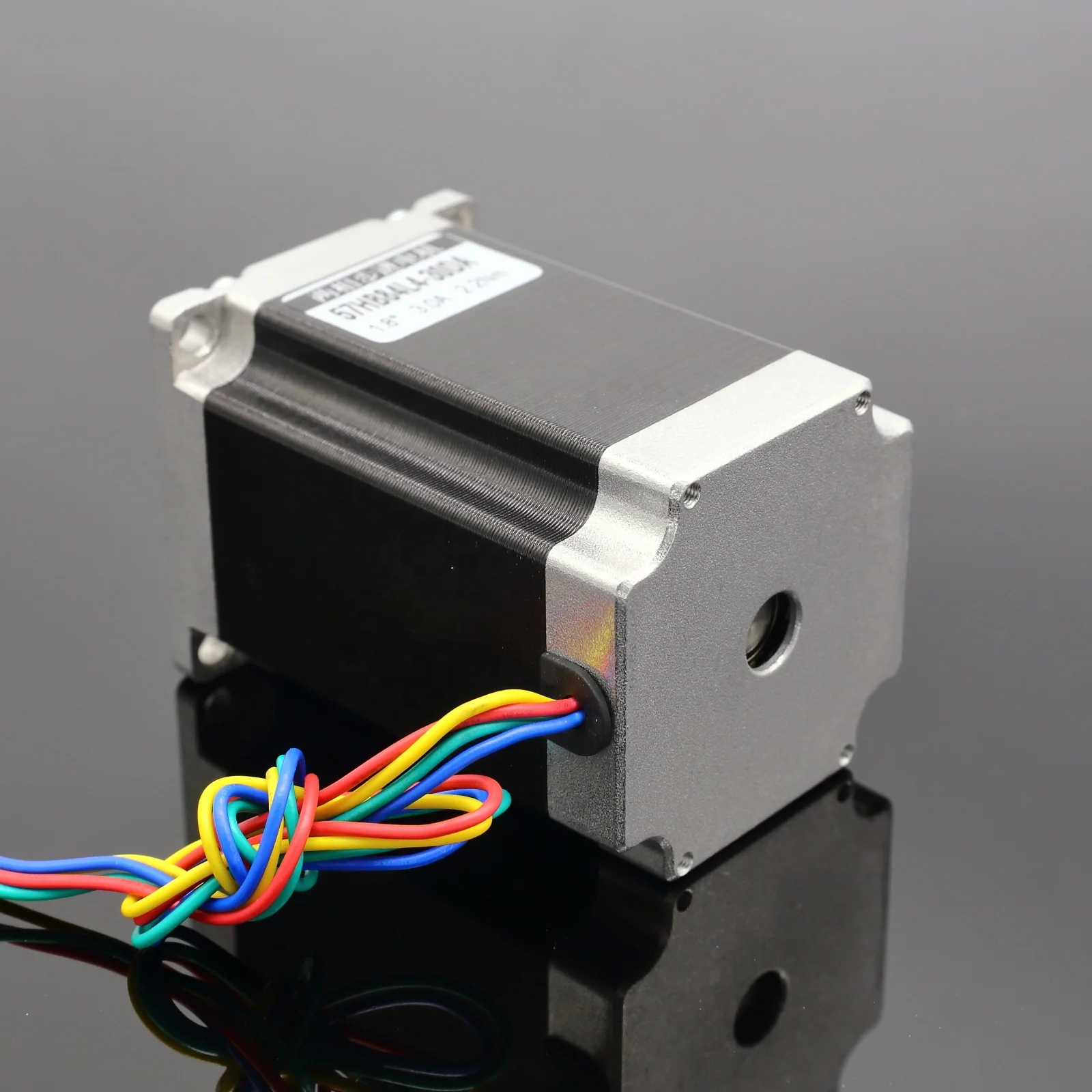

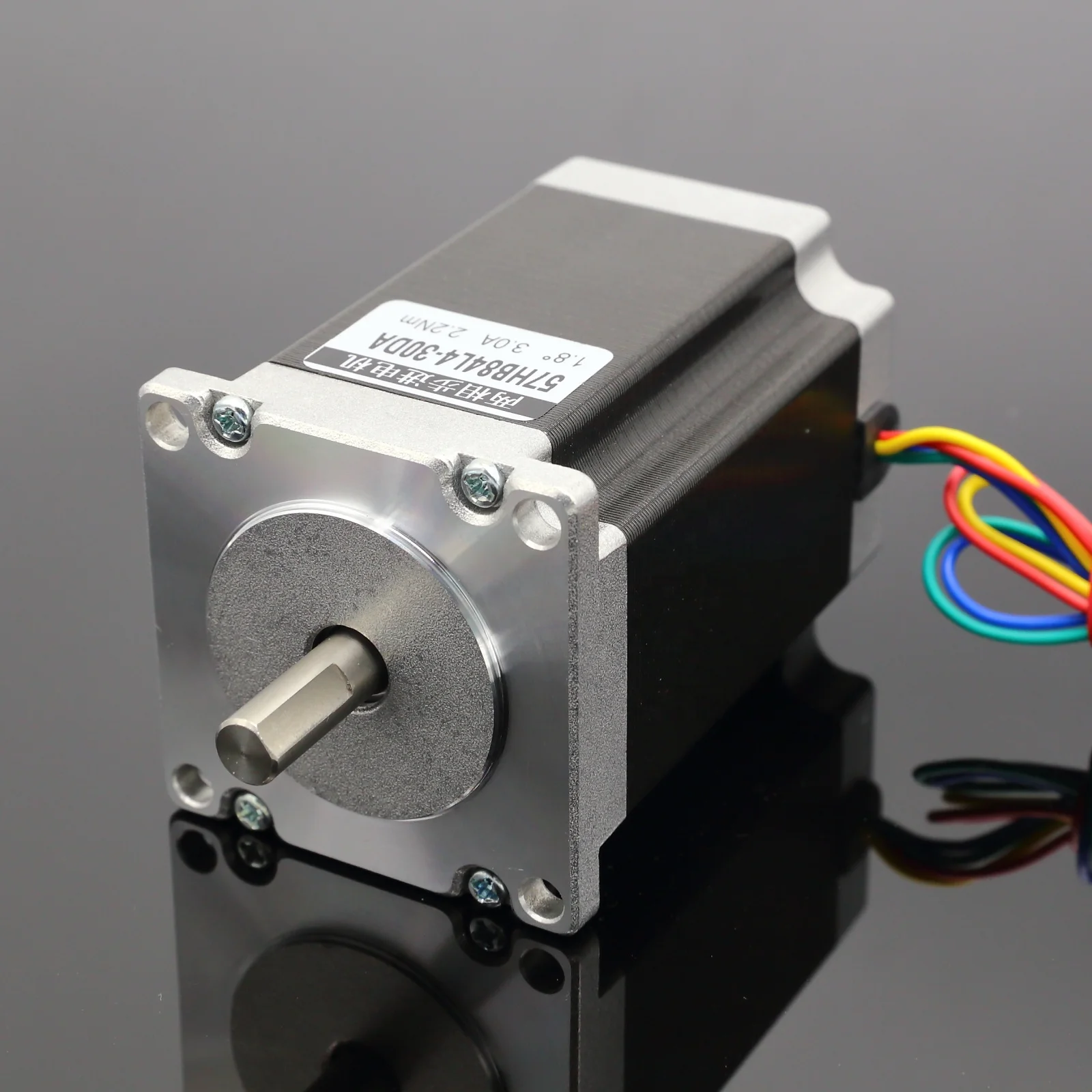

Hybride 2phase 2.2Nm 3A micro stepper motor nema 23 cnc stepper motor 57hs
- Category: >>>
- Supplier: Beijing Haijie Jiachuang Technology Co. Ltd.
Share on (1600313135652):
Product Overview
Description
No | Specification | Details | ||
1 | Model | 57HB84L4-30DA | ||
2 | weightPhase | 2 | ||
3 | Step Angle | 1.8°±5% | ||
4 | Amp/Phase | 3A | ||
5 | Resistance | 0.5 ±10%Ω/Phase | ||
6 | Holding Torque | 2.2Nm | ||
7 | Inductance | 1.8±20%mH/Phase |
Beijing Haijie Jiechuang Technology Co., Ltd. is a professional supplier of CNC automation products. The company founder team members are all engineers, with more than 10 years of industry technical experience. The company's main products are seven categories:
1. Straight line module slide table, including high-precision ball screw module, high-speed mute synchronous belt module and heavy gear rack module, etc;
2. Servo system, including 50W-10KW AC servo motor and driver, 30-400W low voltage DC servo motor and driver;
3. Stepper systems,20-130 series two-phase and three-phase stepper motors and drivers,42-110 series closed-loop stepper motors and drivers;
4. DC brushless system, including 20W-2.5KW high and low voltage brushless motor and driver;
5. The planet reducer, including 3 arc minute high precision reducer and high cost performance standard reducer;
6. Multi-axis intelligent motion controller;
7. Meanwell Switching Power Supply;
Our factory is located in Jiangsu Province, one of the four major motor industry bases in China, with dozens of CNC machining centers, and a number of automatic production line factories can achieve servo system monthly production capacity of 12,000 sets, stepper and DC brushless system monthly production capacity of 27,000 sets, linear module sliding table monthly production capacity of 9,000 sets.
We provide cost-effective automation products, but also to provide quality pre-sale and after-sales service, linear module products to provide 1-year free warranty, servo, step, brushless DC system to provide 2-year free warranty.
1. Straight line module slide table, including high-precision ball screw module, high-speed mute synchronous belt module and heavy gear rack module, etc;
2. Servo system, including 50W-10KW AC servo motor and driver, 30-400W low voltage DC servo motor and driver;
3. Stepper systems,20-130 series two-phase and three-phase stepper motors and drivers,42-110 series closed-loop stepper motors and drivers;
4. DC brushless system, including 20W-2.5KW high and low voltage brushless motor and driver;
5. The planet reducer, including 3 arc minute high precision reducer and high cost performance standard reducer;
6. Multi-axis intelligent motion controller;
7. Meanwell Switching Power Supply;
Our factory is located in Jiangsu Province, one of the four major motor industry bases in China, with dozens of CNC machining centers, and a number of automatic production line factories can achieve servo system monthly production capacity of 12,000 sets, stepper and DC brushless system monthly production capacity of 27,000 sets, linear module sliding table monthly production capacity of 9,000 sets.
We provide cost-effective automation products, but also to provide quality pre-sale and after-sales service, linear module products to provide 1-year free warranty, servo, step, brushless DC system to provide 2-year free warranty.
Company Profile
Company Profile
Warehouse pictures
FAQ
1.What's the order process? 1）Inquiry---provide us all clear requirements (total qty and package details). 2)Quotation---officaial
quotation from with all clear specifications from our professional team. 3)Marking Sample --- confirm all quotation details and
the final sample. 4)Production---mass production. 5)Shipping---by sea or by air. 2.What terms of payment you use? As for the payment terms,it depends on the total amount.
3.How do you ship the products? By Sea ,By Air ,By courier, TNT , DHL, Fedex, UPS Etc. It is up to you .
4.What is the average delivery time? Sample usually takes about 10-20days depending on product type. Bulk order usually takes
about 35 days.
5.How would I get a price list for a wholesaler ? Please e-mail us, and tell us about your market with MOQ for each order. We
would send the competitive price list to you ASAP.
quotation from with all clear specifications from our professional team. 3)Marking Sample --- confirm all quotation details and
the final sample. 4)Production---mass production. 5)Shipping---by sea or by air. 2.What terms of payment you use? As for the payment terms,it depends on the total amount.
3.How do you ship the products? By Sea ,By Air ,By courier, TNT , DHL, Fedex, UPS Etc. It is up to you .
4.What is the average delivery time? Sample usually takes about 10-20days depending on product type. Bulk order usually takes
about 35 days.
5.How would I get a price list for a wholesaler ? Please e-mail us, and tell us about your market with MOQ for each order. We
would send the competitive price list to you ASAP.
