toilet vertical industrial sewage macerator pump stainless steel submarine sewage pump sump pump water powered pumps
- Category: >>>
- Supplier: Hangzhou Qinjie Electromechanical Co. Ltd.
Share on (1600313220016):
Product Overview
Description
Product Introduction
Product details
\t\t\t\t\t\t\t\t\tProduct Parameters \t\t\t\t\t\t\t
Model | Flow(m3/h) | Head(m) | Power(kw) | Outlet(mm) | Voltage(v) |
50WQP10-10-0.75 | 10 | 10 | 0.75 | 50 | 220/380 |
50WQP15-15-1.5 | 15 | 15 | 1.5 | 50 | 220/380 |
50WQP7-15-1.1 | 7 | 15 | 1.1 | 50 | 220/380 |
65WQP25-7-1.5 | 25 | 7 | 1.5 | 65 | 220/380 |
50WQP15-20-2.2 | 15 | 20 | 2.2 | 50 | 380 |
65WQP20-15-2.2 | 20 | 15 | 2.2 | 65 | 380 |
80WQP45-10-2.2 | 45 | 10 | 2.2 | 80 | 380 |
100WQP50-7-2.2 | 50 | 7 | 2.2 | 100 | 380 |
50WQP15-30-3 | 15 | 30 | 3 | 50 | 380 |
65WQP37-13-3 | 37 | 13 | 3 | 65 | 380 |
80WQP45-12-3 | 45 | 12 | 3 | 80 | 380 |
100WQP50-10-3 | 50 | 10 | 3 | 100 | 380 |
50WQP15-32-4 | 15 | 32 | 4 | 50 | 380 |
65WQP20-25-4 | 20 | 25 | 4 | 65 | 380 |
80WQP40-15-4 | 40 | 15 | 4 | 80 | 380 |
100WQP50-10-4 | 50 | 10 | 4 | 100 | 380 |
100WQP80-10-4 | 80 | 10 | 4 | 100 | 380 |
50WQP15-40-5.5 | 15 | 40 | 5.5 | 50 | 380 |
65WQP25-32-5.5 | 25 | 32 | 5.5 | 65 | 380 |
80WQP30-30-5.5 | 30 | 30 | 5.5 | 80 | 380 |
100WQP110-10-5.5 | 110 | 10 | 5.5 | 100 | 380 |
100WQP65-18-5.5 | 65 | 18 | 5.5 | 100 | 380 |
150WQP100-7-5.5 | 100 | 7 | 5.5 | 150 | 380 |
50WQP20-50-7.5 | 20 | 50 | 7.5 | 50 | 380 |
65WQP40-30-7.5 | 40 | 30 | 7.5 | 65 | 380 |
80WQP65-25-7.5 | 65 | 25 | 7.5 | 80 | 380 |
100WQP100-15-7.5 | 100 | 15 | 7.5 | 100 | 380 |
100WQP80-20-7.5 | 80 | 20 | 7.5 | 100 | 380 |
150WQP100-15-7.5 | 100 | 15 | 7.5 | 150 | 380 |
150WQP145-9-7.5 | 145 | 9 | 7.5 | 150 | 380 |
65WQP35-45-11 | 35 | 45 | 11 | 65 | 380 |
100WQP100-20-11 | 100 | 20 | 11 | 100 | 380 |
200WQP300-7-11 | 300 | 7 | 11 | 200 | 380 |
65WQP35-55-15 | 35 | 55 | 15 | 65 | 380 |
100WQP100-25-15 | 100 | 25 | 15 | 100 | 380 |
150WQP180-12-15 | 180 | 12 | 15 | 150 | 380 |
200WQP250-11-15 | 250 | 11 | 15 | 200 | 380 |
100WQP100-30-18.5 | 100 | 30 | 18.5 | 100 | 380 |
150WQP180-16-18.5 | 180 | 16 | 18.5 | 150 | 380 |
200WQP250-15-18.5 | 250 | 15 | 18.5 | 200 | 380 |
100WQP100-35-22 | 100 | 35 | 22 | 100 | 380 |
150WQP180-20-22 | 180 | 20 | 22 | 150 | 380 |
200WQP300-15-22 | 300 | 15 | 22 | 200 | 380 |
200WQP400-10-22 | 400 | 10 | 22 | 200 | 380 |
150WQP180-28-30 | 180 | 28 | 30 | 150 | 380 |
200WQP250-22-30 | 250 | 22 | 30 | 200 | 380 |
200WQP400-13-30 | 400 | 13 | 30 | 200 | 380 |
150WQP200-30-37 | 200 | 30 | 37 | 150 | 380 |
200WQP350-25-37 | 350 | 25 | 37 | 200 | 380 |

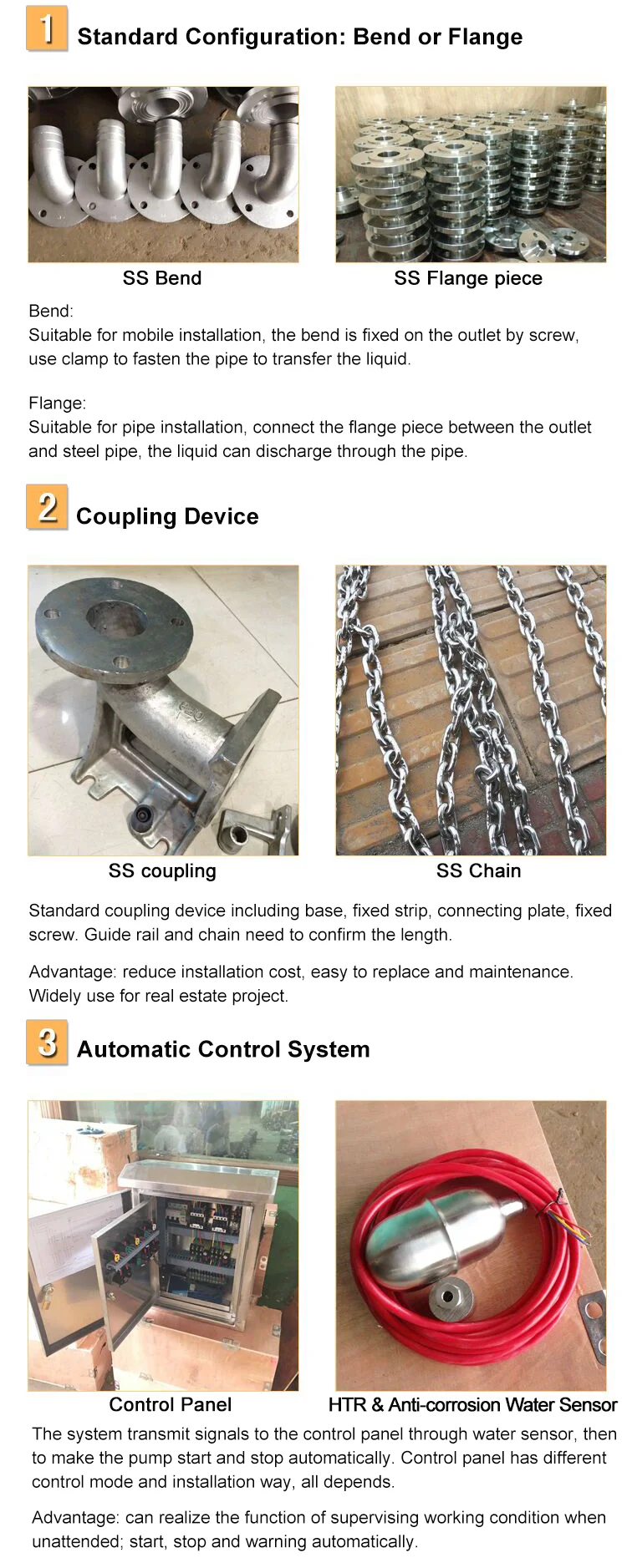

Accesories

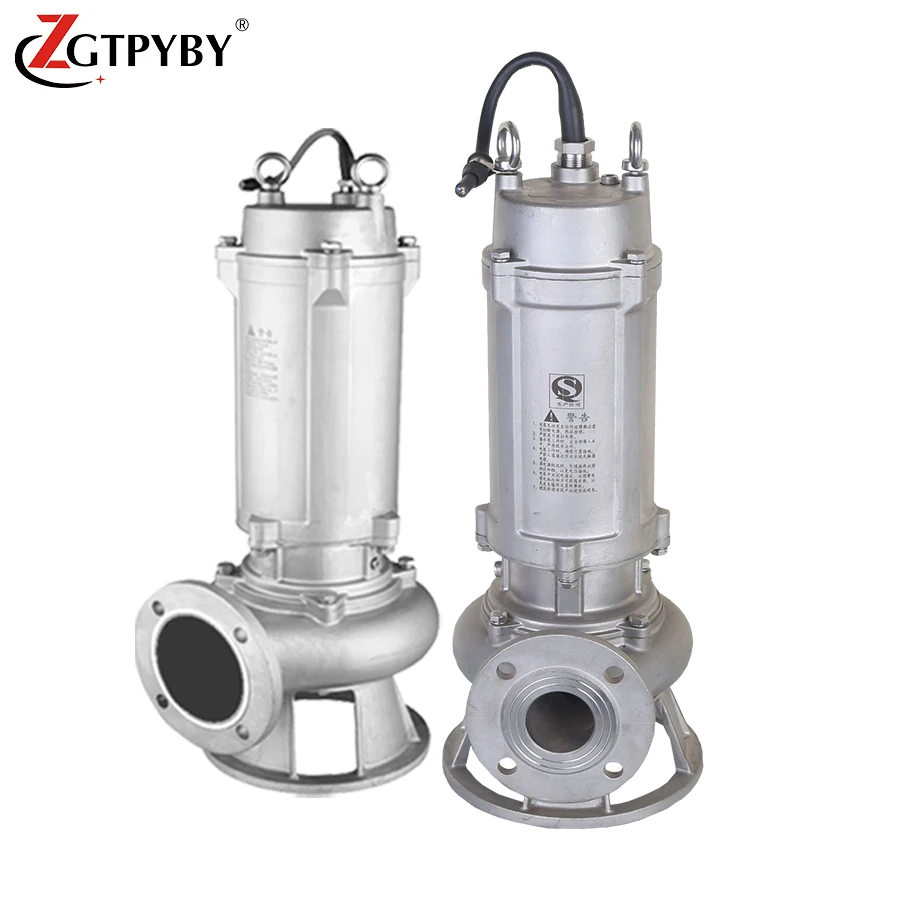

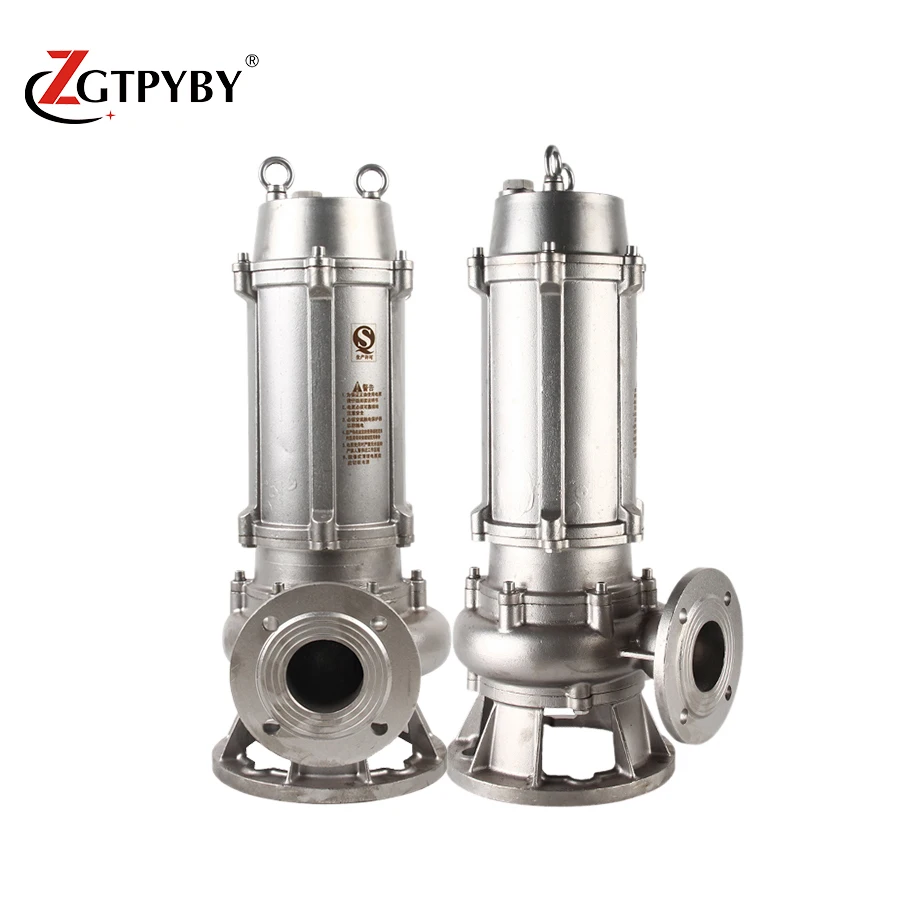

Product pictures
Application
◊ Operate Condition of water pump:
1. WQP water pump belong to submersible pump, so it must be satisfied the working condition of submerging into the water.
2.The medium's temperature shouldn't be higher than 50(HTR type can resist 100 degrees)
3. Medium's pH level: 3~10(If beyond this range, please choose other types)
4. The voltage can be customize 220V/380V/415V/440V/660V(It must be used within the range of plus or minus 5%)
5. Before you buy pumps, please inform detail informations including capacity, head, caliber, power etc, so that we can advise you appropriate model.
(Attention: do not choose the pump that the capacity is too large or the head too height, that may affect its working life.)
