Professional Manufacture plastic making machine estrusora de plastico nylon extruder machine

Product Overview

Description

Hdpe drip irrigation pipe extrusion equipment Micro-spray hose making line Labyrinth type water hose machine





INLAID ROUND EMITTER DRIP IRRIGATION PIPE MAKING MACHINE/EXTRUDER INTRODUCTION

This production line is mainly used to prodcue all kinds of inlaid round emitter drip irrigation pipe, which are widely used in agriculture and construction water supply and drainage and cable laying. This production line is composed of conical (parallel) twin-screw extruder, headpiece, vacuum sizing device, traction machine, cutting machine and stacking device. The extruder and traction machine adopts frequency control. The traction machine can be with two, three, four, six, eight claws. This production line is equipped with cutter (saw web or planetary). The production line has reliable performance and high efficacy.

INLAID ROUND EMITTER DRIP IRRIGATION PIPE MAKING MACHINE PARAMETERS

model	sj-65/30
screw diameter	65mm
pipe diameter	6-14mm,custom
wall thickness	0.6mm
l/d	28
speed	127rpm
output	60kg/h
drive power	15
heating	district:3
	power:3
central height	500
emitter max. screening speed	500pcs

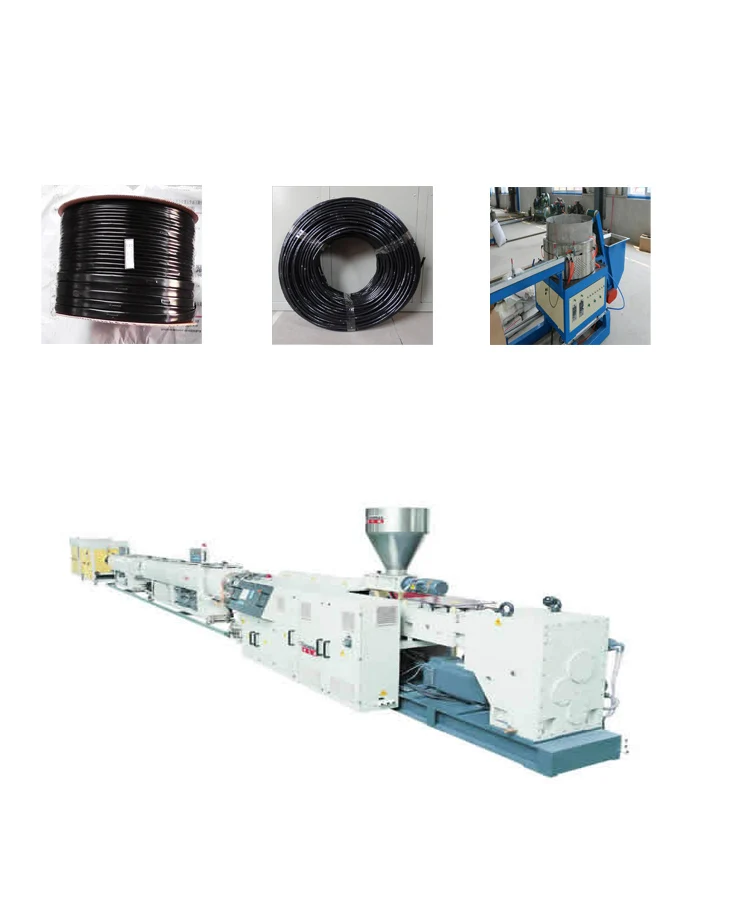

INLAID ROUND EMITTER DRIP IRRIGATION PIPE&EXTRUDER IMAGES

INLINE FLAT DRIP IRRIGATION PIPE EXTRUDER DESCRIPTION

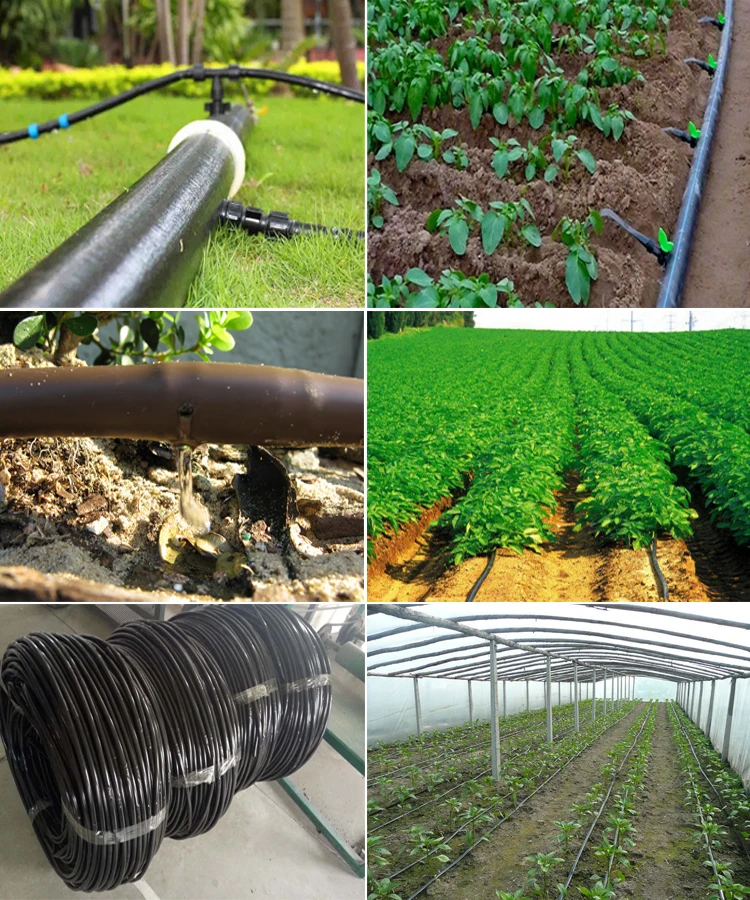

The agriculture inline flat drip irrigation hose/pipe making machine is used to make agriculture inline drip irrigation hose .In order to produce this agriculture inline drip irrigation hose making machine, our company makes full market research and assimilates the advanced technology from domestic and overseas. And this machine is the most advanced agriculture inline drip irrigation hose making machine in our company at present. The drip irrigation hose is widely used in the field (cotton,ect) vegetable and fruit, trees and flowers.Drip irrigation is the most efficient water-saving irrigation, which can make water directly infiltrate the crop roots through the patent design of water dropper.water and nutrients can be fed to crops through drip irrigation, which will make crops grow in the envrionment with sufficient water and nutrients.

INLINE FLAT DRIP IRRIGATION PIPE EXTRUSION LINE INDEX

extruder type	SJ-90/30
pipe diameter	6mm,10mm,14mm,custom
screw type	single screw
wall thickness	0.6mm
production speed	80-200m/min
emitter maximum screening speed	800pcs
emitter inlaid speed	800pcs/min or more
space between emitter	100-1500mm
hauling speed	200m/min or more
punching speed	600pcs/min or more

INLINE FLAT DRIP IRRIGATION PIPE MAKING MACHINE FEATURES

1) Dripper and pipe unified,it is convenient for installation and usage,low cost and small investment.

2) The dripper has inherent filtration window,it has good performance of resisting blockage.

3) The machine adopts ladyrinth type passageway,it has certain pressure compensation effect.

4)The space between the dripper can adjust according to the customers' requirements.

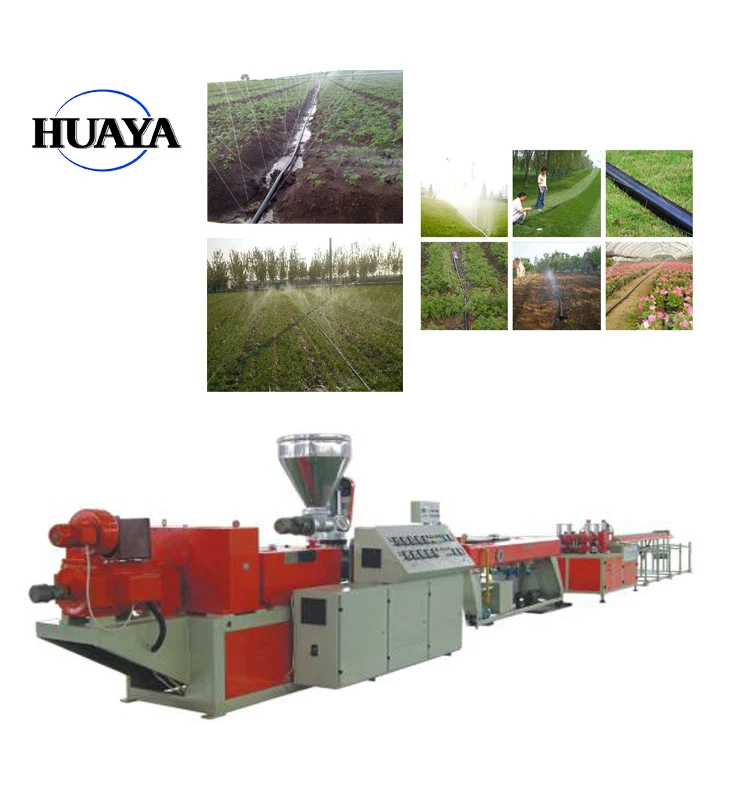

INLINE FLAT DRIP IRRIGATION PIPE&EXTRUDING MACHINE IMAGES

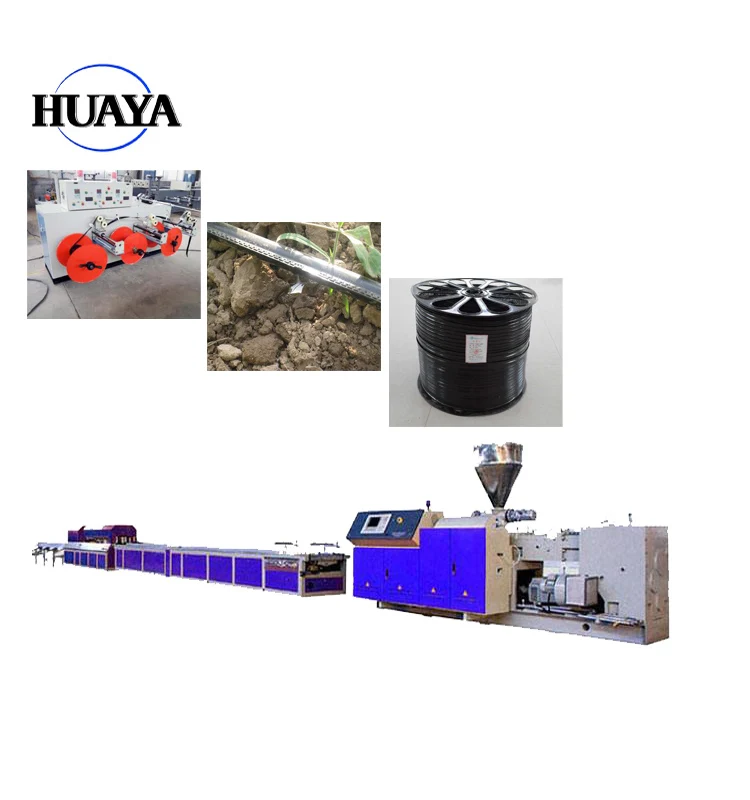

LABYRINTH TYPE DRIP IRRIGATION PIPE PRODUCTION LINE INTRODUCTION

Labyrinth type drip irrigation equipment is our company draws on the technical advantages of domestic and foreign equipment combined with my unit technology and the development of a new generation of high-speed thin-walled cylinder-type drip irrigation pipe equipment. Existing high-speed line (A line) and standard line (B line) two configurations.The agriculture inline  drip irrigation hose extruder machine  is used to make agriculture  inline  irrigation hose tube  .In order to produce this agriculture inline irrigation drip hose extruder machine, our company makes full market research and assimilates the advanced technology from domestic and overseas. And this machine is the most advanced  agriculture inline irrigation drip hose extruder machine in our company at present. The drip irrigation hose is widely used in the field (cotton,ect) vegetable and fruit, trees and flowers.

LABYRINTH TYPE DRIP IRRIGATION PIPE PRODUCTION LINE PARAMETERS

extruder	sj-65/30
motor	22kw
output	140kg/h
central height	1000mm
maximum speed	90m/min
shaping wheel	382
cooling method	water/air
traction	roller type
recoiling	double station
brand	china huaya

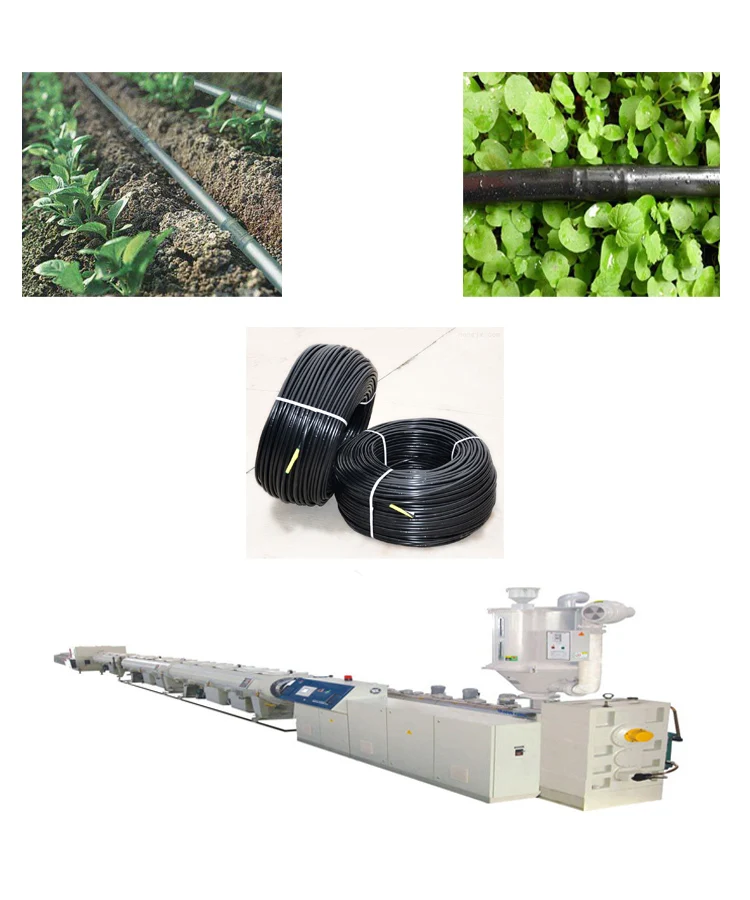

MICRO-SPRAY BELT EXTRUDING MACHINE DESCRIPTION&PARAMETERS&PICTURES

The micro-spray belt making machine is used to make agriculture inline drip irrigation hose .In order to produce this agriculture inline drip irrigation hose making machine, our company makes full market research and assimilates the advanced technology from domestic and overseas. And this machine is the most advanced agriculture inline drip irrigation hose making machine in our company at present. The micro-spray belt is widely used in the field (cotton,ect) vegetable and fruit, trees and flowers.Drip irrigation is the most efficient water-saving irrigation, which can make water directly infiltrate the crop roots through the patent design of water dropper.water and nutrients can be fed to crops through drip irrigation, which will make crops grow in the envrionment with sufficient water and nutrients.

EXTRUDER	SJ-30/25	SJ-45/30	SJ-50/28	SJ-55/28	SJ-65/25
SCREW DIAMETER	30MM	45MM	50MM	55MM	65MM
OUTPUT(KG/H)	8	50	60	95	55
PRODUCT	MICRO-SPRAY BELT
MOLDING WAY	DOWN-BLOWING VACUUM FORMING
USAGE	PRODUCING 30-80MM WIDTH MICRO-SPRAY BELT
