Промышленная система фильтрации воды UF, система фильтрации воды
- Category: Water Treatment Machinery >>>
- Supplier: Jiangmen,Tings,Drinking,Water,Equipment,Co.,Ltd.
Share on:
Product Overview
Description
FEATURES AT A GLANCE

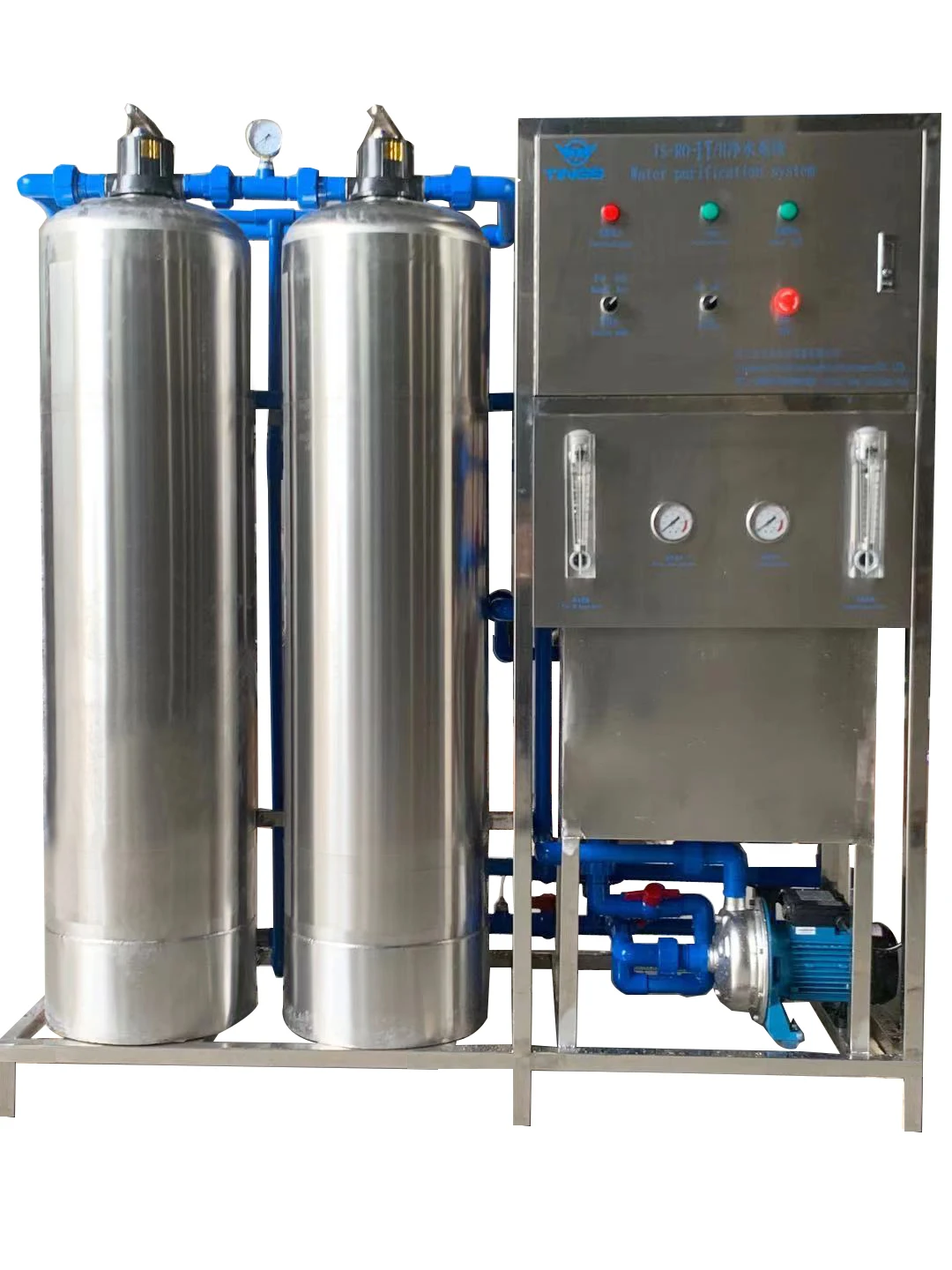

Industrial UF water filtration system water treatment plant filtration system
When you are sending us an inquiry, it is important to tell us three informations:
1. Please provide us your water quality test report if available.
2. What is the capacity of the machine your need? 1000L/H or 2000L/H...?
3. What purpose will the product water be used? For daily use, beverage production, irrigation or other use?
(We will offer you a most suitable solution and price.)
Products Specification
No | Item | Parameter |
1 | Capacity | 2500L (2.5Tons)/H (25℃) |

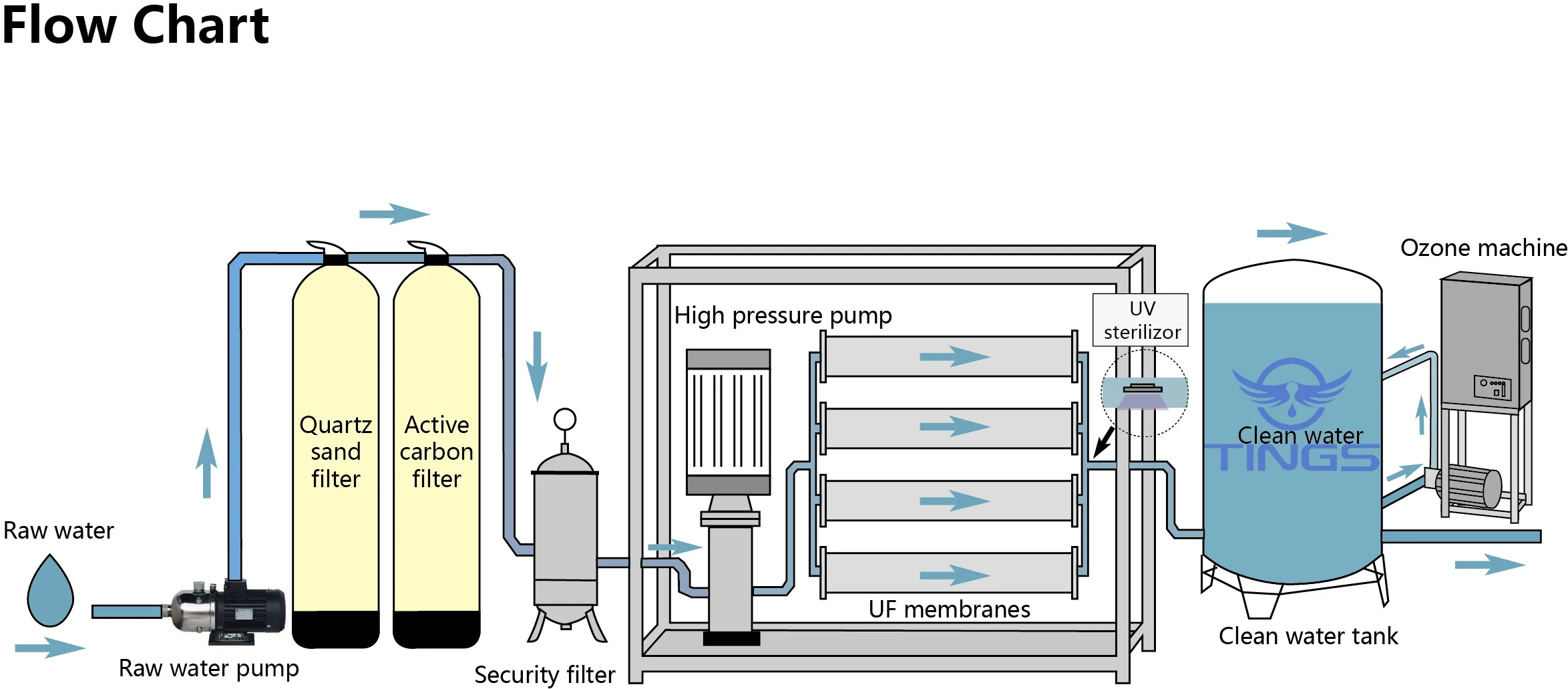

Process Description：
●Booster pump
The device provides stable water source and pressure to the back-end treatment system.
The device provides stable water source and pressure to the back-end treatment system.
●Sand filter
The device filters the impurity substance and disposes of the divalent iron and manganese ion in the raw water. It is equipped with automatic control valve, which can discharge the sediment by its automatic back washing function.
The device filters the impurity substance and disposes of the divalent iron and manganese ion in the raw water. It is equipped with automatic control valve, which can discharge the sediment by its automatic back washing function.
●Activated carbon filter
This filter removes the colors and smells of the raw water to improve the water’s flavor.
●Water softener
This device soften the water by oxidizing the calcium ion and magnesium ion in the raw water with cation.
This filter removes the colors and smells of the raw water to improve the water’s flavor.
●Water softener
This device soften the water by oxidizing the calcium ion and magnesium ion in the raw water with cation.
●Precise filter
With the filtering accuracy of ≤5μm, the precise filter can filter the particle impurity substance in the raw water from the front-end filters. It can prevent impurity substance from flowing into and thus blocking up the reverse osmosis membrane system, so as to decrease power consumption more effectively.
With the filtering accuracy of ≤5μm, the precise filter can filter the particle impurity substance in the raw water from the front-end filters. It can prevent impurity substance from flowing into and thus blocking up the reverse osmosis membrane system, so as to decrease power consumption more effectively.
●Multistage pump
This device gives stable water supply and sufficient pressure to the reverse osmosis membrane system.
This device gives stable water supply and sufficient pressure to the reverse osmosis membrane system.
●Reverse osmosis system
This device filters the substances such as bacteria and ions in the water. And the quality of product water after filtration will be much higher than that of standard daily drinking water.
This device filters the substances such as bacteria and ions in the water. And the quality of product water after filtration will be much higher than that of standard daily drinking water.
Function：
●Water filtration
●RO membranes auto wash and manual wash
●Auto stop on high pure water level, auto start on low pure water level
●Multi-phased pump can prevent the system from water shortage
●Multi-phased pump can prevent the system from water shortage
●Protection of power-off, under voltage, excessive current, short circuit, leakage of electricity.
Details Images

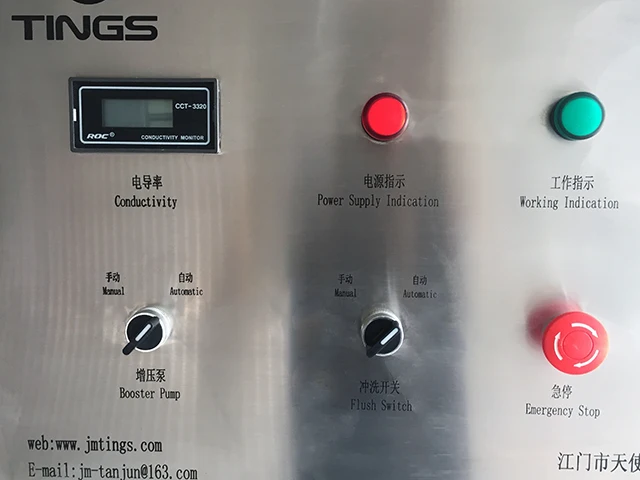

Control Panel
Conductivity Monitor
Guages
Dosing tank
Electric Box
UV Sterilizor
It is an extra device that is usually installed in the RO system to sterilize the raw water. 1000L water needs one piece.
Ozone machine
It is an extra device that makes ozone and send it into the pure water tank, so that the ozone can sterilize circularly in the water.
Water tank
For storing raw water or pure water.
Models with different capacity
Model | Capacity (L/H ) | Power (kw) | Membrane | Entrance Diameter (mm) | Size(L*W*H) ( mm) | Weight (Kg) |
TS-RO-0.5 | 500L | 1.1 | 4040 | Φ32 | 1700*700*1700 | 200 |
TS-RO-1T | 1000L | 1.5 | 4040 | Φ32 | 1550*900*1800 | 200 |
TS-RO-2T | 2000L | 3 | 4040 | Φ38 | 4800*700*2000 | 300 |
TS-RO-3T | 3000L | 4 | 8040 | Φ48 | 4700*1000*2300 | 400 |
TS-RO-4T | 4000L | 5 | 8040 | Φ48 | 4700*1000*2300 | 450 |
TS-RO-5T | 5000L | 7 | 8040 | Φ60 | 5000*1200*2300 | 600 |
TS-RO-10T | 10000L | 11 | 8040 | Φ60 | 9000*2000*2000 | 800 |
TS-RO-15T | 15000L | 16 | 8040 | Φ72 | 10000*1870*3000 | 1000 |
TS-RO-20T | 20000L | 30 | 8040 | Φ60 | 10000*1800*4000 | 1550 |
Packing&Shipping
Packed in cases/crates and with paper
Trade Fair
Company Profile
FAQ
HOW TO FIND TINGS?
● Search Jiangmen Tings Drinking Water Equipment Co., Ltd. on Alibaba, remember to choose manufacturer, not trader
● Visit exhibition in Canton Fair or trade fairs abroad
● Send Tings an inquiry through Alibaba or our website
● Tings's sales manager will reply you in short time and add instant chatting tool
● Visit exhibition in Canton Fair or trade fairs abroad
● Send Tings an inquiry through Alibaba or our website
● Tings's sales manager will reply you in short time and add instant chatting tool
CAN I VISIT YOUR FACTORY?
● Welcome to visit our factory anytime.
● Seeing is believing. Please come to out factory to know more about our R&D, sales, after sales and quality control team, as well as our production process and capacity.
● Seeing is believing. Please come to out factory to know more about our R&D, sales, after sales and quality control team, as well as our production process and capacity.
TELL ME HOW YOUR FACTORY CONTROL THE QUALITY?
● We use high accuracy processing equipment for production, and we are experienced in making our machine for over 20 years.
● Each component before assembly needs will be strictly test by our professional QC.
● Each component before assembly needs will be strictly test by our professional QC.
HOW ABOUT YOUR AFTER-SALES SERVICE?
● We will debug all machines after production. Then we will send our customer pictures or videos of the testing for all machines.
● we will pack all machines by standard export package for long-distance shipment.
● we will pack all machines by standard export package for long-distance shipment.
● According to the customer's request, we can arrange to send our engineers to customers' factory to do the installation and training.
● Our after-sales team are formed by our engineers, sales managers and after-sales service manage, who will follow our customers' project.
