Product Overview
Description
Glass Straight Line Edging Machine Ultra-white Glass Straight Edge Machine Bathroom Glass Edging Machine on Sale
Company Introduction

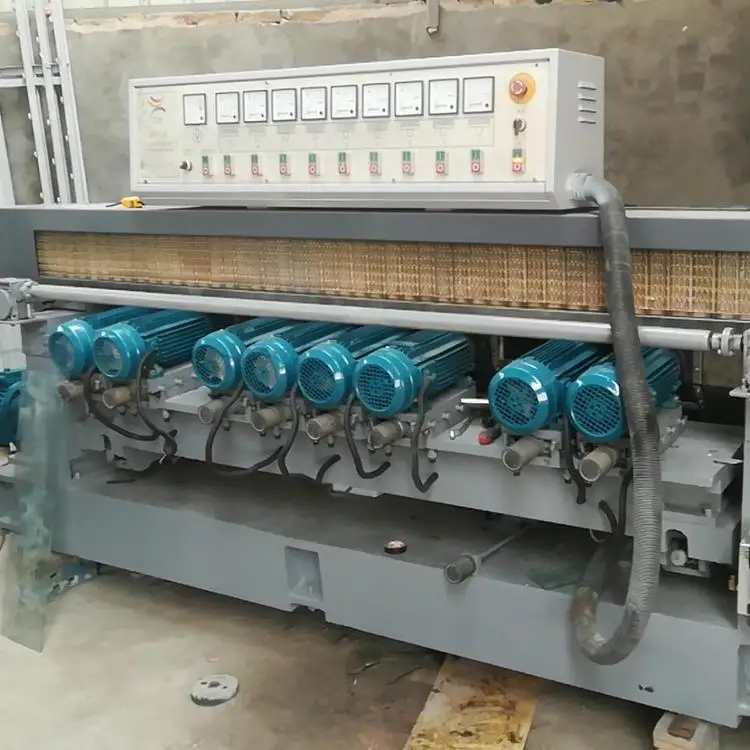

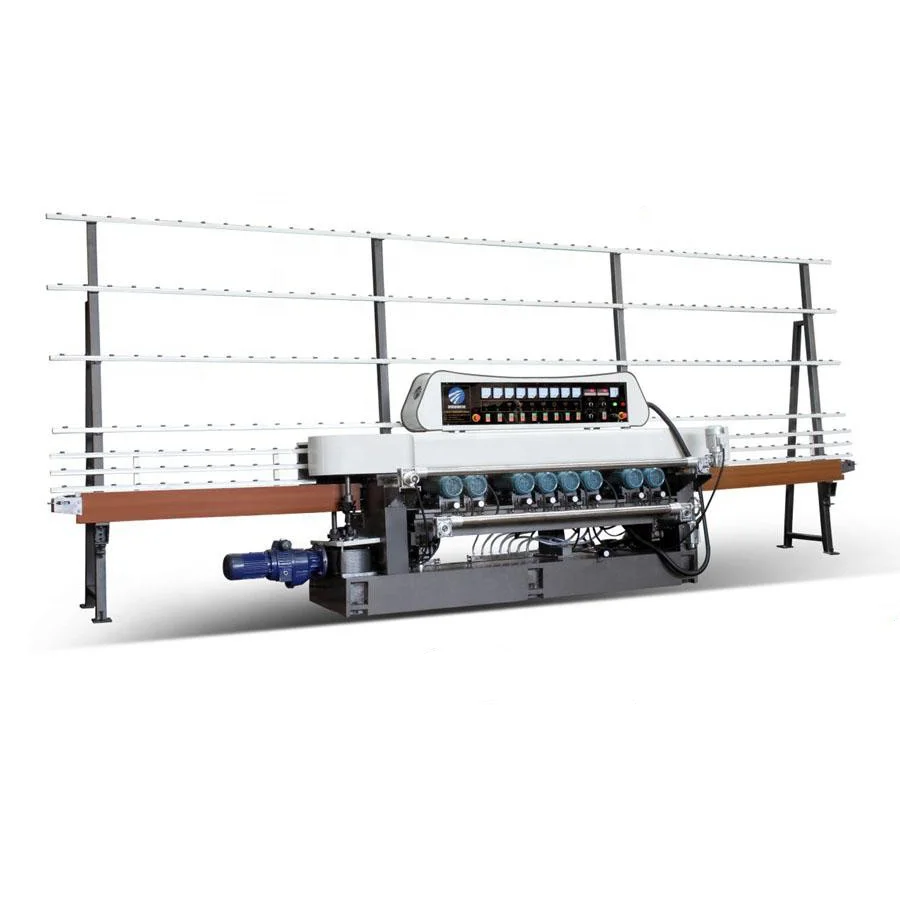

KTZB Vertical Linear Glass Edging and Grinding Machine
KTZB vertical linear glass edging machine is a clear and efficient glass deep processing equipment. The critical support parts such as the guide rail frame and the motor seat are cast iron castings and processed after natural aging. They have the advantages of flat, smooth, beautiful, and non-deformed, to ensure the accuracy of the whole machine after long-term use; Some use worm gears for variable speed, uniform and continuous speed change, and a wide range of speed adjustment (0-4 m/min) to meet the different processing needs of other manufacturers. The clamping part adopts a high-quality timing belt. The surface is adhered to with PU and red glue, which ensures the proper clamping force and friction force and solves the problem that ultra-thin glass is easily broken and challenging to be clamped and transported. The grinding system adopts a three-phase high-speed motor and the latest technology grinding wheel, which is especially suitable for long-term small and medium glass crafts manufacturers. It accepts the platform and uses the same timing belt with the conveying mechanism to avoid surface scratches during glass operation. Some organically cooperate with working parts, people-oriented, highlighting the humanized design. The method of use is simple and straightforward, and the grinding accuracy is stable and continuous. The whole work process can be monitored through the transparent observation window, which is clear at a glance. It is an ideal choice for glass deep-processing enterprises, especially glass handicraft manufacturers.
Advantages & Features

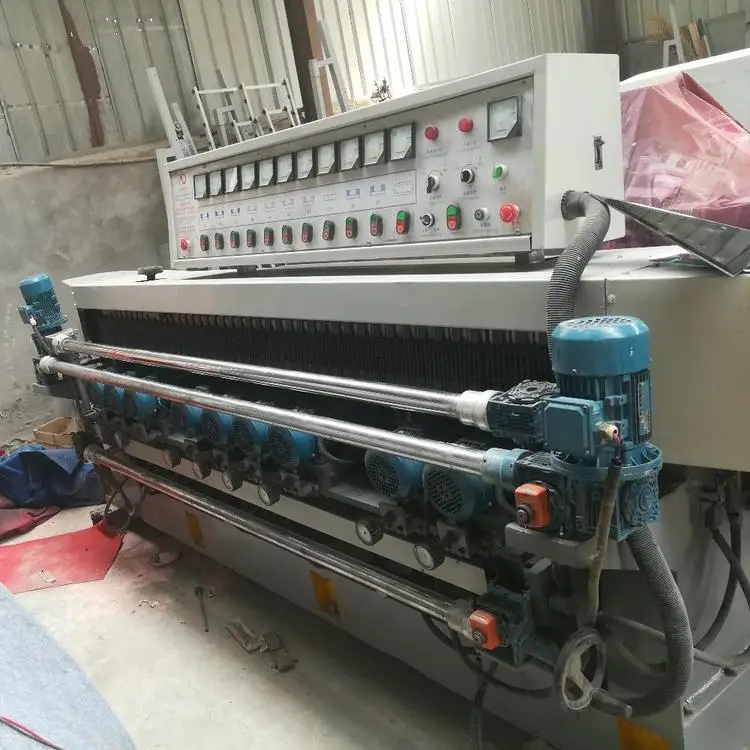

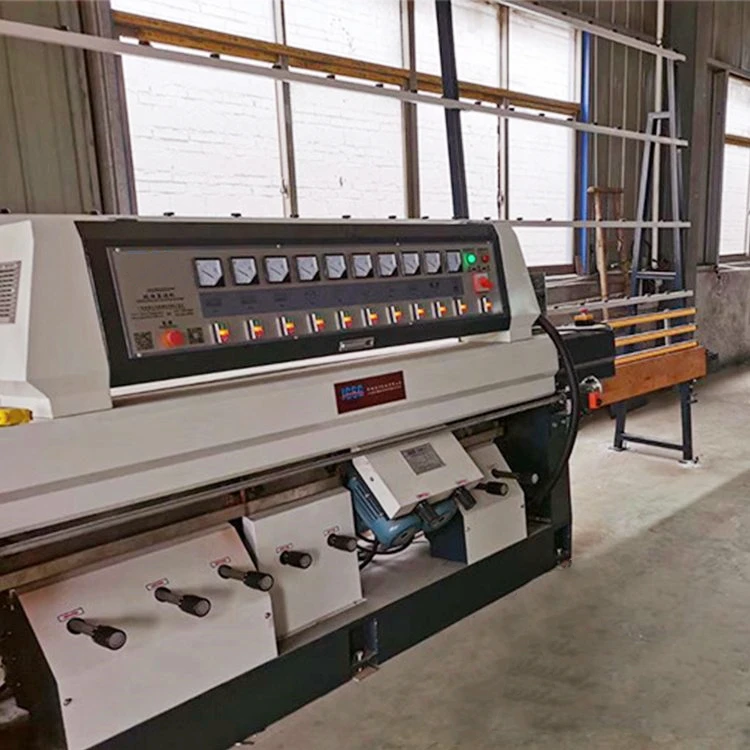

The Advantages of Vertical Glass 45° Linear Edging Machine

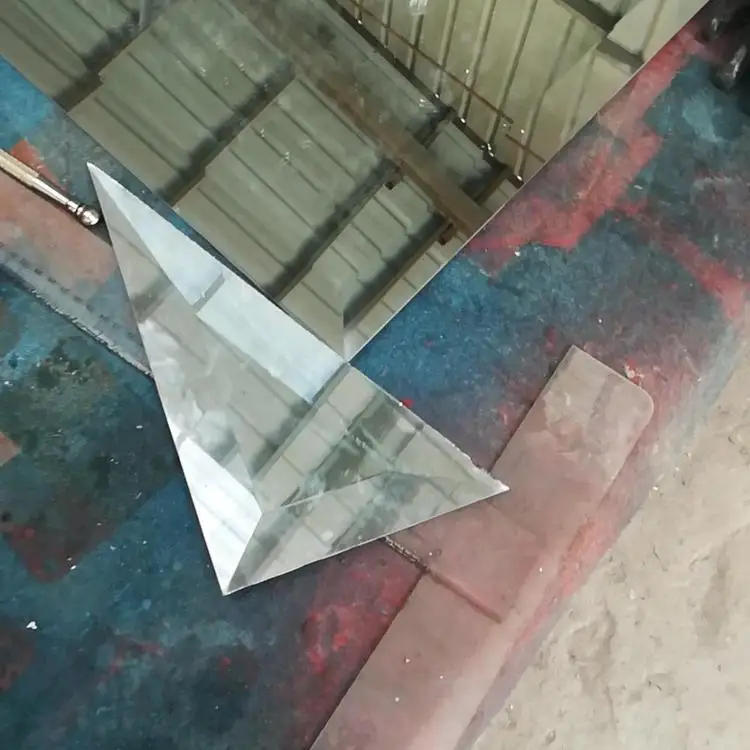

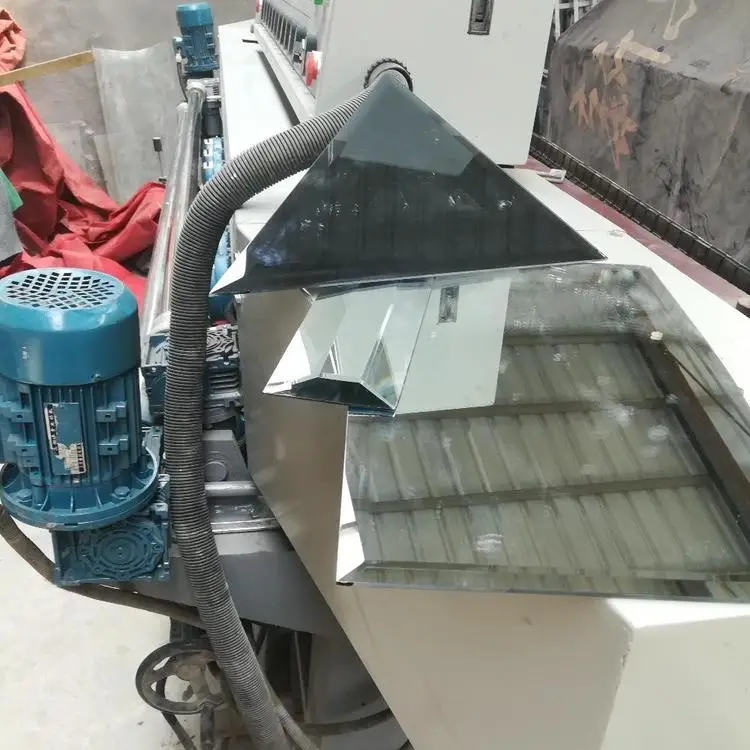

The machine adopts electric control and is mainly used for glass bottom edge and front large chamfer edging and polishing. The angle of the front five motors can be adjusted between 0°-45°. The machine has a simple structure and is easy to operate. It is suitable for engineering glass and Mass production of furniture glass. It is a special machine suitable for grinding the flat edge of flat glass. The machine can finish the rough grinding, fine grinding and polishing of the 45℃ edge of the flat edge at one time. The transmission drive adopts mechanical stepless speed regulation, with a large adjustable range and stable speed change. , The front and rear beams, and the base bed are all made of cast iron, which has good stability, convenient operation, simple operation, stable performance, and reliable quality. It can be controlled by PLC programmable controller.

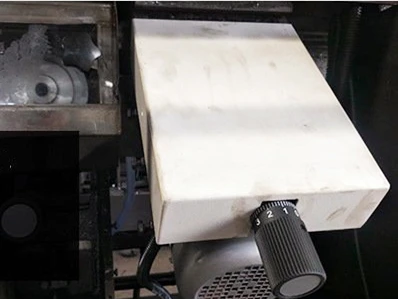

The variable frequency adjustment motor

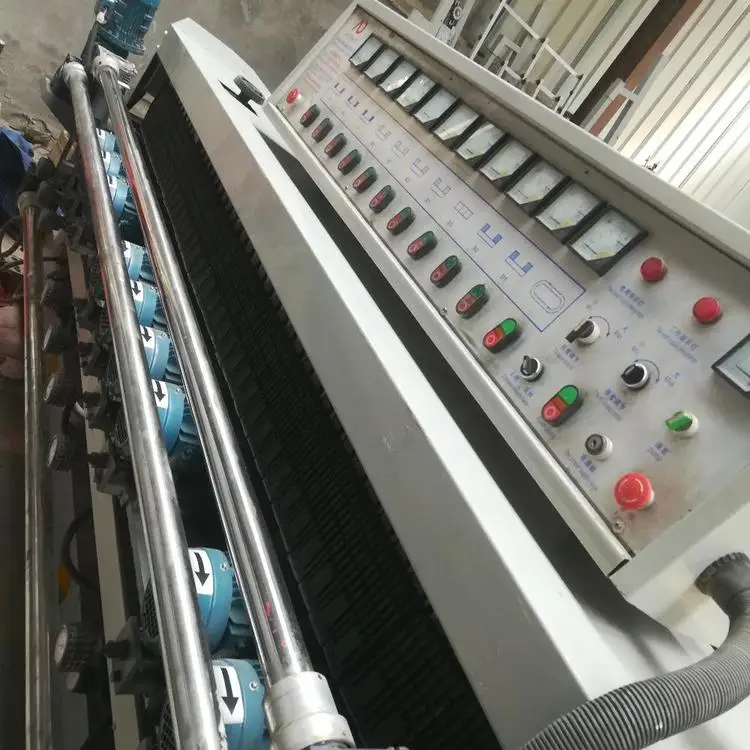

The equipment is equipped with a variable frequency adjustment motor, and the operator can directly operate the rotary switch on the panel, intelligently adjust and transform the processing speed, the speed is stable, and the damage caused by manual adjustment could be avoided.
The independent digital display
The front beam of the equipment is equipped with an independent digital display. When adjusting different thicknesses of glass, the front chamfering grinding head can move synchronously with the front beam. The structure is advanced, convenient and accurate.
The high temperature annealing treatment
The equipment girder base castings are treated with high-temperature annealing to improve or eliminate various structural defects and residual stresses caused by steel casting, forging, rolling, and welding, prevent deformation and cracking of the workpiece, and make the equipment have a longer service life.
The front and rear pressure plates of the grinding parts
The front and rear pressure plates of the grinding parts, are made of 40Cr sectioned material, and the friction surface is subjected to high-frequency quenching treatment and fine grinding to make it more wear-resistant

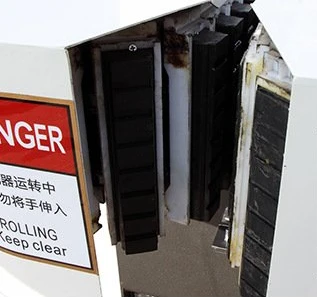

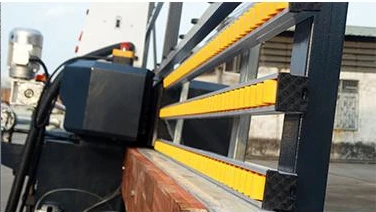

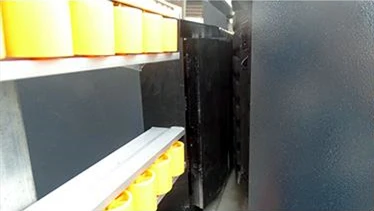

The rolling bearing structure of conveyor belt
The conveyor belt adopts a rolling bearing structure, and each splint is equipped with 3 types of specially customized bearings, a total of 5 bearings, which are load-bearing bearings, guide bearings and buckle spring bearings, so that the friction force during glass processing is small and the transmission is more stable.
The all-in-one Glass Grinding
The equipment can complete rough grinding, fine grinding, polishing, and chamfering at one time. It has advanced structure, high precision, convenient operation and high work efficiency. It is suitable for glass edging processing in large-scale crafts, furniture, home appliances, construction and other industries.
Above information is the special details from Jinan LIJIANG Glass.
If customers want to know more special details, please contact us directly.
Main Technical Parameter
Item. | Spec. |
Max.Glass size | 2500×2500mm |
Min.Glass size | 100×100mm |
Glass thickness | 3-19mm |
Transmissinon speed | 0.5-6m/min |
Max.Hypotenuse width | 40mm |
Bevel angle | 0~25° |
Power | 21KW |
Weight | 4000kg |
Land occupation | 6500×1300×2500mm |
glass diagonal error | ≤0.5mm/m |
Power | 380V/50HZ or Customized |
Above information is the Specification from Jinan LIJIANG Glass Tech. Standards.
If customers want to know more details, please contact us directly.
Company Profile
The Brief Information

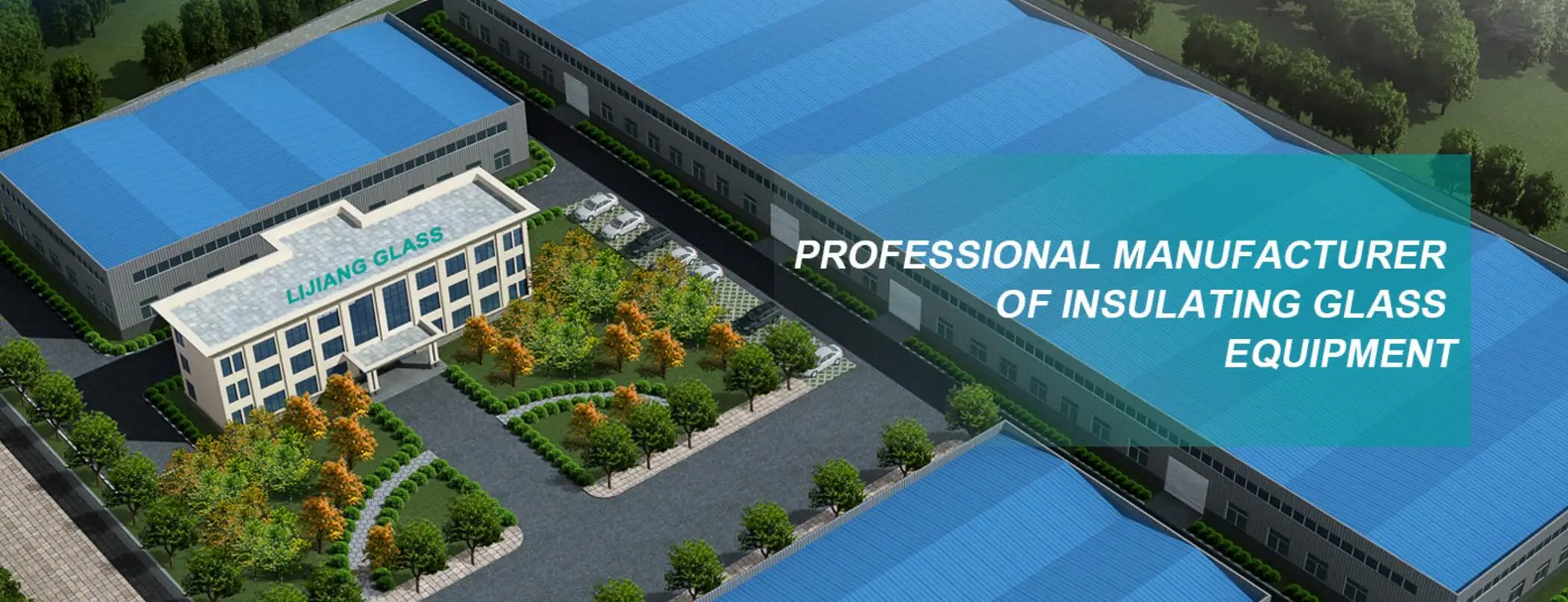

Founded in 2009, Kation-International Group specializes in R&D, production and sales of Insulating glass machinery and related auxiliary equipment for the glass deep processing industry and the door and window construction industry, which is the international group company including the Jinan LIJIANG Automatic Equipment Co,.Ltd. to producing the automatic insulating glass production line, and including the Jinan Kation International Group Co,.Ltd. to export the automatic insulating glass processing machine around the world. Has the professional processing basis of insulating glass machinery, aluminum-plastic windows & doors machinery and the related auxiliary materials, etc. In this way, we provide the most comprehensive glass processing solution and windows & doors solution for domestic and foreign customers well. Until 2019, we exported glass machines and materials to America, South America, Europe, the Middle East, India and so on,nearly 30 countries and regions. We have established a perfect international business relationship with 10 powerful agents and made an endeavor together to build a famous international brand to the world.
Kation-International Group, with craftsmanship, profession and honesty, wins the future with you together!
Kation-International Group, with craftsmanship, profession and honesty, wins the future with you together!
Team
Technician Team
Jinan LIJIANG Glass, has own technician team, IG line and automatic sealing robot technician team have 6 experts which all have more than 15 years+ glass machine producing experience. Aluminum spacer bending and desiccant filling machine technician team we have 3 technician which have rich experience in double glass machines. Butyl extruder machine and sealing pump and hot melt machine team have 4 experienced technician, all of them are worked in glass machine filed more than 12 years,
Service Team: Jinan LIJIANG Glass, has the own chinese domestic team and oversea service team. The whole team was included by 15 chinese engineers who worked in glass machine filed more than 20 years and 5 oversea engineers, two of them from india and others from south America and midle east. 24 hours online service and local engineer available, guarantee customers got timely service and solution .
Service Team: Jinan LIJIANG Glass, has the own chinese domestic team and oversea service team. The whole team was included by 15 chinese engineers who worked in glass machine filed more than 20 years and 5 oversea engineers, two of them from india and others from south America and midle east. 24 hours online service and local engineer available, guarantee customers got timely service and solution .
Our Service
National Expo
Glass International Expo
International Glass Expo: Glasstec in Germany , CAM Eurasia Glass in Istanbul, India Zak, India Glasspro, Glasstech Aisa, Glass buildin in America, Mexico glass expo .Big Five In Dubai, Egpyt., and so on.
Domestic Glass Expo: China glass , (Beijing /shanghai), Guangzhou.Glass Expo, and so on.
Domestic Glass Expo: China glass , (Beijing /shanghai), Guangzhou.Glass Expo, and so on.
Beijing Glass Expo
Shanghai Glass Expo
Guangzhou Glass Canton Fair
Turkish Glass Exhibition
