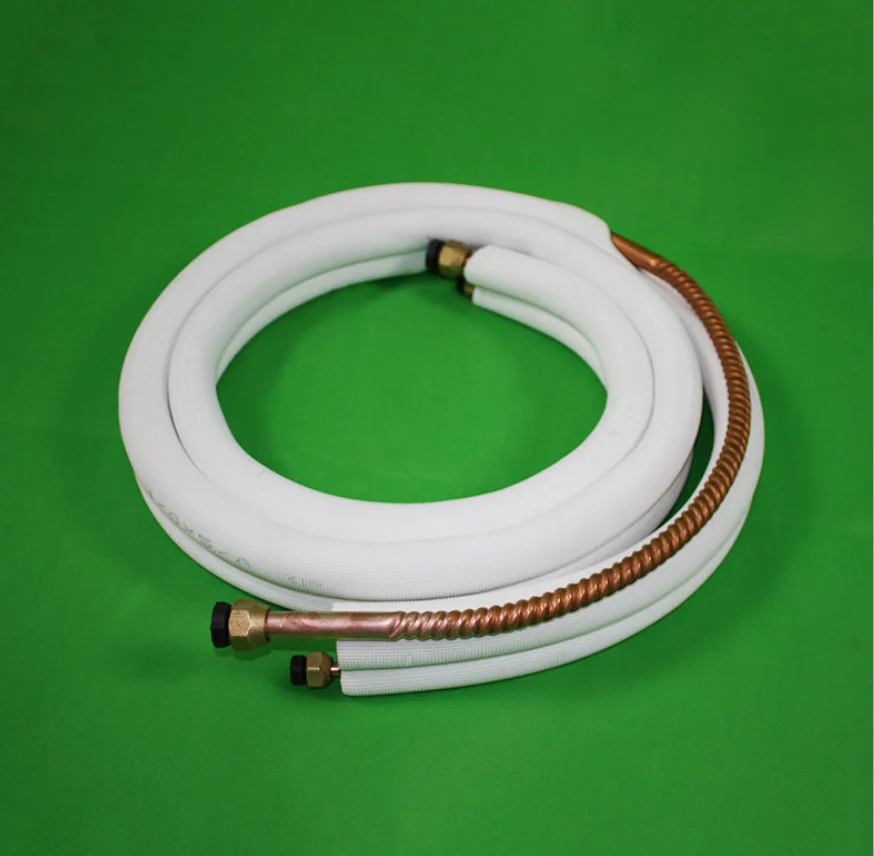

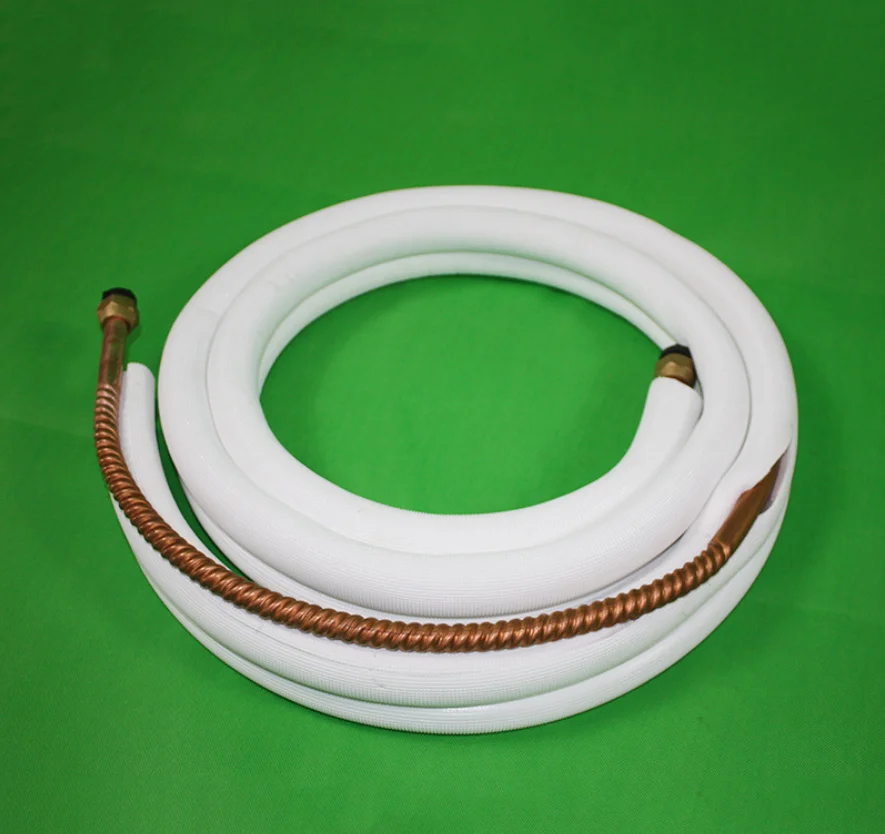

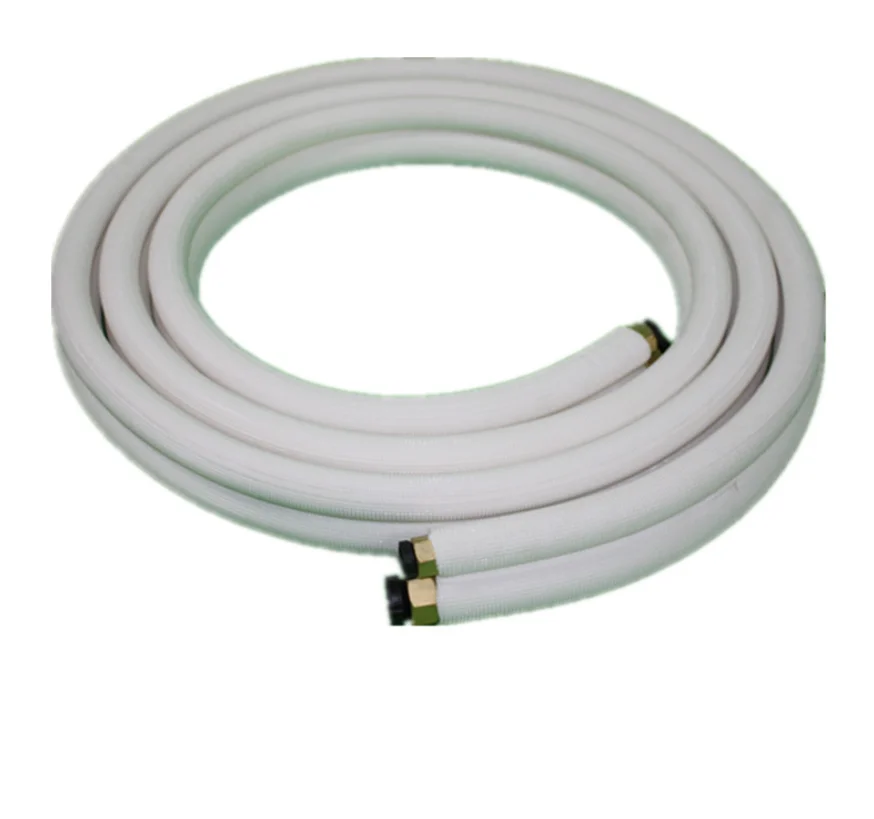

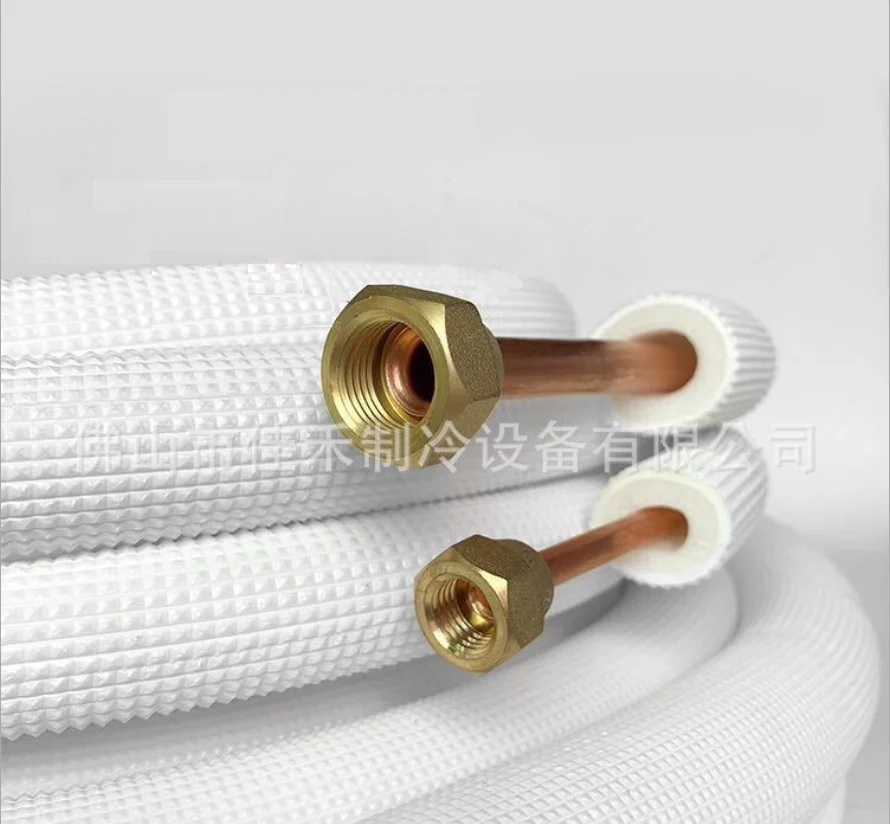

  • Single or Double Air conditioner Copper Pipes With Fireproof PE Insulation Pre Insulated Copper Tube chiller
Single or Double Air conditioner Copper Pipes With Fireproof PE Insulation Pre Insulated Copper Tube chiller
Single or Double Air conditioner Copper Pipes With Fireproof PE Insulation Pre Insulated Copper Tube chiller
Single or Double Air conditioner Copper Pipes With Fireproof PE Insulation Pre Insulated Copper Tube chiller
Single or Double Air conditioner Copper Pipes With Fireproof PE Insulation Pre Insulated Copper Tube chiller
Single or Double Air conditioner Copper Pipes With Fireproof PE Insulation Pre Insulated Copper Tube chiller
Single or Double Air conditioner Copper Pipes With Fireproof PE Insulation Pre Insulated Copper Tube chiller
Single or Double Air conditioner Copper Pipes With Fireproof PE Insulation Pre Insulated Copper Tube chiller

Single or Double Air conditioner Copper Pipes With Fireproof PE Insulation Pre Insulated Copper Tube chiller

Share on (1600313577480):


Price:

Quantity:


Product Overview

Description








16293449181.5HP1629344933(1)2





































































































































































Sizecopper tube sizeInsulation pipe thicknessInsulation pipe inner diameter (mm)Length
Copper tube outer diameter x copper tube wall thickness  (mm)
(mm)
1/4”+3/8”6.35x0.56 – 9.52x0.568mm/ 9mm8.0 – 12.03m/ 5m / 6m / 10m/ 15m /20m / 25m / 30m
1/4”+3/8”6.35x0.61 – 9.52x0.618mm/ 9mm8.0 – 12.0
1/4”+3/8”6.35x0.71 – 9.52x0.718mm/ 9mm8.0 – 12.0
1/4”+3/8”6.35x0.81 – 9.52x0.818mm/ 9mm8.0 – 12.0

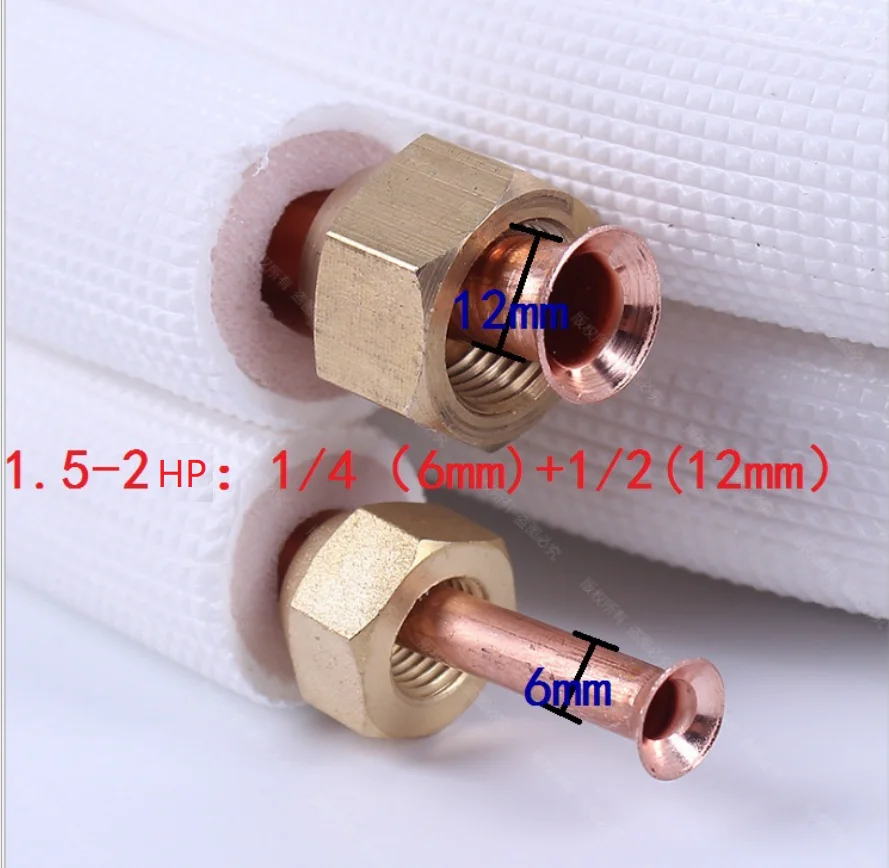

1/4”+1/2”6.35x0.56 – 12.7x0.568mm/ 9mm8.0 – 14.0
1/4”+1/2”6.35x0.61 – 12.7x0.618mm/ 9mm8.0 – 14.0
1/4”+1/2”6.35x0.71 – 12.7x0.718mm/ 9mm8.0 – 14.0
1/4”+1/2”6.35x0.81 – 12.7x0.818mm/ 9mm8.0 – 14.0
1/4”+5/8”6.35x0.56 – 15.88x0.618mm/ 9mm8.0 – 18.0
1/4”+5/8”6.35x0.61 – 15.88x0.718mm/ 9mm8.0 – 18.0
1/4”+5/8”6.35x0.71 – 15.88x0.818mm/ 9mm8.0 – 18.0
1/4”+5/8”6.35x0.81 – 15.88x1.028mm/ 9mm8.0 – 18.0
3/8”+5/8”9.52x0.56 – 15.88x0.718mm/ 9mm12.0 – 18.0
3/8”+5/8”9.52x0.61 – 15.88x0.818mm/ 9mm12.0 – 18.0
3/8”+5/8”9.52x0.71 – 15.88x0.918mm/ 9mm12.0 – 18.0
3/8”+5/8”9.52x0.81 – 15.88x1.028mm/ 9mm12.0 – 18.0
3/8”+3/4”9.52x0.56 – 19.05x0.818mm/ 9mm12.0 – 22.0
3/8”+3/4”9.52x0.61 – 19.05x0.918mm/ 9mm12.0 – 22.0
3/8”+3/4”9.52x0.71 – 19.05x1.028mm/ 9mm12.0 – 22.0
3/8”+3/4”9.52x0.81 – 19.05x1.148mm/ 9mm12.0 – 22.0
1/2”+3/4”12.7x0.56 – 19.05x0.818mm/ 9mm14.0 – 22.0
1/2”+3/4”12.7x0.61 – 19.05x0.918mm/ 9mm14.0 – 22.0
1/2”+3/4”12.7x0.71 – 19.05x1.028mm/ 9mm14.0 – 22.0
1/2”+3/4”12.7x0.81 – 19.05x1.148mm/ 9mm14.0 – 22.0





4


5


6


7


8


9


10


11


Q1: Are you the manufacturer?


A: Yes. we are the only manufacturer of JiaHe brand





Q2: Payment term?


A: 1)100% Payment for stock machines.


  2)50% deposit for no stock or product line machines.





Q3: How can we see the working, machines?


A: You are warmly welcome to visit our factory, and we have the working machine in factory,


our engineers will explain you the machines details one by one.





Q4: Can you make customized designed products?


A: We can make the products according to customers requirerments, like the size, logo and details





Q5: Warranty?


A: For a year. We suggest you ask us about spare parts before you order.





Q6. How long the lead time is?


A: Usually 2-9 weeks, depends on the machine you ordered.
