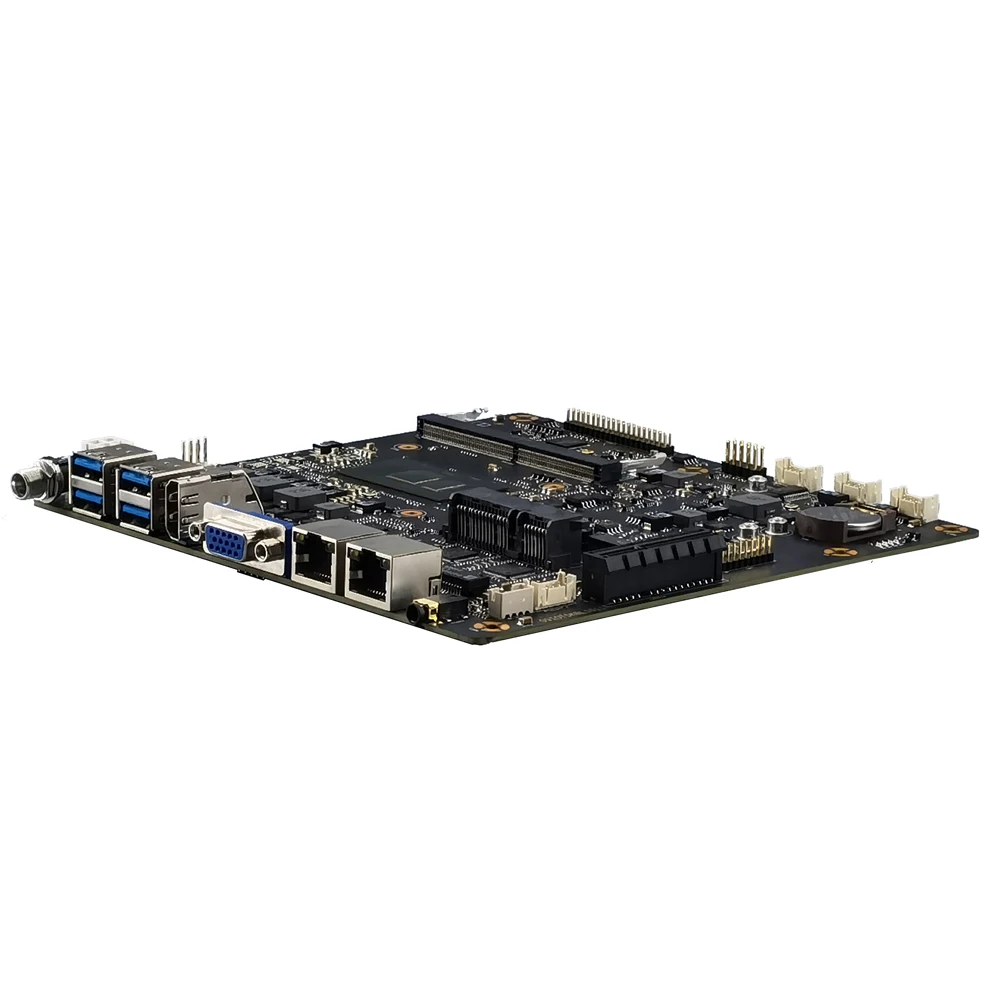

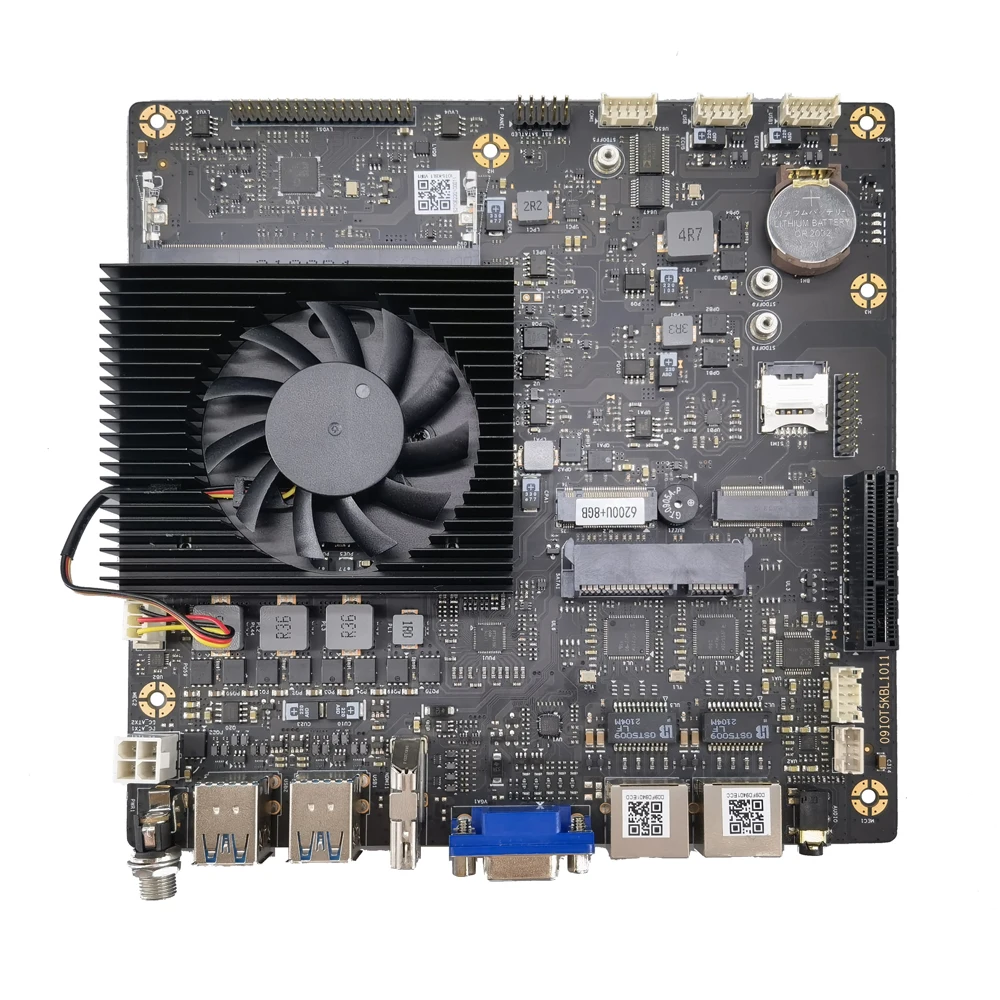

I5 6200U CPU DDR4 Max 16GB RAM 2LAN mini ITX 17*17 motherboards
- Category: Motherboards >>>
- Supplier: Shenzhen,Evolution,Computer,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
I5 6200U CPU DDR4 Max 16GB RAM 2LAN mini ITX 17*17 motherboards
Features
• On-board Core 6th Gen CPU (Other CPUs can be customized)
• 1*SO-DIMM DDR4L slot, up to 16GB
• 1*HD-MI, 1*VGA, 1*LVDS port, support Sync or Async dual display
• 1* 2.5" SATA slot & 1* M.2 SSD slot
• 1* M.2 slot, support Wifi/4G module
Specifications
| Model | EVC-5004 |
| CPU | Core I5 6200U (Dual Cores 4 threads, 2.30GHz, Max 2.80GHz, 3MB Cache) |
| Memory | 1*SO-DIMM DDR4 slot, up to 16GB |
| GPU | Integrated HD Graphics 520 |
| Display output | Rear I/O: HD-MI, VGA, Internal: 1*LVDS, 1*inverter, 1* backlight jumpers |
| Network | Rear I/O: 2*10/100/1000M LAN (1* i211-AT LAN & 1* i219-LM LAN) Internal: 1* M.2 slot(support Wifi/4G module), 1* SIM card slot |
| Storage | Internal: 1* 7P+15P 2.5" SATA slot & 1* M.2 SSD slot |
| USB | Rear I/O: 4*USB3.0 Internal: 2*10PIN connector, max. extend to 4* USB2.0 |
| COM | Internal: 1*10PIN connector, for 1* COM RS-232 |
| Audio | Rear I/O: 1*Line-out+Mic-in (2 in 1 jack port connector) Internal: 1*10Pin front Audio connector, 1*4PIN Line out connector |
| Other internal connectors | 1*10PIN front panel connector; 1* 4PIN CUP_FAN Optional: 1*PCI-E x4 |
| Power | DC12V(DC12V 5A adpator is recommend) Rear I/O: 1* DC-IN Jack (φ2.5mm) Internal: 1*4PIN DC_ATX |

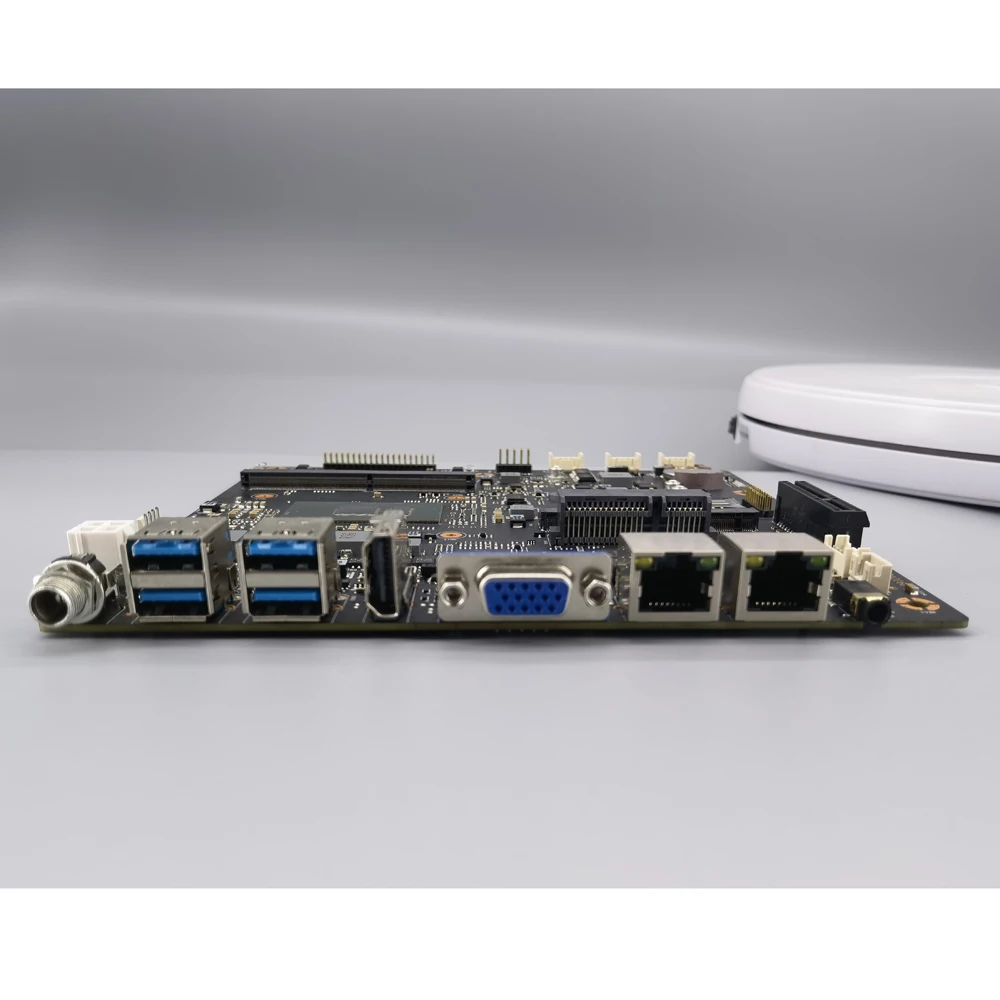

| Rear I/O | 1*DC-IN; 4*USB 3.0; 1*HDMI; 1*VGA; 2*RJ45 LAN; 1*Audio jack port |
| Form Factor | 170X170MM MINI-ITX |
| Operating Temp. | -20~65℃ |
| Storage Temp. | -40~80℃ |
| Operating humidity | 5% ~ 95% Relative Humidity,Non-condensing |
| Operating system | Win 7/8/10, Lin-ux |
Packaging
Company Information
Praise
FAQ
1.Q: What's the Minimum Order Quantity(MOQ)?
A: Just 1 piece is OK.
2.Q: Are you a factory or a trading company?
A: We are one of the professional computer manufacturers located in Shenzhen, China.
3.Q: What about the after-service?
A: Two-year warranty except human error. As for the following 2 years, we can repair it for free, but charge for parts is needed. please contact us at any time when necessary. We besides our professional technicians are at your service.
4.Q: Can you provide DIY/OEM/ODM service?
A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface ports and OS, the package box and housing(outer shell)as you wish, prices will be varied according to the quantity and specification.
5.Q: Can I have my logo printed on the computers?
A: Sure, MOQ is 100 pieces, or surcharge is required for less quantity.
6.Q: What’s your OEM Service for my bulk order?
A: 1). Put your brand on the device housing by laser printing
2). Put your own label below the device housing;
3). Supply Warranty Card in the package for free;
4). Make the booting interface with your company logo or brand for free.
7.Q: What Operating System is installed before delivery?
A: Our computers support all kinds of main operating systems. Most buyers prefer Windows and Linux. Unactivated Windows 7 for testing is pre-installed.
8.Q: How long is the lead time?
A: General speaking, 1-3 days for samples, 7 working days for bulk order.
9.Q: What's your payment term?
A: We offer EXW,FOB,CIF & CNF price and accept T/T, L/C,Western Union, Paypal & MoneyGram. For bulk order by T/T, Western Union and L/C, 30% deposit in advance and 70% balance before delivery. For OEM or ODM order, 50% deposit is required.
10.Q: Can you arrange the shipment? Since it's my first time to buy from China.
A: Yes, for small order, DHL/FedEx/TNT/UPS/EMS will be OK. Sea or air freight is also applicable for bulk order according to your requirement.
