Драйвер шагового двигателя DM542 Nema 23
- Category: Motor Driver >>>
- Supplier: Beijing,Haijie,Jiachuang,Technology,Co.,Ltd.
Share on:
Product Overview
Description
No | Specification | MIN | Typical value | MAX |
1 | Output current(peak) | 1.0A | -- | 4.2A |
2 | Input power (V DC) | 20 | 24/36 | 50 |
4 | Step pulse frequency | 0 | -- | 200KHZ |

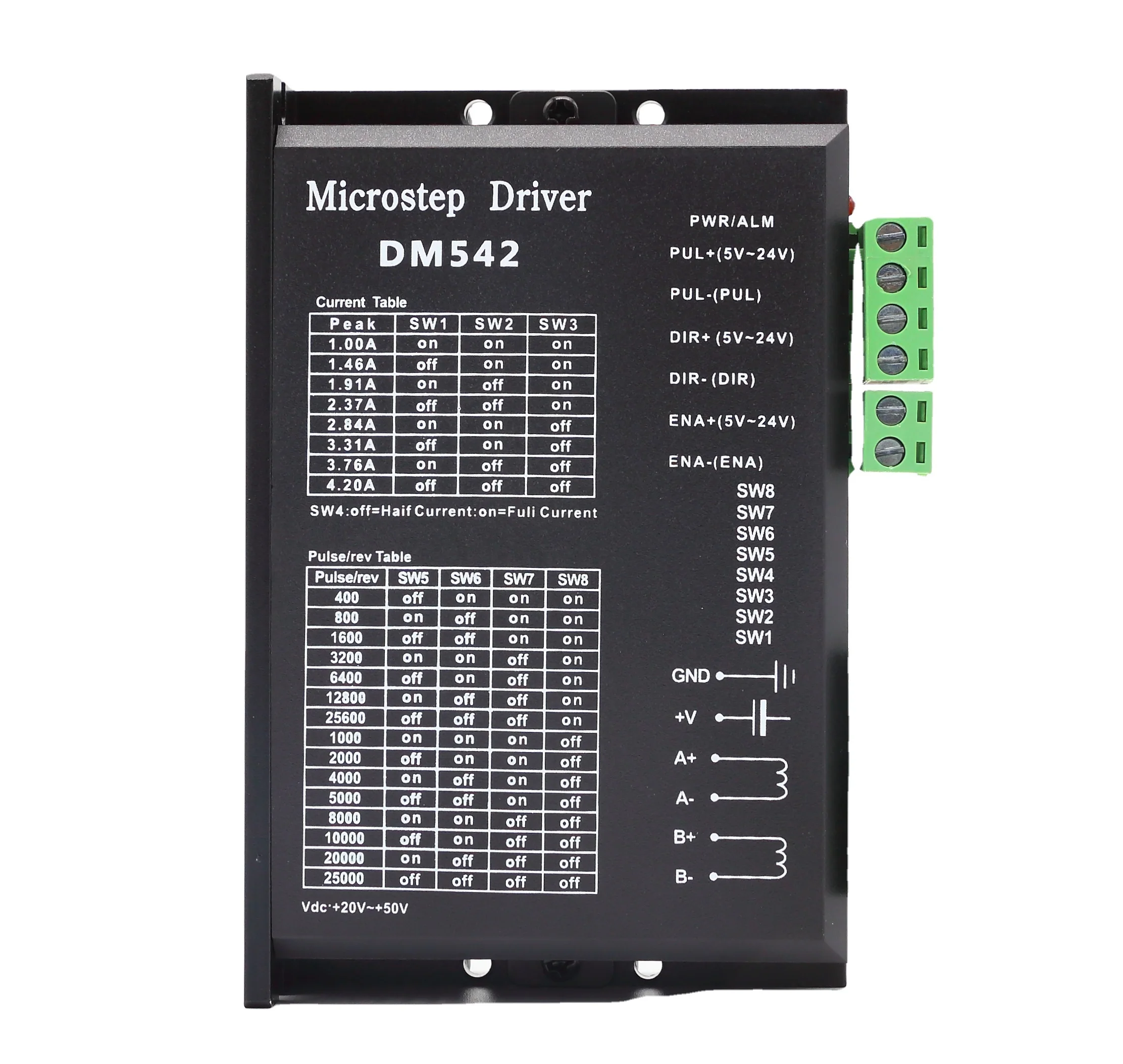

DM542 stepper motor driver
I. Product characteristics
Low price, high speed torque
Supply voltage up to 50V
Maximum output current can reach 4.2A
Three-state current control technology with low heating
Automatic halving of static current 0.4 S to 60 %
Two-phase stepper motor with 4, 6, 8 lines
Optical isolation differential signal input, maximum pulse response frequency up to 200 KHz
Subdivision accuracy 2,4,5,8,10,16,20,25,32,40,50,64,100,125,128 optional
Small size(118 x 75.5 X 34mm)
Convenient current setting, optional at eight
Four dials for 15 steps
Protection functions such as overpressure, short circuit etc..
Bipolar constant current PWM driver output
Suitable for all kinds of small and medium scale automation equipment and instruments, such as engraving machine, medical creep
pump,
Label striking machine, cutting machine, laser photo arrangement, plotter, CNC machine tool, automatic assembly equipment
Wait a minute. It works well in devices where users expect small noise and high speed
I. Product characteristics
Low price, high speed torque
Supply voltage up to 50V
Maximum output current can reach 4.2A
Three-state current control technology with low heating
Automatic halving of static current 0.4 S to 60 %
Two-phase stepper motor with 4, 6, 8 lines
Optical isolation differential signal input, maximum pulse response frequency up to 200 KHz
Subdivision accuracy 2,4,5,8,10,16,20,25,32,40,50,64,100,125,128 optional
Small size(118 x 75.5 X 34mm)
Convenient current setting, optional at eight
Four dials for 15 steps
Protection functions such as overpressure, short circuit etc..
Bipolar constant current PWM driver output
Suitable for all kinds of small and medium scale automation equipment and instruments, such as engraving machine, medical creep
pump,
Label striking machine, cutting machine, laser photo arrangement, plotter, CNC machine tool, automatic assembly equipment
Wait a minute. It works well in devices where users expect small noise and high speed
Wiring diagram
