Band 28 telecommunication duplexers for base station antenna RX TX duplexer 703 748MHz 758 803MHz
- Category: >>>
- Supplier: Xiamen Dianchang Communication Technology Co. Ltd.
Share on (1600313876006):
Product Overview
Description
Products Description

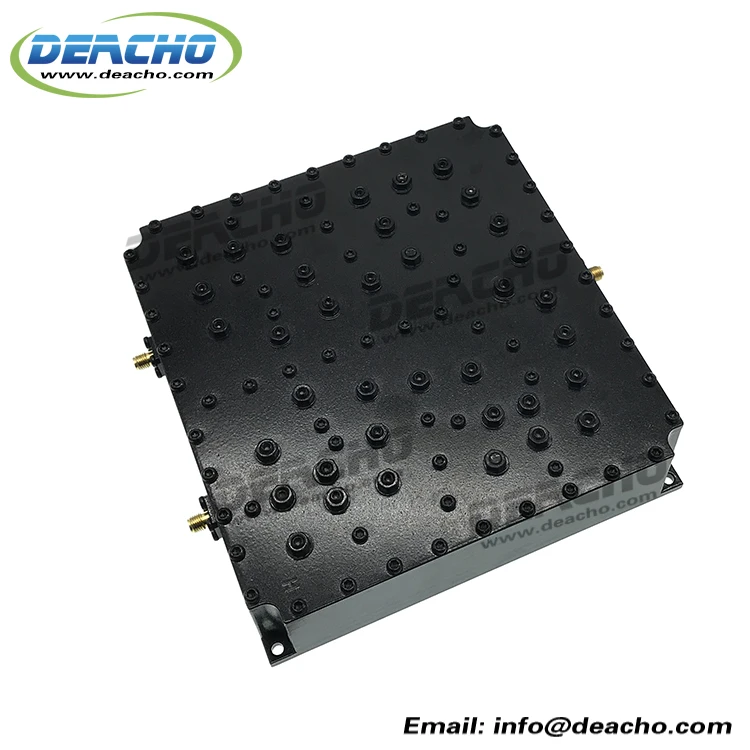

Band 28 telecommunication duplexers for base station antenna RX TX duplexer 703-748MHz 758-803MHz
Description.
Duplexer is a 3 ports device most commonly used to allow a transmitter and receiver to operate on different frequencies, to share a common antenna while operating simultaneously. The filters that make up the duplexer isolate the transmitter from the receiver
by doing two important functions--Function1, to filter out any transmitter noise sidebands that are being generated on the receive frequency, function 1 is the most important. Function2, to protect the receiver from transmitter carrier overload.
_____________________________________ TECHNICAL SPECIFICATIONS ______________________________________
Electricals | ||||
Part No. | DP-B28-SMA-G40-V2 | |||
Frequency range | RX: 703-748 MHz | TX: 758-803 MHz | ||
Insertion loss | <1.5dB | <1.5dB | ||
Ripple in band | <1dB | <1dB | ||
Return loss | >18dB | >18dB | ||
RX-TX Isolation | >60dB | |||
Power Rating | 20W | |||
Impedance | 50Ω | |||
Mechanicals | ||||
Connectors | SMA Female | |||
Operating temperature | -30℃~+70℃ | |||
Appearance | Surface spray paint black | |||
* Contact us for the detail information.
